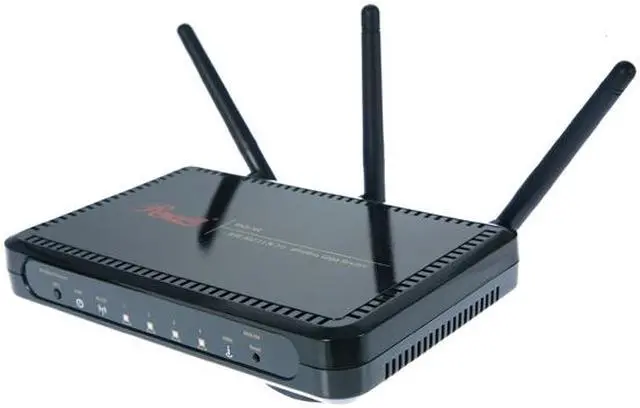

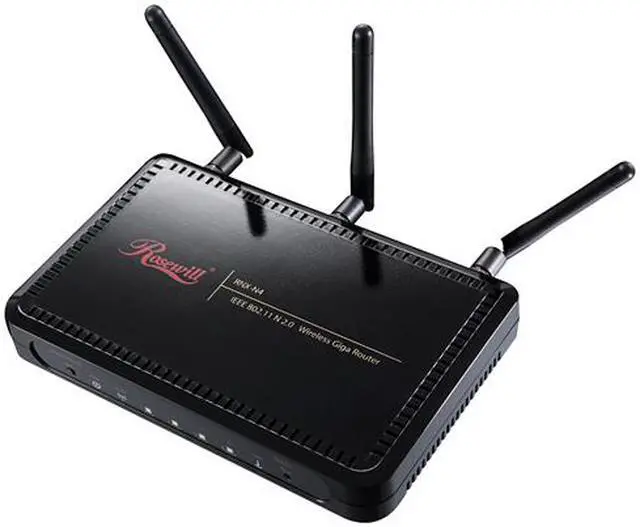

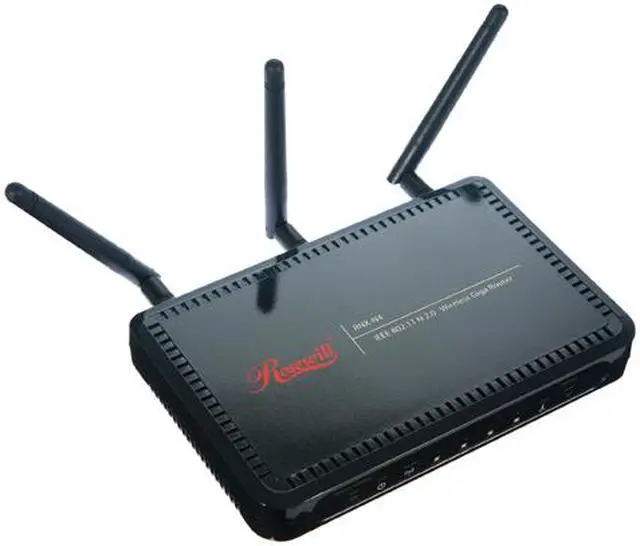

Rosewill RNX-N4 IEEE 802.11b/g/n Wireless-N 2.0 Gigabit Router (2T3R) Up to 300Mbps Data Rates/ WPA Personal and Enterprise, WPA2, 64 & 128 bit WEP, PSK, TKIP, AES Security/ Stream Engine Inside/ Blue LED Indicator

OUT OF STOCK.
  • UBICOM Faster CPU
  • Gigabit WANx1/ LANx4
  • 14x speed and 6x coverage than g
Specs
Reviews

Learn more about the Rosewill RNX-N4

Model
Brand Rosewill
Model RNX-N4
Details
Standards IEEE 802.11b/g, IEEE 802.11n Draft
Device Management Configuration: Web-based configuration (HTTP)
Firmware Upgrade: Upgrade firmware via web-browser
Administrator Setting: Administrator password change; Idle time out
Reset Setting: Reboot; Reset to Factory Default
System monitoring: Status and Statistics, Time Zone & NTP Client, Event Log, Email Alarm
Security 64/128 bit WEP Encryption
WPA Personal (WPA-PSK using TKIP or AES)
WPA Enterprise (WPA-EAP using TKIP)
802.1x Authenticator
WPA WPA2

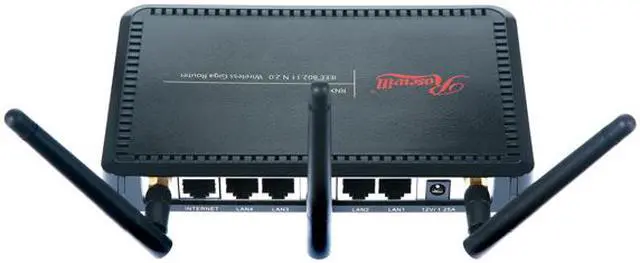

WAN Ports 1 x 10/100/1000M WAN; 4 x 10/100/1000M LAN

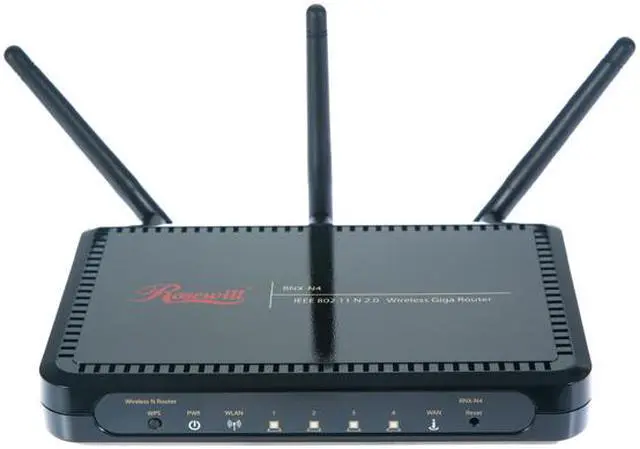

LEDs Power/ Status
WAN (Internet connection)
LAN1~LAN4 (10/100/1000Mbps)
WLAN (Wireless Connection)
Buttons (1 second for Reboot, 5 second for Reset to Factory Default )
Wireless Data Rates Up to 300Mbps
Modulation OFDM: BPSK, QPSK, 16-QAM, 64-QAM
DBPSK, DQPSK, CCK
Frequency Band 2.4 GHz - 2.484 GHz
Antenna 3 external 2 dBi SMA Antennas
Channels 11 CH (US, Canada), 13 CH (EU), 14 CH (Japan)
Transmitted Power IEEE 802.11n: 14~18dBm
IEEE 802.11g: 18dBm@6Mbps; 14dBm@54Mbps
IEEE 802.11b: 18dBm@1, 11Mbps
Receiver Sensitivity IEEE 802.11n: -65dBm~-90dBm
IEEE 802.11g: 6Mbps@ -90dBm; 54Mbps@ -74dBm
IEEE 802.11b: 1Mbps@ -91dBm; 11Mbps@ -90dBm
Interface Ethernet Port
VPN support IPSec, L2TP, and PPTP VPN pass-through
Power Adapter Power Supply: 90 to 240 VDC ± 10% (depends on different countries)
Device: 12 V/ 1.25A
Wireless Adapter included No
Dimensions 6.6" x 4.3' x 1.0"
Weight 0.65 lbs.
Temperature 0°C - 50°C (32°F - 122°F)
Humidity 15% - 95%, Non-Condensing
Features
Features Stream Engine Inside. Automatically detects media applications and gives them priority on the network.
Stream Engine uses hardware and software to improve the quality of media for your network without any configuration.
x4 built-in high performance Vitesse chipset 10/100/1000Mbps Gigabit Switch Ports (Auto-Crossover)
x3 high gain Omni directional 2 dBi antenna connecting for the best wireless signal.
Cool blue LED indicator shows the status of your network.
Quick hardware button for WPS setup to enhance the security.
Easy setup with Wi-Fi Protected Setup (WPS).
802.11b/g/n 2.0 provide further coverage, less dead spot and higher throughput.
MIMO technology throughput up to 300 Mbps for Ralink 2T3R solution.
Supports MIMO technology with 3 external 2 dBi SMA Antennas
Support Cisco CCS V1.0, V2.0 and V3.0 compliant WPS.
Wireless Multimedia Enhancements Quality of Service support (QoS) / enhanced power saving for Dynamic Networking
RNX-N4 is also fully compatible with all other IEEE 802.11b/g devices.
Supports DNS/ DDNS/ NAT/ hide SSID/ WDS/ Filter Scheduling/ Real time alert/ QoS/WMM
Firewall supports Virtual Server Mapping, DMZ, IP Filter, ICMP Blocking, SPI.
Support 802.1x authenticator, 802.11i (WPA/WPA2, AES), VPN pass-thru mechanisms.
Universal Plug and Play (UPnP)
Web configuration compatible with both IE and Firefox.
** Important notice:
1. You must reboot both the router and your house modem (from your ISP) after the first time you setup the router. After that, your modem can detect the new setting and works correctly.
2. Older PC/NB may have problems connecting (slow or fail to open the network) with RNX-N4/N4PS. This is due to a driver issue of your wireless client trying to connect to new N router. Please update the wireless driver of your PC/NB to solve this issue.
RNX-N4 is a gaming router which is not design for a used of wireless bridge.
It can only establish a bridge by wired instead of wireless.
Packaging
Package Contents 1 802.11n SOHO Router
1 12V/1.25A 90V~240V Power Adapter
3 2dBi 2.4GHz Dipole Antennas
1 QIG
1 CD (User's Manual)
Additional Information
Date First Available October 10, 2008
