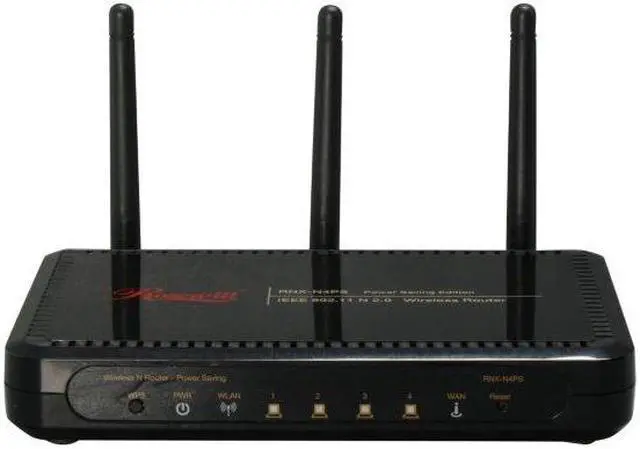

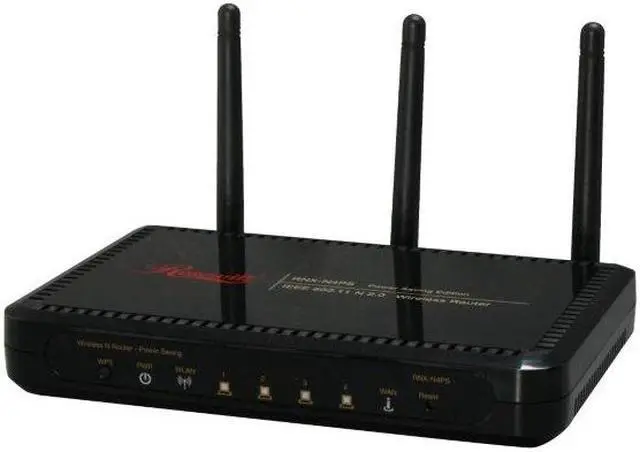

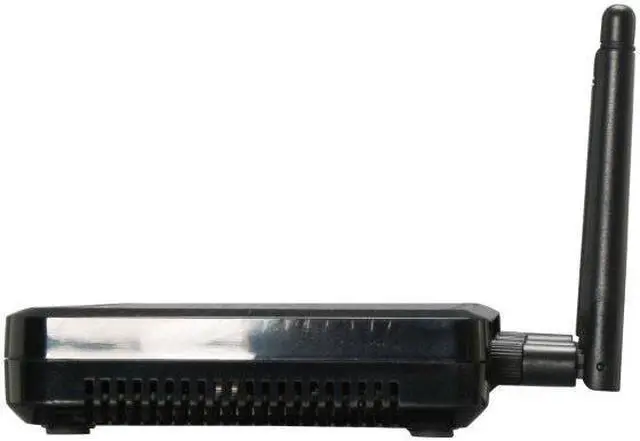

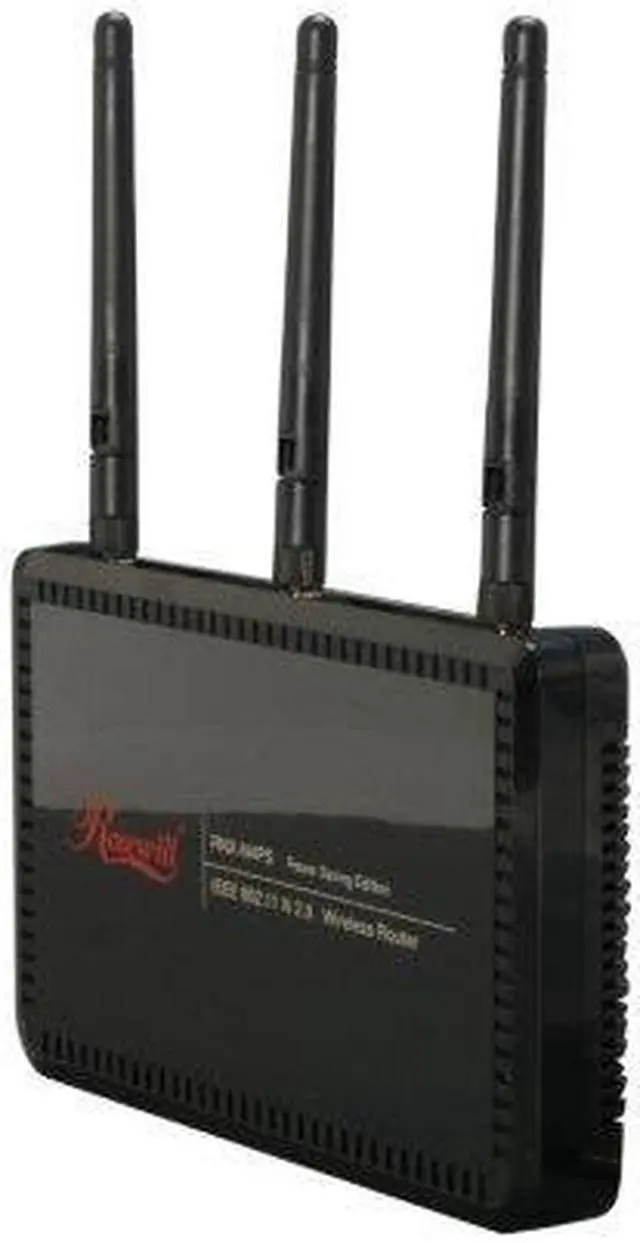

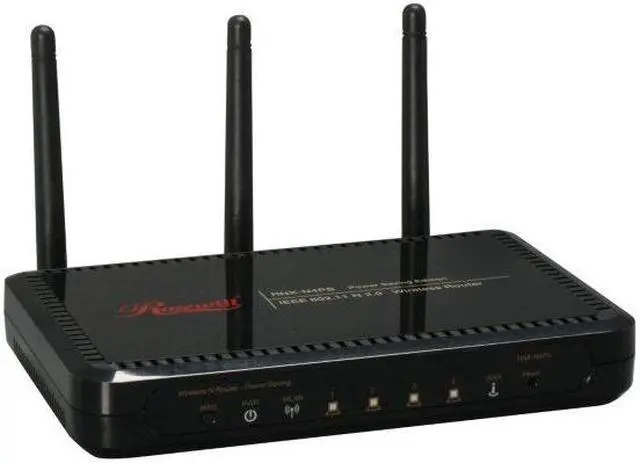

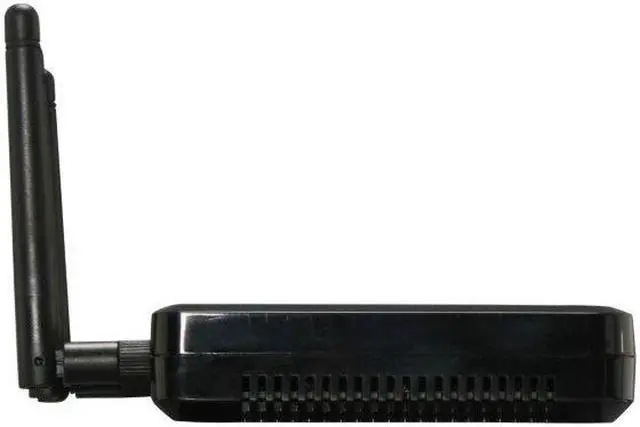

Rosewill RNX-N4PS IEEE 802.11b/g/n Wireless-N 2.0 Router (2T3R) Up to 300Mbps Data Rates/ WPA/WPA2 (AES, 64,128-WEP with shared-key authentication), WPS/ Power Saving Solution/ Hardware WPA button

OUT OF STOCK.
  • 802.11b/g/n 2T3R
  • Power Saving Solution
  • 12x speed and 6x coverage than g
Specs
Reviews

Learn more about the Rosewill RNX-N4PS

Model
Brand Rosewill
Model RNX-N4PS
Details
Standards IEEE 802.3/3u, IEEE 802.11b/g, IEEE802.11n Draft 2
Device Management Web configuration compatible with both IE and Firefox.
Security WPA/WPA2 (AES, 64,128-WEP with shared-key authentication), WPS.
WPA WPA2
WAN Ports 1 x 10/100M WAN; 4 x 10/100M LAN
LEDs Power/ Status
WAN (Internet connection)
LAN1~LAN4 (10/100Mbps)
WLAN (Wireless Connection)
Wireless Data Rates Up to 300Mbps
Modulation OFDM: BPSK, QPSK, 16-QAM, 64-QAM DBPSK, DQPSK, CCK
Frequency Band 2.4 GHz - 2.484 GHz
Antenna 3 x high gain Omni directional 2 dBi antenna connecting for the best wireless signal.
Channels 11 CH (US, Canada), 13 CH (ETSI), 14 CH (Japan)
Transmitted Power IEEE802.11N: MCS 0~15@ >16dBm
IEEE802.11g: 6~54 Mbps@ 16dBm
IEEE802.11b: 1, 11Mbps@ 19dBm
Receiver Sensitivity IEEE802.11n(3RX):
MCS0/8 @ -91dBm
MCS7/15@ -74dBm
IEEE802.11g (3RX):
6Mbps@ -92dBm
54Mbps@ -75dBm
IEEE802.11b (1RX):
1Mbps@ -93dBm
11Mbps@ -91dBm
Interface Ethernet Port
VPN support IPSec, L2TP, and PPTP VPN pass-through
Power Adapter Power Supply: 200 to 240 VDC +/- 10% (ETSI), 100 to 120 VDC +/- 10% (FCC) Device: 12V/1A

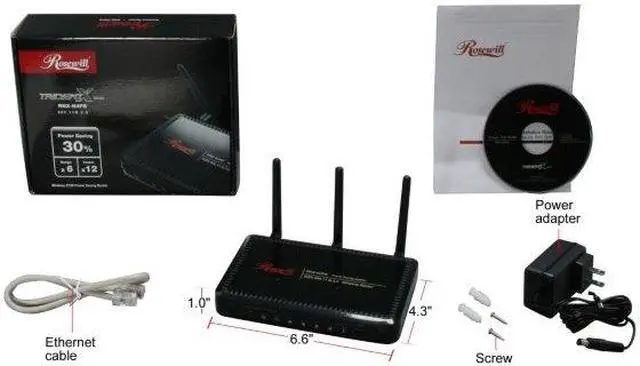

Dimensions 6.6" x 4.3" x 1.0"
Weight 0.6 lbs.
Temperature 0°C - 45°C (32°F - 113°F)
Humidity 15% - 95%, Non-Condensing
Features
Features Chipset: Ralink 2880 + Ralink 2820.

12x speed and 6x coverage over wireless G.

x 4 built-in 10/100Mbps Fast Ethernet Switch Ports (Auto-Crossover).

802.11b/g/n 2.0 provide further coverage, less dead spot and higher throughput.

MIMO technology thourghput up to 300 Mbps for Ralink 2T3R solution.

Supports MIMO technology with 3 external 2 dBi SMA Antennas

Support Cisco CCS V1.0, V2.0 and V3.0 compliant WPS.

Wireless Multimedia Enhancements Quality of Service support (QoS) / enhanced power saving for Dynamic Networking.

Firewall supports Virtual Server Mapping, DMZ, IP Filter, ICMP Blocking, SPI.

Universal Plug and Play (UPnP).
Additional Information
Date First Available October 10, 2008
