How many SFF8643 connections are there for the SAS drives? (Connections for HBA to backplane, not drive slots.)

The product specifications mention that there are SFF8643 connections with SGPIO for the hot-swap drive bays.

What is the max cpu cooler height that can fit in this chassis?

The max CPU cooler height that can fit in this chassis is 115mm with the GPU holder and 148mm without the GPU holder.

Does this come with a rail kit, or is that separate?

The chassis comes with a pre-installed rail kit.

$499^.99

Limit 999999 per customer.

Make an offer

Price alert

Add to wish list

Sold by Newegg

Shipped by Newegg

Best Sellers

Rosewill Superstore

4.7 (1,384 total ratings)

$499^.99
+ FREE SHIPPING

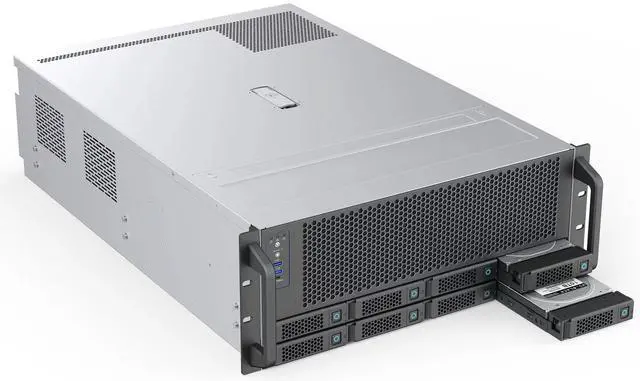

Main image of Rosewill 4U Server Chassis|Supports up to 4 GPUs|8 Hot-Swap 3.5"/2.5" SATA/SAS up to 12Gbps|E-ATX Compatible|3x 12038 Hot-Swap Fans, 2 Rear 8038 Fans|USB 3.2 Type-C|With Rail Kit|Ideal for AI Servers

Alt view image 2 of 11 - Rosewill 4U Server Chassis|Supports up to 4 GPUs|8 Hot-Swap 3.5"/2.5" SATA/SAS up to 12Gbps|E-ATX Compatible|3x 12038 Hot-Swap Fans, 2 Rear 8038 Fans|USB 3.2 Type-C|With Rail Kit|Ideal for AI Servers

Alt view image 3 of 11 - Rosewill 4U Server Chassis|Supports up to 4 GPUs|8 Hot-Swap 3.5"/2.5" SATA/SAS up to 12Gbps|E-ATX Compatible|3x 12038 Hot-Swap Fans, 2 Rear 8038 Fans|USB 3.2 Type-C|With Rail Kit|Ideal for AI Servers

Alt view image 4 of 11 - Rosewill 4U Server Chassis|Supports up to 4 GPUs|8 Hot-Swap 3.5"/2.5" SATA/SAS up to 12Gbps|E-ATX Compatible|3x 12038 Hot-Swap Fans, 2 Rear 8038 Fans|USB 3.2 Type-C|With Rail Kit|Ideal for AI Servers

Alt view image 5 of 11 - Rosewill 4U Server Chassis|Supports up to 4 GPUs|8 Hot-Swap 3.5"/2.5" SATA/SAS up to 12Gbps|E-ATX Compatible|3x 12038 Hot-Swap Fans, 2 Rear 8038 Fans|USB 3.2 Type-C|With Rail Kit|Ideal for AI Servers

Alt view image 6 of 11 - Rosewill 4U Server Chassis|Supports up to 4 GPUs|8 Hot-Swap 3.5"/2.5" SATA/SAS up to 12Gbps|E-ATX Compatible|3x 12038 Hot-Swap Fans, 2 Rear 8038 Fans|USB 3.2 Type-C|With Rail Kit|Ideal for AI Servers

Alt view image 7 of 11 - Rosewill 4U Server Chassis|Supports up to 4 GPUs|8 Hot-Swap 3.5"/2.5" SATA/SAS up to 12Gbps|E-ATX Compatible|3x 12038 Hot-Swap Fans, 2 Rear 8038 Fans|USB 3.2 Type-C|With Rail Kit|Ideal for AI Servers

Alt view image 8 of 11 - Rosewill 4U Server Chassis|Supports up to 4 GPUs|8 Hot-Swap 3.5"/2.5" SATA/SAS up to 12Gbps|E-ATX Compatible|3x 12038 Hot-Swap Fans, 2 Rear 8038 Fans|USB 3.2 Type-C|With Rail Kit|Ideal for AI Servers

Alt view image 9 of 11 - Rosewill 4U Server Chassis|Supports up to 4 GPUs|8 Hot-Swap 3.5"/2.5" SATA/SAS up to 12Gbps|E-ATX Compatible|3x 12038 Hot-Swap Fans, 2 Rear 8038 Fans|USB 3.2 Type-C|With Rail Kit|Ideal for AI Servers

Alt view image 10 of 11 - Rosewill 4U Server Chassis|Supports up to 4 GPUs|8 Hot-Swap 3.5"/2.5" SATA/SAS up to 12Gbps|E-ATX Compatible|3x 12038 Hot-Swap Fans, 2 Rear 8038 Fans|USB 3.2 Type-C|With Rail Kit|Ideal for AI Servers

Alt view image 11 of 11 - Rosewill 4U Server Chassis|Supports up to 4 GPUs|8 Hot-Swap 3.5"/2.5" SATA/SAS up to 12Gbps|E-ATX Compatible|3x 12038 Hot-Swap Fans, 2 Rear 8038 Fans|USB 3.2 Type-C|With Rail Kit|Ideal for AI Servers

Shop All Rosewill Products

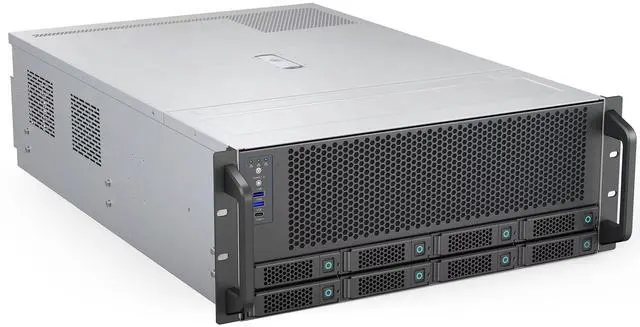

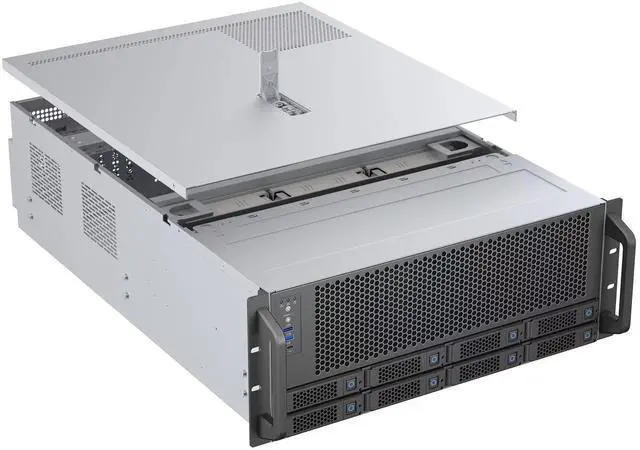

Rosewill 4U Server Chassis|Supports up to 4 GPUs|8 Hot-Swap 3.5"/2.5" SATA/SAS up to 12Gbps|E-ATX Compatible|3x 12038 Hot-Swap Fans, 2 Rear 8038 Fans|USB 3.2 Type-C|With Rail Kit|Ideal for AI Servers

(2) Write a Review

AI-Optimized: Designed to support up to 4 GPUs, it is perfect for handling intensive AI and machine learning tasks, ensuring high performance and scalability for advanced computational needs.
Intelligent Storage: Equipped with 8 hot-swappable 3.5" SATA/SAS drives (12Gbps), featuring SGPIO and temperature control, it ensures efficient data management and reliable storage performance.

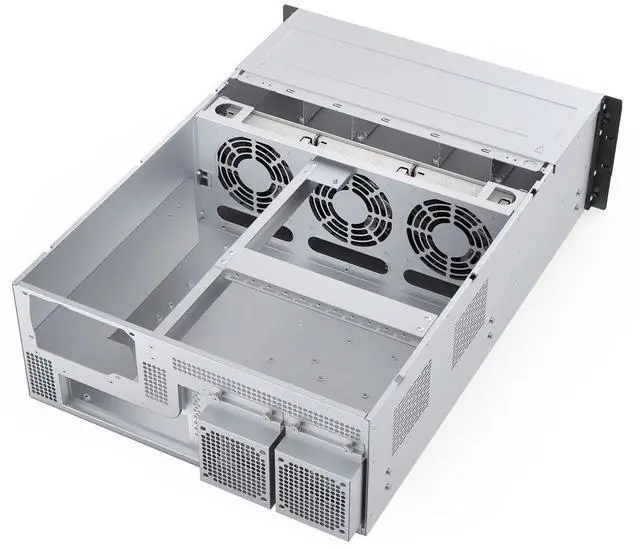

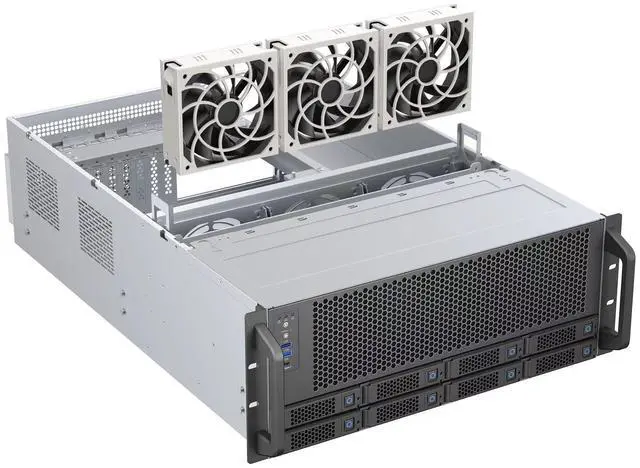

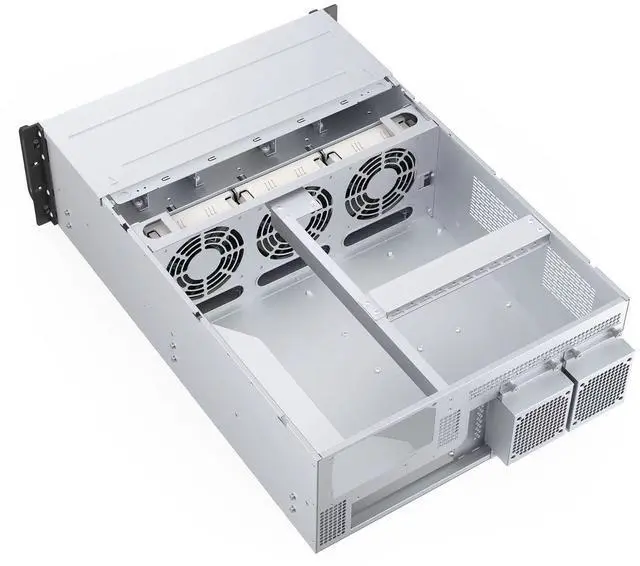

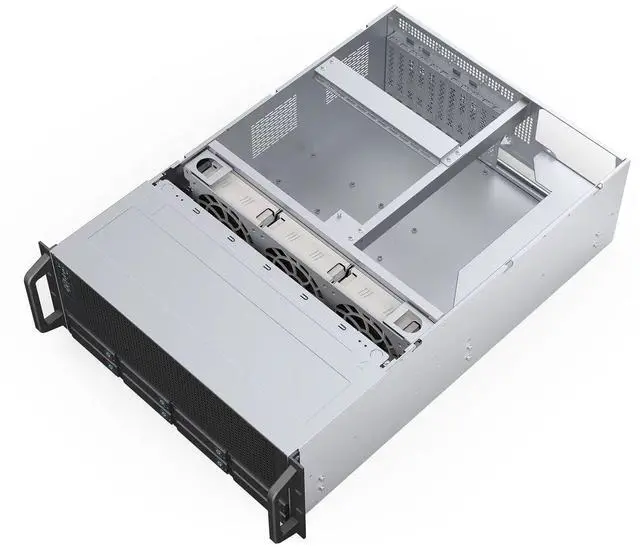

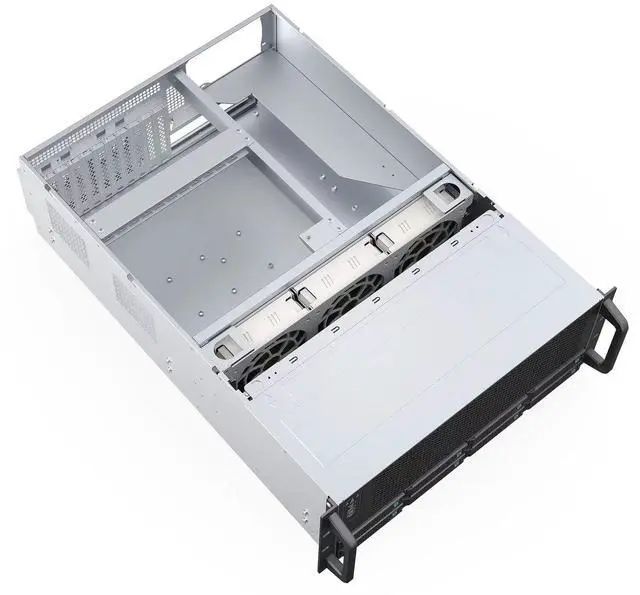

Robust Cooling: The system includes 3x 12038 hot-swap PWM fans and 2x 8038 rear fans, providing advanced thermal management to maintain optimal temperatures and ensure stable operation under heavy workloads.

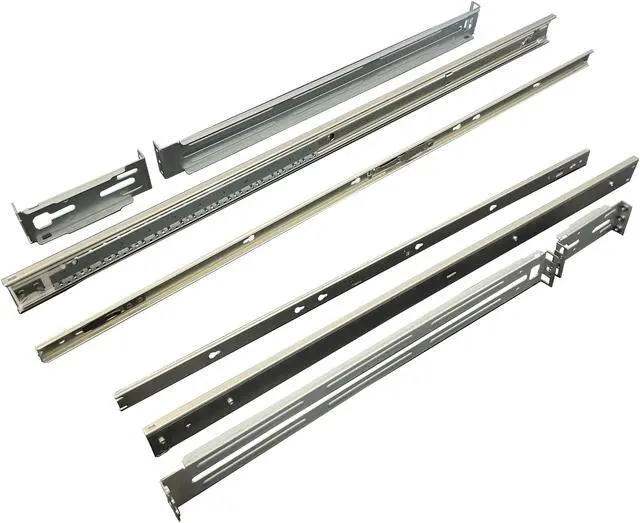

Rack-Ready: Comes with a pre-installed rail kit, allowing for quick and easy installation in standard 19-inch server racks, making it ideal for data center environments and enterprise setups.
Versatile Connectivity: Offers USB 3.0 and the latest USB 3.2 Type-C ports, ensuring high-speed data transfer and compatibility with a wide range of peripherals and devices for enhanced connectivity options.

View User Manual Details

This item is covered under the Manufacturer Only Return Policy.

Overview

Specs

Reviews (2)

Any questions? Our AI beta will help you find out quickly.

Try me now

Best Seller Ranking	#18 in Server Chassis

Model
Brand	Rosewill
Model	RSV-AI01

Details
Chassis Type	Rackmount
Form Factor	4U
Color	Black / Silver
Case Material	SGCC, 1.0mm
Motherboard Compatibility	12" x 13" E-ATX; 12" x 9.6" ATX, 11.2" x 8.2" Mini-ATX and below
Power Supply	Supports ATX power supply
LED Indicators	Power status, HDD activity, 2 x LAN activity

Expansion
Hot-Swap Drive Bays	8 (SFF8643 with SGPIO and Temperature Control)
Internal 2.5" Drive Bays	4
Expansion Slots	11
Max CPU Cooler Height	With GPU holder: 115mm / Without GPU holder: 148mm
Max GPU Length	Max. Length: With fan 330mm / Without fan: 400mm Max. Height: With GPU holder: 117mm / Without GPU holder: 154mm
Max PSU Length	250 mm PS2 (ATX)

Ports
Front Ports	2 x USB 3.0 / 1 x USB 3.2 Type C

Cooling System

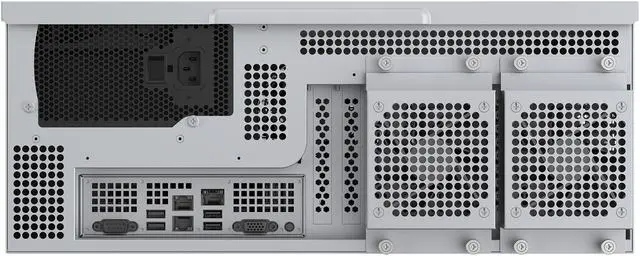

Fan Options	Middle: hot swap 3 x 12038 PWM (3 x two ball bearing fan included) Rear: 2 x 8038 (2 x two ball bearing fan included)

Features

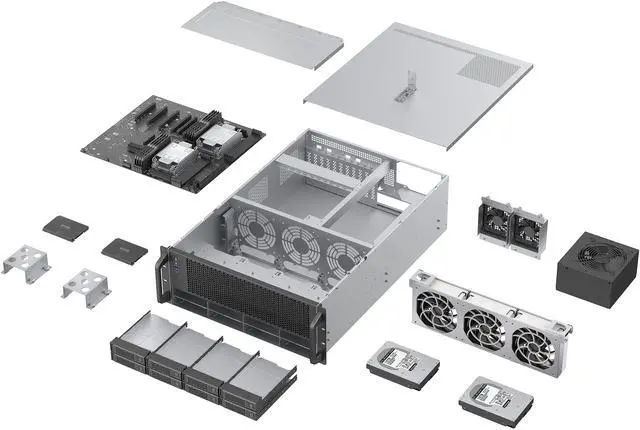

Features	Rosewill 4U Server Chassis: A Powerful Platform for AI and Gaming The Rosewill 4U Server Chassis is a high-performance solution designed to handle demanding workloads, particularly in AI and gaming applications. This robust 4U rackmount case supports up to four GPUs, ensuring optimal performance for intensive AI training and inference tasks. Equipped with eight hot-swappable 3.5" SATA/SAS drive bays and four 2.5" SSD, the chassis offers ample storage capacity for large datasets and virtual machines. The 12Gbps interface and SGPIO support enable high-speed data transfer and intelligent drive management. To keep components cool under heavy load, the chassis features a robust cooling system with three 12038 hot-swap PWM fans and two 8038 fans. This ensures optimal airflow and temperature control, preventing thermal throttling and system instability. The versatile connectivity options include USB 3.0, the latest USB 3.2 Type-C ports, and front panel indicators for HDD and three LAN statuses, providing flexible peripheral support and system monitoring. Designed for easy deployment, the chassis comes with a pre-installed rail kit, making it simple to mount in standard 19-inch racks. This all-in-one solution is ideal for AI servers, game servers, and small businesses seeking a powerful and reliable platform.

Dimensions & Weight
Dimensions (H x W x D)	437.5mm x 176.5 mm x 650mm (17.22" x 6.95" x 25.60")
Weight	17.00kg (37.48 lbs.)
