Server Components
Rosewill's line of server components help you build or improve your own dedicated server.

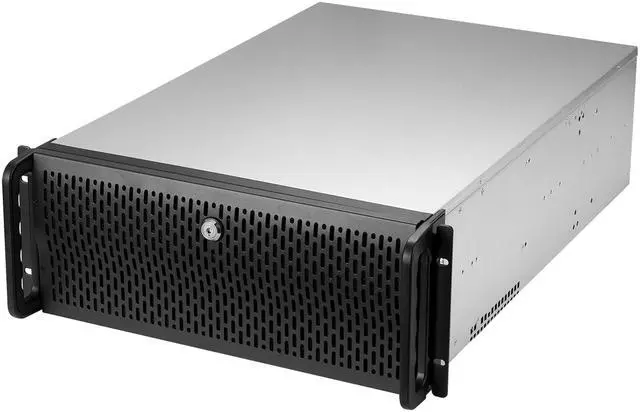

RSV-R4000U 4U Server Chassis
Spacious Chassis Design

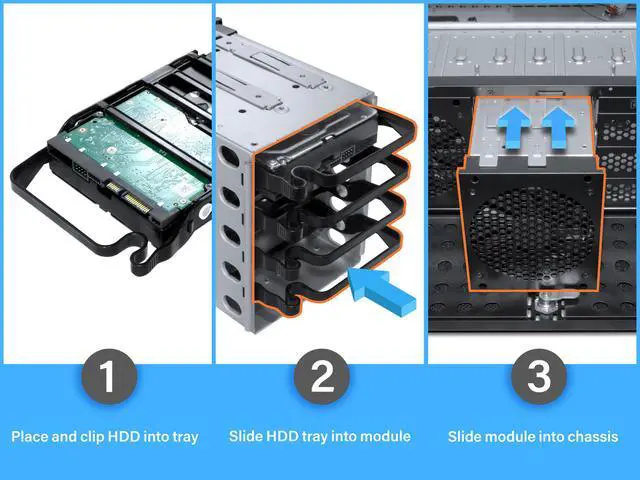

The 4U rackmount server case is designed to allow you to install up to (8) 3.5" HDDs and an additional (3) 5.25" devices.
Quiet and Effective Case Fans

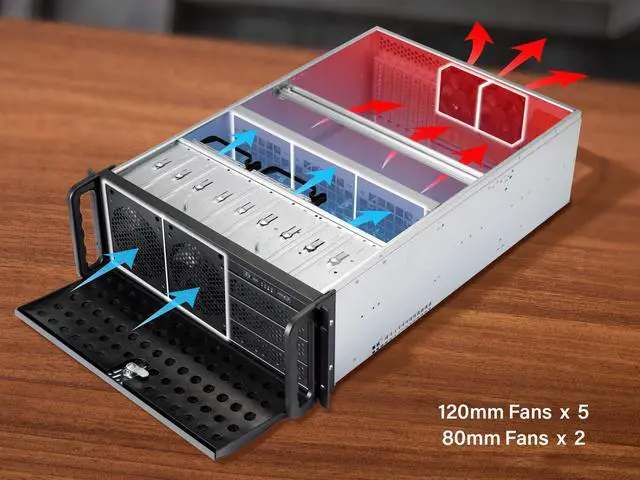

The server chassis comes equipped with (5) front 120mm cooling fans and (2) rear 80mm fans to prevent overheating.
Intuitive Front Panel
Server case features LED indicators for easy Power, HDD and LAN status monitoring as well as (2) USB 3.0 ports.
Highlights:
- Can carry up to 8 HDDs
- 7 pre-installed cooling fans
- E-ATX compatibility
- 7 expansion slots
- LED status indicators for HDD, Power, and LAN
- 2 USB 3.0 ports
- Front Panel lock
Large Capacity
The 4U rackmount server case is designed to allow you to install up to (8) 3.5" HDDs and an additional (3) 5.25" devices.
Superior Cooling
7 total pre-installed case fans keep your server chassis and hard drives cool to avoid overheating.
PCI Expansion Slots
Expand your server case's functionality by installing up to 7 PCI expansion cards.
Added Security
Built-in front panel lock provides an added layer of security to your server chassis.
 RSV-R4000U |
 RSV-L4000U |
 RSV-L4500U |
 RSV-L4412U |
 RSV-R4100U |
|
| U-Type | 4U | 4U | 4U | 4U | 4U |
|---|---|---|---|---|---|
| 2.5" Drive Bays | 0 | 0 | 0 | 12 (or 12 3.5") | 0 |
| 3.5" Drive Bays | 8 | 8 | 15 | 12 (or 12 2.5") | 7 |
| 5.25" Drive Bays | 3 | 3 | 0 | 0 | 2 |
| 80mm Fans | 2 | 2 | 2 | 2 | 2 |
| 120mm Fans | 2 | 5 | 6 | 3 | 1 |
| Expansion Slots | 7 | 7 | 7 | 7 | 7 |
| USB 3.0 | 2 | 2 | 2 | 2 | 2 |

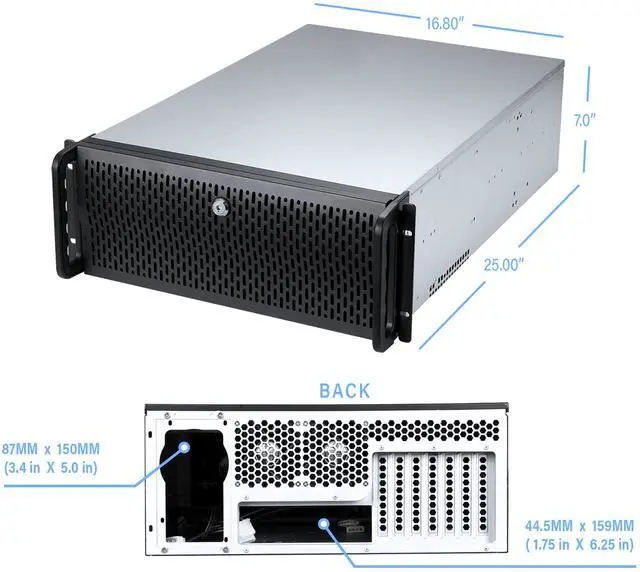

| Width x Height x Depth (Chassis) | 16.8" x 7" x 21.1" | 16.8" x 7" x 25" | 16.8" x 7" x 25" | 16.8" x 7" x 25" | 16.9" x 7" x 17.8" |
| Width x Height x Depth (Chassis+Bracket+Handle) | 19.1" x 7" x 23.2" | 19.1" x 7" x 27.2" | 19.1" x 7" x 27.2" | 19.1" x 7" x 27.2" | 16.9" x 7" x 19.3" |
| Weight (lbs) | 26.7 | 30.4 | 31.1 | 32.6 | 15.4 |
