Brand | Rosewill |
---|---|
Model | RSV-S4-6G |
Drive | SATA 1.5 & 3Gb/s |
---|---|

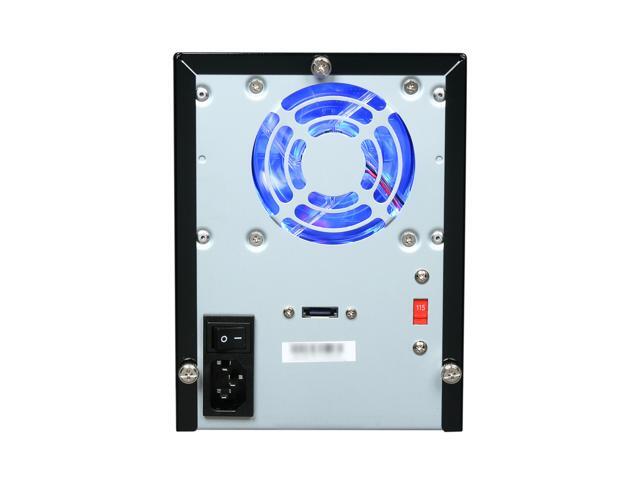

External I/O | eSATA with Port Multiplier |
RAID Levels | RAID 0, 1, 10, 5, 5+spare, Spanning and JBOD (via Bundled RR622 RAID Controller Card) |
3.5" Drive Bays | 4 x Hot-Swappable |
---|
OS Supported | Windows 2000, XP, Vista, Windows Server 2003, Windows 7, Server 2013 and MAC OS 10.6 or above |
---|
Power Supply | 150W (115V - 230V Switchable) |
---|
Features | Chipset: SiliconImage 3726 RocketRAID 622: Marvell 88SE9128 Maximum Capacity: 16TB (4 TB per Bay) Cooling Fan: 3.15" Ball Bearing Fan Backward compatible with PCIe 1.0. Bundled with RR622 RAID controller card for over 200MB/s RAID 5 performance. RR622 RAID Controller card transfer rate up to SATA III (6Gb/s). Drive Interface: 4 x 3.5" SATA I / SATA II / SATA III |
---|
Dimensions | 5.30" x 7.10" x 10.00" |
---|---|
Weight | 5.90 lbs. |

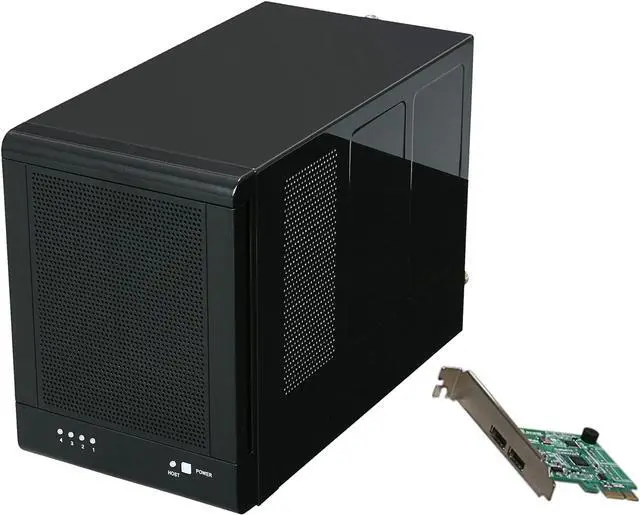

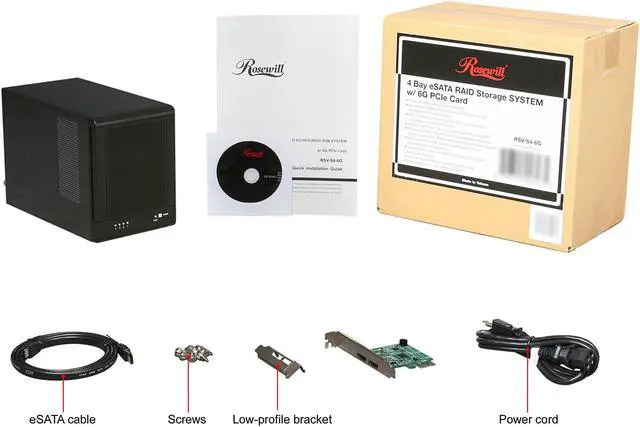

Package Contents | RSV-S4-6G RocketRAID 622 PCI-E 2.0 Controller card Low profile bracket SATA cable Power cable Screw Sets |
---|
Date First Available | March 08, 2011 |
---|

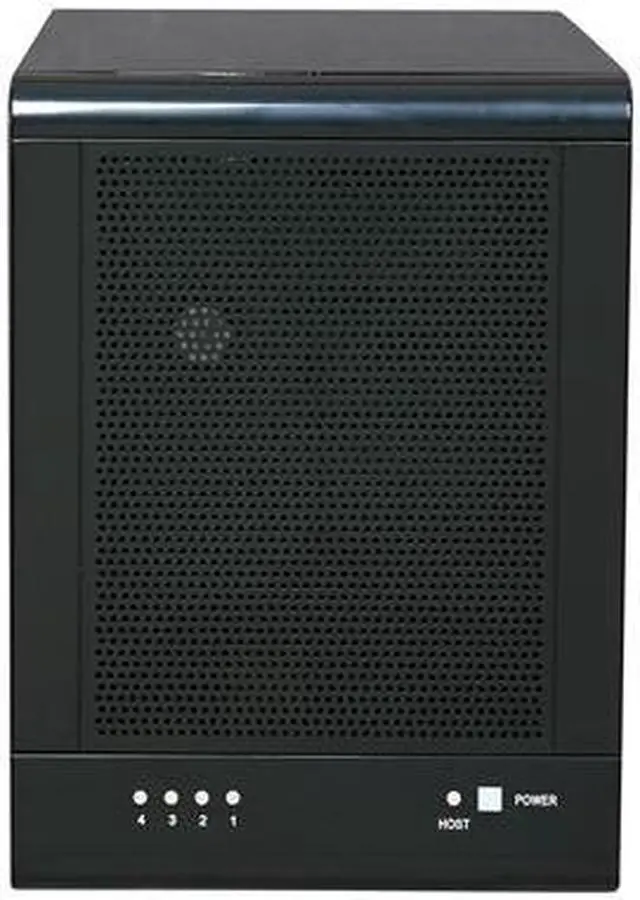

Pros: Multiplexer card included in bundle also has low profile adapter. Drives stay cool. Quick setup and installation. Each drive has an independent access led.
Cons: Needs sleds or rails to secure drives in a hot-swap configuration. Screws require opening the case.
Overall Review: Attached to a FreeNAS (FreeBSD) appliance. FreeNAS sees through the RocketRaid card and presents four drives to the OS. Allows the use of the more advanced software RAID-Z features of ZFS. Enclosure has been in use for 8 months without issue.
