RUCKUS R770 Indoor Access Point, Very-High-Performance Tri-Radio Wi-Fi 7 2x2:2 | 4x4:4 | 2x2:2 Indoor Access Point with 12.22 Gbps max rate and Embedded IoT | 901-R770-US00
- Ruckus R770 Leads the Wi-Fi 7 Revolution: Ultra-fast, low latency wireless connections with improved capacity and efficiency. Ruckus Wi-Fi 7 implementation is further enhanced by RUCKUS BeamFlex+ patented smart, directional antenna technology and RUCKUS AI to optimize network performance
- Superior Throughput and Capacity: Ruckus BeamFlex+ on all three bands dramatically improves throughput and range
- Adaptive Resilience: Multi Link Operation (MLO) improves reliability by transmitting data across multiple links to prevent interruptions
- Reduced Latency: Ruckus Wi-Fi 7 enhancements including smart QoS mirroring deliver the deterministic latency applications need
- Advanced Security Simplified: Ruckus exclusive DPSK3 adds the power of DPSK to WPA3 combining advanced security with the flexibility and ease of use of dynamic passphrase to secure network access
+
+
Overview
Specs
Reviews
See all Q & A
Any questions? Ask CelesteSM will help you find out quickly.
Try me now
Ruckus Wireless 901-R770-US00 Wi-Fi 7 IEEE 802/11a/b/g/n/ac/ax/be Indoor Wireless Access Point with 12.22 Gbps Data Rate, SU-MIMO, MU-MIMO, BeamFlex+ Adaptive Antennas and 1 x 1/ 2.5. 5/10 GbE Ethernet PoE Port.
Warranty & Returns
Warranty, Returns, And Additional Information
Warranty
- Limited Warranty period (parts): 1 year
- Limited Warranty period (labor): 1 year
- Read full details
Return Policies
- Return for refund until: January 31, 2027
- Return for replacement until: January 31, 2027
- This item is covered by Newegg.com's Extended Holiday Return Policy.
- Read full return policy for details.
We want to ensure your holiday shopping this year is hassle-free. That’s why we’re automatically extending our return policies on almost every product! For purchases placed between November 1st, 2026 and December 31, 2026 you will have until January 31, 2027 to return your product.
Manufacturer Contact Info
- Manufacturer Website
- Support Phone: 1-650-265-4200
- Support Website
- View other products from RUCKUS WIRELESS
LOADING...
LOADING...
The RUCKUS R770 is a tri-radio Wi-Fi 7 indoor access point with a listed maximum wireless data rate of 12.22 Gbps, designed for organizations that need high-capacity connectivity across 2.4, 5, and 6 GHz bands. It supports up to 1,024 clients per AP and includes BeamFlex+ adaptive antennas.
Recommended For
- University and school IT teams serving busy lecture halls or campus buildings where many students connect laptops and tablets at once, and interference or inconsistent coverage disrupts classes.
- IT teams for event spaces, race facilities, or other crowded venues that need Wi-Fi to stay usable amid changing radio interference, roaming users, and heavy device traffic.
- Office, retail, hospitality, or multi-dwelling-property network operators deploying managed indoor access points and needing capacity for many concurrent users across shared spaces.
- Network administrators upgrading a wired, multi-access-point network who want Wi-Fi 7 and onboard IoT radio support for devices such as BLE or Zigbee endpoints.
Spec Summary
| Attribute | Value |
|---|---|
| Best For | Indoor Wi-Fi 7 deployments needing tri-band wireless access, support for up to 1,024 clients, and Zigbee and BLE connectivity |
| Wireless Standards And Capacity | Supports IEEE 802.11a/b/g/n/ac/ax/be and up to 36 SSIDs per AP |
| Wireless Performance | Tri-band operation across 2.4, 5, and 6 GHz with up to 12.22 Gbps wireless data rate and 4K QAM modulation |
| Radio Configuration And Antennas | SU-MIMO and MU-MIMO with 2x2 on 2.4 and 6 GHz and 4x4 on 5 GHz; BeamFlex+ adaptive antennas provide polarization diversity and over 4,000 antenna patterns per band |
| Channels And Transmit Power | Channels: 2.4 GHz 1–13, 5 GHz 36–64, 100–144, and 149–165, and 6 GHz 1–233; transmit power up to 26 dBm on 2.4 GHz, 28 dBm on 5 GHz, and 25 dBm on 6 GHz |

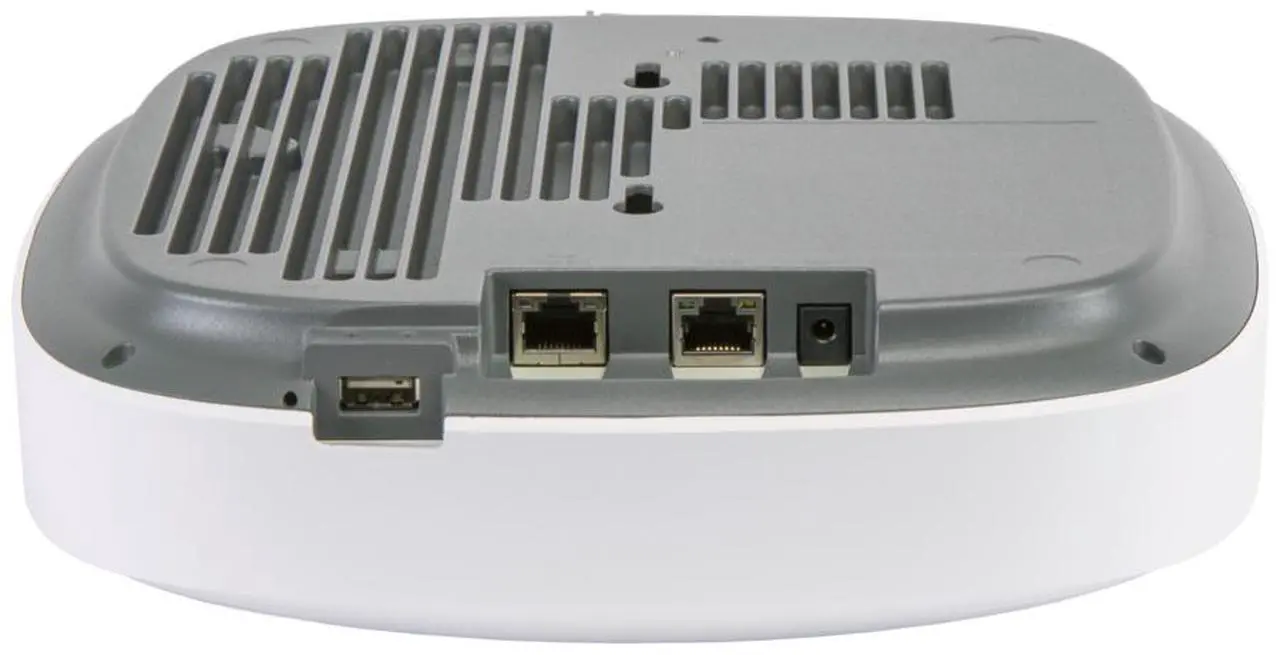

| Network Connectivity And VLAN | One 100M/1/2.5/5/10G Ethernet PoE port and one 10M/100M/1G Ethernet port; supports 802.1Q VLAN per BSSID or dynamically per user via RADIUS, VLAN pooling, and port-based VLANs |
| Security | Supports WEP, WPA, WPA-PSK, WPA2, WPA2-PSK, WPA3, WPA3-SAE, OWE, PMF (802.11w), Dynamic PSK, and WIPS/WIDS |
| Management | Web-based device management |
| IoT And Location | Zigbee and BLE in the 2.4 GHz ISM band; GNSS geolocation in receive-only mode on L1 and L5 bands |
| Power | Maximum consumption is 32 W with DC power or 802.3bt5, 40 W with PoH or uPoE, and 25.5 W with 802.3at |
| Physical Specifications | White indoor access point measuring 9.2 × 9.2 × 2.3 inches and weighing 3 lb; package includes a mounting clip |
| Compliance | Includes listed safety, medical, immunity, railway EMC and shock/vibration, plenum, human safety/RF exposure, WEEE/RoHS, and transportation compliance standards |
| Model Identifiers | Ruckus R770; model and part number 901-R770-US00 |
