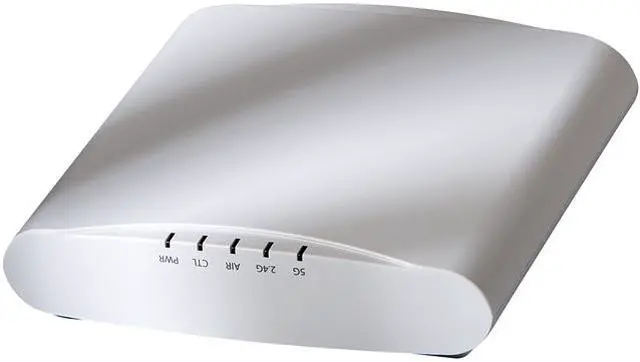

RUCKUS 901-R510-XX00 Zoneflex R510 Smart Wi-Fi Wave 2 802.11ac Access Point (Power Adapter Sold Separately)

Overview

Specs

Reviews

Any questions? Our AI beta will help you find out quickly.

Try me now

Zoneflex r510 dual band 802.11ac wave 2 indoor access point, beamflex, 2x2:2, 1- _DELETE_

Details
Standards	IEEE 802.11ac, IEEE 802.11a/b/g/n
Wireless Data Rates	802.11n/ac: 6.5 Mbps - 173.4 Mbps (20 MHz) 13.5 Mbps - 400 Mbps (40 MHz) 29.3 Mbps - 867 Mbps (80 MHz) 802.11a: 54, 48, 36, 24, 18, 12, 9 and 6 Mbps 802.11b: 11, 5.5, 2 and 1 Mbps 802.11g: 54, 48, 36, 24, 18, 12, 9 and 6 Mbps
Security	WPA-PSK, WPA-TKIP, WPA2 AES, 802.11i
Frequency Band	IEEE 802.11 b/g/n: 2.4 - 2.484 GHz IEEE 802.11a/ac: 5.15 - 5.25 GHz; 5.25 - 5.35 GHz; 5.47 - 5.725 GHz; 5.725 - 5.85 GHz
Channels	2.4 GHz channels : 1 - 13 5 GHz channels: 36 - 64, 100 - 140, 149 - 165
Antenna	Adaptive antenna that provides up to 64 unique antenna patterns per radio Full omnidirectional polarization diversity
Receiver Sensitivity	Up to -103 dBm
Interface	2 auto MDX, auto-sensing 10/100/1000 Mbps, RJ-45, POE port (on one port) USB 2.0

Features
Features	802.11ac Multi-User MIMO (MU-MIMO) Dual-band concurrent (5 GHz / 2.4 GHz) BeamFlex+ (PD-MRC) smart antenna, with support for 64 unique antenna patterns enables up to 4 dB of additional gain and up to 10 dB of additional interference mitigation Up to an additional 4 dB BeamFlex gain / 10 dB interference mitigation / 3 dBi physical antenna gain Automatic interference mitigation, optimized for high-density environments 802.11ac standard Tx Beamforming Standard 802.3af Power over Ethernet (PoE) Two 10/100/1000 Ethernet ports, one with 802.3af Power over Ethernet (PoE) USB Port for IoT technologies Router mode with NAT and DHCP services IP multicast video streaming support Advanced QoS packet classification and automatic priority for latency-sensitive traffic Dynamic, pre-user rate-limiting for hotspot WLANs WPA-PSK (AES), 802.1X support for RADIUS and Active Directory Ethernet 802.1x port-based authentication (authenticator and supplicant) Dynamic PSK Admission control/load balancing Band steering and airtime fairness support Captive portal and guest accounts Application recognition and control SmartWay Bonjour gateway SecureHotspot SPOT location services Band balancing SmartMesh

Dimensions & Weight
Dimensions	1.61" x 6.50" x 6.61"
Weight	0.77 lb.

Environmental
Temperature	0°C - 50°C (32°F - 122°F)
Humidity	10% - 95%, Non-Condensing

Additional Information
First Listed on Newegg	May 25, 2017

Warranty & Returns

Return for refund within: 30 days

Return for replacement within: 30 days
