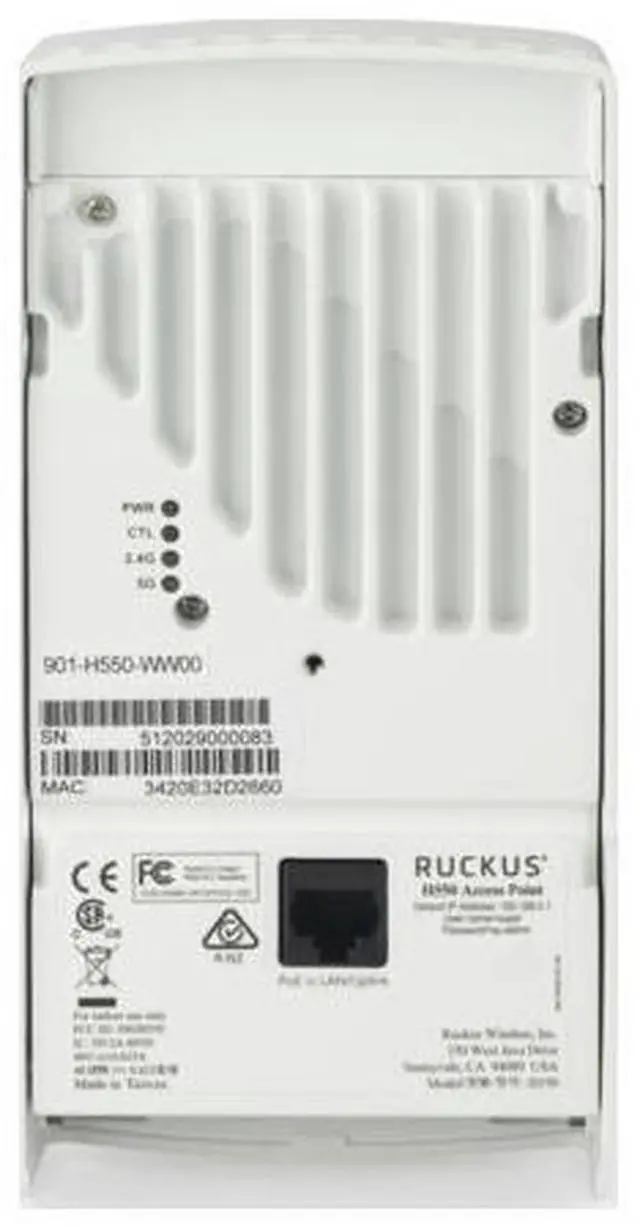

Ruckus 9U1-H550-US00 Unleashed Wireless Access Point - High-End Wall-Mounted Wi-Fi 6 2x2:2 with 1.8 Gbps Max Rate - Switch and Embedded IoT 9U1-H550-US00
- WIFI 6 ACCESS POINT: Delivers great in-room Wi-Fi and enable consolidated IP
- services with Wi-Fi 6 speed, BLT, Zigbee and a built-in 4-port Gigabit Ethernet switch.
- WI-FI PERFORMANCE: Extends coverage with patented BeamFlex+ adaptive
- antenna technology while mitigating interference by utilizing multi-directional antenna patterns.
- VERSATILE MANAGEMENT: Manage the H550Access Point from the cloud, with on-premises physical/virtual appliances, or without a controller.
- OPTIMAL THROUGHPUT: ChannelFly dynamic channel technology uses machine learning to automatically find the least congested channels. You always get the highest throughput the band can support.
+
+
Learn more about the RUCKUS WIRELESS UNLEASHED H550
| Brand | Ruckus |
|---|---|
| Model | UNLEASHED H550 |
| Part Number | 9U1-H550-US00 |
| Standards | IEEE 802.11a/b/g/n/ac/ax Supported rates: 802.11ax: 4 to 1,774 Mbps (MCS0 to MCS11, NSS=1 to 2 for HE 20/40/80) 802.11ac: 6.5 to 867 Mbps (MCS0 to MCS9, NSS = 1 to 2 for VHT 20/40/80) 802.11n: 6.5 Mbps to 300 Mbps (MCS0 to MCS15) 802.11a/g: 6 to 54 Mbps 802.11b: 1 to 11 Mbps Standard Compliance: EN 60950-1 Safety EN 60601-1-2 Medical EN 61000-4-2/3/5 Immunity EN 50121-1 Railway EMC EN 50121-4 Railway Immunity IEC 61373 Railway Shock & (bbr-?on EN 62311 Human Safety/RF Exposure WEEE & RoHS ISTA 2A Transportation |
|---|---|
| Frequency Band | 2.4Ghz: 1-13 5Ghz: 36-64, 100-144, 149-165 |
| Antenna | Antenna Type: BeamFlex+ adaptive antennas with polarization diversity and adaptive antenna that provides multiple unique antenna patterns Antenna Gain (max) · Up to 1dBi Peak Transmit Power (aggregate across MIMO chains): 2.4GHz: 19dBm, 5GHz: 22dBm |
| VLAN | 802.1Q (1 per BSSID or dynamic per use based on RADIUS) VLAN Pooling Port-based |
| Temperature | 0°C (32°F) - 40°C (104°F) |
|---|---|
| Humidity | Up to 95%, non-condensing |
| First Listed on Newegg | April 10, 2025 |
|---|
