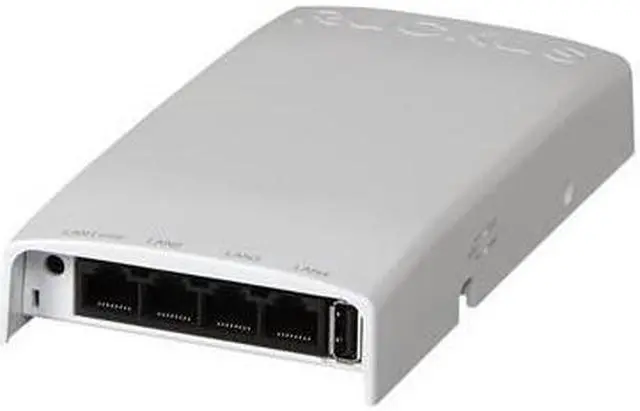

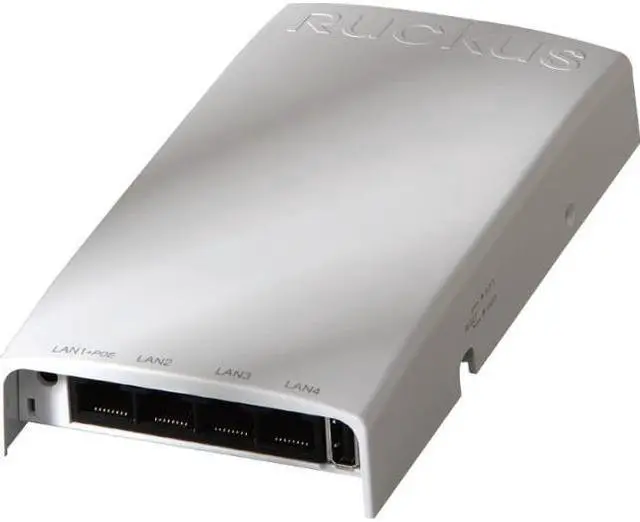

Ruckus Wireless ZoneFlex H500 802.11ac dual-band concurrent 2.4 GHz & 5 GHz, Wired/Wireless Wall Switch, BeamFlex+, 1 GigaBit & 4 Fast Ethernet Access Ports, POE in/out (one port), USB.

Converged IP services - VoIP, IPTV, high-speed Internet access and in-room device connectivity - both wired and wireless

The Zone
Flex H500 is the industry's first wired and wireless wall switch using Ruckus' patented Beam
Flex+ adaptive antenna technology to deliver high-speed 802.11 ac Wi-Fi in an ultra-sleek, low-profile design that can be quickly and discretely installed in a standard electrical junction box. Ideal for offering converged services in hotel guest rooms, student residences, and multi-dwelling units, the Zone
Flex H500 provides an easy way to offer multiple connections to a single room without multiple cables.

FEATURES

• Ruckus patented Beam
  Flex+ adaptive antennas optimized for in-room performance and mobile clients
• Matched Band Coverage ensures similar Wi-Fi coverage for both 2.4 and 5 GHz client devices
• Integrated dual radio 2x2 802.11 ac Wi-Fi AP and Ethernet wall switch
• High Performance Wi-Fi and four Ethernet access ports offers HSIA
• Wi-Fi Redundancy, in-room coverage as well as corridor and adjacent room
• Powered by either POE or 48VDC

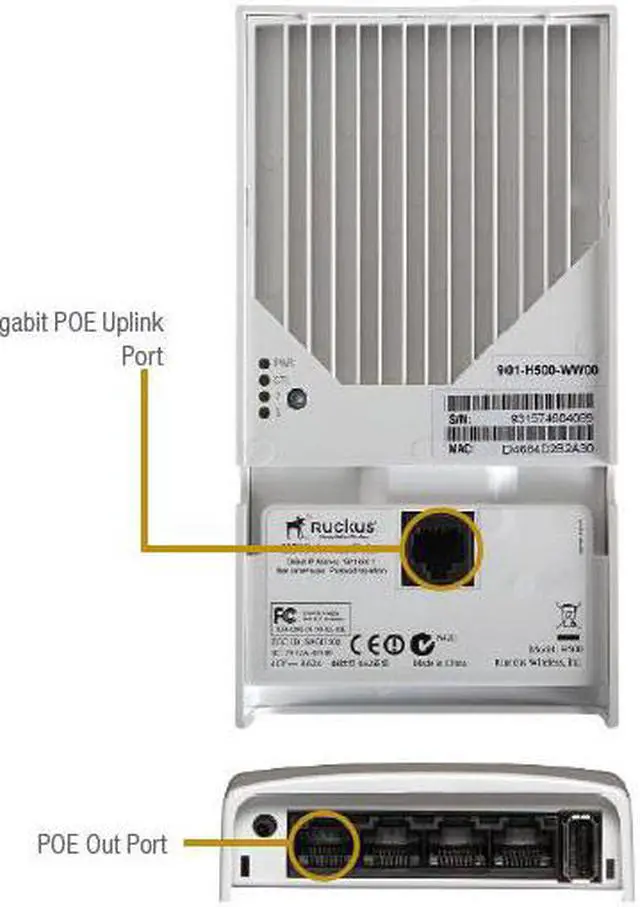

• Supplies POE power for in-room devices such as VoIP phones
• Smart
  Cast QoS
• Multiple BSSI
  Ds per radio with unique QoS and security policies
• WPA-PSK, WPA-TKIP, WPA2 AES, 802.11 i
• 802.1X support for RADIUS and Active Directory
• Zero-IT and Dynamic PSK
• Captive portal and guess accounts
• Application recognition and control

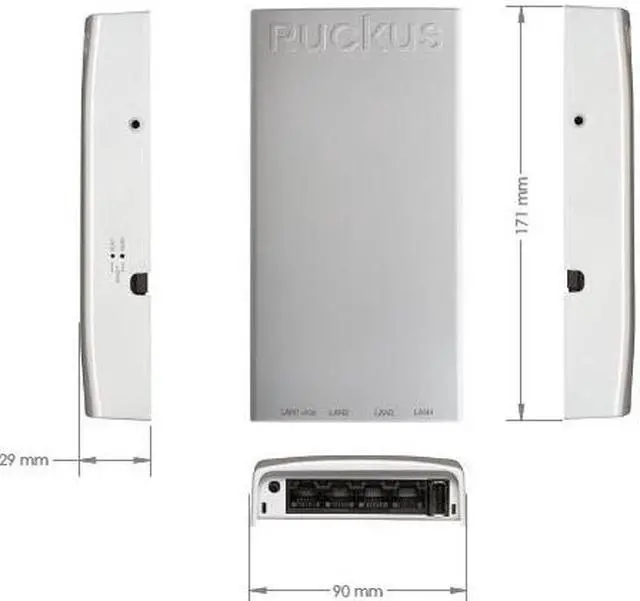

• Mounts into standard US and EU single gang wall jack
• RJ-45 for uplink Ethernet port
• Cable channel for preserving legacy infrastructure (e. g. PBX phones)
• Smart
  Mesh Networking
