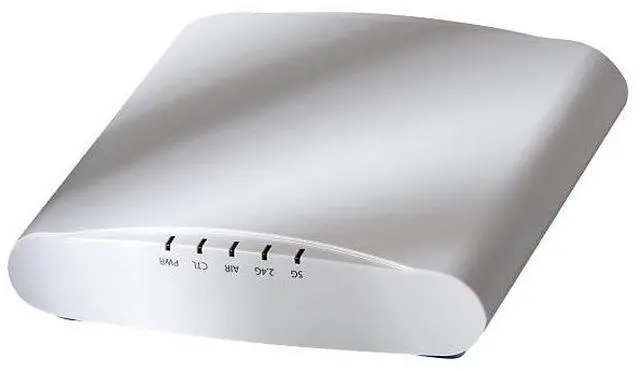

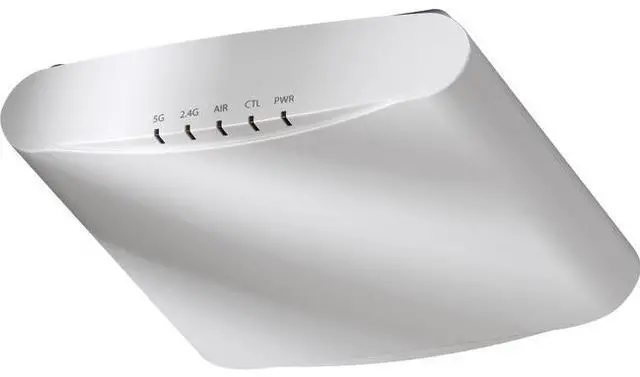

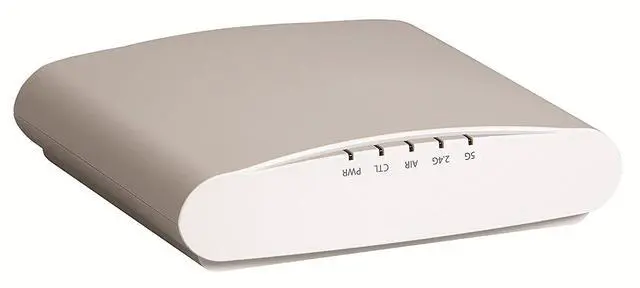

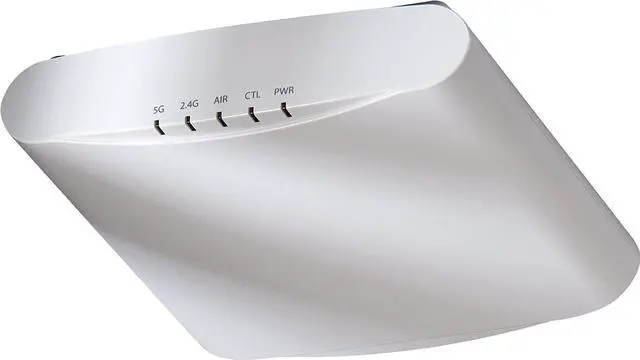

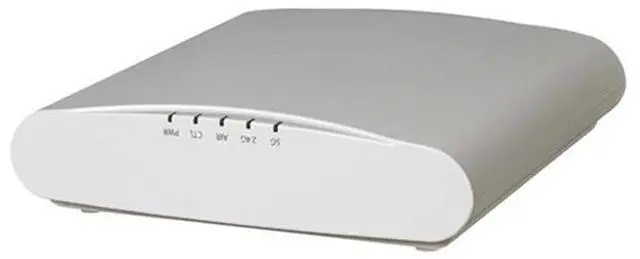

Ruckus Zoneflex R510 High Performance Smart Wireless Access Point (2x2 802.11ac Wave 2, Dual-Band 2.4GHz/5GHz, POE) 901-R510-US00

DUAL-BAND 802.11AC WAVE 2 2X 2:2 SMART WI-FI ACCESS POINTS High Performance, 802.11 ac Wave 2 Mid-Range Smart Wi-Fi Access Points with Adaptive Antenna Technology The Ruckus ZoneFlex R510 delivers high-performance and reliable 802.11 ac wireless networking with MU-MIMO (Multi-User MultipleInput Multiple-Output) capability. MU-MIMO helps boost network throughput by serving multiple clients simultaneously and also benefiting non-Wave 2 clients, thus improving overall network performance. The R510, through its USB port, also enables IoT readiness for technologies like BLE, which helps drive business efficiencies from both a revenue and cost perspective. It does this with existing 802.3 af power, obviating the need for expensive, capital intensive switch upgrades.

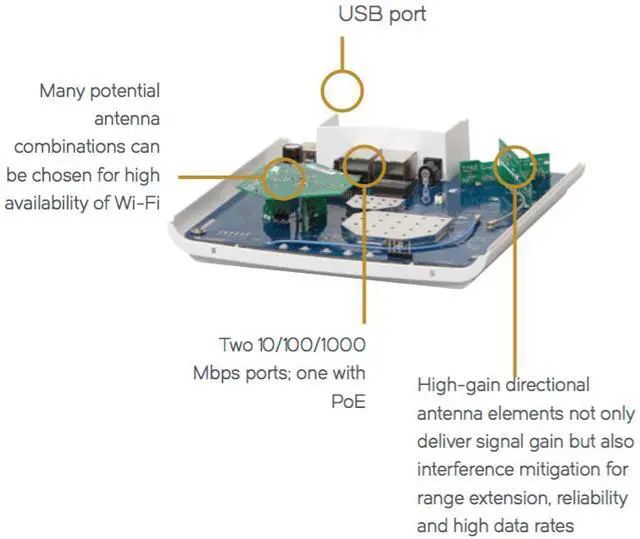

Each ZoneFlex R510 integrates Ruckus-patented BeamFlex+, a software-controlled, high gain antenna array that continually forms and directs each Wi-Fi packet over the best performing signal path. Using dual-polarized antennas the R510 adapts in real time to anticipate hand-held device movement and rotation ensuring consistent performance. MU-MIMO MU-MIMO helps Wave 2 and non-Wave 2 clients. The R510 can communicate simultaneously to multiple Wave 2 clients increasing network performance. This frees up airtime for non-Wave 2 clients resulting in enhanced aggregate network throughput. Advanced WLAN Applications When used with the Ruckus WLAN controllers, each ZoneFlex R510 supports a wide range of value-added applications such as BYOD/guest onboarding, Dynamic PSK, hotspot authentica-tion, wireless intrusion detection and many more.

WLA
Ns can be created and mapped to the same or different APs or VLA

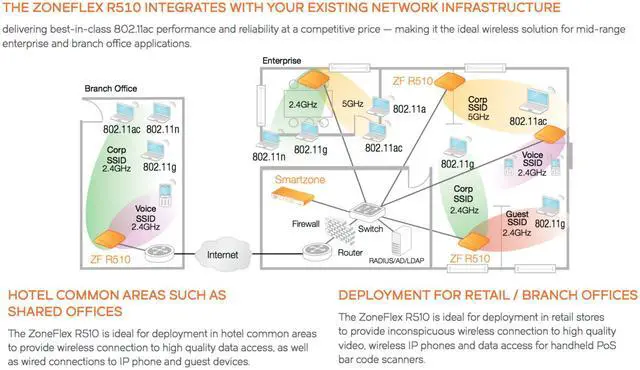

Ns. In a centrally managed configuration, the ZoneFlex R510 works with a wide range of authentication servers including Microsoft's Active Directory, LDAP, and RADIUS. Flexible Deployment Options ZoneFlex R510 APs can be deployed as a standalone AP or as part of a centrally managed wireless LAN using ZoneDirec-tor or SmartZone Smart WLAN controllers. ZoneFlex R510 can be deployed across any L2/L3 network and can bridge traffic onto the local network, tunnel to a central location using L2TP, or route between the WAN and NAT'ed private subnets. With the Ruckus controllers, each ZoneFlex R510 is automatically configured through the network making deployment quick and easy.

Complete Local and Remote Management Each Zoneflex R510 can be managed by the ZoneDirector controller or the SmartZone controllers like SZ100, SCG200 or the vSZ. The controllers enable local management and control of APs, adding value-added services such as centralized AP provisioning, management and control at high scale.
Product Type: Wireless Access Point
Product Type: Wireless Access Point
Manufacturer Part Number: 901-R510-US00
Weight (Approximate): 12.35 oz
Form Factor: Pole-mountable
Form Factor: Ceiling Mountable
Form Factor: Wall Mountable
Form Factor: Pole-mountable
Form Factor: Ceiling Mountable
Form Factor: Wall
Mountable Manufacturer: Ruckus Wireless, Inc
Product Model: R510
Product Name: Zoneflex R510 Smart Wi-Fi Wave 2 802.11 ac Access Point
Product Line: ZoneFlex Wireless
Transmission Speed: 1.17 Gbit/s
Brand Name: Ruckus Wireless
Wireless Transmission Speed: 1.17 Gbit/s
Brand Name: Ruckus
Wireless Height: 1.6
Width: 6.5
Depth: 6.6
Frequency Band: 2.40 GHz
Frequency Band: 5 GHz
Wireless LAN Standard: IEEE 802.11 ac
Ethernet Technology: Gigabit
Ethernet USB: Yes Number of
Network (RJ-45) Ports: 2
Product Family: ZoneFlex
Frequency Band: 2.40 GHz
Frequency Band: 5 GHz
Wireless LAN Standard: IEEE 802.11 ac
Ethernet Technology: Gigabit
Ethernet USB: Yes
HDMI: No
VGA: No Number of
Network (RJ-45) Ports: 2
Powerline: No
MIMO Technology: Yes
Beamforming Technology: Yes
PoE PD Port: Yes
