SAMSUNG M393A1G40DB0-CPB Samsung DDR4-2133 8GB1Gx72 ECCREG CL15 Server Memory
- DDR4 2133 (PC4 17000)
- ECC Registered
- CAS Latency CL15
+
+
Overview
Specs
Reviews
Any questions? Ask CelesteSM will help you find out quickly.
Try me now
SAMSUNG M393A1G40DB0-CPB Samsung DDR4-2133 8GB1Gx72 ECCREG CL15 Server
Memory
MPN: M393A1G40DB0-CPB
Specifications
Mfr
Part Number: M393A1G40DB0-CPB
Type:
DDR4Capacity:
8GBSpeed: PC4-17000 2133MHzSize and
Bit: 1G
x 72Pins: 288pin
ECC: Yes
Registered: Yes
Single Rank x4CL 15, 1.2V
Memory
MPN: M393A1G40DB0-CPB
Specifications
Mfr
Part Number: M393A1G40DB0-CPB
Type:
DDR4Capacity:
8GBSpeed: PC4-17000 2133MHzSize and
Bit: 1G
x 72Pins: 288pin
ECC: Yes
Registered: Yes
Single Rank x4CL 15, 1.2V
Warranty & Returns
Warranty, Returns, And Additional Information
Warranty
- Please contact the Seller directly for warranty information. Warranty information may also be found on the Manufacturer's website.
- Read full details
- CONTACT
Return Policies
- Return for refund within: 30 days
- Return for replacement within: 30 days
- This item is covered by A-Tech Return Policy
Manufacturer Contact Info
- For a directory of all our manufacturers, please click below.
- Manufacturers Directory
LOADING...

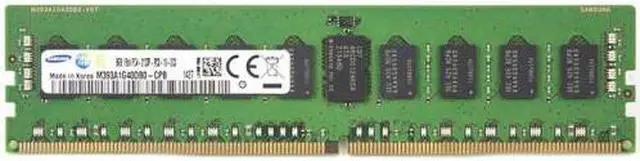

The Samsung M393A1G40DB0-CPB is an 8GB DDR4-2133 ECC Registered server memory module for servers that support 288-pin DDR4 RDIMMs. It runs at 1.20V with CL15 latency and a 1Rx4 rank configuration.
Recommended For
- Server administrators replacing a failed 8GB DIMM in a DDR4-2133 ECC Registered system, especially when the server’s compatibility list includes M393A1G40DB0-CPB.
- Homelab builders using a compatible DDR4 server platform who want to add ECC Registered memory for services such as virtualization, storage, or self-hosted applications.
- Owners of a listed compatible server or workstation who need a matching 8GB, single-rank module for an existing memory configuration.
Real-World Use Scenarios
- An owner of a compatible older DDR4 server adds memory in an 8GB increment to give its operating system and services more room to run; the benefit depends on the server’s total memory needs and supported DIMM configuration.
- A homelab user running a few virtual machines or containers on a compatible server adds this DIMM to increase memory available to the host and guests; at 8GB, it is a modest capacity step, not a complete high-memory setup.
- A server owner replacing a failed or missing module uses this DIMM when the system supports 8GB DDR4-2133 ECC registered memory; matching the server’s memory type and approved configuration helps avoid a no-boot or compatibility issue.
- A technician populating an open memory slot in a supported server follows the motherboard’s slot order and channel guidance; the result is added usable capacity, while the system’s supported configuration determines the operating speed.
Spec Summary
| Attribute | Value |
|---|---|
| Best For | Server systems requiring an 8GB DDR4 registered ECC memory module |
| Capacity | 8GB |
| Memory Type And Performance | 288-pin DDR4 SDRAM, rated DDR4-2133 (PC4 17000) with CL15 latency |
| Error Correction And Registration | ECC registered memory |
| Voltage And Rank | 1.20V, 1Rx4 |
| Cooling And Construction | No heat spreader |
| Model Identifiers | Samsung M393A1G40DB0-CPB |
