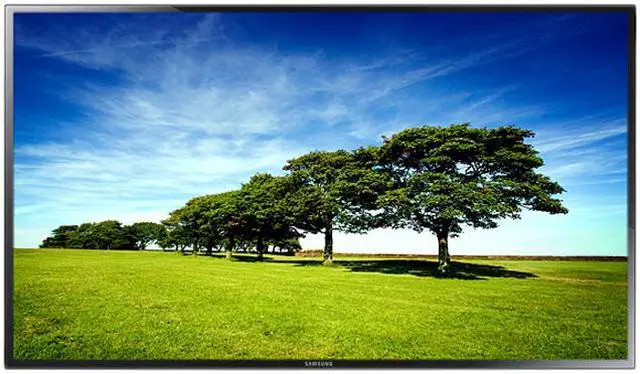

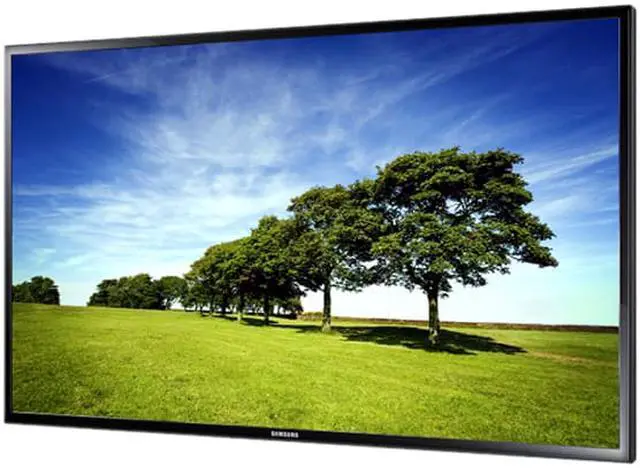

Samsung ED65C 65" ED-C Series Direct-Lit LED Large Format Commercial Display

Be the first to review this product...

Direct-Lit LED Display
Optional Touch Overlay
Simple Connectivity
Commercial Reliability

Overview

Specs

Reviews

Any questions? Our AI beta will help you find out quickly.

Try me now

Samsung ED-C Series Commercial Displays

You only think LED isn't in your budget.

OVERVIEW

Direct-lit LED Displays that are Simple, Reliable and Affordable

You can afford to be impressive. You can afford to be big and brilliant and beautiful. With the Samsung ED-C Series direct-lit LED commercial displays, you can afford to step up to the performance and cost-efficiencies that LED technology offers. The ED-C Series offers a full range of sizes, from 32" all the way up to 75". Pictures are sharp and bright. Energy use is low. And the displays keep costs within virtually every budget by offering only the features and connectivity options you need. You'll enjoy all the benefits of LED, for about the same cost as traditional CCFL backlighting. It's a simple, reliable, affordable solution that will benefit your business. And of course, it's from Samsung.

FEATURE

Direct-Lit LED Backlight

Direct-lit LED technology delivers sharp, high-resolution images, along with the uniform brightness typical of traditional CCFL-backlit displays. It also uses less energy, with savings of up to 50% over CCFL. And it does it all with a cost comparable to CCFL.

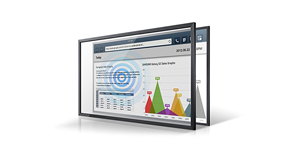

Optional Touch Overlay

Add an optional IR touch overlay accessory to enable up to 6 simultaneous touch points. (ED65C and ED75C only)

Simple Connectivity

A simple feature set and connectivity are perfect for many applications. Inputs include VGA, HDMI and audio out. (There's an AV audio out if you don't want to use the built-in 10W x 2 stereo speakers.)

Commercial Reliability

Samsung is the largest manufacturer of LED panels in the world. Our performance and long-lasting reliability are second to none. So while the ED-C Series displays are affordable, they're also every bit as reliable as our most expensive display panels. We're so confident in the quality of our ED-C Series, in fact, we back them with a 3-year onsite warranty. You may never need it, but it's good to know Samsung is there for you.

High Resolution

Samsung ED-C Series displays are bright, vivid and sharp. They feature 1920 x 1080 Full HD resolution (1366 x 768 on 32" model), for crisp motion graphics and easily readable text.

Key Spec

Display	Model Number	ED46C	ED65C	ED75C
	Screen Size	46"	65"	75"
	Panel Technology	60Hz (Direct-LED Backlight)	120Hz (Direct-LED Backlight)	240Hz (Direct-LED Backlight)
	Native Resolution	1920 x 1080 (16:9)	1920 x 1080 (16:9)	1920 x 1080 (16:9)
	Brightness (Max)	350 nits	320 nits	320 nits
	Contrast Ratio (Typical)	5000:1	4000:1	4000:1
	Viewing Angle	178:178	178:178	178:178
	Orientation	Landscape / Portrait	Landscape / Portrait	Landscape / Portrait
	Response Time	8ms	6.5ms	4ms
Connectivity	Input	VGA (D-Sub 15-pin), HDMI, Stereo Mini Jack, RS232C (thru Stereo Jack)	VGA (D-Sub 15-pin), HDMI, Stereo Mini Jack, RS232C (thru Stereo Jack)	VGA (D-Sub 15-pin), HDMI, Stereo Mini Jack, RS232C (thru Stereo Jack)
	Output	Stereo Mini Jack, RS232C (thru Stereo Jack)	Stereo Mini Jack, RS232C (thru Stereo Jack)	Stereo Mini Jack, RS232C (thru Stereo Jack)
	External Control	RS232C (in/out) (thru Stereo Jack)	RS232C (in/out) (thru Stereo Jack)	RS232C (in/out) (thru Stereo Jack)
	External Sensor	N/A	Yes	Yes
Power	Power Supply	AC 100 - 240 V~ (+/- 10 %), 50/60 Hz	AC 100 - 240 V~ (+/- 10 %), 50/60 Hz	AC 100 - 240 V~ (+/- 10 %), 50/60 Hz
	Power Consumption (Typical / Max)	88W / 121W	180W / 290W	247W / 360W
	Power Consumption (Standby)	< 0.5W	< 1W	< 1W
Environmental Conditions	Operating Temperature	0ºC~ 40ºC	0ºC~ 40ºC	0ºC~ 40ºC
Environmental Conditions	Operating Humidity	10~80%	10~80%	10~80%
Features	Special	Built in Speaker (10W + 10W), PIP/PBP, Narrow Bezel	Built-in Speaker (10W + 10W), PIP/ PBP, Narrow Bezel, OPS Compliant	Built-in Speaker (10W + 10W), PIP/ PBP, Narrow Bezel, OPS Compliant
	Tuner	N/A	N/A	N/A
	Internal Media Player	N/A	N/A	N/A
	VESA Standard Wall Mount Interface	400 x 400mm	400 x 400mm	400 x 400mm
Dimensions	Product Dimension Without Stand (W x H x D)	41.6" x 24.2" x 3.7"	57.8" x 33.4" x 2.6"	65.9" x 37.8" x 2.5"
	Packaging Dimension (W x H x D)	45.4" x 28.5" x 6.5"	63.0" x 38.6" x 8.5"	72.9" x 43.3" x 19.2"
	Bezel Width	17.4mm (Bottom 20.8mm)	18.0mm (Bottom 23.5mm)	10.9mm (Bottom 16.9mm)
Weight	Product Weight	26.2 lbs.	59 lbs.	63.4 lbs.
Weight	Shipping Weight	32.1 lbs.	73.9 lbs.	107.4 lbs.
Service	Standard Warranty	3 Year Onsite Parts/Labor	3 Year Onsite Parts/Labor	3 Year Onsite Parts/Labor
Accessories	Included	Quick Setup Guide, Warranty Card, D-Sub Cable, Power Cord, Remote Controller, Batteries	Quick Setup Guide, Warranty Card, D-Sub Cable, Power Cord, Remote Controller, Batteries	Quick Setup Guide, Warranty Card, D-Sub Cable, Power Cord, Remote Controller, Batteries
	Optional Stand	STN-L4055AD	STN-L4055AD	STN-L75E
	Optional Mount	WMN-4270SD, WMN-250MD	WMN-4270SD (Landscape Only) WMN-4675MD (Portrait Only)	WMN-4277S (Landscape Only) WMN-4675MD (Portrait Only)
	Optional Media Player	N/A	PIM-BD7, PIM-BQ7P (OPS compliant)	PIM-BD7, PIM-BQ7P (OPS compliant)
	Optional Touch Overlay	N/A	CY-TE65LCC	CY-TE75LCC
Green Management	Emission Standard	EMC	EMC	EMC
	ENERGY STAR® 5.0 Compliant	Yes	N/A	N/A
	RoHS Compliant	Yes	Yes	Yes
	Packaging Recyclability	Yes	Yes	Yes

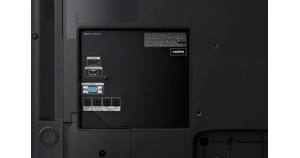

CONNECTIVITY

HDMI In
Service
RGB In
Audio Out
RGB / HDMI Audio In
RS232C In
RS232C Out
