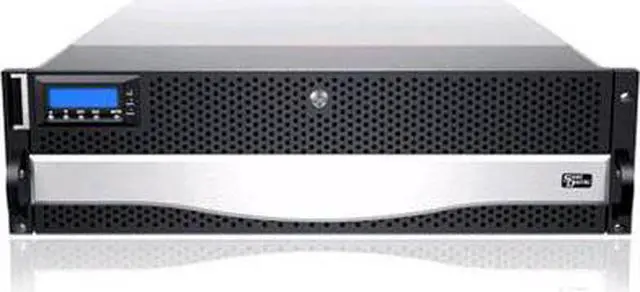

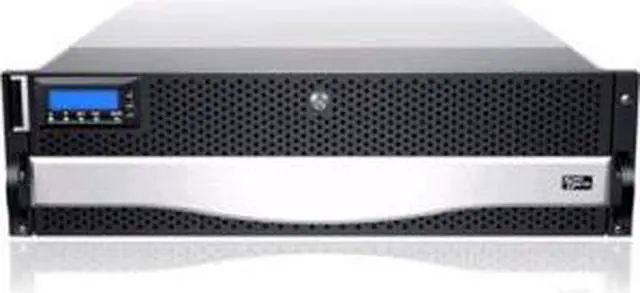

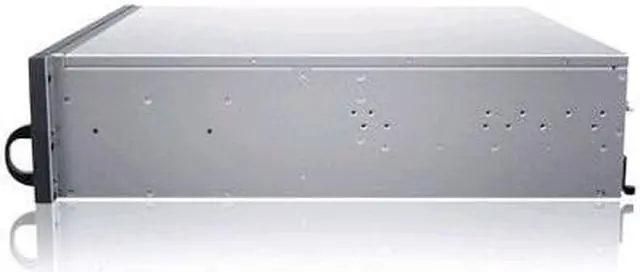

Sans Digital AccuRAID AR316ITR SAN Array - 16 x HDD Supported - 48TB Supported HDD Capacity

In stock.
Ships from United States.
  • SAS & SATA
  • 0, 1, 0+1, 3, 5, 6, 30, 50, 60, JBOD
Overview
Specs
Reviews
The AccuRAID AR316ITR is a 3U 16-bay active-active redundant controllers iSCSI to SAS/SATA RAID subsystem. With active-active redundant controllers, along with the redundant powers and cooling fans, AccrRAID AR316ITR provides a peace of mind by providing high availability and performance. With built-in 8x 1Gb Ethernet ports supporting independent access, fail-over or load-balancing (802.3ad port trunking, LACP), AR316ITR is capable of composing a high performance SAN environment with a fraction of the cost of Fibre Channel RAID storage systems. Supporting RAID 0, 1, 1+0, 3, 5, 6, 30, 50, 60 and JBOD, with global or dedicated hot spare disks, multiple hard drive failure could be protected without downtime or data loss. The built-in powerful 64-bit RAID processor provides high performance through-put.

The built-in Snapshot feature provides point-in-time copy of saved data without relying on the host software. Management is available via Web and Secure Web (HTTPS), SSH telnet or serial console, with built-in event notification via e-mail or SNMP trap. Redundant power supplies, cooling fans and controllers are part of the modularized design to allow redundancy as well as off-self spare parts to eliminate downtime. To increase the return of investment, AR316ITR supports both SAS and SATA drives, and could be expanded by adding up to 3 additional SAS/SATA JBOD units, providing solutions up to 64-bays or 196TB in total storage capacity. Intended to provide storage solution for IT and vitalization server computing with VMware vSphere or, Microsoft Hyper-V or Citrix with SCSI-3 persistent target support, the AR316ITR is a perfect solution for Storage Area Network needs in IT and other applications.

Features

* Product Type: SAN Array
* Number of Total Expansion Bays: 16
* Number of 3.5" Bays: 16
* SAN Interface: iSCSI
* Number of Hard Drives Supported: 16
* Number of Hard Drives Installed: No
* Number of 5.25" Bays: No
* Number of 2.5" Bays: No
* Number of 2.5"/3.5" Bays: No
* Rack Height: 3U
* Brand Name: Sans Digital
* Form Factor: Rack-mountable
* RAID Levels: 0, 1, 3, 5, 6, 30, 50, 60, 0+1, JBOD
* Controller Type: Serial ATA/300
* Controller Type: 3Gb/s SAS
* Product Type: SAN Array
* Green Compliant: Yes
* Green Compliance Certificate/Authority: RoHS
* Ethernet Technology: 10 Gigabit Ethernet
* Number of Total Expansion Bays: 16
* Number of 3.5" Bays: 16
* SAN Interface: iSCSI
* Total Hard Drive Capacity Supported: 48 TB
* Number of Hard Drives Supported: 16
* Number of Hard Drives Installed: No
* Number of 5.25" Bays: No
* Number of 2.5" Bays: No
* Number of 2.5"/3.5" Bays: No
* Height: 5.5"
* Width: 19"
* Depth: 20.5"
* Rack Height: 3U
* Brand Name: Sans Digital
* Form Factor: Rack-mountable
* Product Model: AR316ITR
* Product Name: AccuRAID AR316ITR SAN Array
* Product Line: AccuRAID
* RAID Levels: 0, 1, 3, 5, 6, 30, 50, 60, 0+1, JBOD
* Controller Type: Serial ATA/300
* Controller Type: 3Gb/s SAS
* Package Contents:
