SANS DIGITAL EliteSTOR ES108X+B JBOD Mini-SAS 6G 1U 8 Bay 2.5 Rackmount SAS/SSD/SATA to 2* mini-SAS (SFF8088) JBOD Storage

  • SAS & SATA
  • JBOD
Specs
Reviews (1)
avatar

Any questions? Our AI beta will help you find out quickly.

Learn more about the SANS DIGITAL ES108X+B

Model
Brand SANS DIGITAL
Series EliteSTOR
Model ES108X+B
Details
Drive SAS & SATA
External I/O Mini-SAS 6G
RAID Levels JBOD
Expansion
2.5" Drive Bays 8 x Hot-Swappable
Mechanical Spec
Power Supply 150W; Auto switch for 100V - 240V; 50 - 60Hz
Features
Features Form Factor: 1U Rackmount

Maximum Capacity: 12TB

Auto Rebuilding: Supported via RAID controller

Hot-Spare: Supported via RAID controller

Drive Interface: 2.5 SAS / SATA (Both 9.5mm and 12.5mm hard drives height supported)

Cooling Fan: 1.6" Ball Bearing x 3

Status Indicators: LEDs for HDD, Temperature and Fail LED

Supports 9.5mm and 12.5mm hard drives height

24G Mini-SAS (SFF-8088) to ensure optimal performance

Supports industry standard RAID controllers, including 3Ware/LSI, ATTO, Adaptec, Areca, Intel, Dell and HP.
Dimensions & Weight
Dimensions 1.7" H x 19" W x 17" D
Weight 15 lbs.

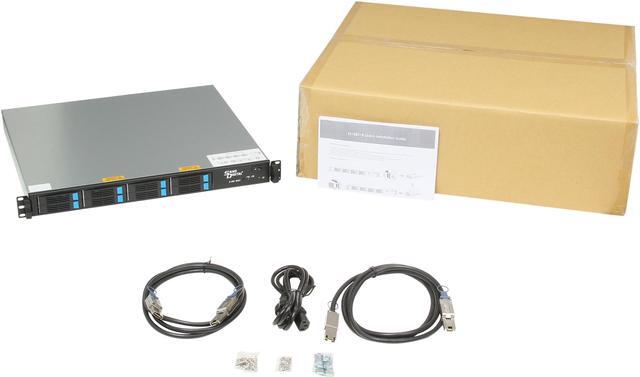

Package Contents
Package Contents ES108X+B (1)
Removable Tray Modules (8)
Power Cord (1)
Mini-SAS Cable (2)
Quick Installation Manual (1)
Additional Information
Date First Available February 06, 2013
