SANS DIGITAL ES212X12 JBOD (RAID is supported by additional RAID card) 12 Hot-Swappable 3.5" Drive Bay 3.5" Drive Bays HD Mini-SAS / SFF-8644 2U 12 Bay 12G SAS/SATA to SAS JBOD with 12G SAS Expander Rackmount
- SAS or SATA 12Gb/s, 6Gb/s and 3Gb/s
- 12 Hot-Swappable 3.5" Drive Bay 3.5" Drive Bays
- JBOD (RAID is supported by additional RAID card)
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

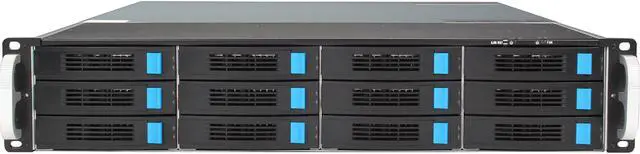

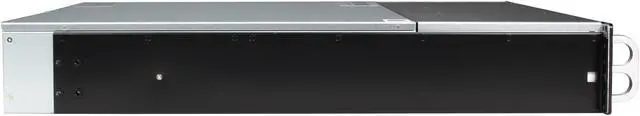

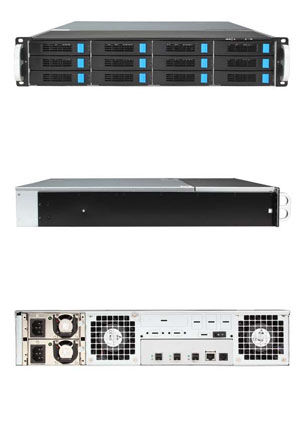

EliteSTOR - 2U 12-Bay 12G SAS/SATA to SAS JBOD with 12G SAS Expander Rackmount
The EliteSTOR ES212X12 is a 2U SAS 12G JBOD rackmount for high capacity storage solution. Utilizing the latest 12G SAS expander technology, the ES212X12 provides up to 48Gbps or 4800MBps of data bandwidth to fulfill the most demanding application.
The ES212X12 supports SATA or SAS 12Gbps hard drives or SSD and is backward compatible to 6Gbps SAS & SATA hard drives. By utilizing the latest SAS expander technology, the ES212X12 supports up to 12 SAS or SATA drives using only one HD mini-SAS (SFF-8644) cable. A built-in SAS expansion port enables the system to connect up to 256 HDD drives daisy-chained together. With a high performance RAID controller card such as Areca 12G RAID controller ARC-1883X or LSI MegaRAID, the ES212X12 is capable of delivering over in 3,000MBps in read and write performance, doubling the existing 6G SAS expander bandwidth.
System status information is provided by the LED, including hard drives, power supply and cooling fan status. All necessary hardware comes standard including mini-SAS cable, hard drives tray modules and built-in mounting rail. The ES212X12 is an ideal storage expansion solution for servers or high performance video editing workstations.
Features
New DataBolt Technology - Maximize 6Gbps and 3Gbps Hard Drives and SSDs in 12G Performance
To allow 6Gbps and 3Gbps hard drives and SSDs transition to newer 12G standard and performance, EliteSTOR SAS expander comes equipped with LSI DataBolt technology allow existing of 6G and 3G hard drives and SSD infrastructure to take advantage of 12Gbps speed. Only available in the 12G SAS expander series, LSI DataBolt technology can aggregate bandwidth from 6Gbps and 3Gbps hard disk drives and SSD to a 12Gbps data stream by intelligently buffering data, resulting in over 50% increase. DataBolt technology is fully compatible with the 12Gbps SAS T10 specification.
- 12Gbps SAS Expander Technology - Connect 12 SAS or SATA drives with only one single SFF-8644 to 8644 HD Mini-.SAS cable to HBA (Host Bus Adapter) or RAID controller.
- DataBolt Technology - Aggregate bandwidth from 6Gbps and 3Gbps hard disk drives and SSD to a 12Gbps data stream by intelligently buffering data, result in over 50% increase.
- Superior Performance - With support of SATA 12Gbps or SAS 12Gbps hard drives and 48Gbps of data bandwidth, performance can reach over 3,000MBps in read and write (tested with 12G SAS RAID controller card (ARC-1883X)).
- Staggering Spin-Up - Built-in staggering spin-up for hard drives during power up. Thus, extending the life / duty cycle of the hard drives and power supply.
- Support Industry Standard SGPIO - Serial General Purpose Input / Output (SGPIO) is utilized to provide the hard drives health & enclosure real-time information via the HD mini-SAS connection cable to the HBA (host Bus Adapter) or RAID card without additional serial cable.
- Scalability - Supports up to 256 drives daisy-chained together for capacity expansion via SAS expander.
- Multi-Purpose - Supports both SAS (Serial SCSI) and SATA hard drives to meet the requirements of different applications with different price/performance characteristics. Cost-effective SATA drives could be used for capacity orientated storage such as disk-to-disk backup, data-archiving, and digital video editing. Enterprise level SAS drives could be employed for I/O intensive applications such as transactional databases.
- Redundant Power Supply - Optional hot-swappable, redundant power is useful for protection against power failure. Power supply status can be easily monitored by the status LED and audible alarm alert.
- All hardware Included - HD Mini-SAS cable, cooling fan, tray modules and build-in mounting rail are included. By connecting to an SAS controller, hard drives will instantly increase their storage space.
- Wide Range RAID Adapters Support - Compatible with Areca ARC-1883X, LSI SAS MegaRAID, and other industry standard 12G RAID card.
Specifications
| Model | ES212X12 |
|---|---|
| Form Factor | 2U Rackmount |
| HDD Trays | 12 Hot-Swappable 3.5" Drive Bay |
| RAID Modes Supported | JBOD (RAID is supported by additional RAID card) |
| Maximum Capacity | 48TB, Expandable up to 256 drives |
| Drive Interface | SAS or SATA 12Gbps, 6Gbps and 3Gbps |

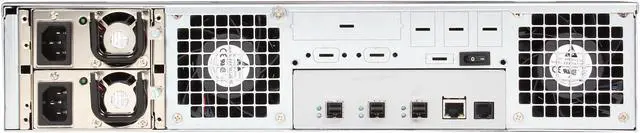

| Host Interface | 12G SAS Expander, HD Mini-SAS / SFF-8644 x 3 |
| Expansion Ports | Yes (HD Mini-SAS / SFF-8644) |
| Power Supply | 380W 1 + 1 Redundant Power Supply |
| Controller Interface | Via RAID Controller |
| Status Indicators | Hard Drive & Failure LEDs |
| Dimension (H x W x D) | 3.5 x 19 x 23" |
| Weight | 35.0lbs |
| Safety Regulations | CE, FCC, UL, RoHS |
| Warranty | 3-Year, Limited |
General Information
- The EliteSTOR ES212X12 is a 2U SAS 12G JBOD rackmount for high capacity storage solution. Utilizing the latest 12G SAS expander technology, the ES212X12 provides up to 48Gb/s or 4800MB/s of data bandwidth to fulfill the most demanding application. The ES212X12 supports SATA or SAS 12Gb/s hard drives or SSD and is backward compatible to 6Gb/s SAS & SATA hard drives. By utilizing the latest SAS expander technology, the ES212X12 supports up to 12 SAS or SATA drives using only one HD mini-SAS (SFF-8644) cable. A built-in SAS expansion port enables the system to connect up to 256 HDD drives daisy-chained together. With a high performance RAID controller card such as Areca 12G RAID controller ARC-1883X or LSI MegaRAID, the ES212X12 is capable of delivering over in 3,000MB/s in read and write performance, doubling the existing 6G SAS expander bandwidth. System status information is provided by the LED, including hard drives, power supply and cooling fan status. All necessary hardware comes standard including mini-SAS cable, hard drives tray modules and built-in mounting rail. The ES212X12 is an ideal storage expansion solution for servers or high performance video editing workstations.
- Number of Hard Drives Supported: 12
- Total Hard Drive Capacity Supported: 48 TB
- Number of Solid State Drive Supported: 12
- Number of Total Expansion Bays: 12
- Number of 3.5" Bays: 12
- Controller Type: 12Gb/s SAS
- Controller Type: Serial ATA/600
- RAID Supported: Yes
- RAID Levels: JBOD
- Host Interface: Mini-SAS
- Power Source: Power Supply
- Number of Power Supplies Installed: 2
- Maximum Power Supply Wattage: 380 W
- Redundant Power Supply: Yes
- Height: 3.5"
- Width: 19"
- Depth: 23"
- Form Factor: Rack-mountable
- Rack Height: 2U
- Weight (Approximate): 35 lb
- Package Contents:
- EliteSTOR ES212X12 DAS Array
- HD Mini-SAS Cable
- Cooling Fan
- Tray Modules
- Build-in Mounting Rail
- Certifications & Standards:
- FCC
- CE
- UL
- Environmentally Friendly: Yes
- Environmental Certification: RoHS
- Limited Warranty: 3 Year
