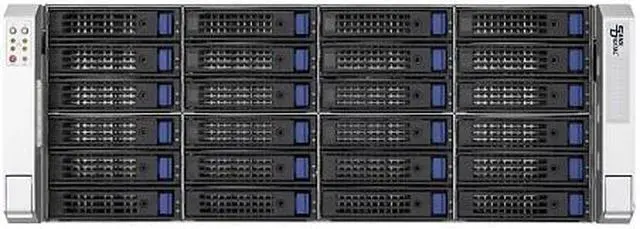

RS-Series RS424X12 4U 24 Bay SAS Expander JBOD with Redundant Power Supply

In stock. Limit 2 per customer.
Ships from United States.
  • Connect 24 SAS or SATA drives with only one single SFF-8644 to 8644 HD Mini-SAS cable to HBA (Host Bus Adapter) or RAID controller.
  • With support of SATA or SAS 12Gb/s hard drives and 48Gb/s of data bandwidth, performance can reach over 3,000MB/s in read and write (tested with 12G SAS RAID controller card).
  • Supports up to 256 drives daisy-chained together for capacity expansion via SAS expander by connecting to a SAS controller, hard drives will instantly increase the storage capacity.
  • Supports both SAS (Serial SCSI) and SATA hard drives to meet the requirements of different applications with different price/performance characteristics.
  • Redundant Power Supply - hot-swappable, redundant power is useful for protection against power failure. Power supply status can be easily monitored by the status LED and audible alarm alert.
  • Build-in 2.5" hard drives or SSD screws location for support 2.5" and 3.5" hard drives in the same enclosure.
The RS-Series RS424X12 is a 4U SAS 12G JBOD rackmount for high capacity storage solution. Utilizing the latest 12G SAS expander technology, the RS424X12 provides up to 48Gb/s or 4800MB/s of data bandwidth to fulfill the most demanding application. The RS424X12 supports SATA or SAS 12Gb/s hard drives or SSD and is backward compatible to 6Gb/s SAS & SATA hard drives. By utilizing the latest 12G SAS expander technology, the RS424X12 supports up to 24 SAS or SATA drives using only one HD mini-SAS (SFF-8644) cable. A built-in SAS expansion port enables the system to connect up to 256 HDD drives daisy-chained together. With a high performance RAID controller card such as Areca 12G RAID controller ARC-1883X or AVAGO / Broadcom / LSI MegaRAID, Intel, Dell PERC RAID controller, the RS424X12 is capable of delivering over in 3,000MB/s in read and write performance, doubling the existing 6G SAS expander bandwidth. System status information is provided by the LED, including hard drives, activity and FAIL LED, and cooling fan status. All necessary hardware comes standard including HD mini-SAS (SFF-8644) cable, hard drives tray modules and mounting slide rail. The RS424X12 is an ideal storage expansion solution for servers or high performance video editing workstations.
