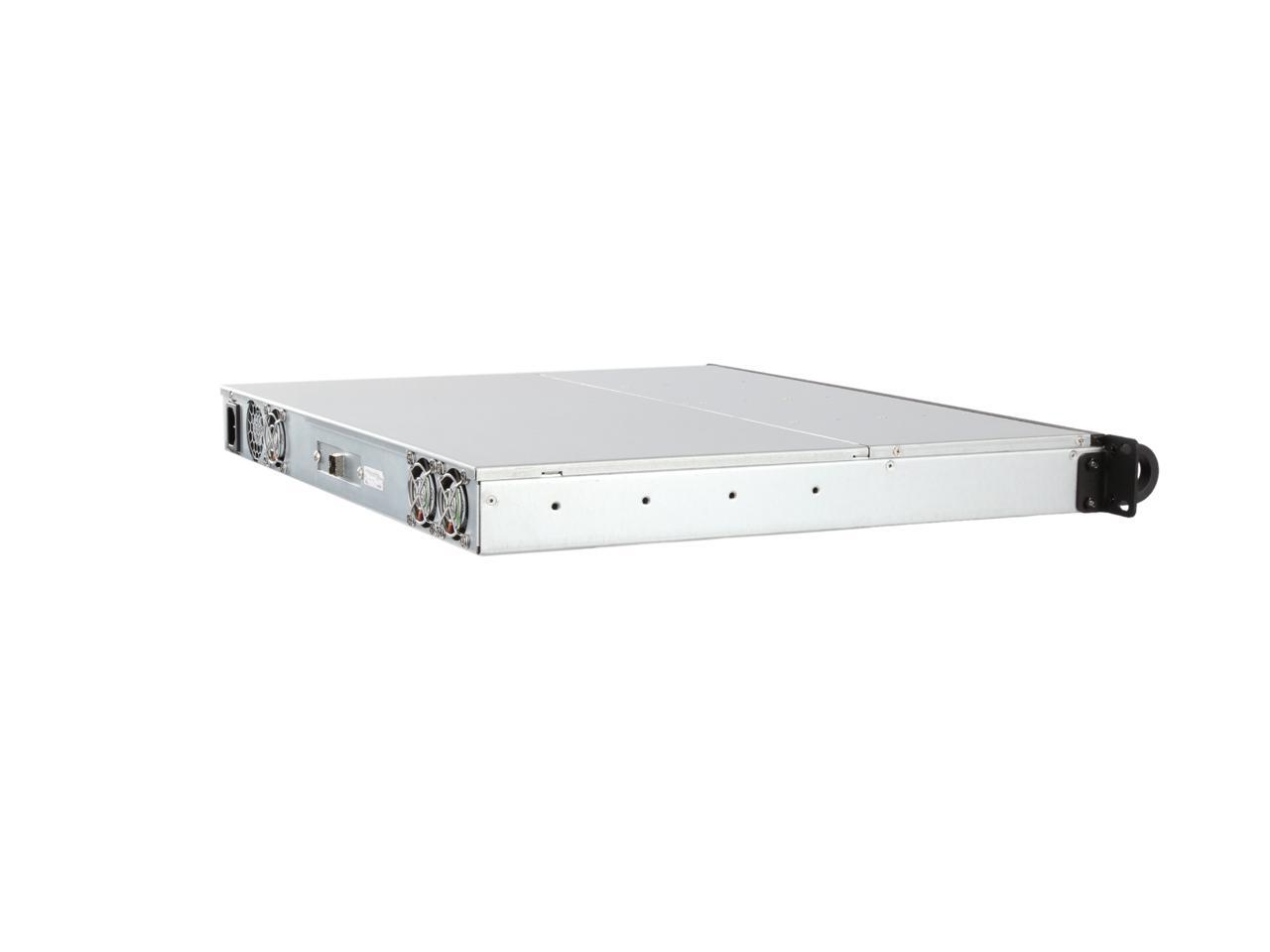

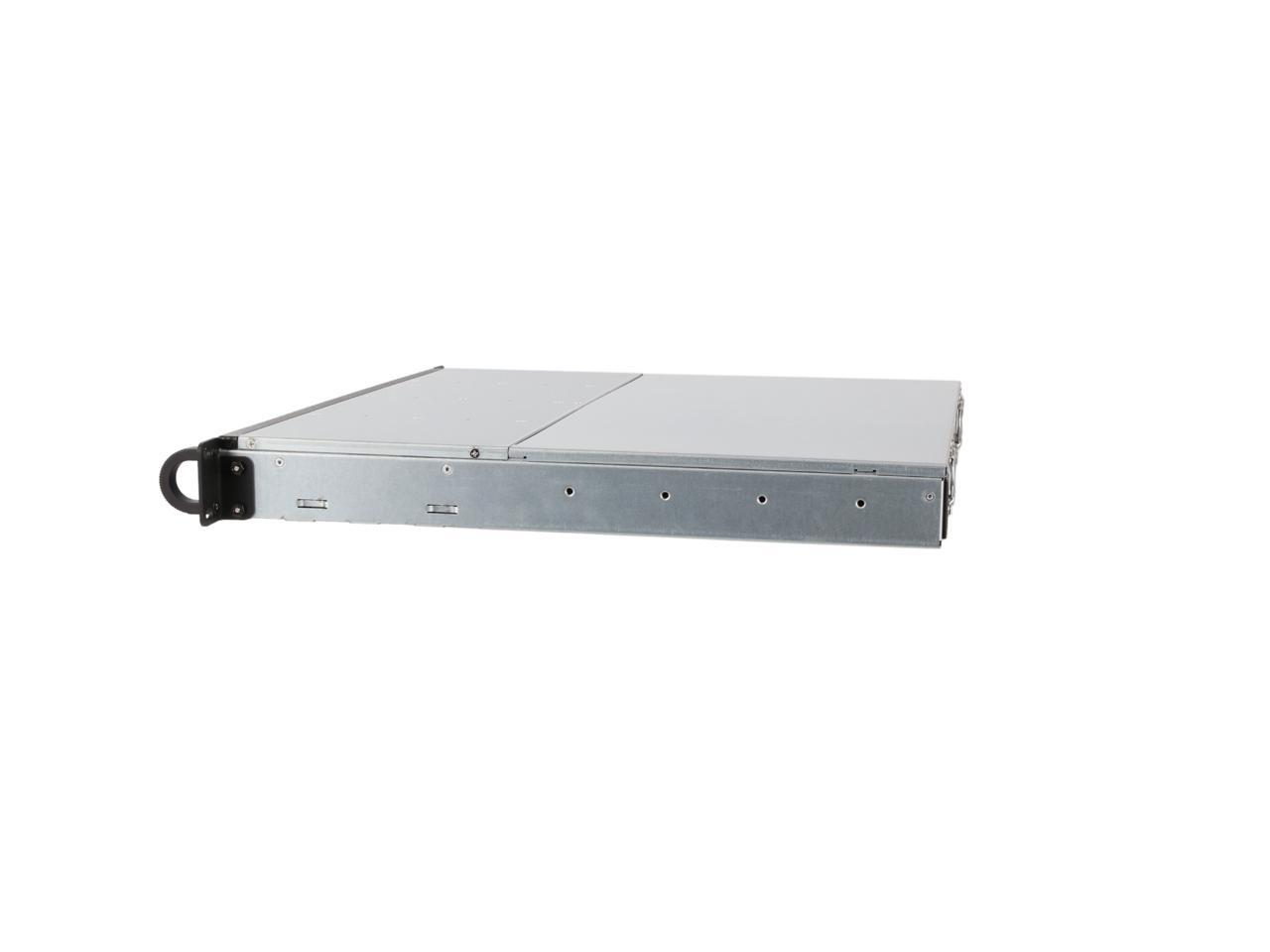

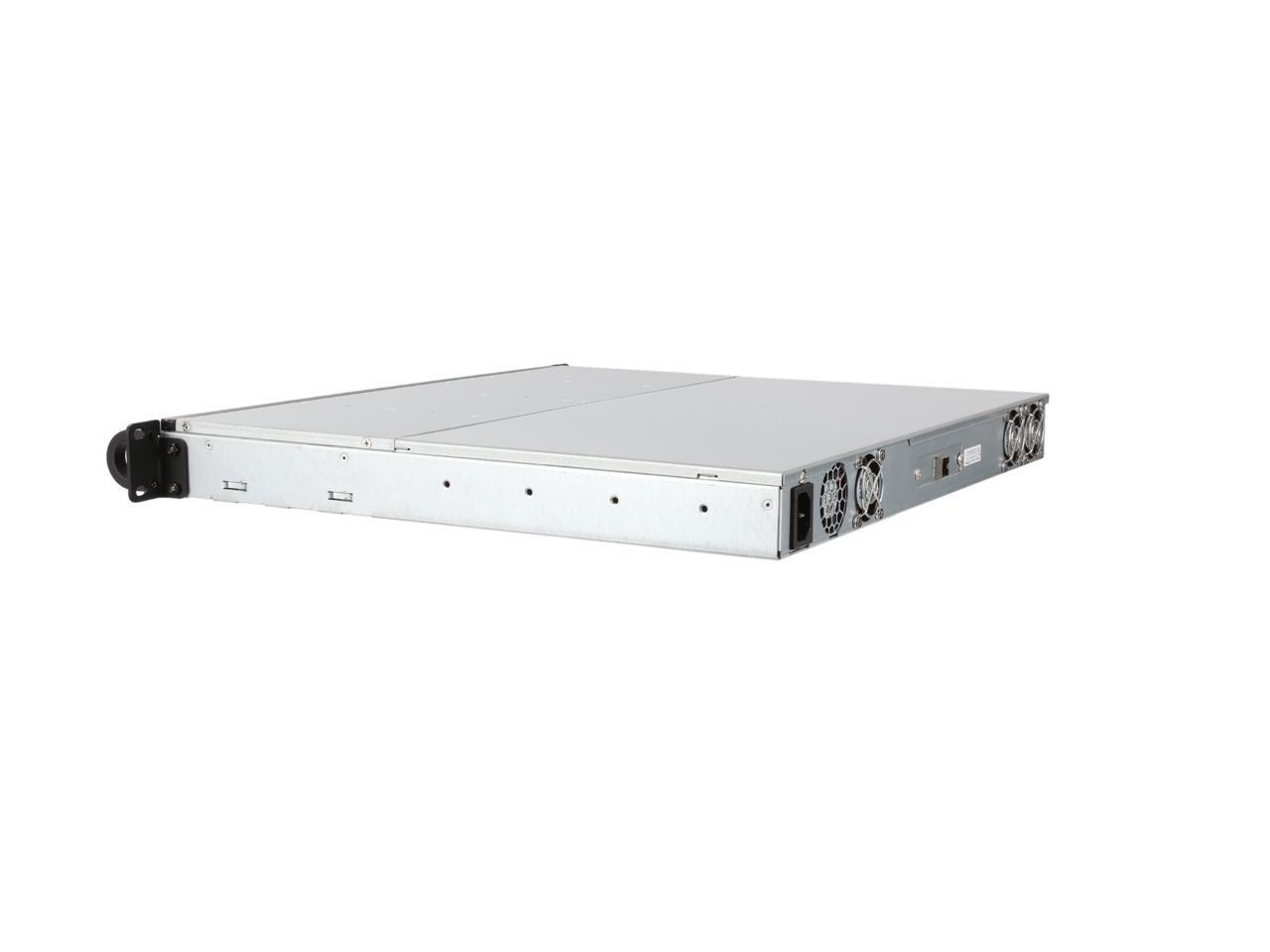

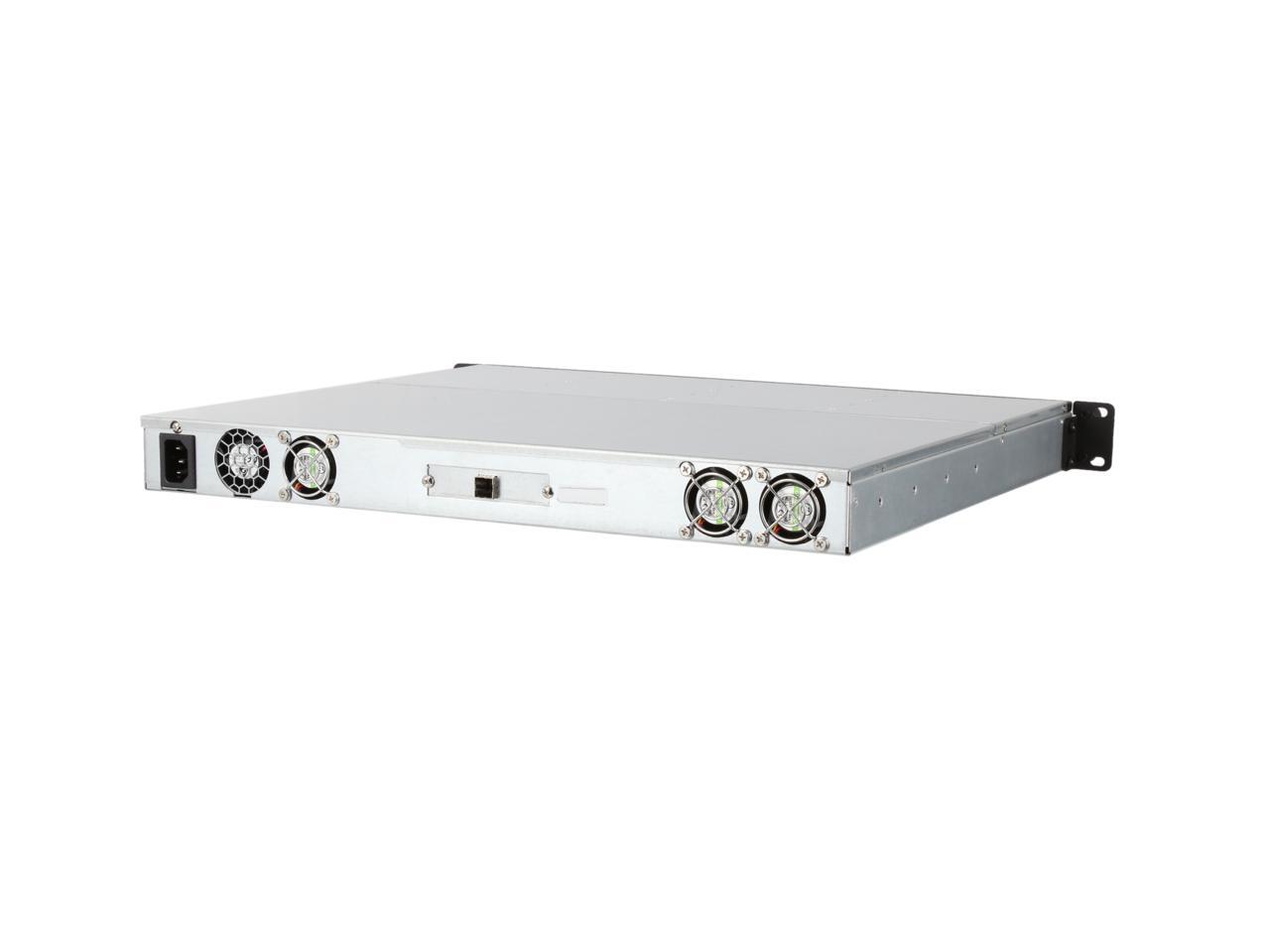

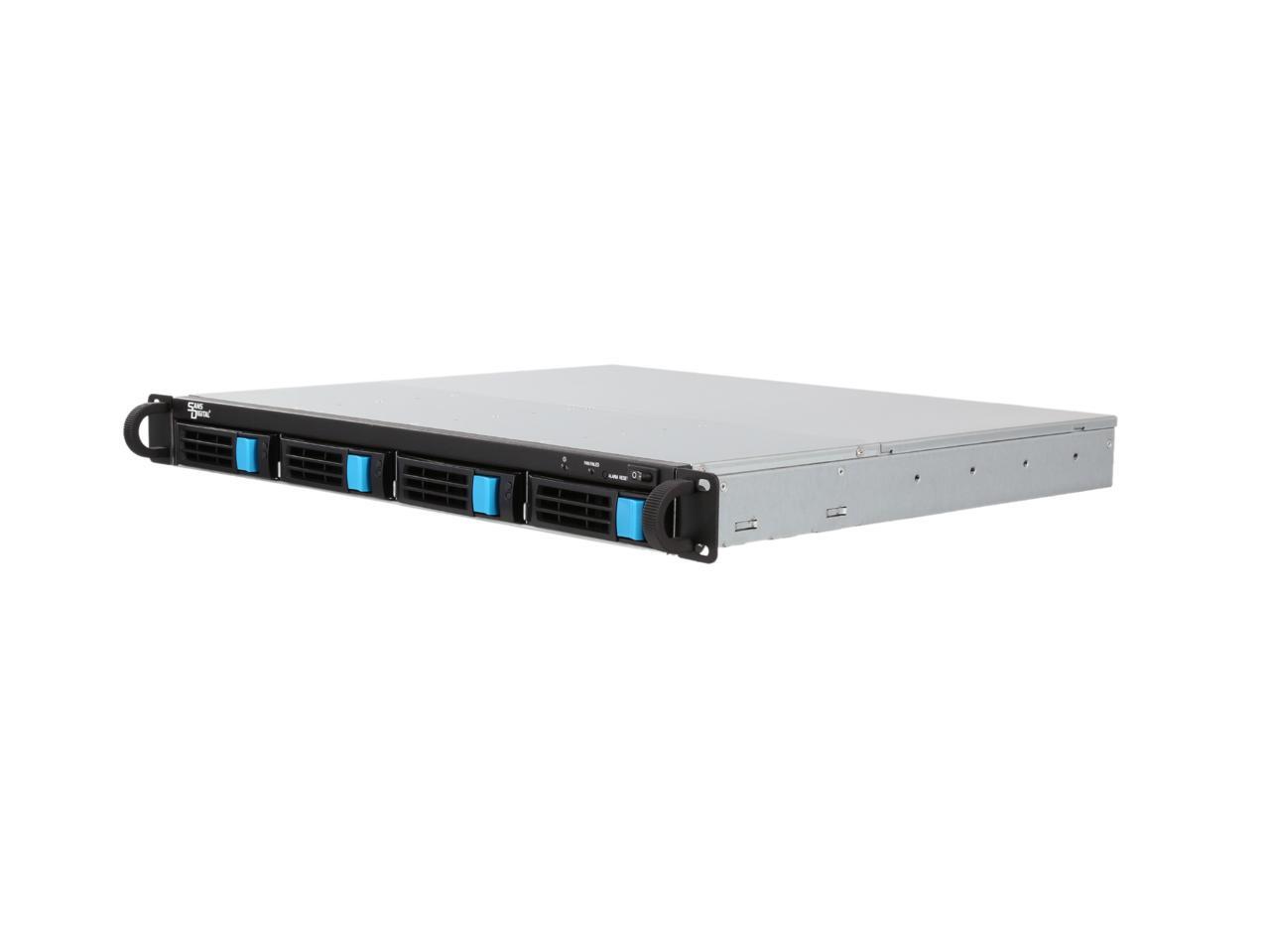

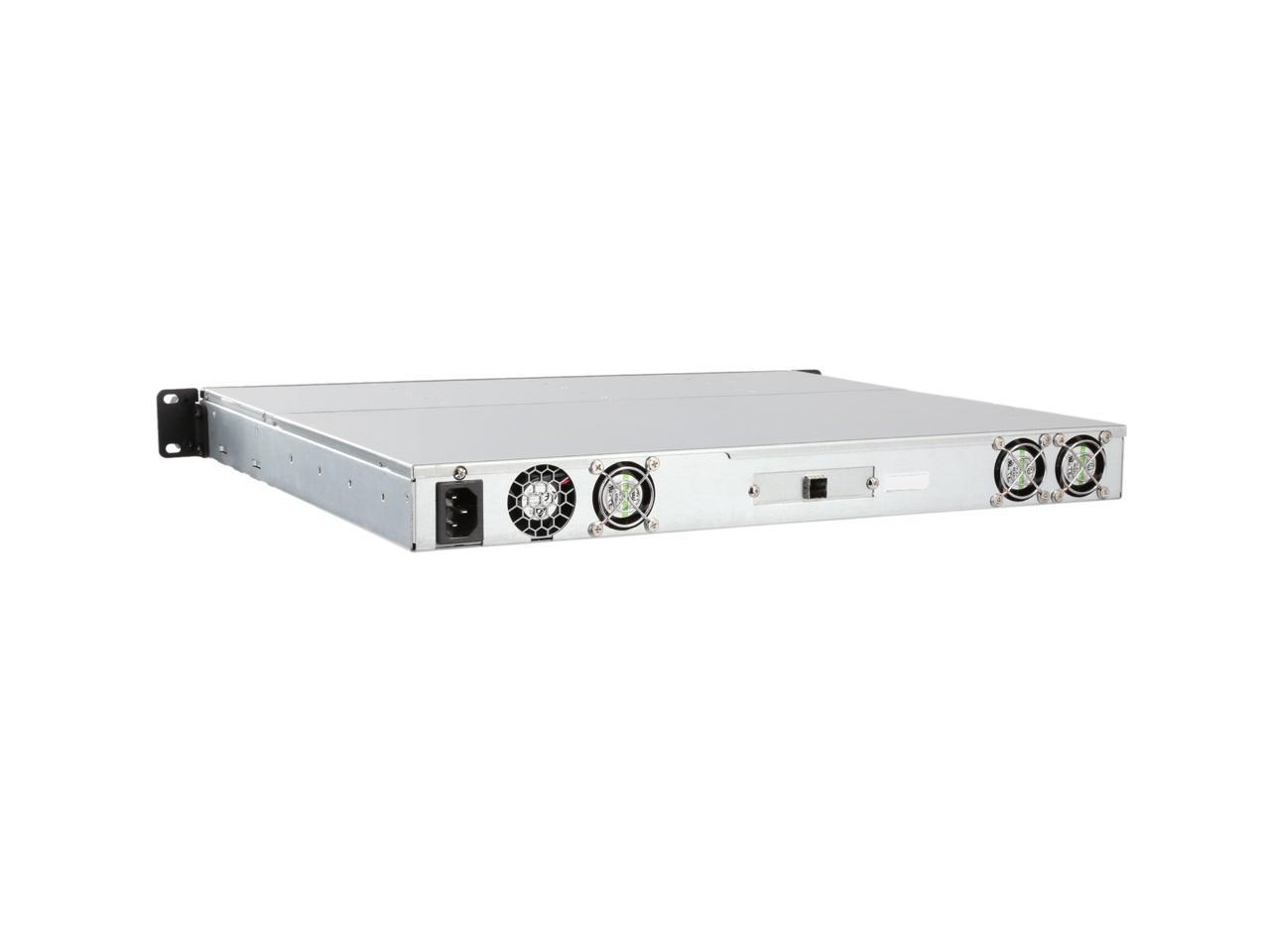

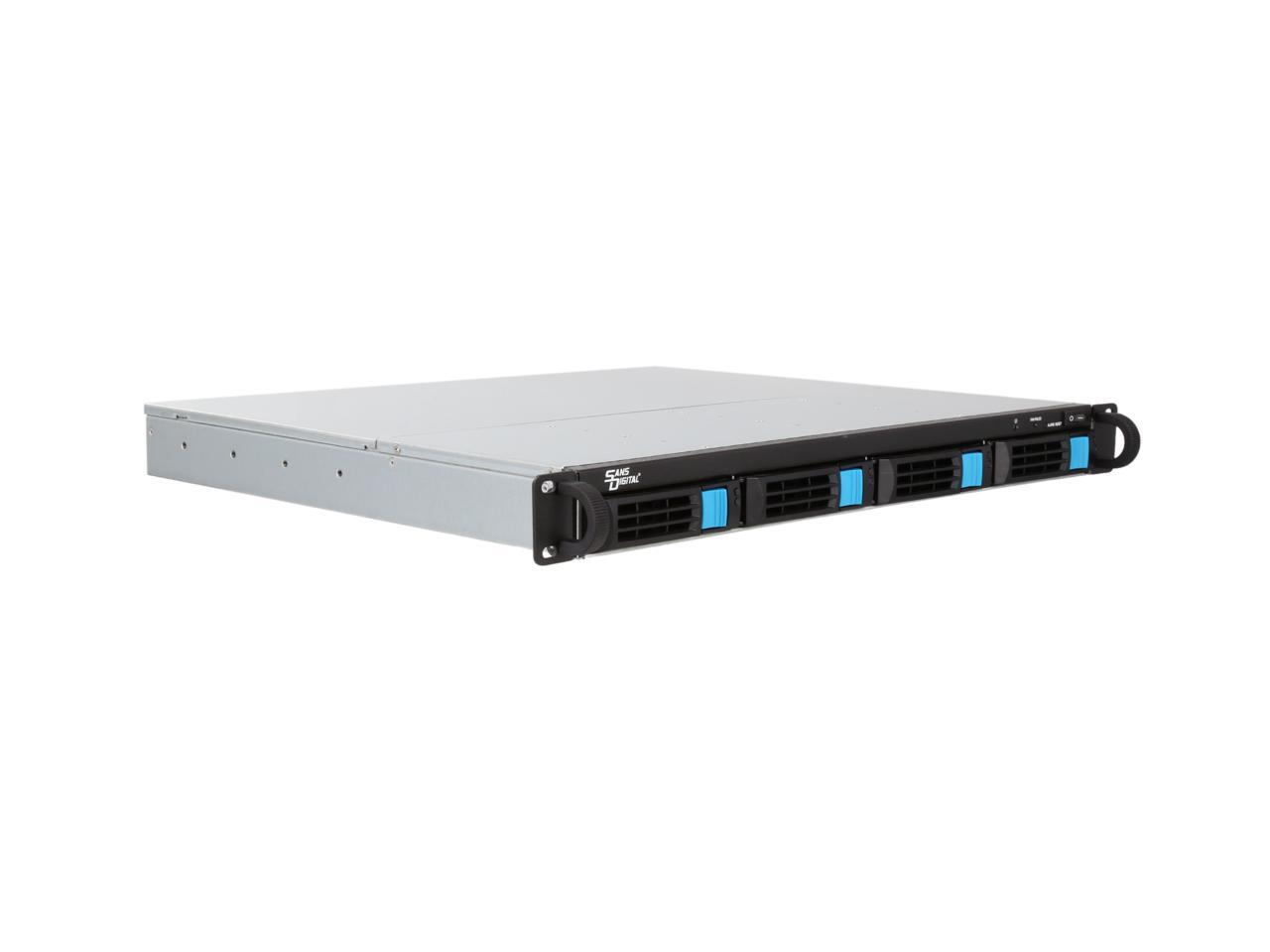

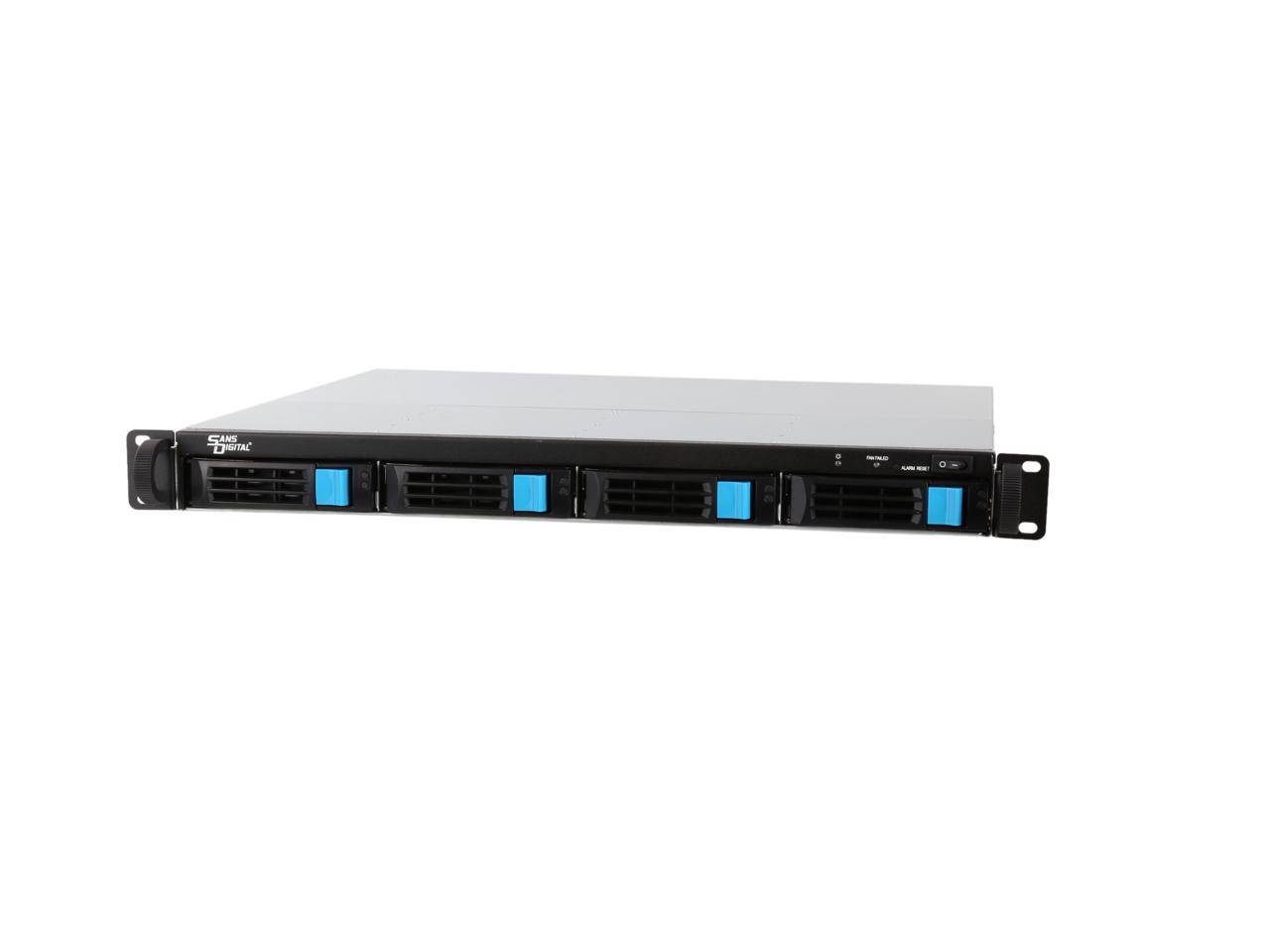

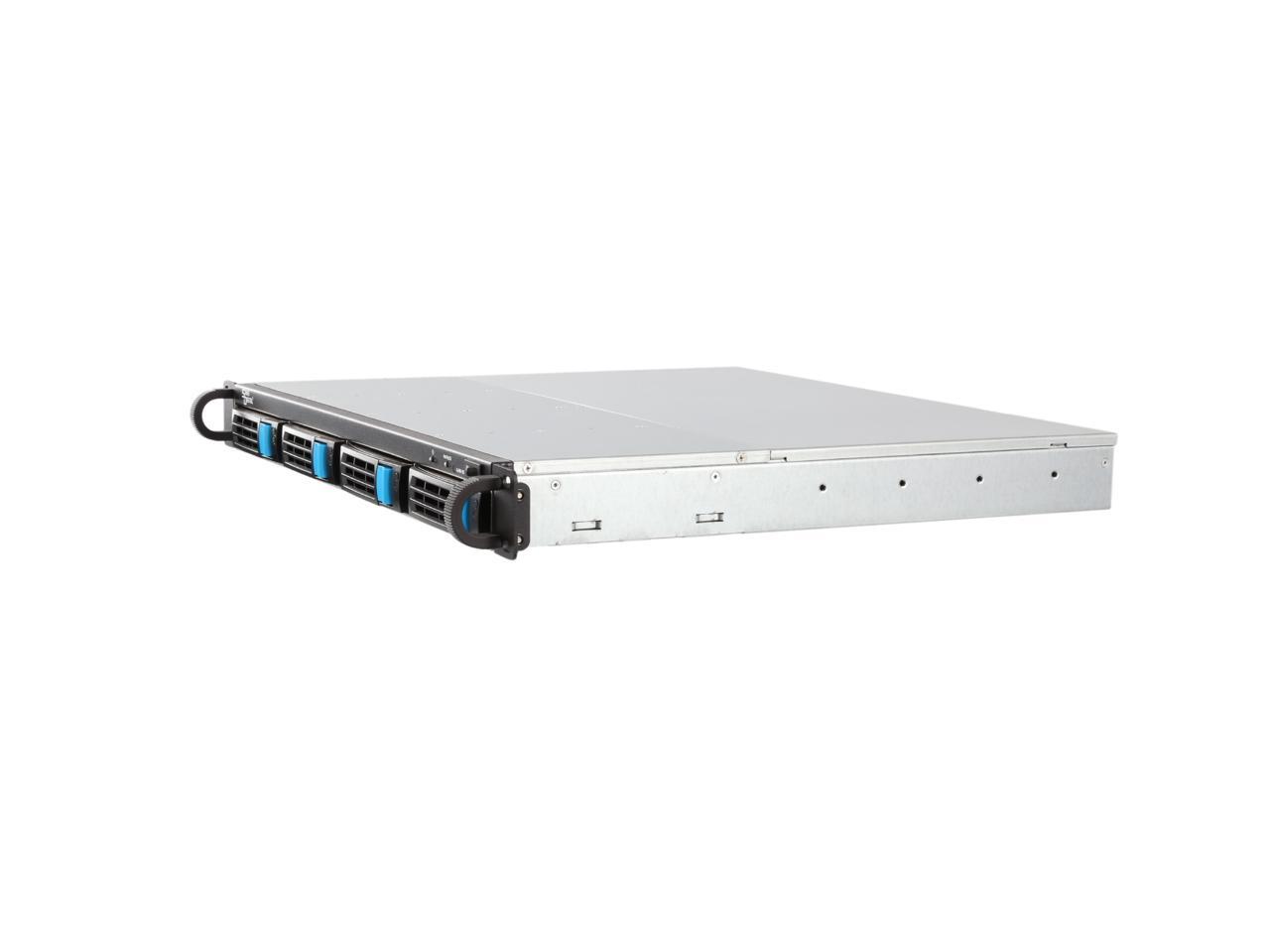

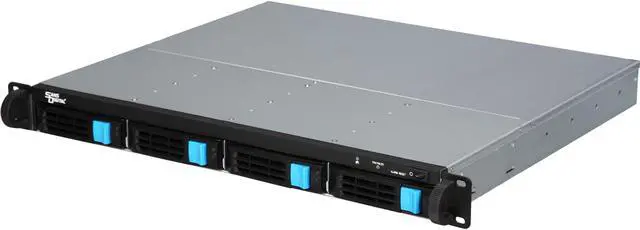

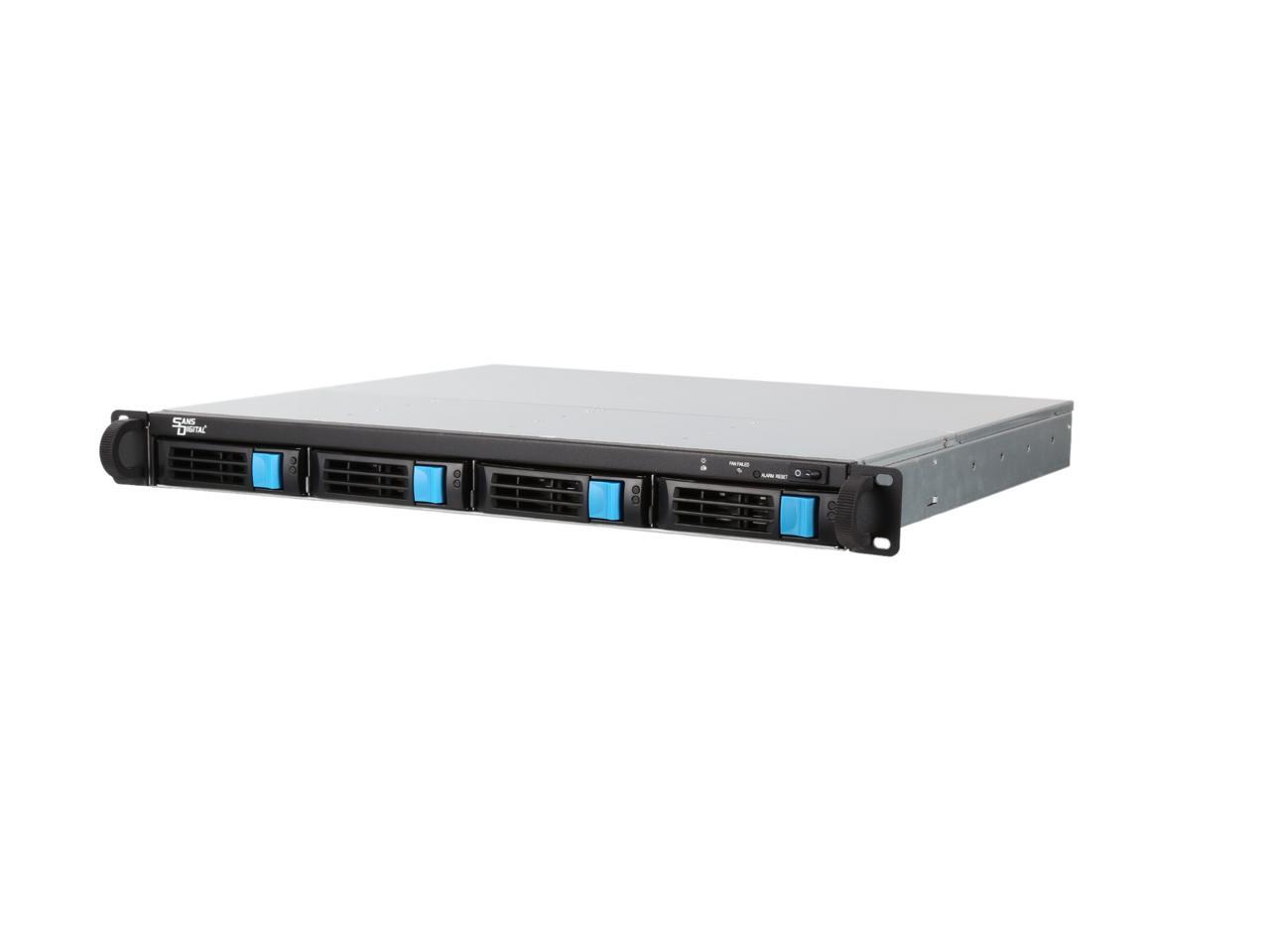

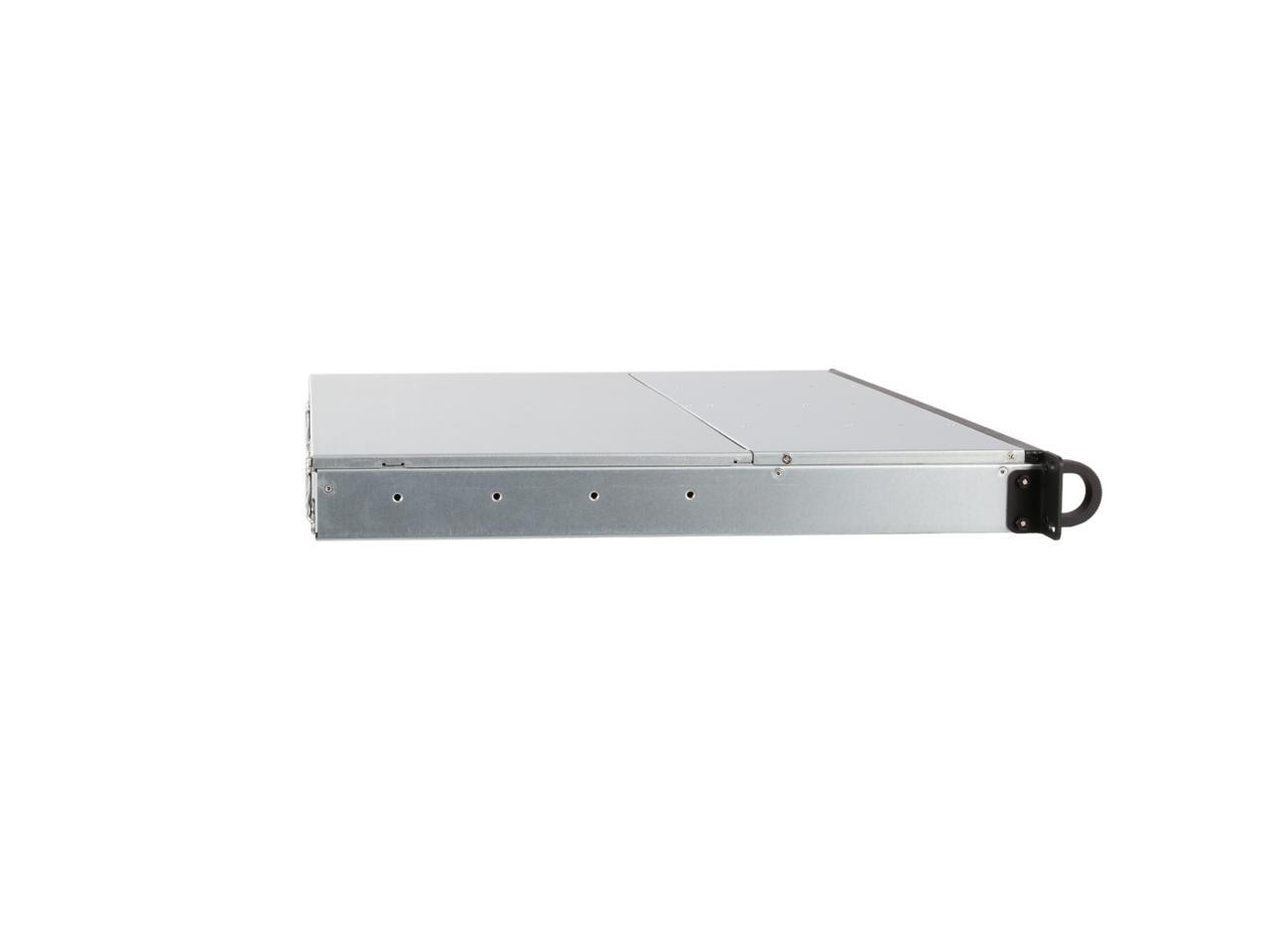

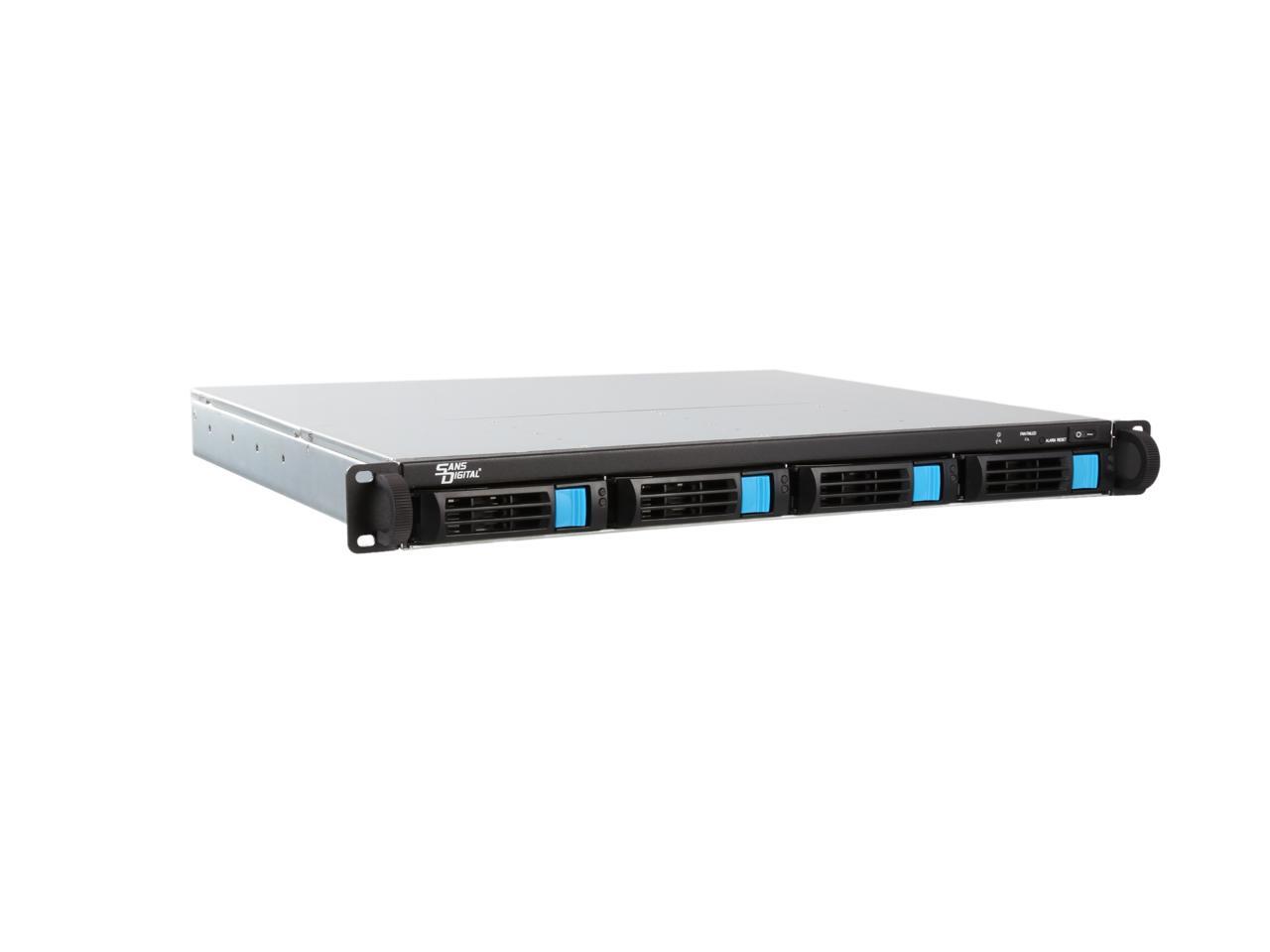

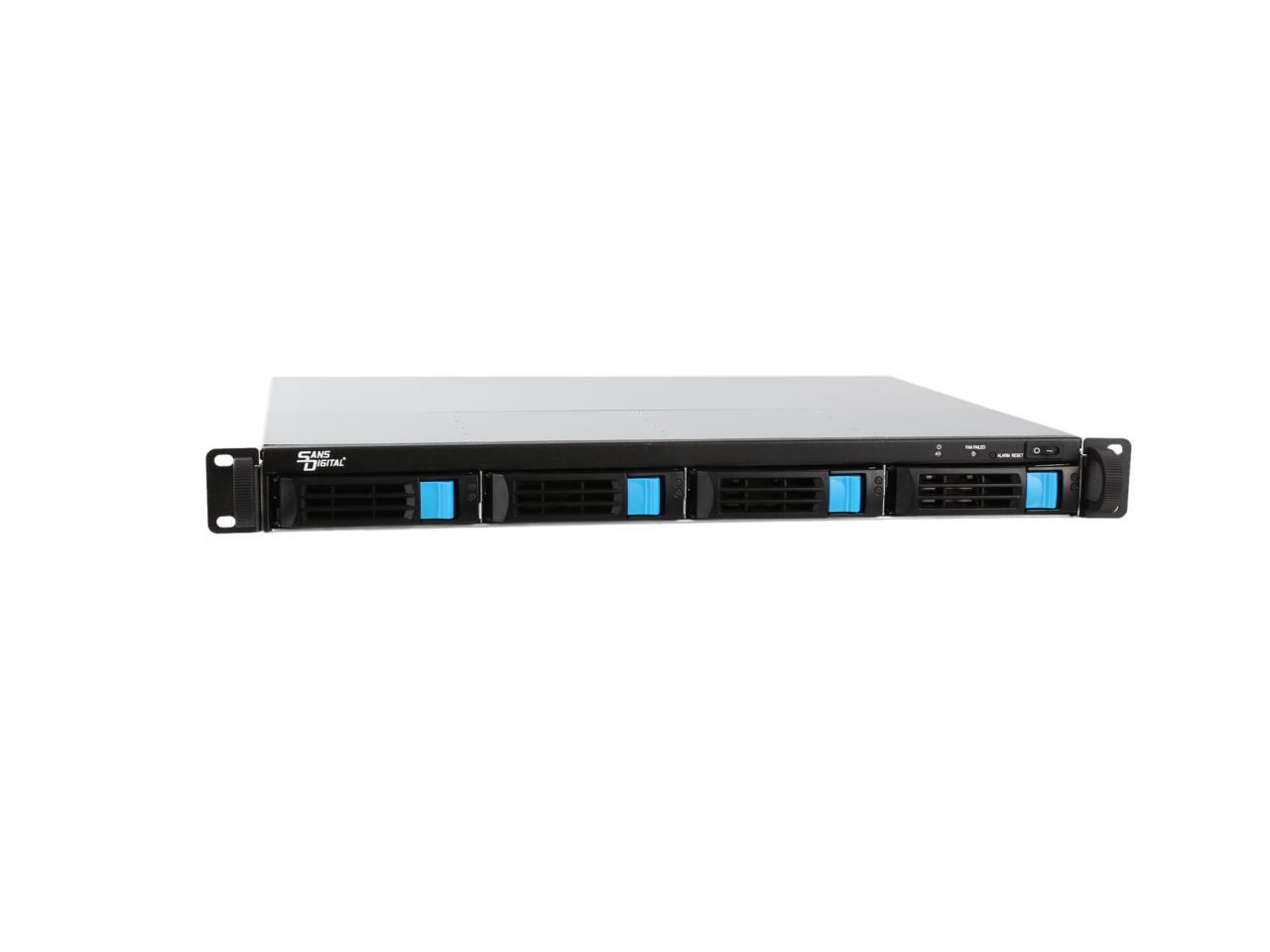

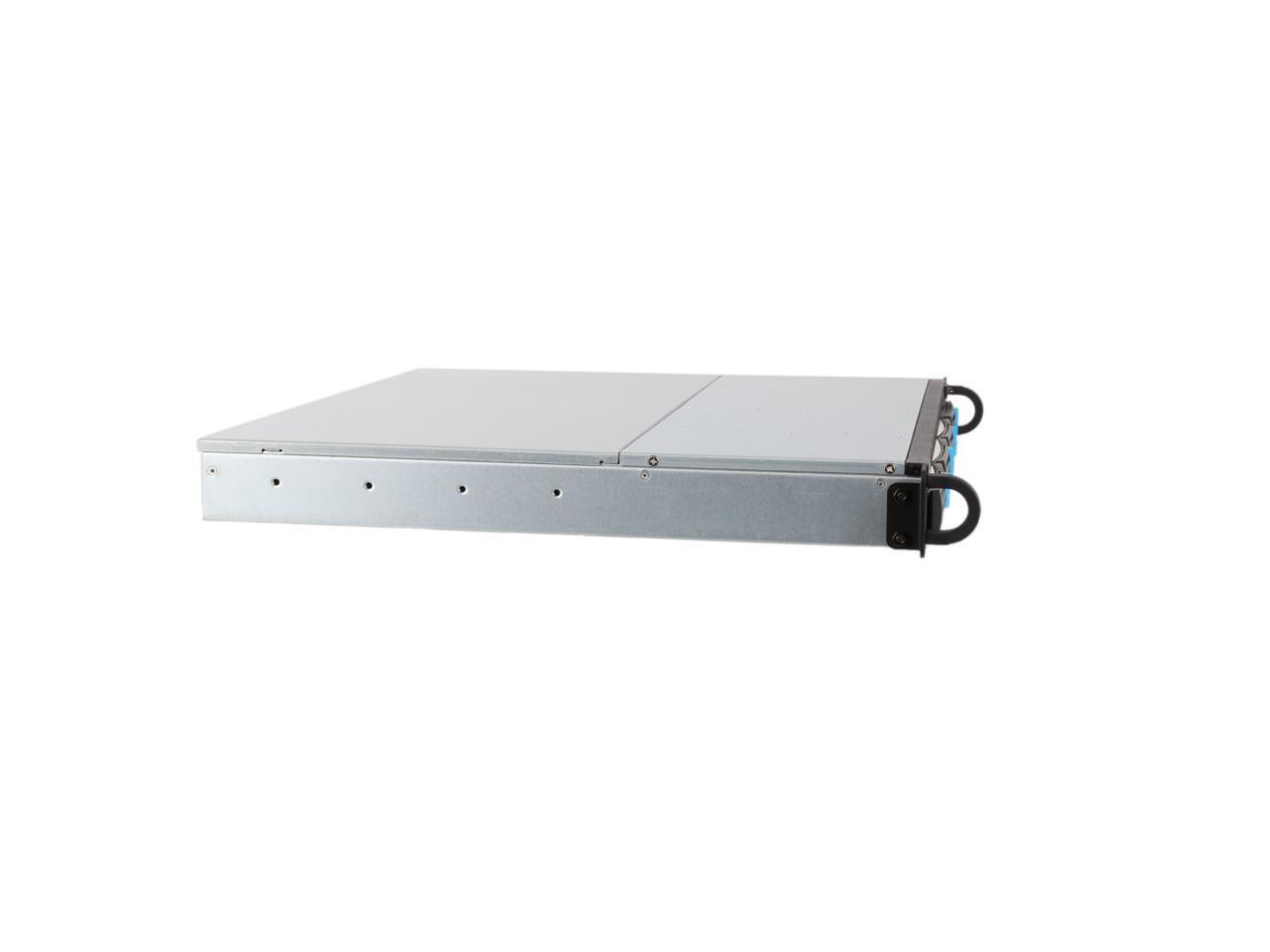

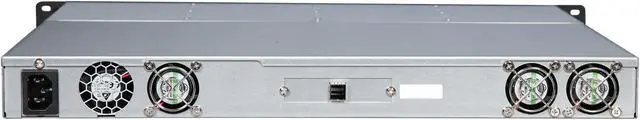

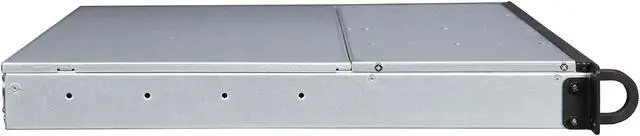

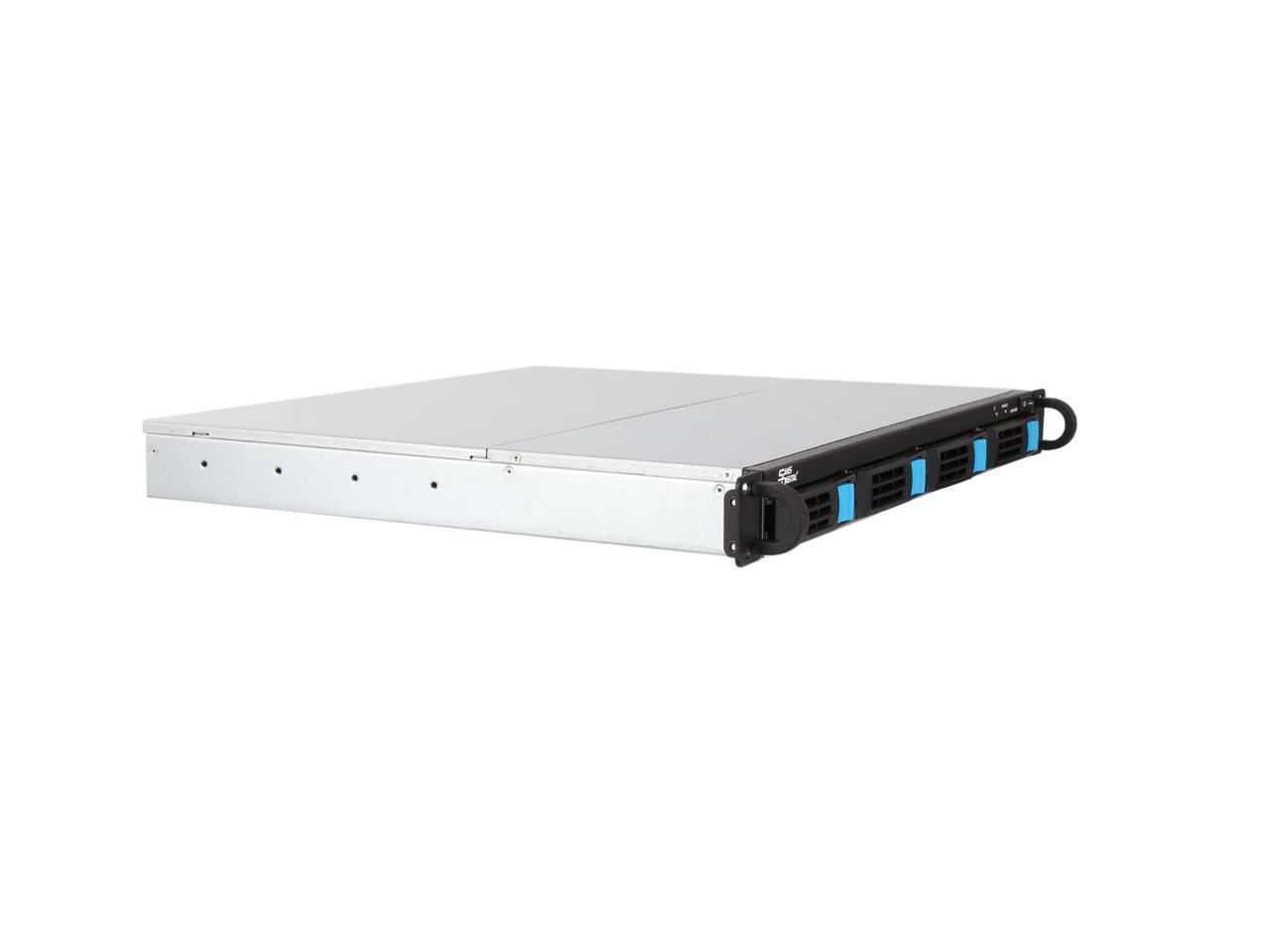

SANS DIGITAL ST-ES104X12G 4 Hot-Swappable 3.5" Drive Bay 3.5" Drive Bays 1U 4 Bay 12G mini-SAS HD / SFF-8644 SAS / SATA to SAS JBOD Rackmount
- SAS & SATA

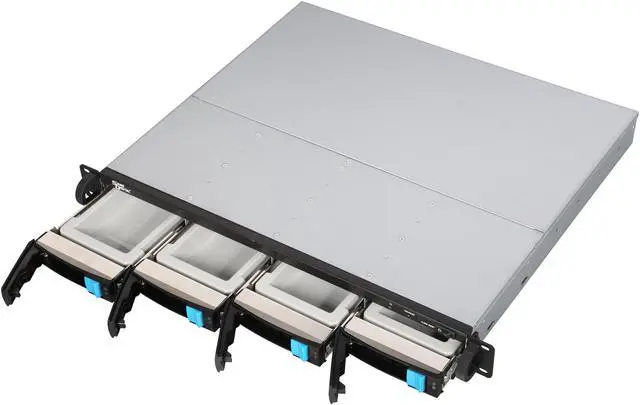

- 4 Hot-Swappable 3.5" Drive Bay 3.5" Drive Bays
Specs
Reviews (2)
Any questions? Our AI mode will help you find out quickly.
Try me now
Learn more about the SANS DIGITAL ST-ES104X12G
| Brand | SANS DIGITAL |
|---|---|
| Model | ST-ES104X12G |
| Drive | SAS & SATA |
|---|
| 3.5" Drive Bays | 4 Hot-Swappable 3.5" Drive Bay |
|---|
| Power Supply | 250W (100V~240V) |
|---|
| Features | Form Factor: 1U Rackmount RAID mode supported: JBOD (RAID is supported by additional RAID card) Maximum Capacity: 64TB Drive Interface: SAS or SATA 12 Gb/s, 6 Gb/s and 3Gb/s Host Interface : 12G SAS, Mini-SAS HD/ SFF-8644 x 1 Cooling Fan: Cooling fan * 2 12 Gb/s SAS Technology - Connect 4 SAS or SATA drives with only one single SFF-8644 to 8644 Mini-.SAS HD cable to HBA (Host Bus Adapter) or RAID controller. Superior Performance - With support of SATA 12Gb/s or SAS 12Gb/s hard drives and 48Gb/s of data bandwidth, performance can reach over 3,000 MB/s in read and write (tested with 12G SAS RAID controller card). Staggering Spin-Up - Built-in staggering spin-up for hard drives during power up. Thus, extending the life / duty cycle of the hard drives and power supply. Multi-purposes - Supports both SAS (Serial SCSI) and SATA hard drives to meet the requirements of different applications with different price/performance characteristics. Cost-effective SATA drives could be used for capacity orientated storage such as disk-to-disk backup, data-archiving, and digital video editing. Enterprise level SAS drives could be employed for I/O intensive applications such as transactional databases. All hardware are included - Mini-SAS HD cable, cooling fan, tray modules and build-in mounting rail are included. By connecting to a SAS controller and hard drives will instantly increase the storage space. Wide Range RAID Adapters Support - Compatible with Areca ARC-1883X, LSI SAS MegaRAID, and other industry standard 12G RAID card. |
|---|
| Dimensions | 1.75" x 19.00" x 15.00" |
|---|---|
| Weight | 16.00 lbs. |

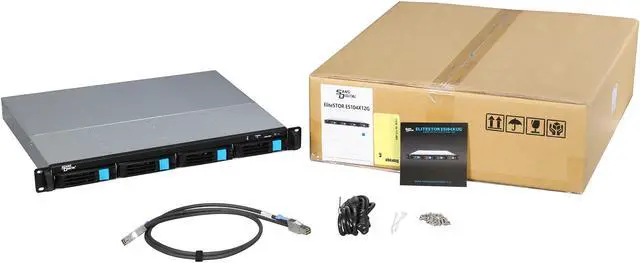

| Package Contents | Rail Bracket(1 Set) Power Cords (2) Serial Cable (1) Ethernet Cable (1) Hard Drive Mounting Screws and trays CD and User Guide (1) |
|---|
| First Listed on Newegg | December 18, 2015 |
|---|
