The VRM power supply heat dissipation armor is composed of two nitrogen dynamic heat sinks, which are sufficient to ensure that the power supply system can allow high-end Ryzen to run stably.

Questions & Answers: Sapphire Tech NITRO+ B850M WIFI Motherboard, Desktop Motherboard, for AMD Razorback 9000/8000/7000 Series Processors, WIFI6+ Bluetooth 5, AMD B850, AM5, 1*PCIE5.0x16,1*PCIE4.0x4, 1*HDMI, 1*DP

double click image to zoom in

Top Rated Shop All Sapphire Tech Products | Visit Roboshine Store

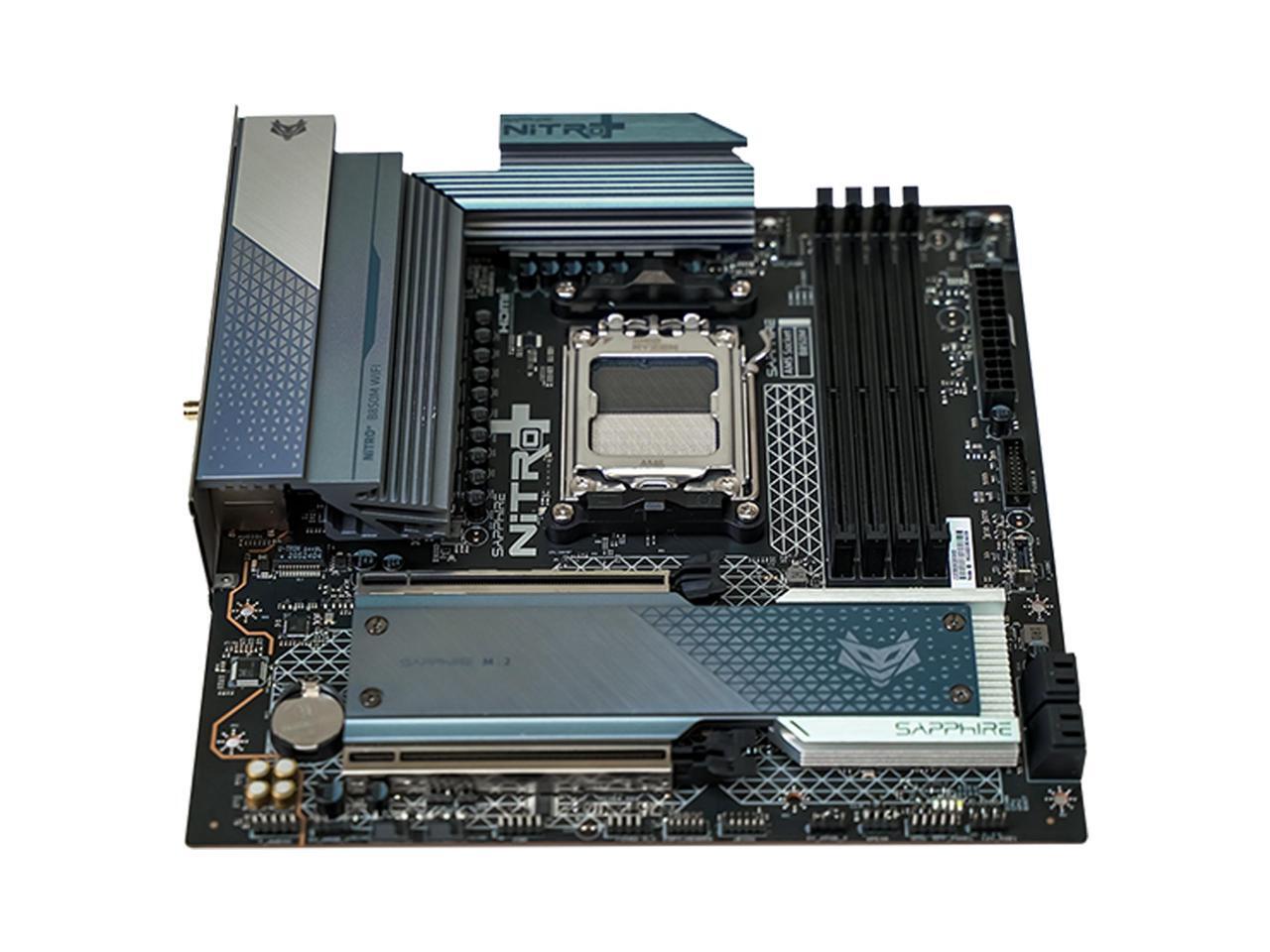

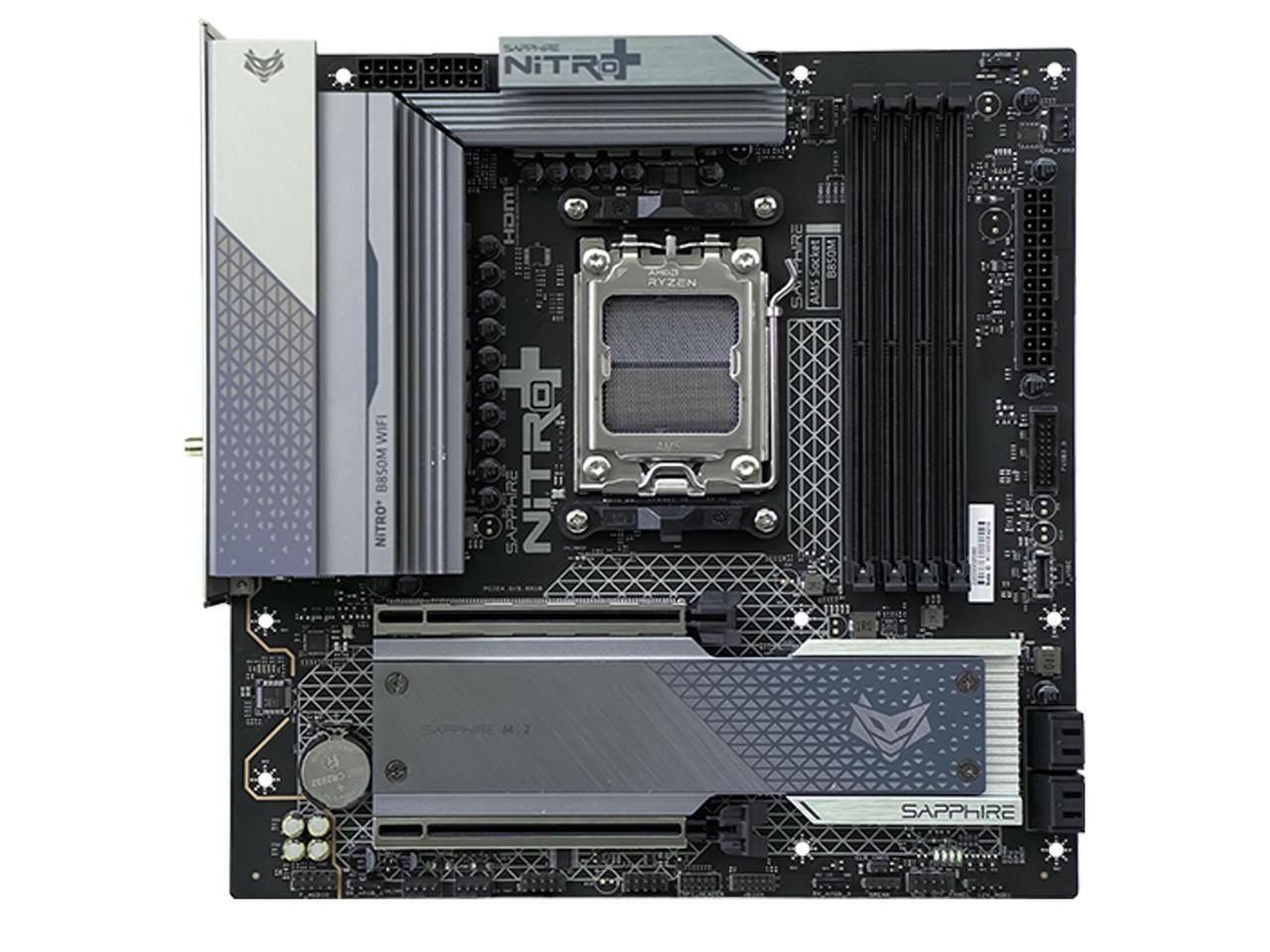

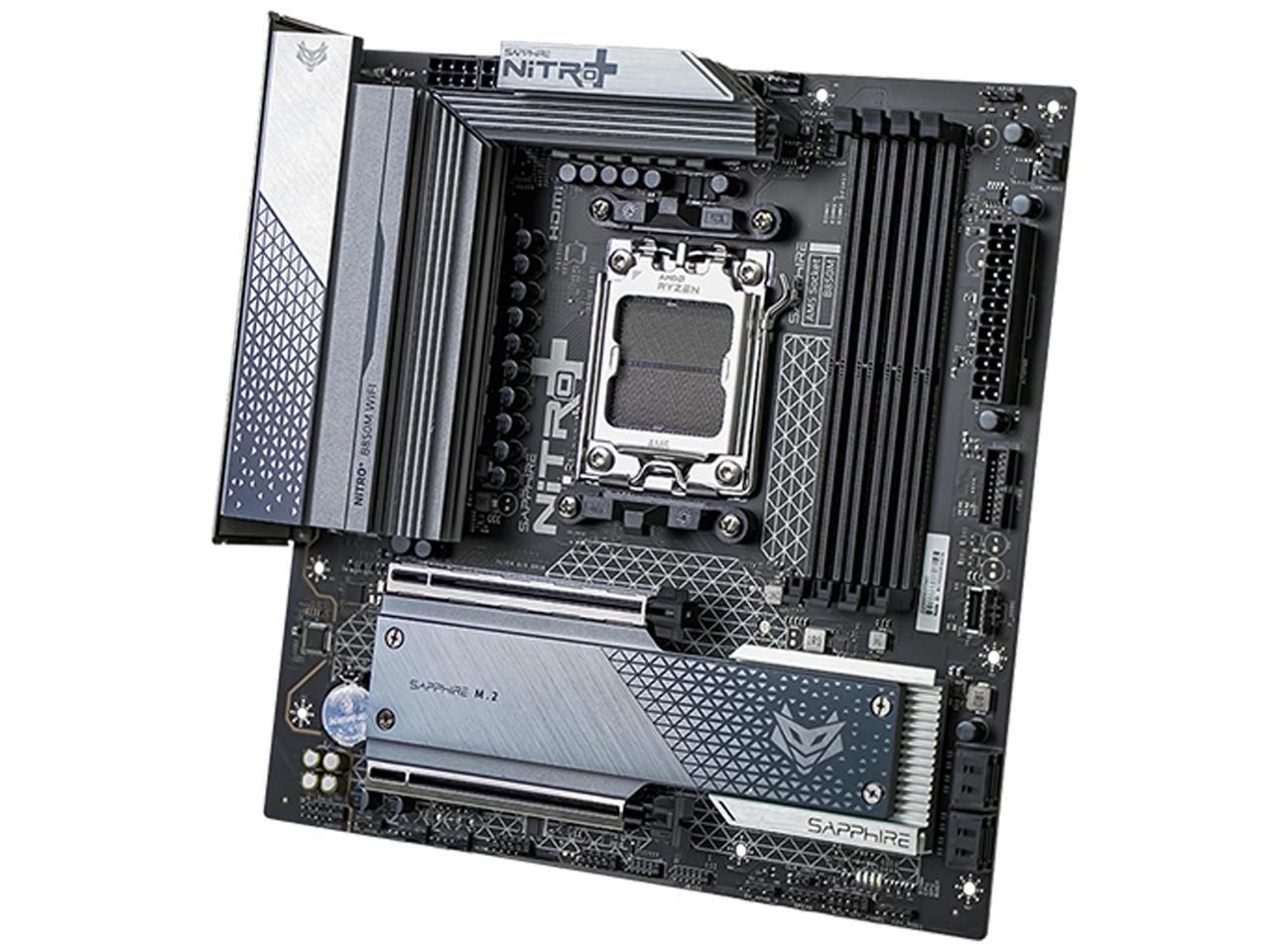

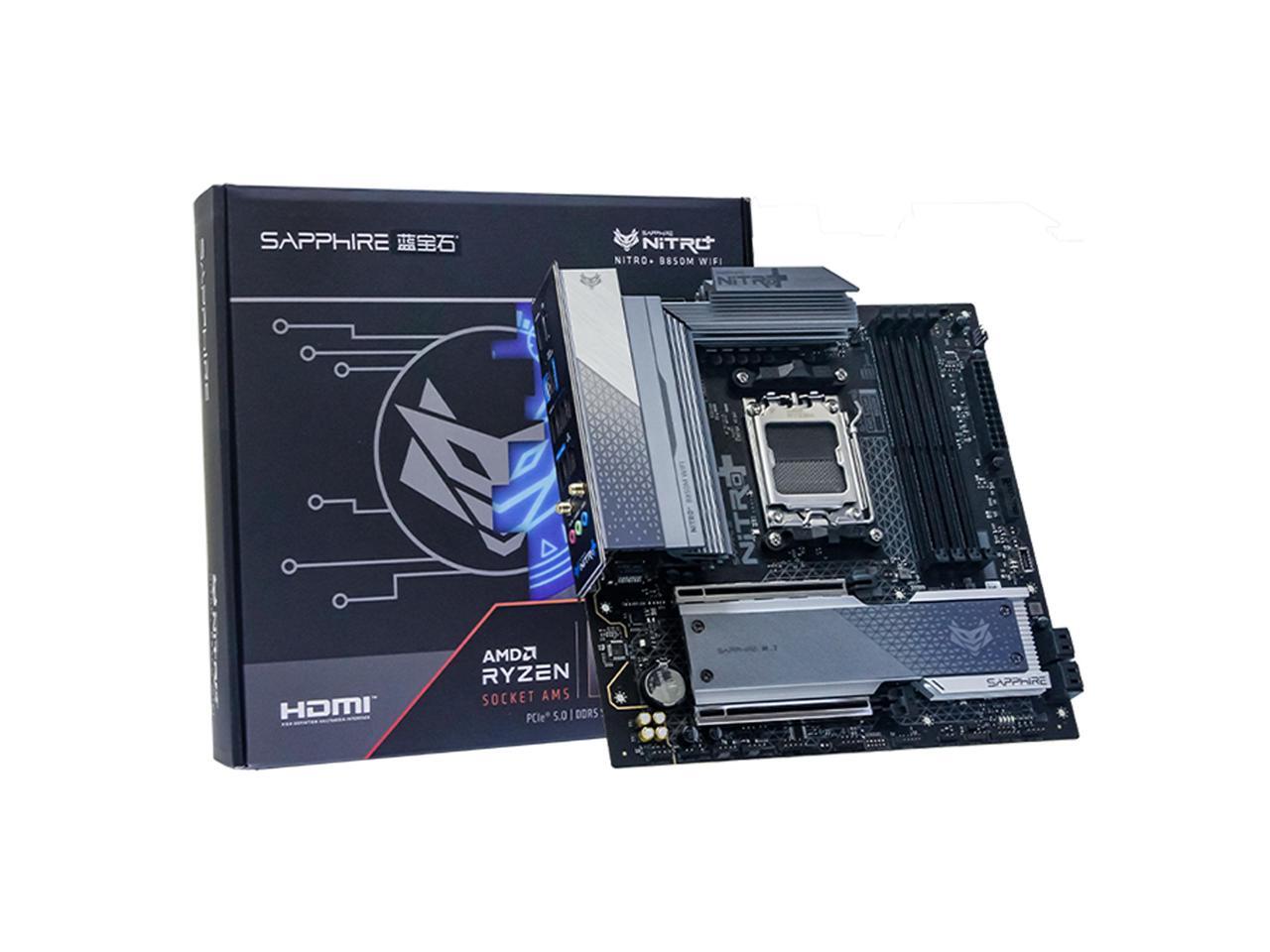

Sapphire Tech NITRO+ B850M WIFI Motherboard, Desktop Motherboard, for AMD Razorback 9000/8000/7000 Series Processors, WIFI6+ Bluetooth 5, AMD B850, AM5, 1*PCIE5.0x16,1*PCIE4.0x4, 1*HDMI, 1*DP

"Chipset: AMD® B850 Chipset
CPU: Supports AMD® RALON 7000 series desktop processorsSupports AMD® RALON 8000 series desktop processorsSupports AMD® RALON 9000 series desktop processors-Supports AM5 socket processors
Expansion slots:
1 PCIE 5.0 x16 slot 1 PCIE 4.0 x4 slot
Audio: Realtek-ALC897 Hi-Fi decoder chip (supports up to 5.1 channels)
Network function: Realtek®RTL8125BG network controller
-Supports 2.5G wired network
Wi-Fi 6 module support 802.11 a/b/g/n/ac/ax support 2.4GHz/5GHz wireless band support Bluetooth 5 wireless transmission

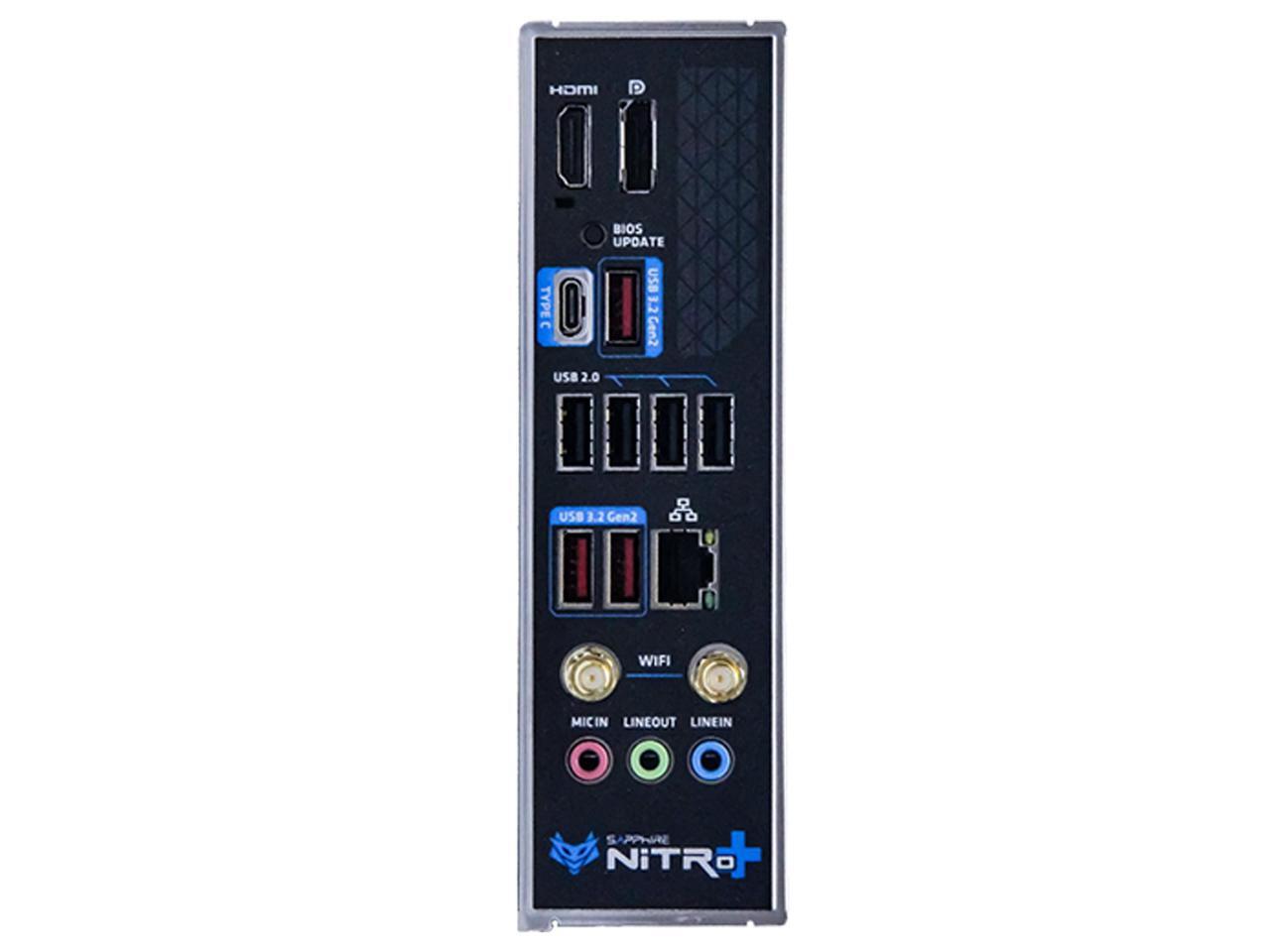

Rear I0 interfaces: 1 DisplayPort connector 1 HDMI connector 4 USB 2.0 ports 3 USB 3.2 GEN2Type-A enclosure 1 USB 3.2 GEN2 Type-C connector
1 LAN (RJ45) port 2 WiFi6 antenna ports
Error Detection Indicator: DIMM Yellow Indicator
CPU red light GPU white light
BOOT green indicator
Motherboard Dimensions:
MATX version 245mmx245mm"
