Scheiffer Sewer Jetting Kit - Foot Control Valve Hose Reel 1/8" x 200' Sewer Jetting Hose Button Nose and Rotating Nozzles

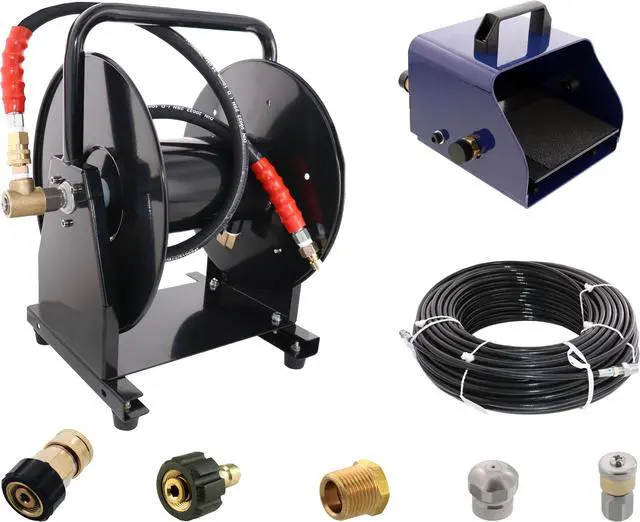

Kit Includes:

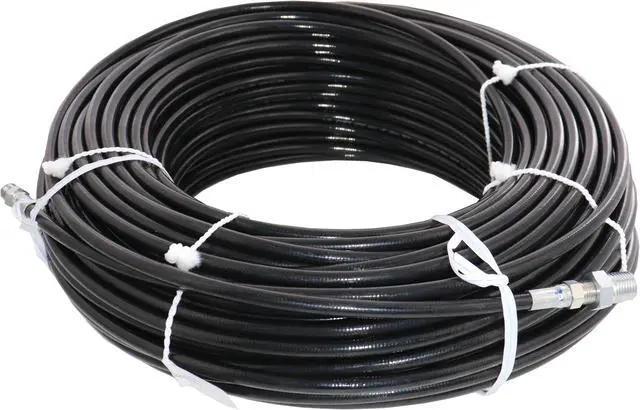

• Schieffer 4800 PSI 1/8" x 200' Thermoplastic Sewer Jetter Hose


• Erie Tools® 4000 PSI Sewer Jetter Foot Control Valve for High Pressure


• Erie Tools Pressure Washer 3/8" Female NPT to M22 Quick Connect Socket Coupler


• Erie Tools Brass 22mm x 3/8" Twist Quick Connect Plug Pressure Washer Adapter


• Erie Tools Button Nose 1/8" Sewer Jetter Nozzle 4.5 Orifice


• Erie Tools Rotating 1/8" Sewer Jetter Nozzle 4.5 Orifice


• Erie Tools® 5000 PSI 3/8" x 200' Portable Hose Reel


• Raptor Blast Brass Hex Bushing 3/8" x 1/4" Reducer

Hose Specifications:

• Hose Length: 200'


• Working Pressure: 4800 PSI - 331 Bar


• Proof Pressure: 6000 PSI - 414 Bar


• Burst Pressure: 12000 PSI - 828 Bar

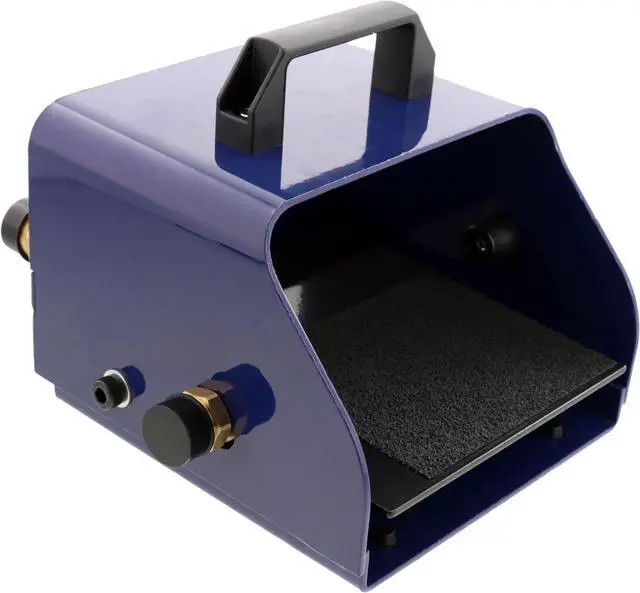

Foot Pedal Specifications:

• Installed between Pump Outlet and Hose Reel


• Maximum Working Pressure: 4000 PSI (275 BAR)


• Maximum Temperature: 140° F (60° C)


• Flow: 14.8 GPM


• Inlet: M22 Male


• Outlet: M22 Female

Connector Specifications:

M22 Quick Connect Socket Coupler:

• Inlet: M22 Female


• Outlet: 3/8 in. Female Thread


• Brass construction.


• Maximum Pressure: 4,000 PSI


• Maximum Temperature: 212° F


• Maximum Flow: 10.5 GPM

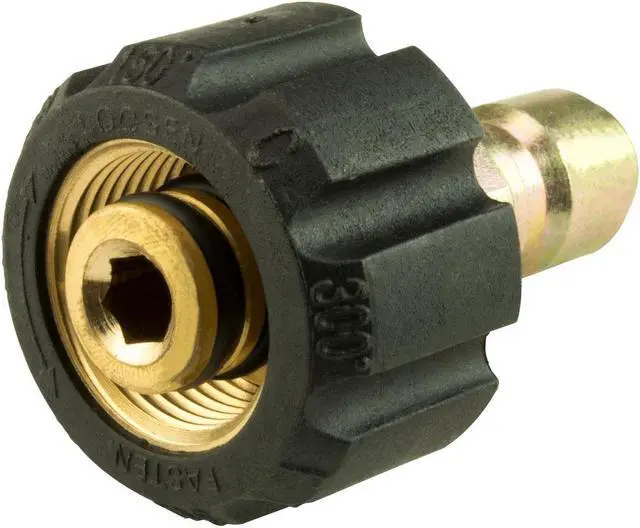

22mm x 3/8" Twist Quick Connect Plug:

• M22 High-Pressure Swivel Nut Plated Steel Coupler Fitting


• Inlet: 3/8" NPT Quick Disconnect Plug


• 4500 Max PSI


• Max Temp 300° F

Nozzle Specifications:

Button Nose

• Orifice Size: 4.5


• One (1) front jet with 0° spray that clears blockages.


• Three (3) rear jets with 33° spray to flush out debris loosened by the front jet.


• Connection: 1/8 in. Female Fitting

Rotating

• Orifice Size: 4.5


• Rotating sewer jetter drain cleaning nozzle.


• Three (3) rear jets to flush out debris.


• Connection: 1/8 in. Female Fitting

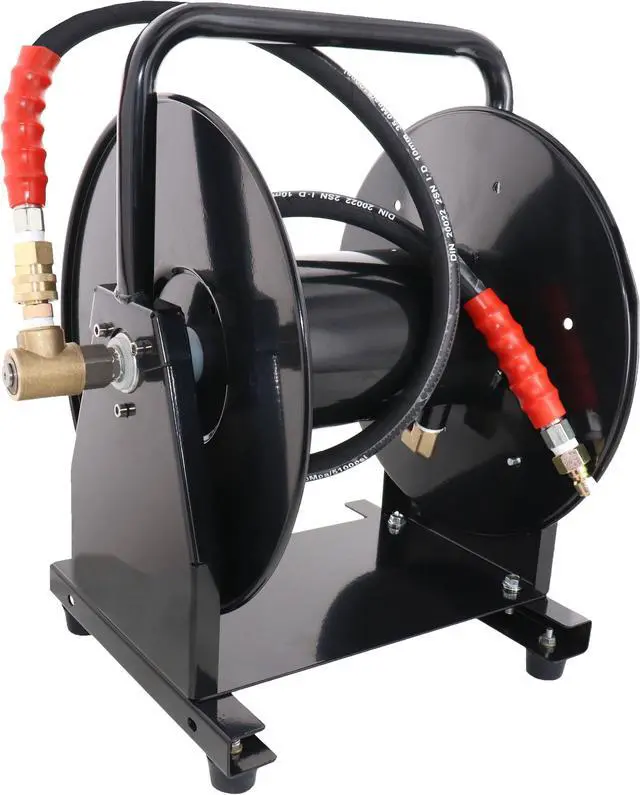

Hose Reel Specifications:

• Max Working Temp: 140° F (60° C)


• Max Working Pressure: 5000 PSI


• 3 ft. Leader Hose


• Inlet: 3/8" Male


• Outlet: 3/8" Female

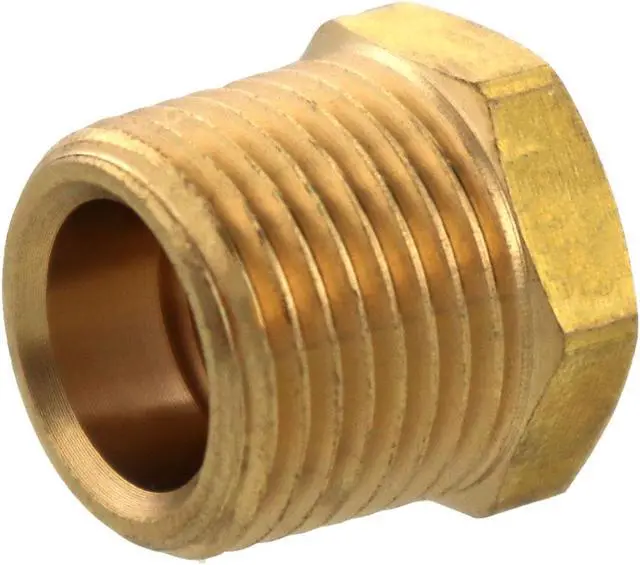

Reducer Specifications:

• Brass Composition


• 3/4" x 1/4"


• Reduces water flow to allow connection


• Connects hose to hose reel for better control and accessibility

WARNING! This product can expose you to chemicals including lead, cadmium, mercury, and chromium, which is known to the state of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov.
