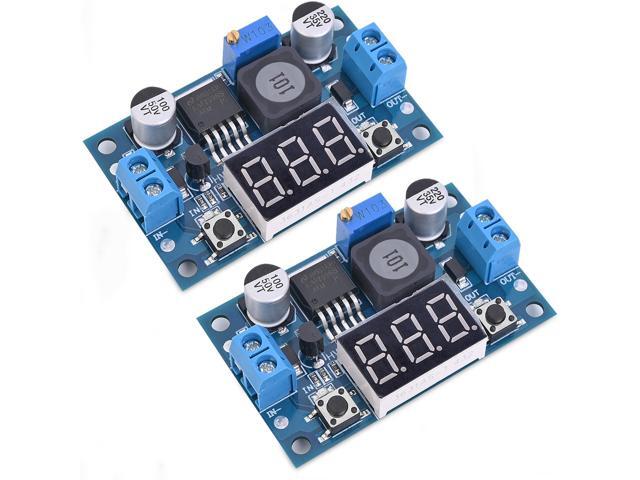

BUCIER LM2596 Adjustable DC-DC Step-Down Buck Converter Module with LED Voltmeter Display, Voltage Regulator 4.0-40V Input to 1.25-37V Output Power Supply Module (Pack of 2)

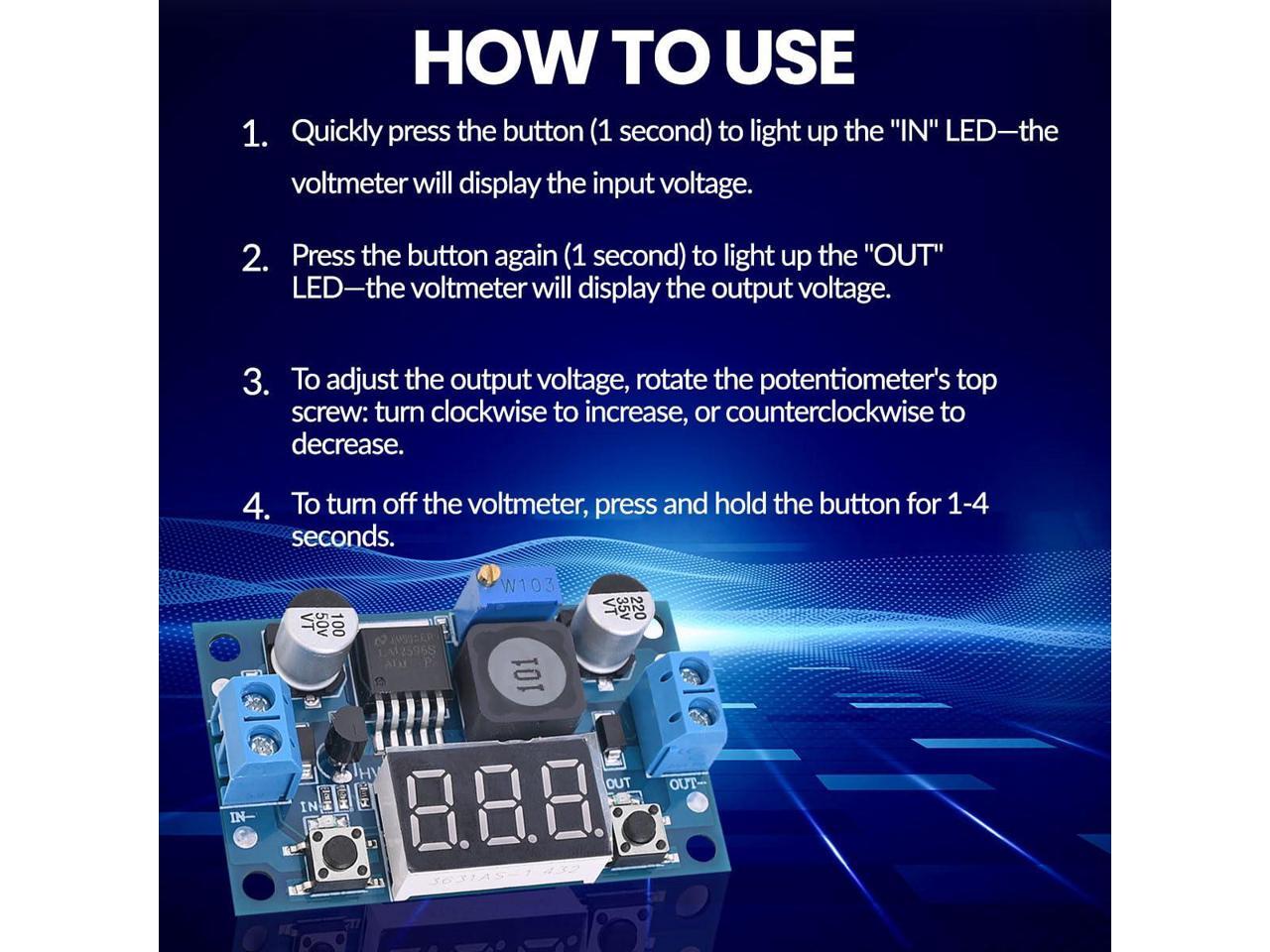

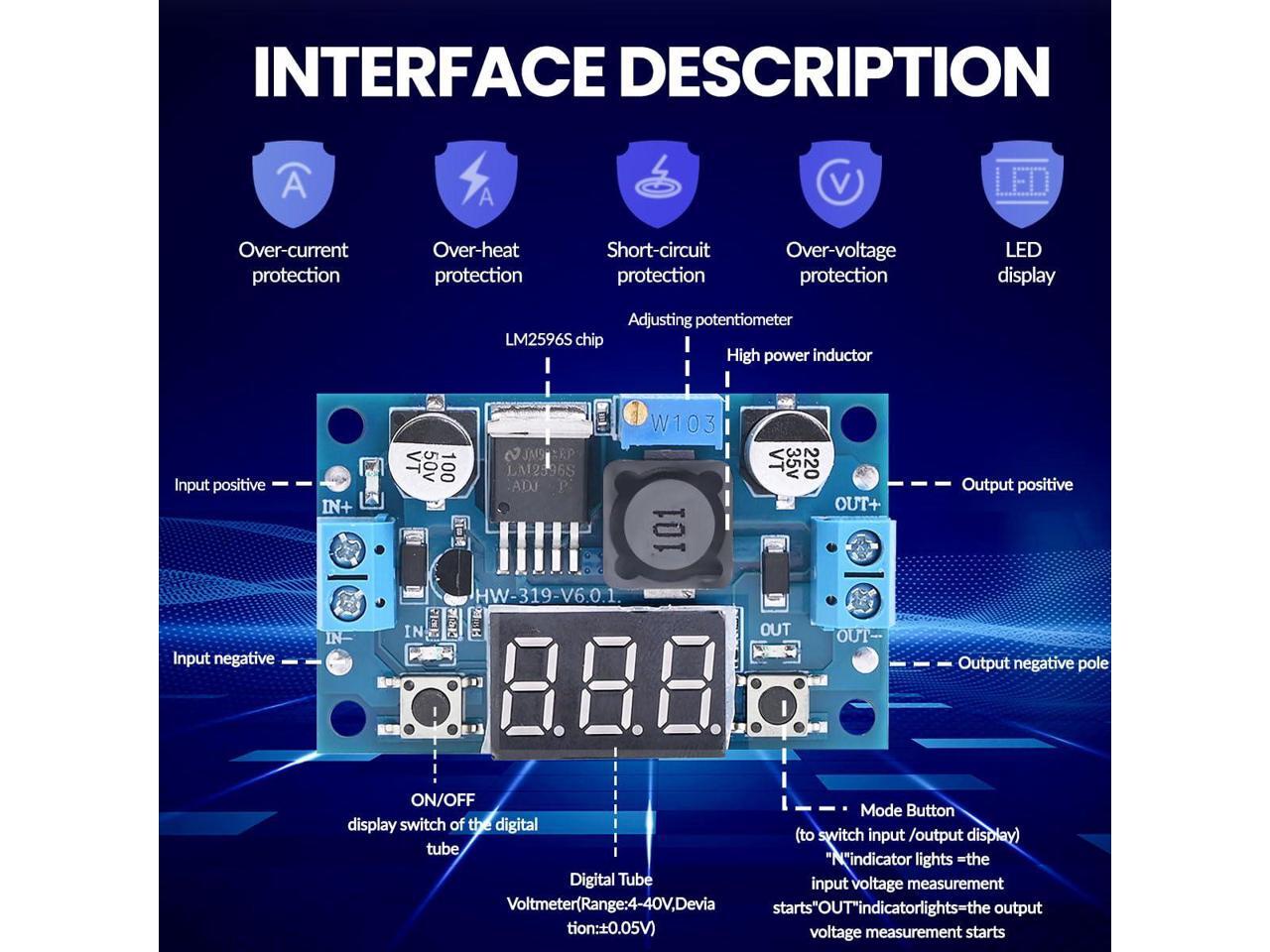

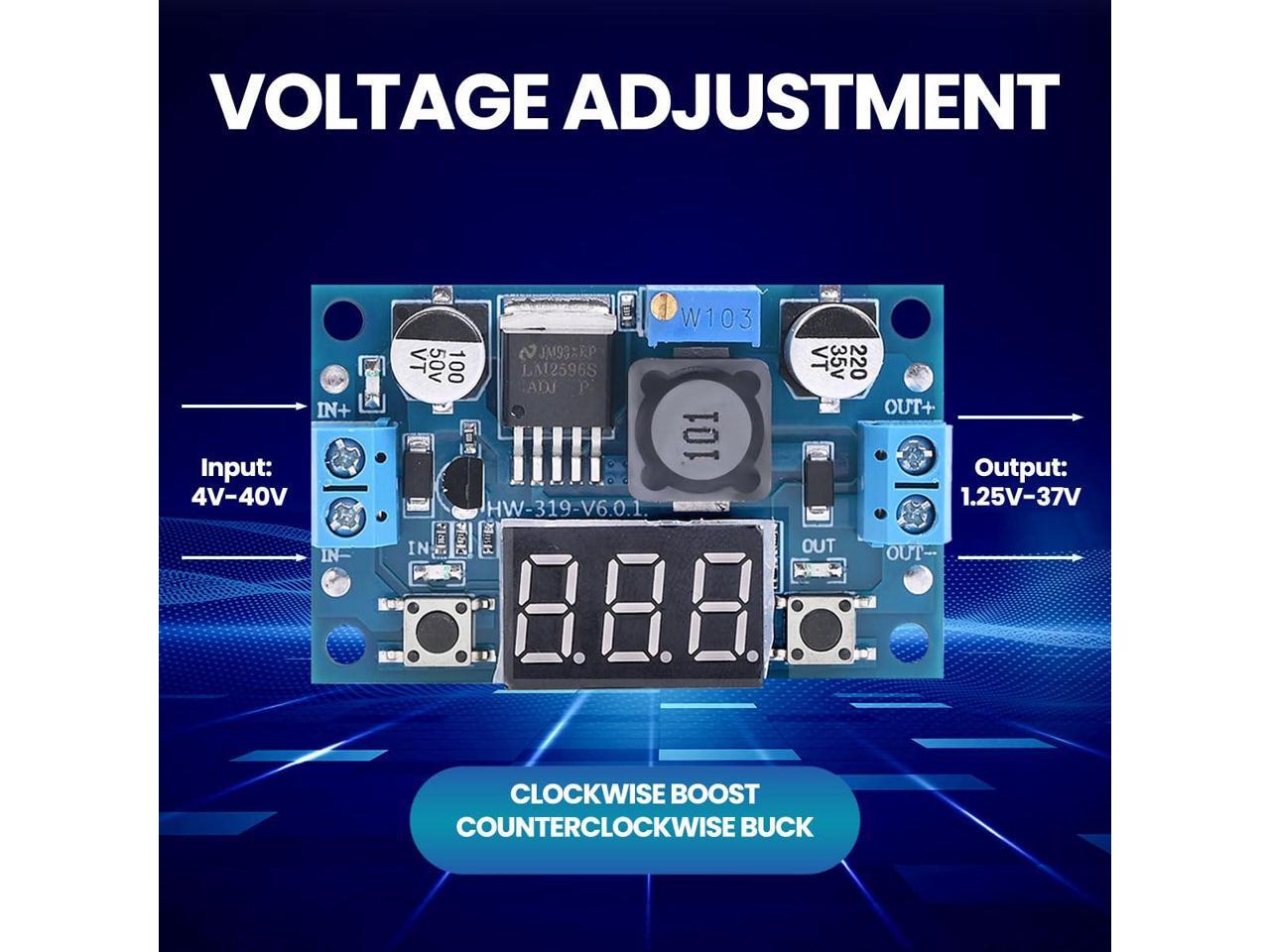

  • LED Numeric Display: Buck converter equipped with an LED voltmeter display. The voltmeter has a measurement error of ±0.1V. The input voltage range is from 4.0V to 40V, and the output voltage range is from 1.25V to 37V(Note: If the input voltage is below 4V, the onboard voltmeter will not operate and no display will be shown). The voltmeter can be switched off by holding the switch for over 1 second and less than 4 seconds, then releasing it. Once the voltmeter is off, just press the switch briefly to turn it on

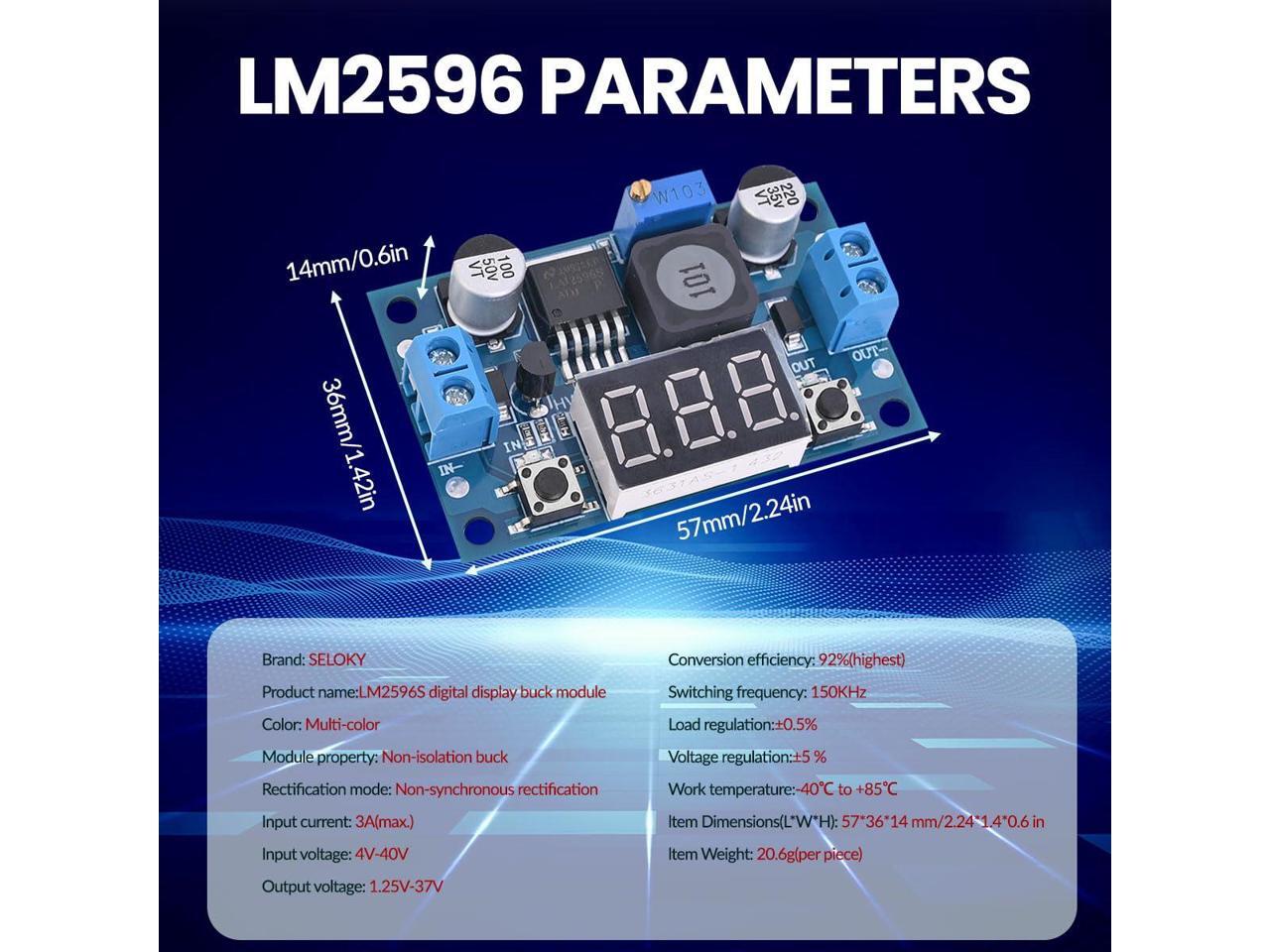

  • LM2596 Adjustable Buck Converter: The internal oscillation frequency is 150KHz. It's a second-generation voltage regulator with low power consumption and high efficiency. It's equipped with high-quality solid capacitors to improve the stability and durability of the circuit and filter out high-frequency noise effectively
  • $29.99 –
