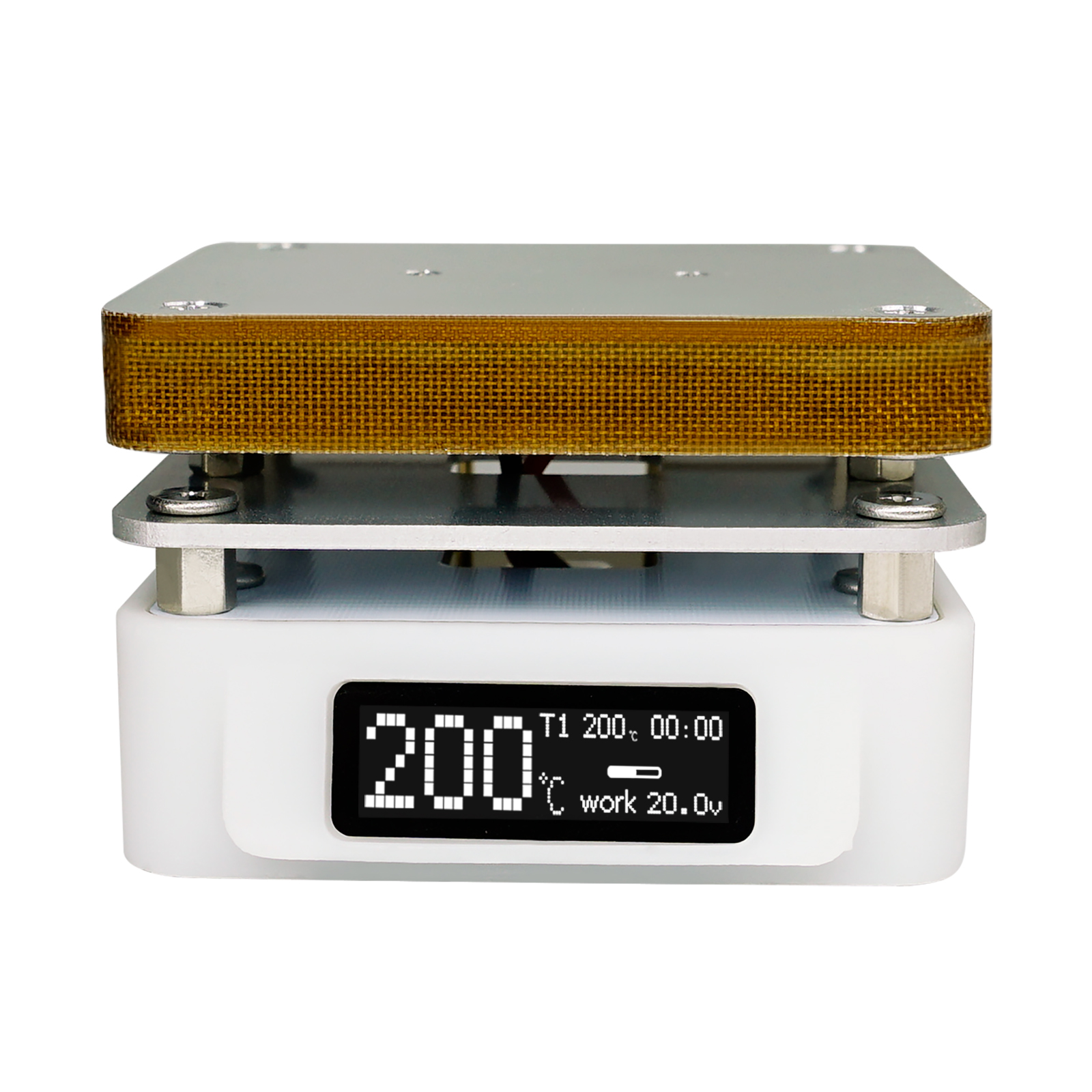

    SEQURE Electric Soldering Hot Plate, 25V 95W OLED Mini Preheat Soldering Station, Timed Heating Rework Heater Lab 55MM x 55MM Plate (Only T55 Controller)

    Be the first to review this product...
    • High Efficiency T55 preheating station equipped with aluminum radiator for high thermal efficiency. When using a 65W PD power supply under 25.2V, it only takes 87 seconds to heat from 30°C to 280°C. Working temp range: 50°C-280°C.
    • Small but Powerful Mini & lightweight soldering hot plate with a heating area of 50 x 50mm. Adopts high-quality aluminum plate as a heating element, T55 transfers heat faster and more uniform.
    • Multi-functions Preset temperature, time heating, automatic sleep, compensate temperature, multi-language menu, and firmware upgrade.
    • More User-friendly The heater is equipped with an OLED display and two physical buttons(on the back), easily control & adjust temp. Slip-resistant silicone base to ensure stability.

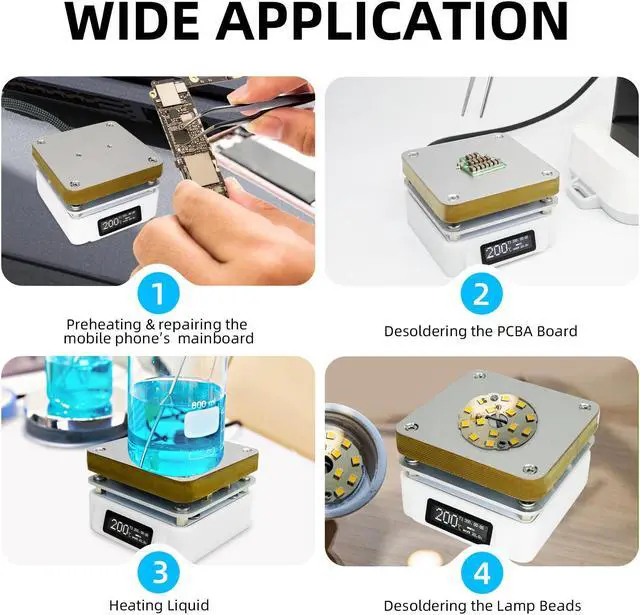

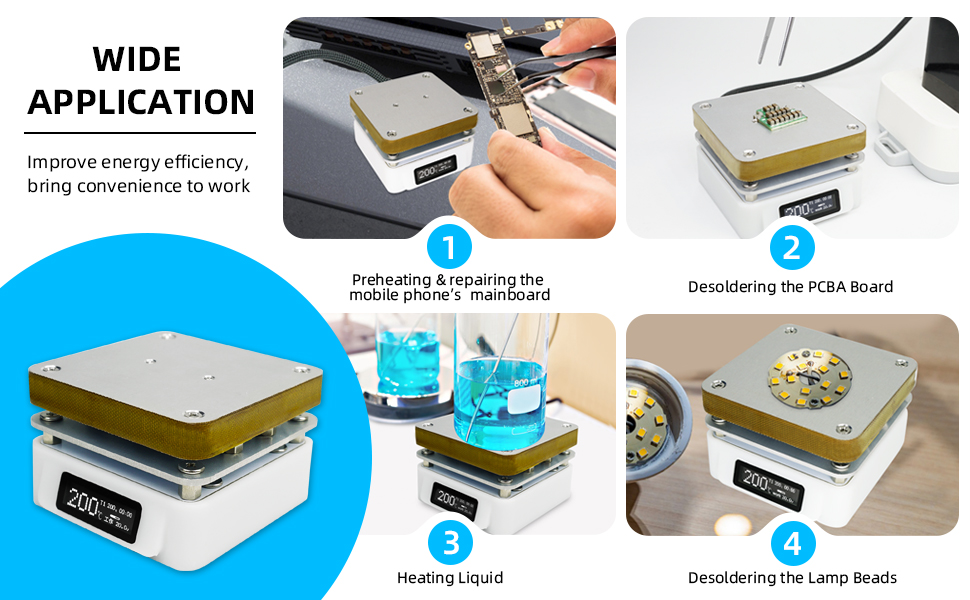

    • Wide Application This hot plate can be used on the workbench or out in the field, preheating & heating & desoldering circuit boards, components, LED beads, etc.
    +
    +
    Overview
    Specs
    Reviews
    avatar

    Any questions? Our AI beta will help you find out quickly.

    Try me now
    Specification

    Model: T55
    Material: Aluminum

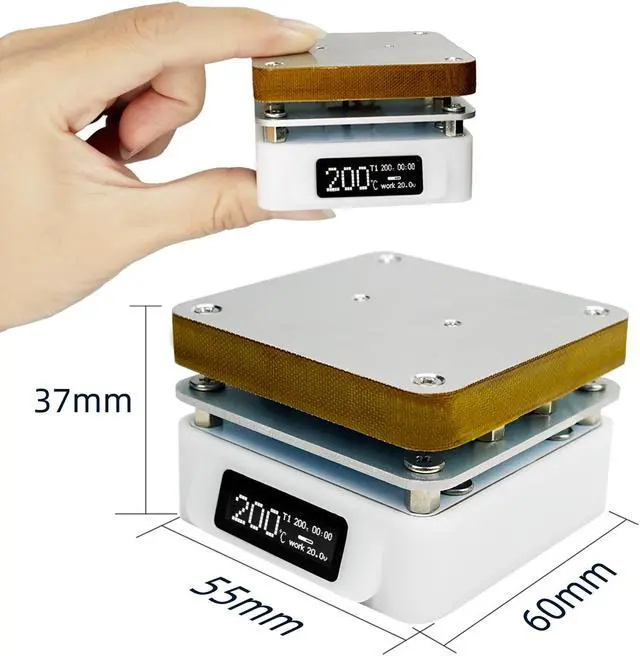

    Size: 55 * 60 * 37mm / 2.1*2.4*1.5 inches
    Heating Area: 55*55mm / 2.1*2.1 inches
    Working Temperature: 50°C-280°C / 122-536
    Highest Input Voltage: 25V
    Highest Output Power: 95W
    Recommend Input Voltage: 19V-25V
    PD Power Supply: PD 20V >=3A
    Power Supply Mode: PD, QC, DC
    Interface Type: Type-C
    Screen Specification: 128*32 OLED

    Features:
    Equipped with high precision sensor, T55 provides constant temperature, precisely controls temperature, and heats up quickly.

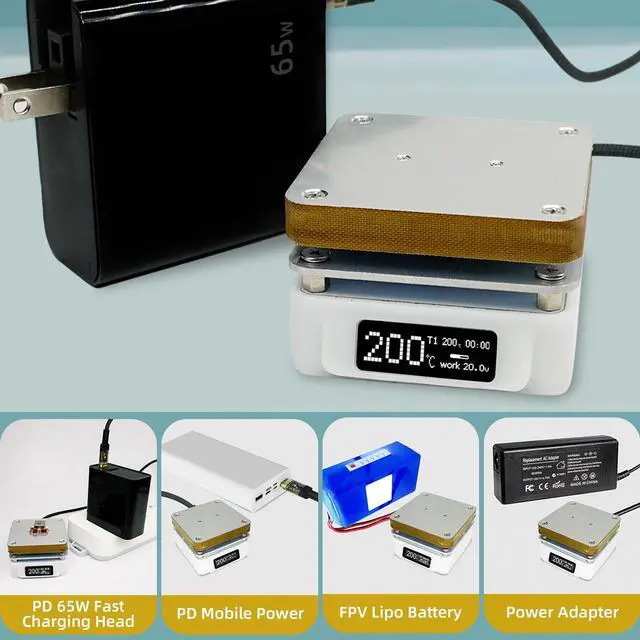

    T55 intelligent hot plate supports multiple power supply modes, such as PD power plug, mobile power, lipo battery, and power adapter.
    T55 soldering hot plate supports Chinese/English/Russian menu, and conversion.
    Mini heater can compensate temperature, and the temperature stability could up to ±1%.
    SOLDERING STATION
    SOLDERING
    Specification of T55

    Model: T55

    Material: Aluminum

    Size: 55 * 60 * 37mm / 2.1*2.4*1.5 inches

    Heating Area: 55*55mm / 2.1*2.1 inches

    Highest Input Voltage: 25V

    Highest Output Power: 95W

    Recommend Input Voltage: 19V-25V

    Power Supply Mode: PD, QC, DC

    SOLDER

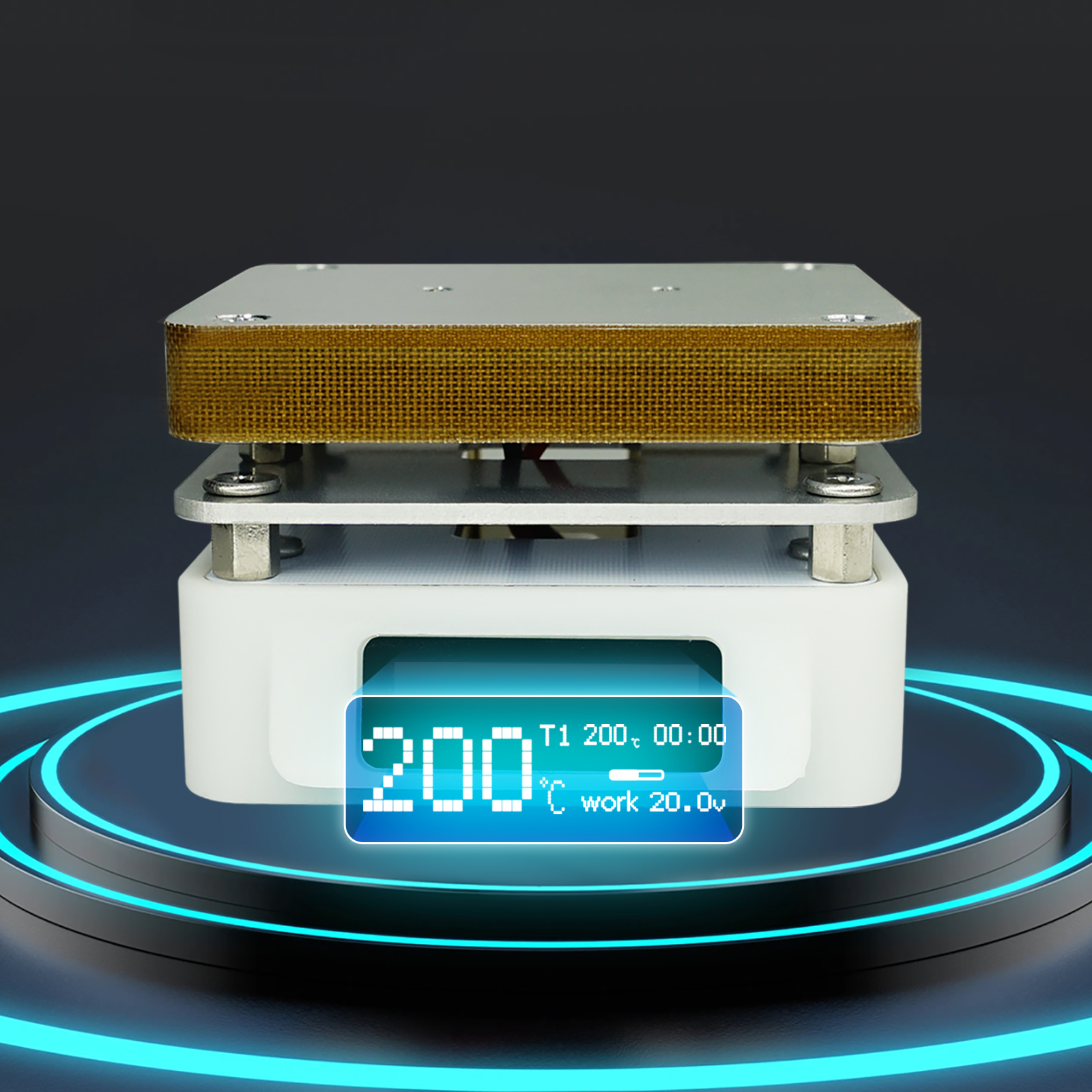

    HD 128*32 OLED display, clearly show the data, easy & convenient to control temperature, and set the inner parameters.

    SOLDERING

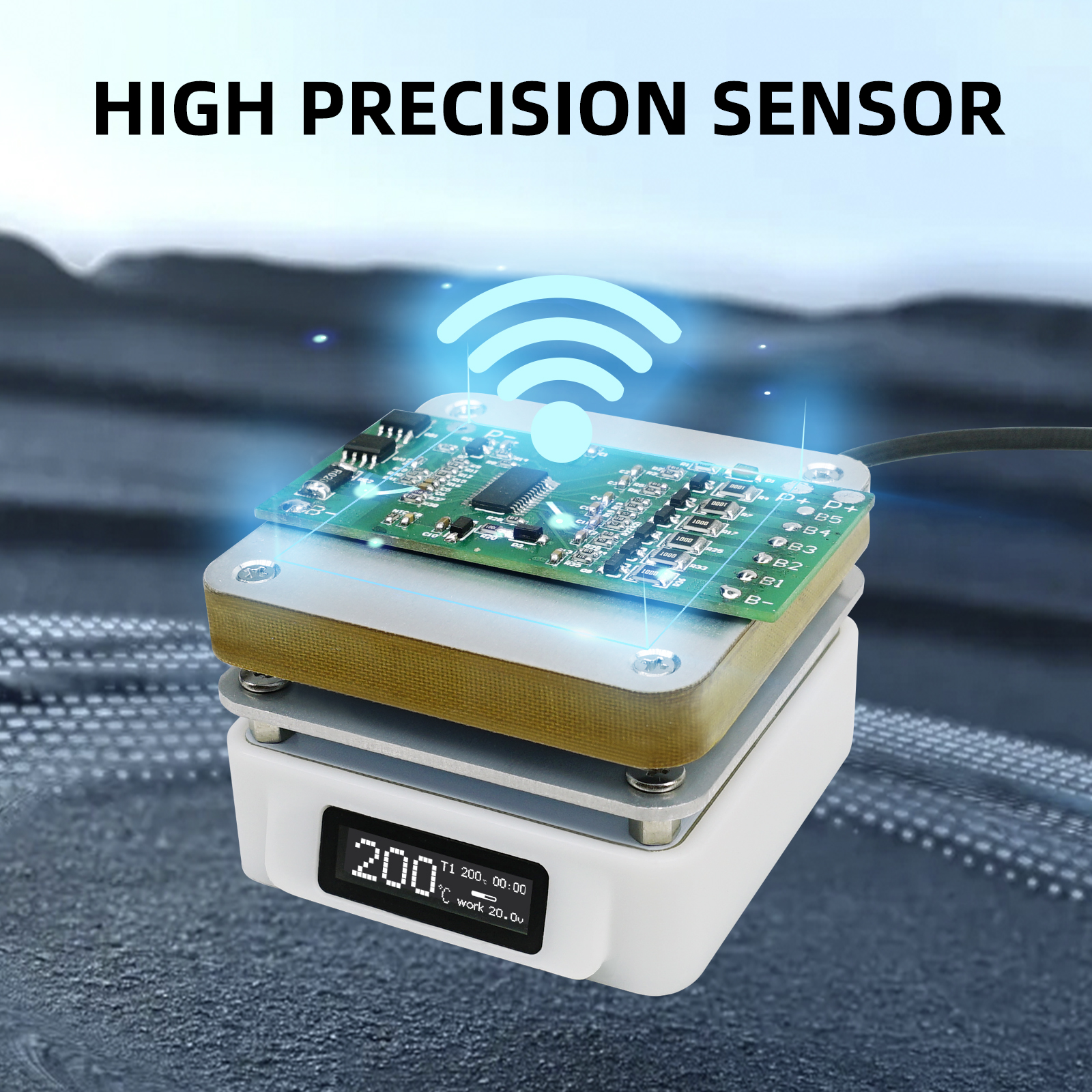

    Built-in high precision temperature sensor, ensure high accuracy data measurement under continous high temperature.

    SOLDER

    Support upgrading firmware via computer, for a greater experience!

    SOLDER IRON

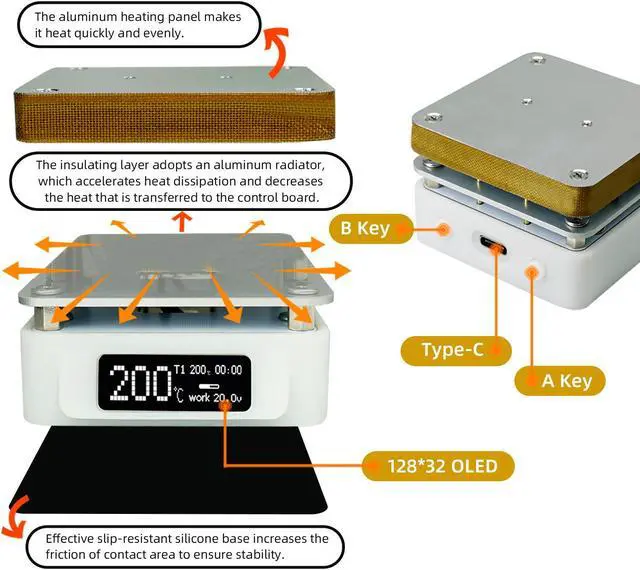

    Aluminum heating panel makes T55 heat quickly and evenly. Heating Area is 55*55mm.

    SOLDER IRON

    The insulating layer adopts aluminum radiator, which accelerates heat dissipation and descreases the heat that is transfered to the control board.

    SOLDER IRON

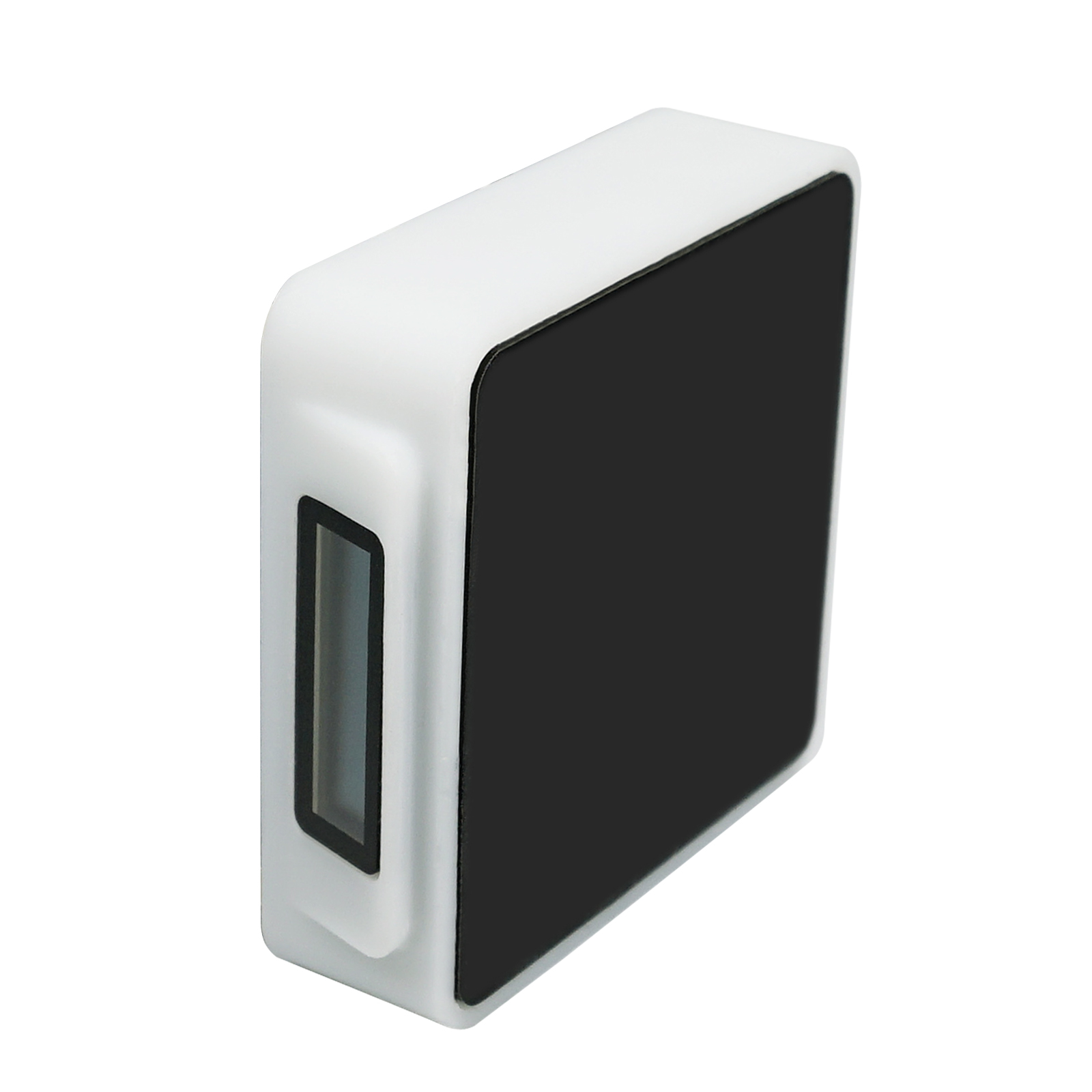

    Slip-resistant base increases the friction of contact area to ensure stability.

    WELDING TOOL
