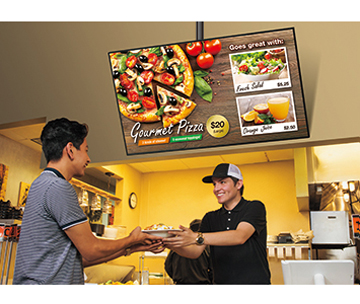

The Sharp PN-R706 / PN-R606 professional commercial LCD displays provide an ideal digital signage solution for businesses which need a straightforward, eye-catching and effective way to communicate with their target audience. They bring together Full HD picture quality, extensive connectivity options, easy display management, 24x7 reliability, flexible installation options and many more.
Thanks to 1,920 (H) x 1,080 (V) resolution, the commercial displays expresse all of the detail and visual impact of your selected full HD content. Everything from fine text to intricate graphics is rendered crisply and clearly. Brightness of 700cd/m2 further enhances their performance in professional digital signage applications.

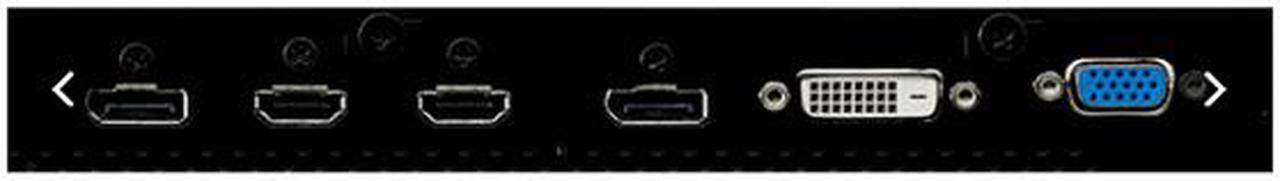

To enhance their functionality in professional signage applications, the commercial displays come standard equipped with a range of interface terminals such as HDMI inputs, one DisplayPort terminal, one DVI port, etc. What’s more, the LCD monitor features an Intel Mini OPS-compatible expansion slot that supports the addition of an optional expansion board. You can add either an HDBaseT 2.0-compliant receiver board that supports various types of media and control signals or a wireless board that brings convenient functionality to office environments.

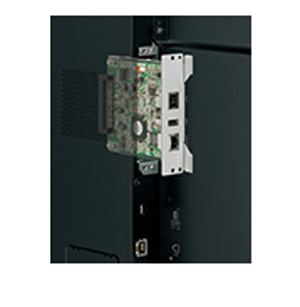

An optional board can slide into the slot on the back of the monitor.

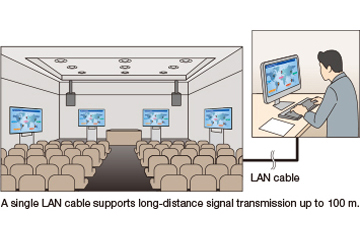

Installing an optional HDBaseT Receiver Board (PN-ZB03H) allows the monitor to receive HDMI video & audio signals, and control signals sent up to 100 metres via a single LAN cable*. This brings convenient connectivity with HDMI devices such as PCs and BD players. Compatibility with the HDBaseT 2.0 standard allows you to remotely operate a PC from a USB device connected to the optional board**. With HDBaseT 2.0 support, you can use fewer cables and reduce the time and cost of installation.
* Category 6 or higher shielded cable (available commercially)
** Requires an HDBaseT 2.0-compatible transmitter (available commercially). Not all USB devices are supported.

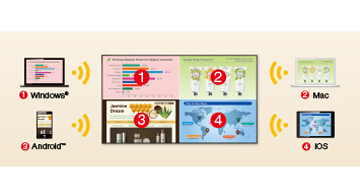

The optional Wireless Board (PN-ZB03W) allows up to 10 devices - including Mac or Windows computers, smartphones, and tablets - to connect to the commercial displays simultaneously without any cable hassles. You can display the content of one device on the whole screen, or you can display the content from up to four devices in a 2 x 2 split screen. This wireless collaboration is a great way to enhance productivity in the workplace.

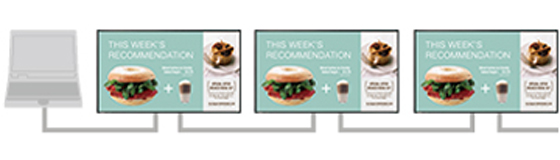

The commercial displays can be set up in a daisy chain configuration, so you can display the same content simultaneously on all screens. No matter which terminal receives the input signal, it can be output via DisplayPort.
Combining of Daisy Chain and Enlarge functions enables you to display 4K30P content on four (2 x 2) monitors.
You can send different signals to two daisy-chained monitors and display a separate full-HD 60p video on each monitor.
The display’s remote controller offers enhanced operability. For example, the remote controller and monitors can be assigned an identity number (from 0 to 9) for mutual recognition, which enables the remote to send commands to the targeted monitor only. The remote also lets you perform basic operations on connected HDMI-CEC compatible devices, including power on/off. And it has three designated function buttons- HDMI, DisplayPort, and Option - to simplify input switching.
Thanks to an RS-232C interface, the commercial displays* can be easily controlled and monitored from a central location via a PC. The displays can be assigned an individual ID code to specify when remotely turning that monitor on or off, switching its input, or making various screen adjustments and settings.
* The displays can be connected together in a daisy chain configuration.
For total ease of operation, the Schedule function allows up to eight settings to be pre-programmed for automatic monitor turning on/off at precise times on a daily, weekly, or one-time basis.
To boost the troubleshooting efficiency of service technicians, operating logs, signal changes, information on operating irregularities, and other such data can be saved and tracked.
With an analog PC connection, when a change occurs to the input signal timing, the clock phase will automatically adjust accordingly.

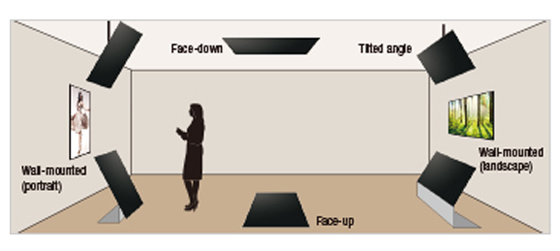

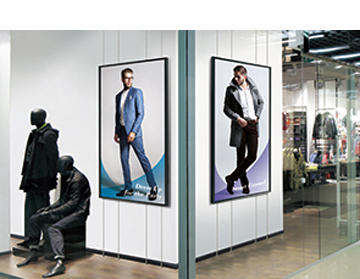

Whether in a landscape or portrait orientation, the commercial displays can be installed facing up, facing down, or tilted forward or backward at an angle of up to 90 degrees. Such flexibility helps you to incorporate these monitors into a wider-than-ever variety of settings.
Note: Please consult with your local authorized Sharp dealer or representative regarding to tiltable angles and other installation conditions.
Measuring just 8mm on the top/right/left and 13mm on the bottom, the PN-R606’s slim bezel helps onscreen content stand out and catch the viewer’s eye. Images fill the screen beautifully, reaching almost to the edges of the monitor. The subtle design of this monitor makes it a stylish fit for virtually any location.

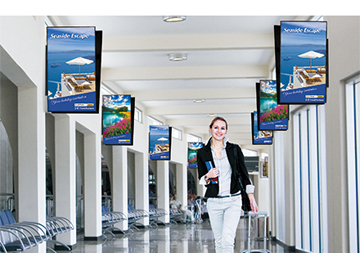

The PN-R706/PN-R606 commercial displays can be suspended by wire from their rear housing, using the bundled mounting brackets. Appearing to float in mid-air, a wire-suspended PN-R706/PN-R606 creates a sophisticated impression that catches the eye.
Note: Please consult with your local authorized Sharp dealer or representative for installation advice.
VESA-compliant mounts provide right/left pivot and swivel, ensuring a high level of safety when LCD displays are mounted on a wall or suspended from a ceiling.
The commercial displays conform to the RoHS Directive restricting the use of hazardous substances.
Built-in 10 W + 10 W rear speakers eliminate the need for external speakers and ensure a stylishly streamlined profile.
Removable handles - two handles on each side for the PN-R706, one on each side for the PN-R606 - allow for easy and safe transportation.
The commercial displays are compatible with Crestron Connected software, which means that you can remotely control and manage each monitor via a LAN network.
Built solid, the commercial displays are ideal for use in demanding professional applications that require round-the-clock operation seven days a week.
This feature lets you delay the startup of each monitor in a multi-monitor installation. This reduces the load placed on the power supply when multiple monitors are turned on at the same time.
Airflow is maintained and heat is dissipated without the use of noisy, dust-creating mechanical air-ventilation fans. The fanless design also facilitates maintenance of the monitor.
If the temperature inside a monitor rises, a built-in sensor detects it and the monitor automatically lowers the brightness level of its backlight system.
