Shuttle XPC Cube SH570R6-Plus Mini Barebone PC Intel H570 Supports 125W 11th/10th Gen Rocket Lake/Comet Lake CPU No RAM No HDD/SSD No CPU No OS 500W 80 Plus Gold Flex PSU
- Supports Intel 11th/10th Generation Rocket Lake/Comet Lake i3/i5/i7/i9 Pentium/Celeron 125W processors with UHD Graphics No RAM no HDD/SSD No OS Compatible with Windows 11/10 (64-bit) and Linux (64-bit)
- Does not support the Unlock-function of Intel K-Series processors. Intel processors without integrated graphics can be identified by their model name ending on "F". When using this CPU, a graphics card is required.

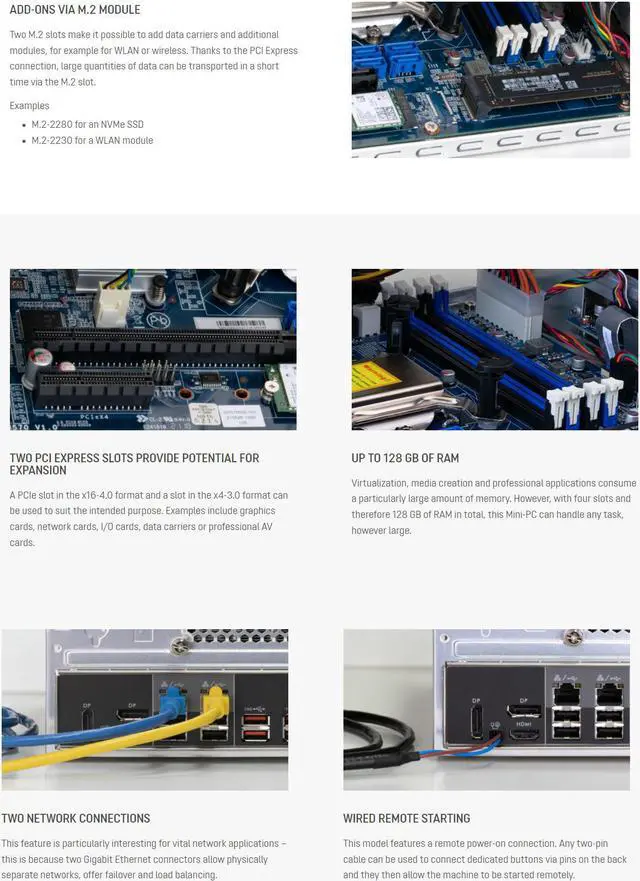

- 4x 288 pin dual Channel DDR4 DIMM Slots 32GB per DIMM (Max 128GB). The maximum DDR4 clock frequency depends on the processor type used. Gen. 11 "Rocket Lake" supports DDR4-3200. Gen. 10 "Comet Lake" Core i7/i9 supports DDR4-2933. Other "Comet Lake" support DDR4-2666.

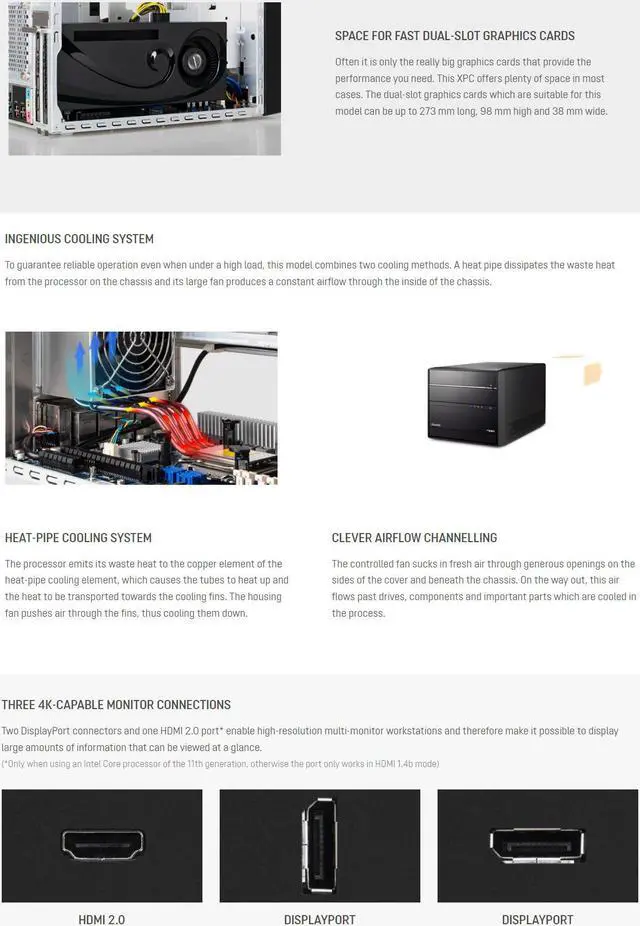

- 1x PCI-Express x16 v4 1x PCI-Express x4 v3 slot (open-ended). Supports dual-slot (double-width) graphics cards (occupies the second PCI-Express slot). The maximum size acceptable for display cards is 273 x 98 x 38 mm. Graphics power connector is 6 pins.
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
The Shuttle XPC Barebone SH570R6-Plus shows how discreet a modern PC can look and at the same time how powerful it can be. Its black-brushed aluminium case has barely a volume of 14 liters, but packs everything you need for a high-performance workstation for example. This includes the power of 10th/11th gen. Intel Core processors ("Comet Lake-S" and "Rocket Lake-S"), a dual-slot graphics card, fast M. 2 NVMe SSD drives, two 3.5 '' hard drives in RAID and up to 128 GB of DDR4 memory, plus a Blu-ray drive. Even without a dedicated graphics card, up to three UHD displays are supported optionally.
