Question 1

DO THE UNITS HAVE MEMORY AND OR HDD INSTALLED?

Accepted Answer

No you need to add memory and a hard drive. It uses notebook memory and a notebook sized hard drive. I use it as a router running pfsense - it works great. I have been running it 24 hours a day for over 6 months without an issue. It is a fast little machine for how little power it consumes. -Brian

Question 2

Does it come with Signage application along with Signage data that can be updated via LAN - For example, weather info or news etc?

What OS is installed on it?

Accepted Answer

It is a bare bone system and there is no OS installed.  You will have to install OS and all the software that you will need for the signage issue.  I do not know that type of software program.

There is however a wireless Lan with internal antenna.

Question 3

Dose this model comes with wireless capability?

Accepted Answer

No unless you add your own own miniPCI WiFi card.

Question 4

Will Windows 7 Pro 64bit work in this unit?

Accepted Answer

Yes the CPU is both a 32 bit and 64 bit compatible CPU. I currently am running Windows 8 64 bit without issues.

Question 5

does the bios have compatibility to support boot from usb/ sd card instead of a hd?  reducing wieght and noise, not to mention seek time with a hd would be great.   Is there some good options and features with the dual wan compatibilty to use it was dual load?

Accepted Answer

It does support booting from a thumb dive and even a memory card. You can easily drop in a small SSD drive and boot from that.

The dual NICs gives you the ability to use the system as firewall/IDS/IPS/router. Pfsense 2.1 will not work because the NICs are Realteks. I'm not sure that Pfsense 2.2 will work with the NICs. It may work if the base OS for Pfsense, FreeBSD v10.1, will work with the Realtek NICs. Otherwise you will need to use another OS that will work with the NICs.

Remember, this system is built to run two displays, in a commercial setting.

Question 6

Can I run two displays with this?

Accepted Answer

Sure - windows 7 and Linux (most distros) address the hdmi and dvi outputs seperately and permit split screen between them.

Question 7

Can I use this for CCTV Surveillance System with 4 IP Cameras
connected to  a router and a smart phone?

Accepted Answer

Do these ship with memory installed? If so, how much? If not, are they preloaded with an operating system?

In other words, do I get storage for $199 or do I have to add RAM/HD and install an OS?

Question 8

What are the memory volage requirements?  When I look at what memory 204 pin SO-DIMM I can buy, they come in 1.5 volt, 1.35 volt, 1.3 volt, etc.
Which one do I need to buy?

Accepted Answer

From Intel: "Support for one 1.35V DDR3L (low voltage) SO-DIMM." "1.5 V DDR3 memory modules are not supported."

Question 9

Can this play 1080p?

Accepted Answer

Yes.

Question 10

Does this come with a mount?

Accepted Answer

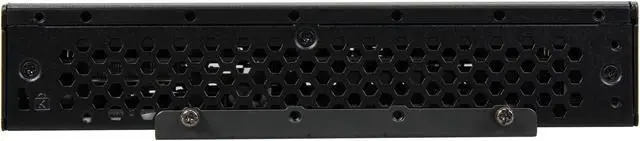

Yes this comes with a VESA mount to mount to the back of a monitor or anything that uses the VESA standard.

Brand	Shuttle
Model	DS437

Memory slot	2 x 204Pin SO-DIMM
Memory Type Supported	DDR3 1600/1333
Max Memory Supported	16GB
Dual Channel Memory Supported	Yes

Onboard Audio	Realtek ALC662
Channel	5.1 Channel

LAN	Realtek 8111G
Max LAN Speed	10/100/1000Mbps
Wireless LAN	802.11b/g/n

Front USB	4 x USB 2.0
Card Reader	Supports SD, SDHC, SDXC
Other Front Ports	2 x RS232

Shuttle DS437 Fanless Slim PC Barebone With Inbuilt Intel Celeron Processor 1037U

Learn more about the Shuttle Computer DS437

Customer Reviews of the Shuttle Computer DS437

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

Return Policies

Manufacturer Contact Info

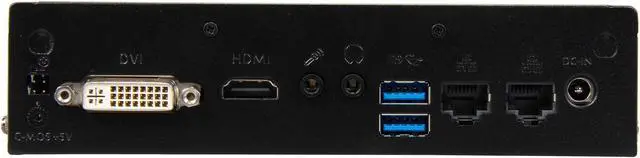

DVI	1 x DVI-I
HDMI	1
Rear USB	2 x USB 3.0
RJ45	2
Rear Audio Ports	2 jacks
Other Rear Ports	1 x Pin connector for external power or CMOS button or 5V DC voltage supply 1 x DC connector for external power adapter

Input	100~240 V AC, 50/60 Hz, max. 1.6 A
Power Supply	19V DC, max. 3.42 A, max. 65 W

Physical SPEC
Dimensions	7.87" x 6.50" x 1.56"
Weight	3.15lbs
