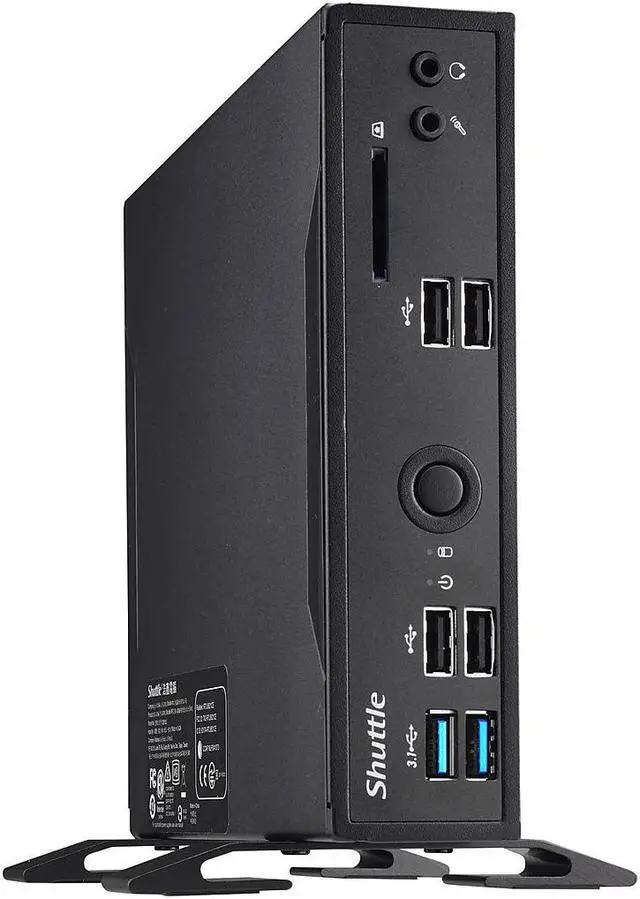

Main image of Shuttle XPC Slim DS10U Mini / Booksize Barebone System

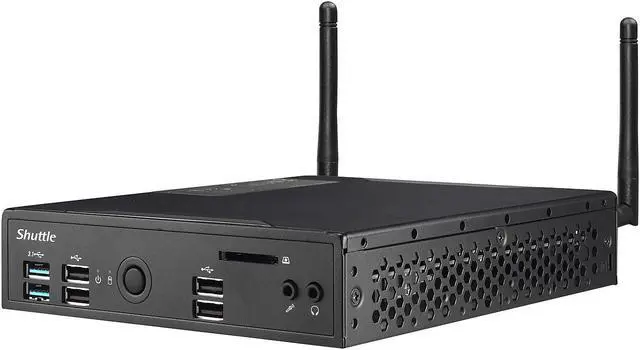

Alt view image 2 of 13 - Shuttle XPC Slim DS10U Mini / Booksize Barebone System

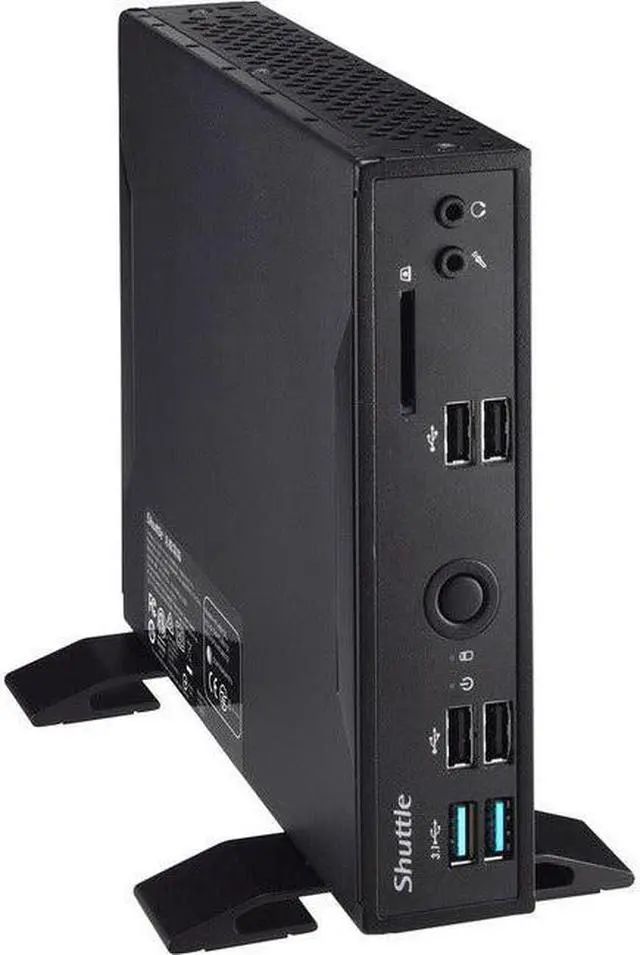

Alt view image 3 of 13 - Shuttle XPC Slim DS10U Mini / Booksize Barebone System

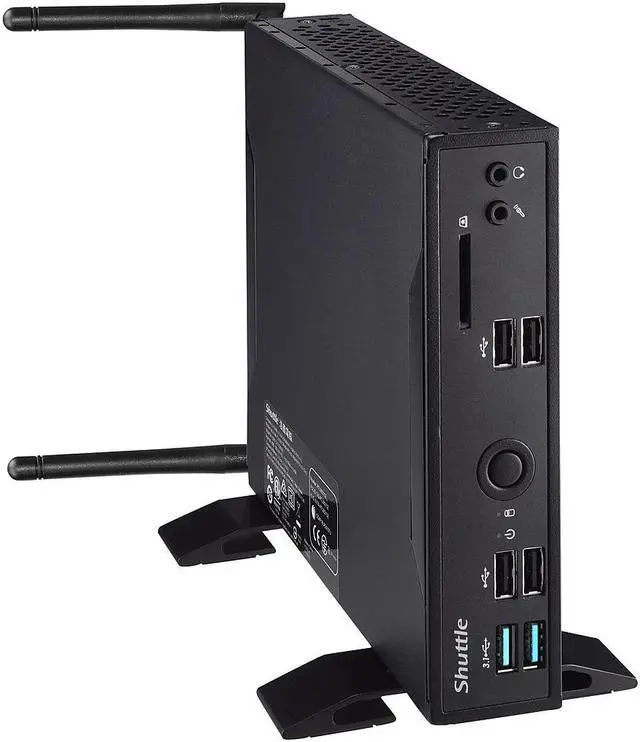

Alt view image 4 of 13 - Shuttle XPC Slim DS10U Mini / Booksize Barebone System

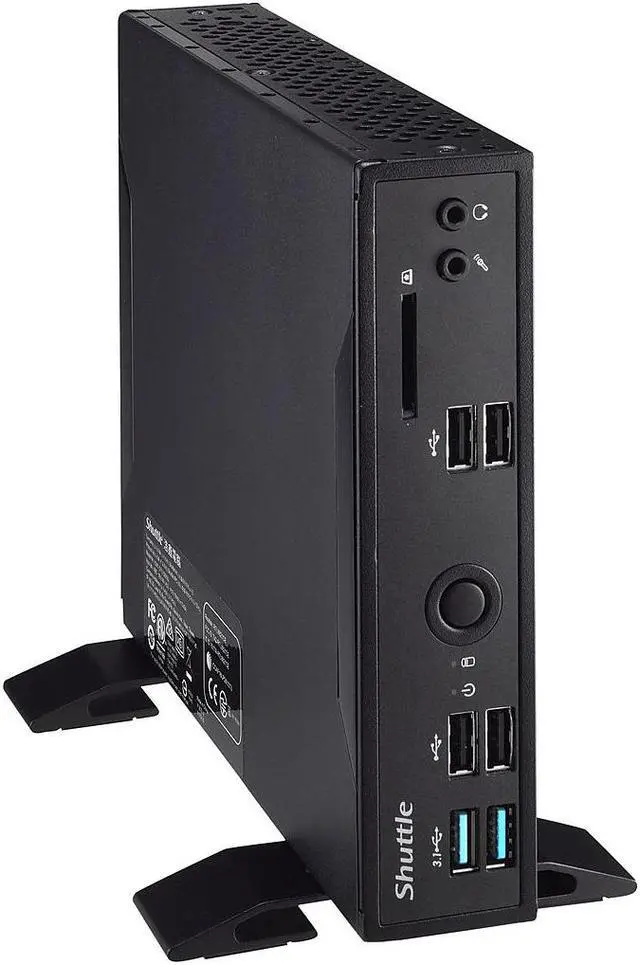

Alt view image 5 of 13 - Shuttle XPC Slim DS10U Mini / Booksize Barebone System

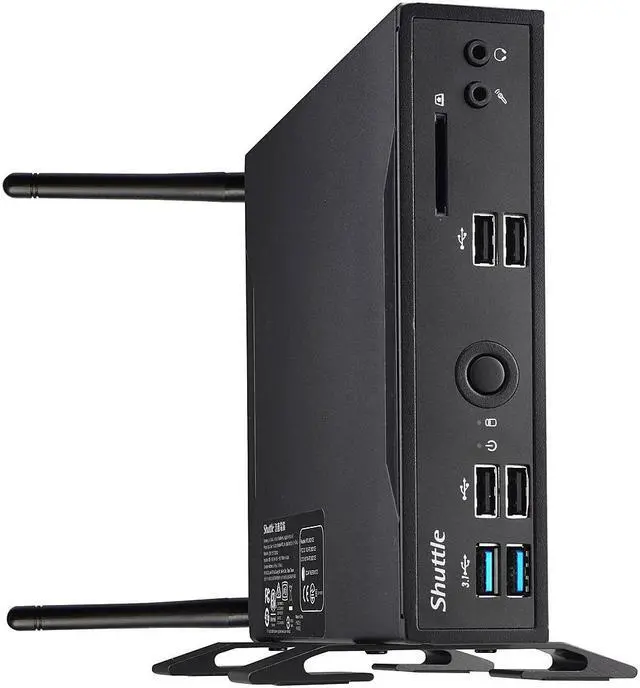

Alt view image 6 of 13 - Shuttle XPC Slim DS10U Mini / Booksize Barebone System

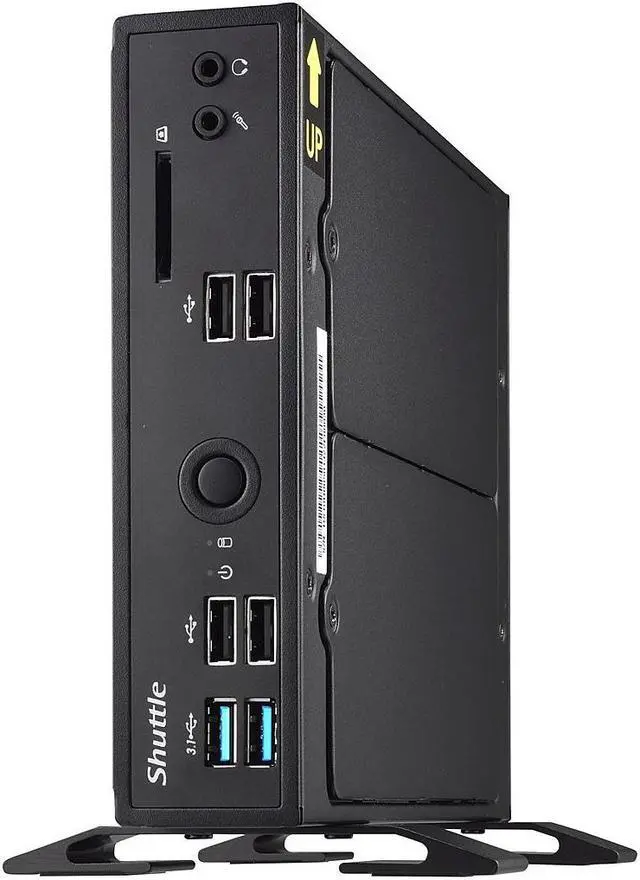

Alt view image 7 of 13 - Shuttle XPC Slim DS10U Mini / Booksize Barebone System

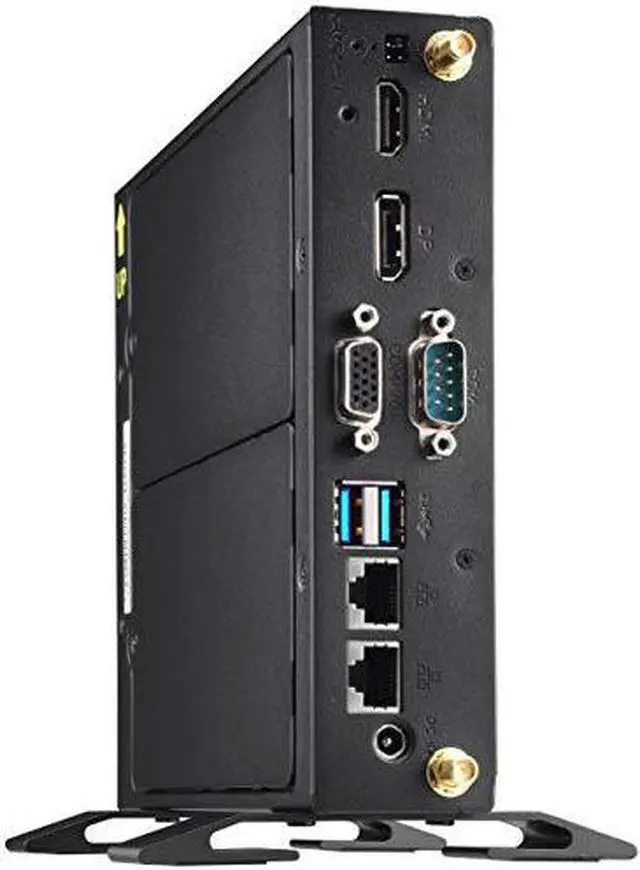

Alt view image 8 of 13 - Shuttle XPC Slim DS10U Mini / Booksize Barebone System

Alt view image 9 of 13 - Shuttle XPC Slim DS10U Mini / Booksize Barebone System

Alt view image 10 of 13 - Shuttle XPC Slim DS10U Mini / Booksize Barebone System

Alt view image 11 of 13 - Shuttle XPC Slim DS10U Mini / Booksize Barebone System

Alt view image 12 of 13 - Shuttle XPC Slim DS10U Mini / Booksize Barebone System

Alt view image 13 of 13 - Shuttle XPC Slim DS10U Mini / Booksize Barebone System

Shop All Shuttle Computer Products

Shuttle XPC Slim DS10U Mini / Booksize Barebone System

Be the first to review this product...

Intel Whiskey Lake-U Celeron 4205U 15W CPU
2 x 260Pin SO-DIMM DDR4 2400

Overview

Specs

Reviews

Any questions? Our AI beta will help you find out quickly.

Try me now

General
Brand	Shuttle
Series	XPC Slim
Model	DS10U
Form Factor	1.3L Chassis

CPU Supported
CPU Type	Intel Whiskey Lake-U Celeron 4205U 15W CPU

Memory Supported
Memory installed	No Memory
Memory slot	2 x 260Pin SO-DIMM
Memory Type Supported	DDR4 2400
Max Memory Supported	32GB

Expansion Slots
Other	1 x M.2 2230 Type E Key socket

Storage
Hard Drive Installed	No Hard Drive
Serial ATA	1 x SATA 6.0Gb/s
M.2	1 x M.2 2280 Type M key socket

Graphics
Integrated Graphics	Intel UHD Graphics 610

Audio
Onboard Audio	Realtek ALC662
Channel	2 Channel

Communications
LAN	Intel i211 and i219LM
Max LAN Speed	Dual 10/100/1000Mbps
Wireless LAN	Realtek RTL 8821CE 802.11 a/b/g/n/ac WLAN module
Bluetooth	Bluetooth 4.2

Extension Bays
2.5" Internal Bays	1 x 2.5" HDD / SSD bay

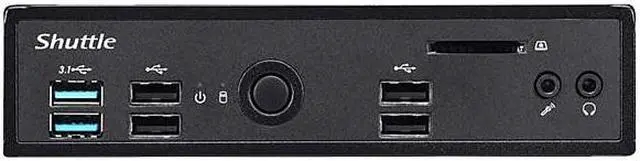

Front Panel Ports
Front USB	2 x USB 3.1 Gen1 4 x USB 2.0 ports
Front Audio Ports	1 x Mic in 1 x Headphone out
Card Reader	Yes
Other Front Ports	ONBOARD CONNECTORS: 1 x USB2.0 header 1 x Auto Power on Jumper 1 x RS232 voltage switch 1 x External 4-pin header

Back Panel Ports
COM	1 x RS232/RS422/RS485
VGA	1 x D-sub
HDMI	1
DisplayPort	1 x DisplayPort
Rear USB	2 x USB 3.1 Gen1
RJ45	2
Other Rear Ports	1 x External 4-pin header (Clear CMOS/Power Switch/5V) 1 x DC-in 1 x Kensington lock 2 x Antenna fixture

Power Supply
Input	100-240V AC
Power Supply	Output: 19V/3.42A or 12V/5.42A DC 65W 19V Adapter bundled

Physical SPEC
Dimensions	1.56" x 6.50" x 7.87"

Features
Features	The DS10U series is a fanless, power-efficient PC powered by the 8th gen Intel Whiskey Lake-U processor. With a height of only 39mm, the DS10U supports multi-core performance, up to 32GB of DDR4, 8 x USB, 2 x Giga LAN, HDMI, DisplayPort, VGA, COM, space for 1 x hard drive and 1 x M.2 SSD as well as built-in WiFi AC+BT and 4G LTE kit (optional). Thanks to its passive cooling design, the system is virtually maintenance-free and is approved for 24/7 operation. Support for both 12V and 19V inputs, the DS10U is intended for a wide range of scenarios such as Digital Signage, Kiosk, Thin Client, and Office PC.

Packaging
Packaging	ACCESSORIES: XPC Multilanguage Quick User Guide XPC DVD Driver Food stand VESA mount VESA Screw pack Power cord Thermal Grease HDD Screw pack 65W adapter External Antenna

Additional Information
First Listed on Newegg	March 02, 2020
