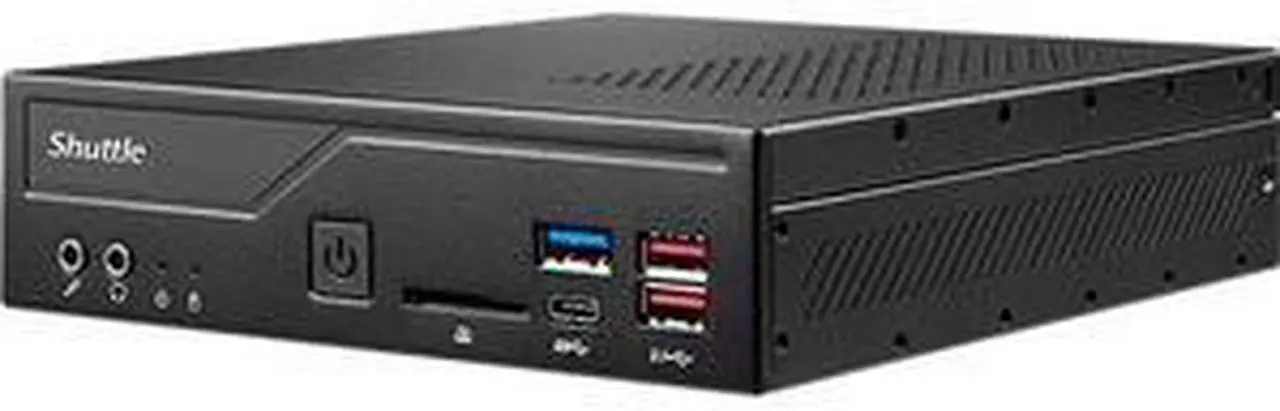

Main image of Shuttle DH470 Intel H470 Express chipset 1 x HDMI 2.0 Slim Barebone PC

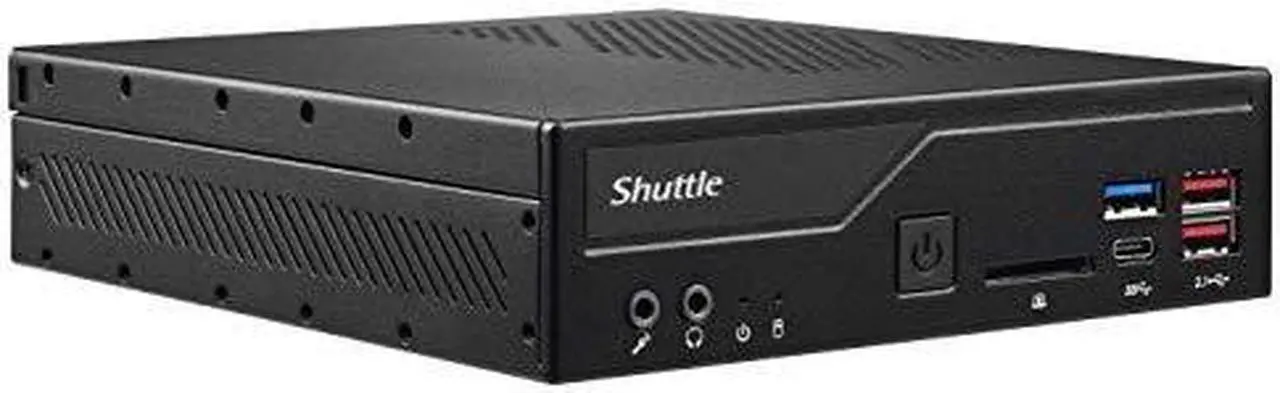

Alt view image 2 of 5 - Shuttle DH470 Intel H470 Express chipset 1 x HDMI 2.0 Slim Barebone PC

Alt view image 3 of 5 - Shuttle DH470 Intel H470 Express chipset 1 x HDMI 2.0 Slim Barebone PC

Alt view image 4 of 5 - Shuttle DH470 Intel H470 Express chipset 1 x HDMI 2.0 Slim Barebone PC

Alt view image 5 of 5 - Shuttle DH470 Intel H470 Express chipset 1 x HDMI 2.0 Slim Barebone PC

Shop All Shuttle Computer Products

Shuttle DH470 Intel H470 Express chipset 1 x HDMI 2.0 Slim Barebone PC

Be the first to review this product...

Intel H470 Express chipset
2 x 260Pin SO-DIMM DDR4 2666/2933 MHz

Overview

Specs

Reviews

General
Brand	Shuttle
Model	DH470

Chipset
North Bridge	Intel H470 Express chipset

Memory Supported
Memory slot	2 x 260Pin SO-DIMM
Memory Type Supported	DDR4 2666/2933 MHz
Max Memory Supported	32GB per DIMM (Max 64GB)

Audio
Onboard Audio	Realtek ALC662 High Definition Audio

Communications
First LAN	Intel I210AT*2 Dual Lan 10Mb/s, 100Mb/s, 1Gb/s operation Support Wake-On-LAN function Support Teaming function
Max LAN Speed	10/100/1000Mbps

Front Panel Ports
Front USB	(2) USB 3.2 Gen1 ports (Include Type C x1) (2) USB 3.2 Gen2 ports
Front Audio Ports	(1) Microphone-In (1) Earphone-Out
Card Reader	(1) SD Card reader
Other Front Ports	(1) Power-On button (1) Power LED (1) HDD LED

Back Panel Ports
HDMI	1 x HDMI 2.0
DisplayPort	2 x DisplayPort
Rear USB	(2) USB 3.2 Gen1 ports (2) USB 3.2 Gen2 ports
RJ45	(2) RJ45 Gigabit LAN port w/LED
Other Rear Ports	(1) RS232 (1) RS232/RS422/RS485 (1) External 4pin header (1) DC-in (2) Wireless Antenna fixture (1) Kensington lock

Power Supply
Power Supply	90W Power Adapter Input:100-240V AC 19V 4.74A DC

Physical SPEC
Dimensions	190(L) x 165(W) x 43(H) mm
Support OS	Windows 10 64 bit O.S Linux

Features
Features	FORM FACTOR: 1.3L chassis STORAGE INTERFACE: SATA 6.0Gb/s interface ONBOARD CONNECTORS: (1) 4pin fan connector (1) VGA(For PVG01 use) (1) 1x4 pin USB header(For WWN03 use) (1) SATA connector w/power (1) Front audio header (1) Auto power on header (1) RS232 voltage switch DRIVE BAYS: (1) 2.5" HDD / SSD bay EXPANSION SLOT: (1) M.2 2280 Type M key socket (1) M.2 2230 Type E key socket REMARK: RS232 ports support 0/5/12V output. Voltage setting please refer to Quick Guide.

Packaging
Package Contents	ACCESSORIES: XPC Multilanguage Quick User Guide XPC DVD Driver VESA mount VESA Screw pack Power cord Thermal Grease HDD Screw pack 90W adapter

Additional Information
Date First Available	March 24, 2022

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

Limited Warranty period (parts): 1 year
Limited Warranty period (labor): 1 year
Read full details

Return Policies

Return for refund within: 30 days

Return for replacement within: 30 days

This item is covered by Newegg.com's Standard Return Policy. Read full return policy for details.

Manufacturer Contact Info

Manufacturer Product Page
Manufacturer Website
Support Phone: 1-626-820-9000
Support Website
