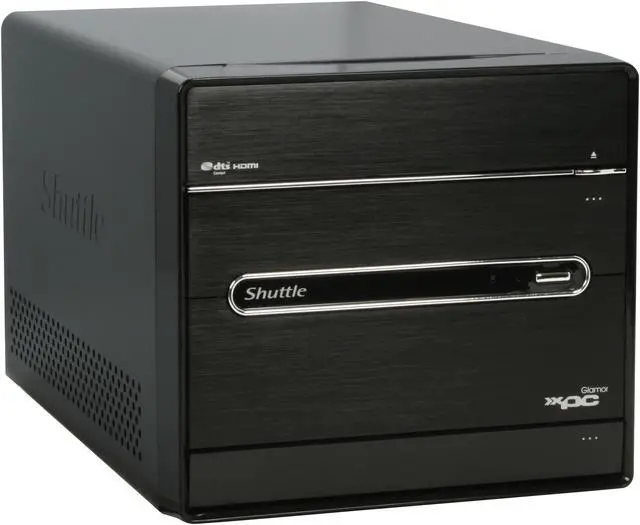

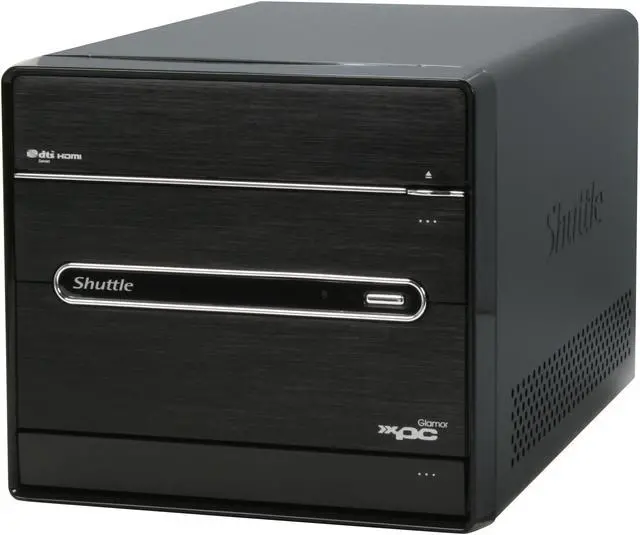

The SN78SH7 is Shuttle's next generation of barebones Mini-PC. It combines the popular features of various Shuttle Mini-PC's and delivers them in one compact package. Designed to work with AMD Processors with AM2+ sockets, you can control your system with Athlon and Sempron single and dual-core CPUs as well as the Phenom multi-core processors.

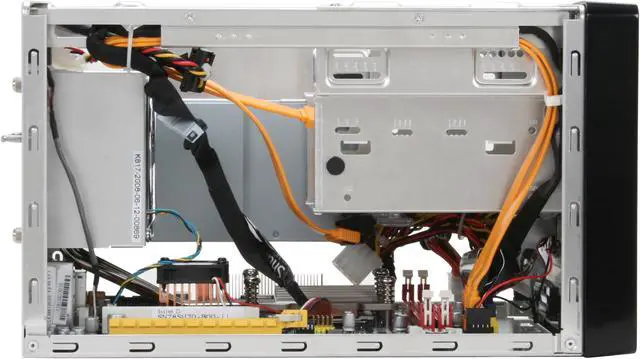

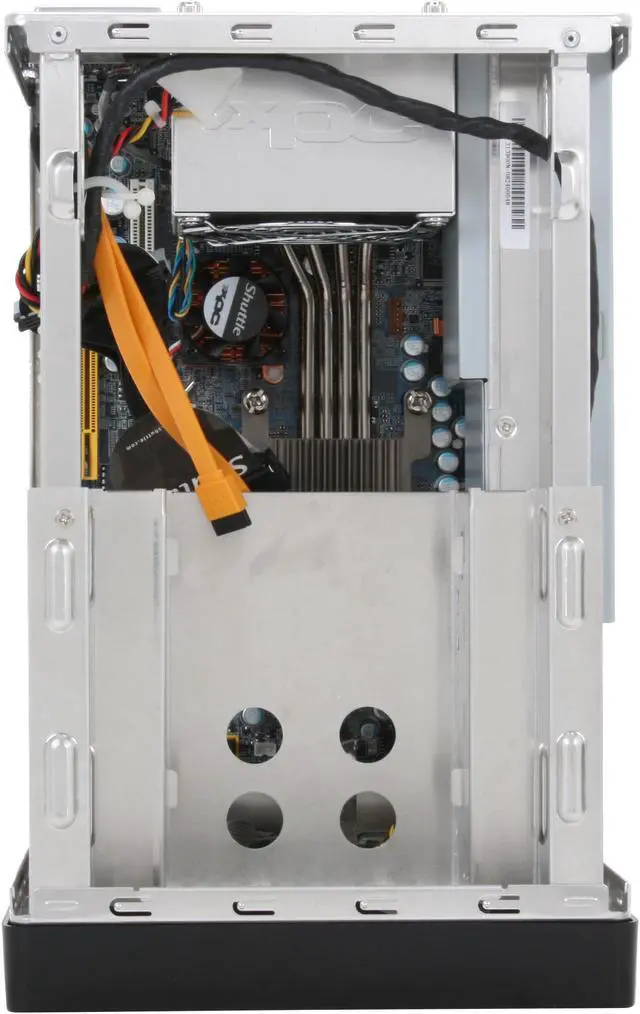

The 3Ghz HyperTransport 3.0 technology speeds communication between the processor and system components. Up to 4GB of DDR-2 SDRAM can be installed for peak performance. A single 5.25" drive and two 3.25" drives can be installed and Shuttle's Integrated Cooling Engine – utilizing heatpipe technology – keeps the system running at safe temperatures.
The nVIDIA GeForce 8200 graphics engine is the star of the show – supporting Blu-Ray and HD-DVD movies along with DirectX 10 for beautiful, brilliant graphics. Output your display to a HD big screen or display it on two monitors with the available outputs. Enhance the cinematic experience with the 7.1 channels of audio using Dolby Digital Live and DTS Connect technologies. A 300 Watt SilentX mini-power supply keeps things running and built-in Gigabit LAN, FireWire and USB ports keep you connected.
The SN78SH7 is Shuttle's next generation of barebones Mini-PC. It combines the popular features of various Shuttle Mini-PC's and delivers them in one compact package. Designed to work with AMD Processors with AM2+ sockets, you can control your system with Athlon and Sempron single and dual-core CPUs as well as the Phenom multi-core processors.
The 3Ghz HyperTransport 3.0 technology speeds communication between the processor and system components. Up to 4GB of DDR-2 SDRAM can be installed for peak performance. A single 5.25" drive and two 3.25" drives can be installed and Shuttle's Integrated Cooling Engine – utilizing heatpipe technology – keeps the system running at safe temperatures.
The nVIDIA GeForce 8200 graphics engine is the star of the show – supporting Blu-Ray and HD-DVD movies along with DirectX 10 for beautiful, brilliant graphics. Output your display to a HD big screen or display it on two monitors with the available outputs. Enhance the cinematic experience with the 7.1 channels of audio using Dolby Digital Live and DTS Connect technologies. A 300 Watt SilentX mini-power supply keeps things running and built-in Gigabit LAN, FireWire and USB ports keep you connected.
AMD K10 Processor SupportThe Shuttle Prima XPC SN78SH7's motherboard supports AMD's Socket AM2 processors including the Athlon 64 X2, Athlon 64, Athlon FX and Sempron series as well as the latest AM2+ K10 AMD processors.
NVIDIA GeForce 8200 GPUMicrosoft DirectX 10 and NVIDIA's advanced PureVideo HD technology allow the integrated NVIDIA GeForce 8200 GPU to deliver best-in-class visual experiences for gaming and other digital multimedia applications.
NVIDIA Hybrid SLI TechnologyBased on NVIDIA's industry-leading SLI technology, Hybrid SLI technology enables a motherboard GPU and a discrete GPU to work together to deliver multi-GPU benefits. It provides boosted graphics processing ability through GeForce Boost and improved energy efficiency though HybridPower.
Gigabit Ethernet ConnectivityThe Shuttle Prima XPC SN78SH7 features a fast Gigabit network interface for high-speed LAN connections at up to 1000Mb/s data transfer rates. Gigabit LAN is ideal for supercharged seamless streaming of Internet audio and video content.
IEEE 1394a SupportIEEE 1394 is a widely used standard of interface between personal computers and digital AV equipment. Easily connect digital devices such as a digital camcorder to the IEEE 1394a port on the Shuttle Prima XPC SN78SH7 for up to 400Mbps data transfer speeds!
Built-in 80 PLUS Certified 300W PSUThe Shuttle Prima XPC SN78SH7 is equipped with an 80 PLUS certified 300W power supply unit that delivers strong power to all system components and provides a high level of system reliability.
Learn more about the Shuttle Computer SN78SH7
General
Brand
Shuttle
Series
Glamor XPC
Model
SN78SH7
Color
Black
CPU Supported
CPU Type
AMD Phenom / Athlon 64 X2 / Sempron
CPU Socket
AMD Socket AM2+ / AM2
FSB
2600 MHz
Chipset
North Bridge
NVIDIA GeForce 8200
Memory Supported
Memory slot
2 x 240Pin DIMM
Memory Type Supported
DDR2 533/667/800
Max Memory Supported
4GB
Dual Channel Memory Supported
Yes
Expansion Slots
PCI Express
1 x PCI Express x16
PCI
1
Storage
IDE ATA
1 x ATA 100
Serial ATA
2 x SATA 3.0Gb/s
Graphics
Onboard Video
GeForce 8200 mGPU
Audio
Onboard Audio
Realtek ALC888DD
Channel
7.1HD
Communications
First LAN
Marvell 88E1116(10/100/1000Mbps)
Max LAN Speed
10/100/1000Mbps
Extension Bays
3.5" Internal bays
1
3.5" External bays
1
5.25" External bays
1

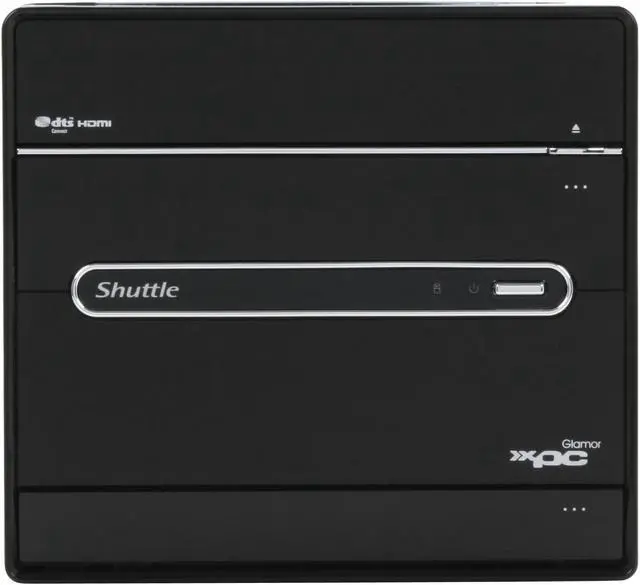

Front Panel Ports
Front USB
2
Front IEEE 1394
1 x mini FireWire 400
Front Audio Ports
2 jacks

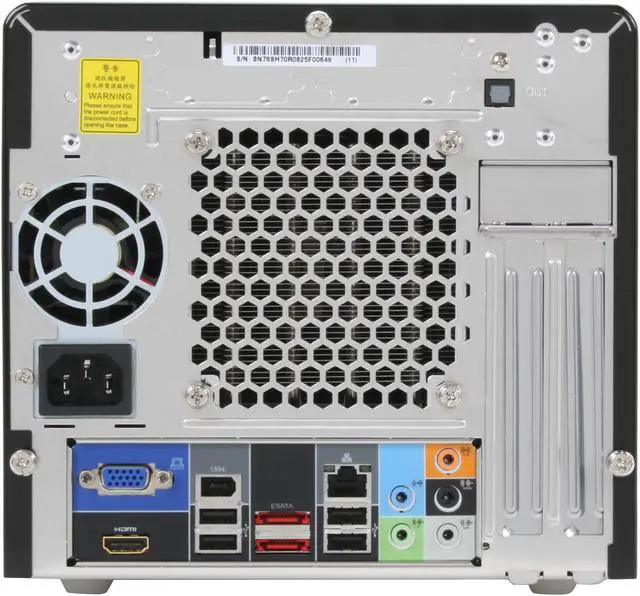

Back Panel Ports
VGA
1 x D-Sub
HDMI
1 x HDMI
Rear USB
4
Rear IEEE 1394
1
Rear e-SATA Ports
2
RJ45
1
Rear S/PDIF Out
Yes
Rear Audio Ports
5 jacks
Power Supply
Power Supply
300W Dimension: 7.5" (W) x 3.3" (H) x 1.7"(D) (Max) Input: 100-240V AC
Physical SPEC
Dimensions
12.9" x 8.2" x 7.5"
Packaging
Package Contents

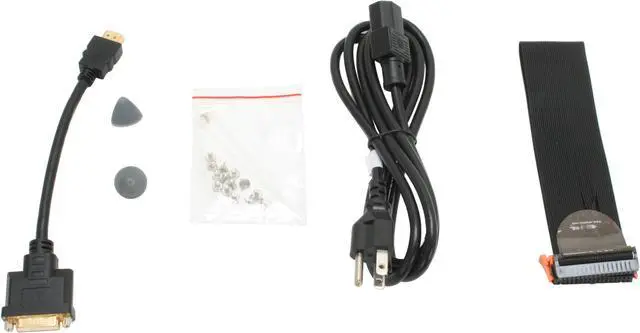

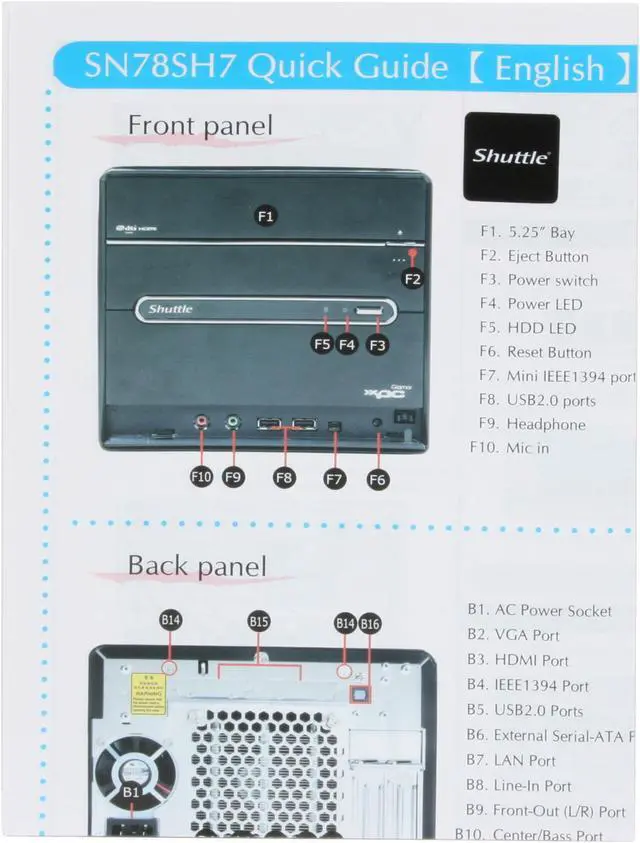

XPC Multilanguage Quick User Guide 1x Power cord 1x HDMI to DVI converter 1x IDE cable (pre-install) 1x SATA cable (pre-install) 1x Floppy cable Screws Heatsink Compound
