The ideal home for an Intel 3.2 Ghz Core 2 Quad Extreme processor, Shuttle's SX48P2 Deluxe breaks new ground in performance. The mainboard houses an Intel X48 Express chipset and is ready to work with 45nm Core 2 multi-core processors as well as Pentium D and Dual-Core units. Up to 8GB of DDR3 memory can be installed with full dual channel support. A pair of high-speed PCI-Express x16 expansion cards can be installed to handle any graphic challenge as well as displays on four monitors. A third, Mini-PCIe slot supports Intel Turbo Memory.

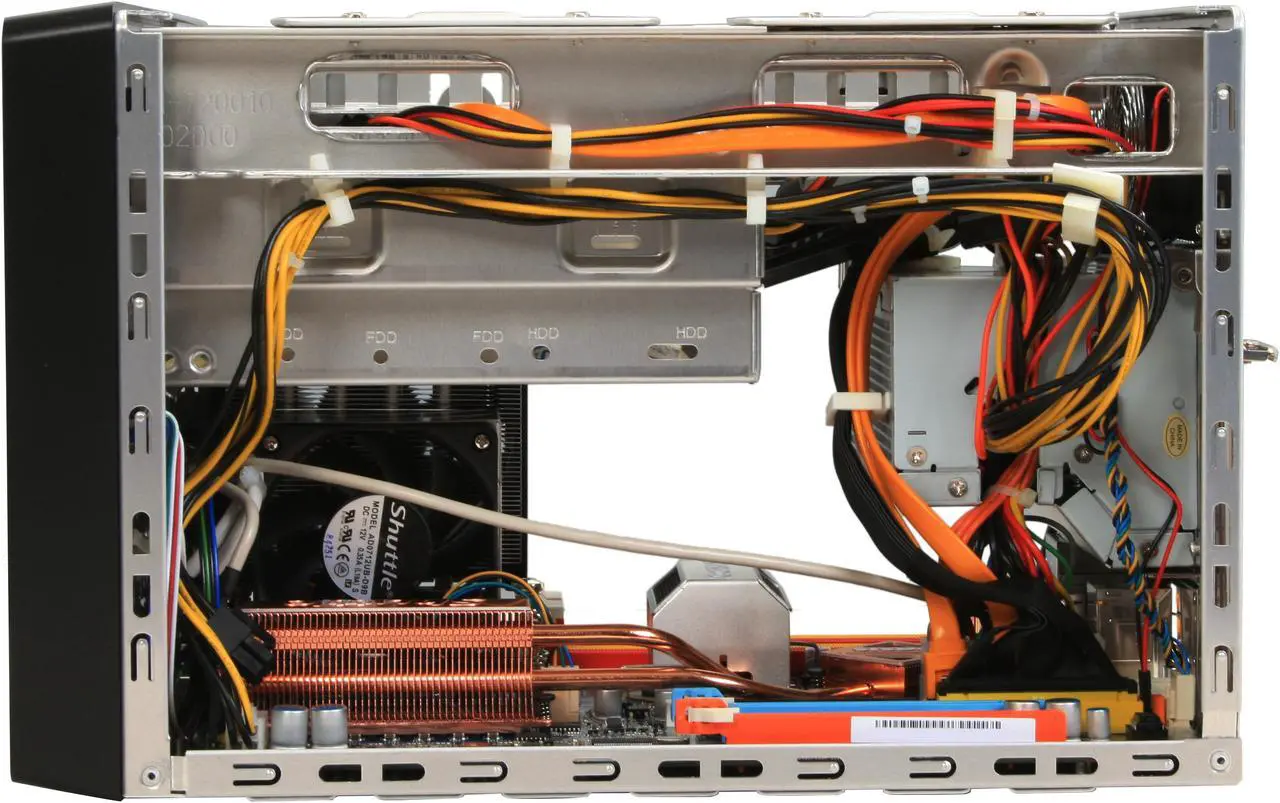

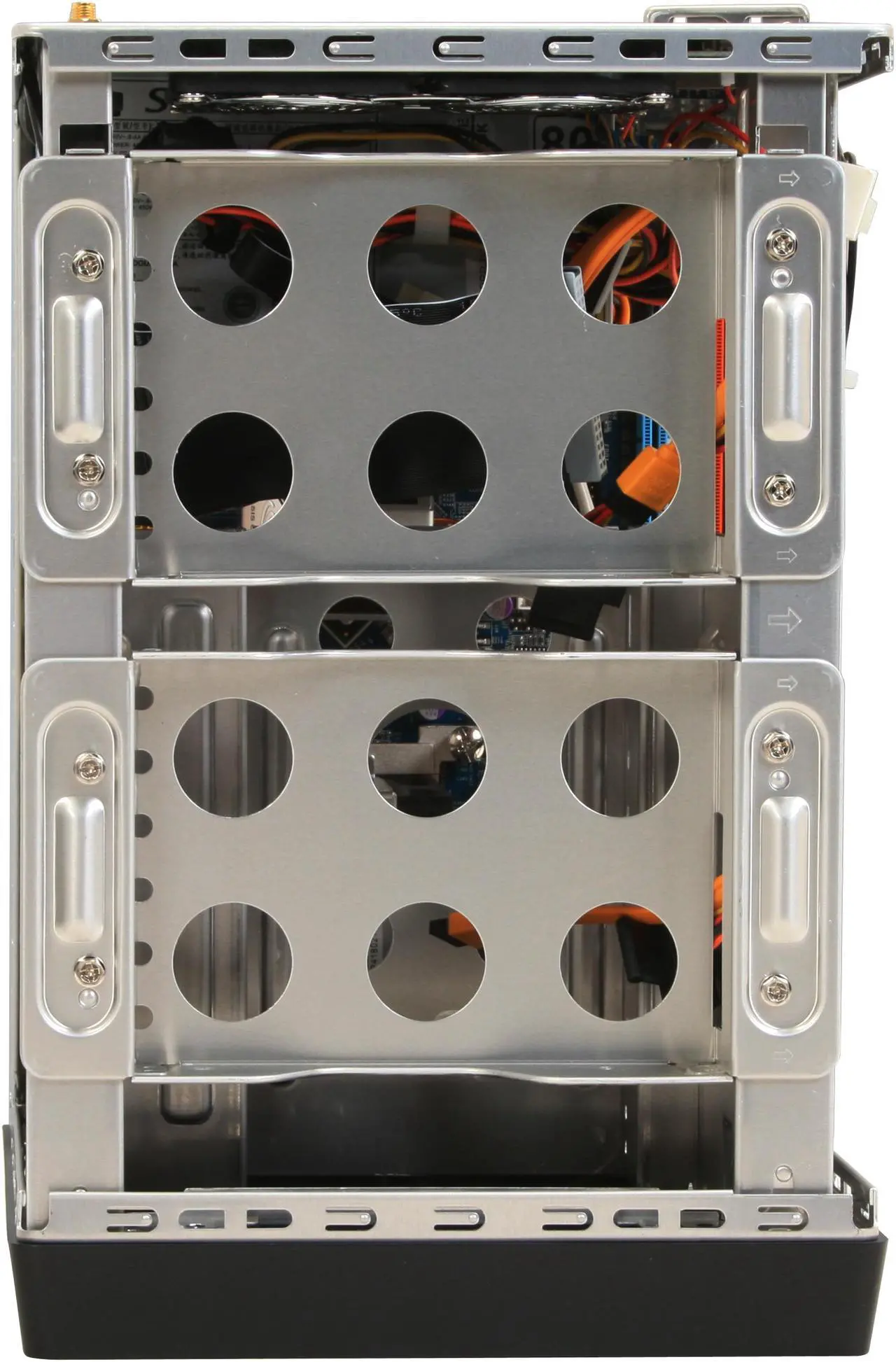

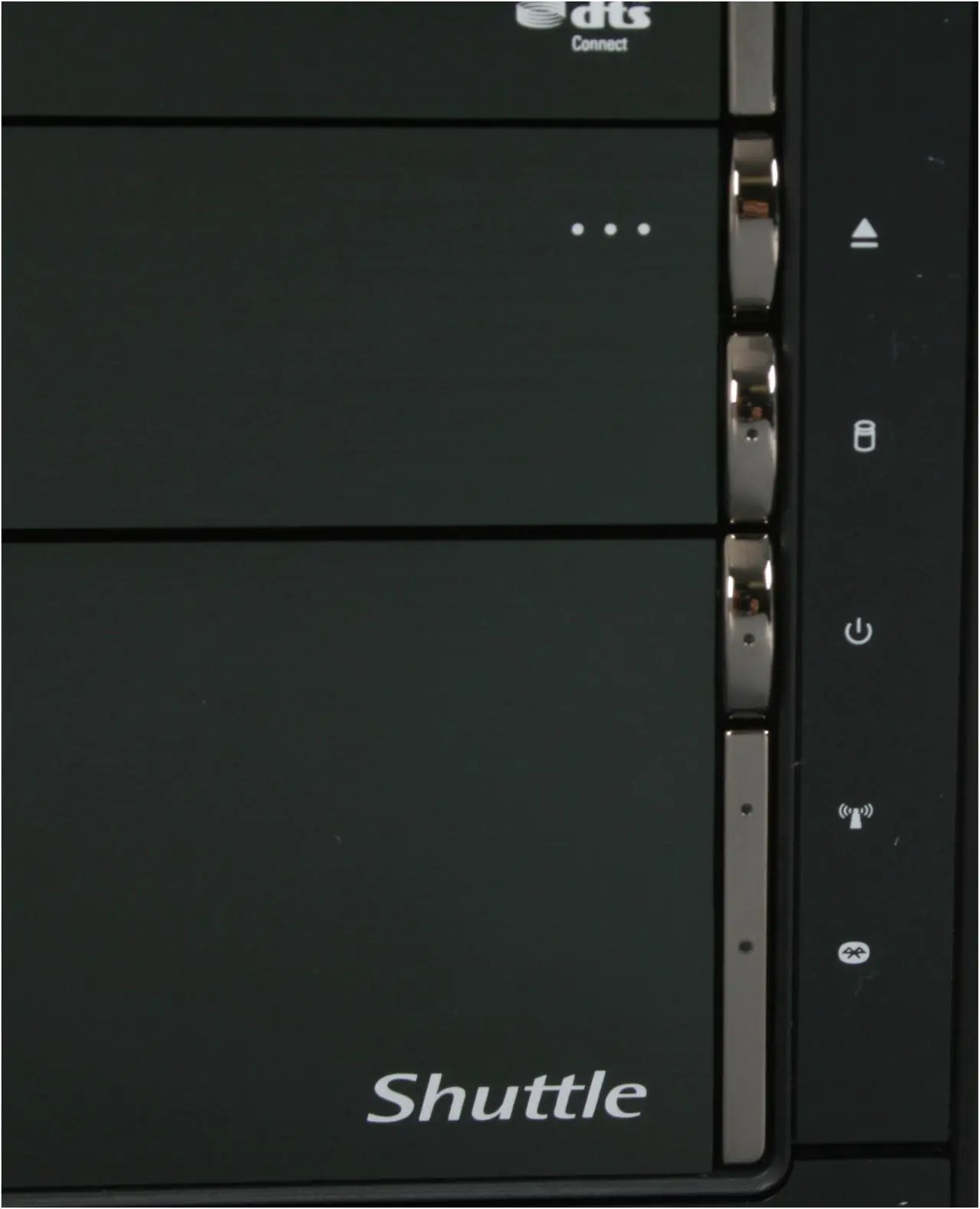

User-friendly overclocking allows advanced users to adjust the frequency and voltage of the CPU and RAM for additional performance while the Shuttle Integrated Cooling Engine combines linear fan control and advanced heat-pipe technology to keep the processor operating at safe temperatures. Three independent cooling zones extend the life of your components. Four drives – a 5.25" and three 3.5" units – can be mounted with access through a pair of stealthed doors.
A dual Gigabit LAN controller supports teaming mode or you can connect via Bluetooth and Wi-Fi. Experience top-end audio performance with 7.1 channel HD audio with Dolby Digital Live! and DTS Connect. All of this is powered by an uncompromising 450 Watt 80 PLUS certified ATX mini PSU and you can secure your system with fingerprint recognition.
The ideal home for an Intel 3.2 Ghz Core 2 Quad Extreme processor, Shuttle's SX48P2 Deluxe breaks new ground in performance. The mainboard houses an Intel X48 Express chipset and is ready to work with 45nm Core 2 multi-core processors as well as Pentium D and Dual-Core units. Up to 8GB of DDR3 memory can be installed with full dual channel support. A pair of high-speed PCI-Express x16 expansion cards can be installed to handle any graphic challenge as well as displays on four monitors. A third, Mini-PCIe slot supports Intel Turbo Memory.
User-friendly overclocking allows advanced users to adjust the frequency and voltage of the CPU and RAM for additional performance while the Shuttle Integrated Cooling Engine combines linear fan control and advanced heat-pipe technology to keep the processor operating at safe temperatures. Three independent cooling zones extend the life of your components. Four drives – a 5.25" and three 3.5" units – can be mounted with access through a pair of stealthed doors.
A dual Gigabit LAN controller supports teaming mode or you can connect via Bluetooth and Wi-Fi. Experience top-end audio performance with 7.1 channel HD audio with Dolby Digital Live! and DTS Connect. All of this is powered by an uncompromising 450 Watt 80 PLUS certified ATX mini PSU and you can secure your system with fingerprint recognition.
Intel Socket T (LGA 775)The Shuttle Prima XPC SX48P2-Deluxe's motherboard supports Intel LGA 775 (Socket T) processors including the Core 2 Extreme, Core 2 Quad, Core 2 Duo and Pentium D series as well as the next generation Intel 45nm processors.
PCI-Express 2.0 with ATi CrossFireX TechnologyThe PCI-Express 2.0 interface provides twice the bandwidth of PCI-Express X16 to handle the data load of next-generation graphics cards while retaining compatibility with current PCI-Express cards. ATi CrossfireX technology enables two or more discrete graphics processors to work together for boosted system performance and a breakthrough gaming experience.

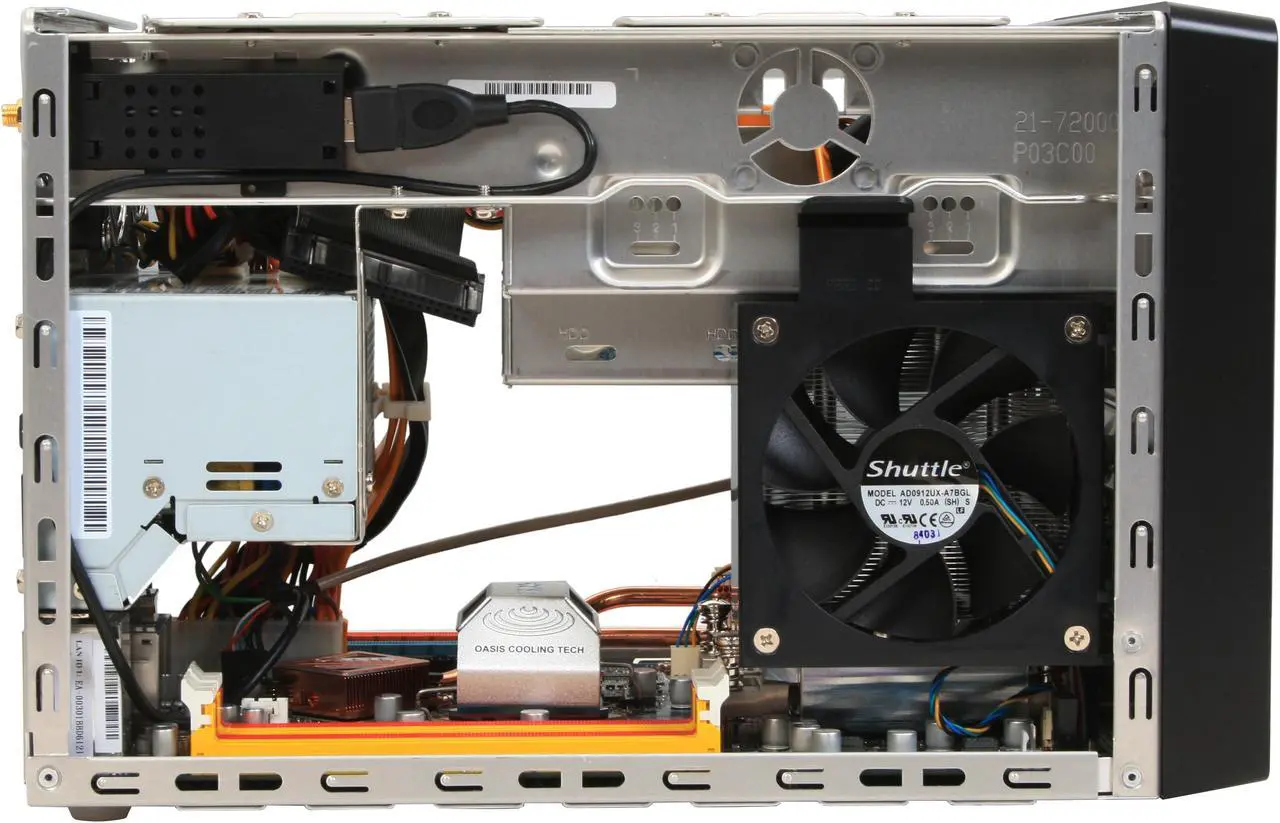

OASIS Cooling TechnologyShuttle’s OASIS heat pipe cooling system effectively dissipates heat from the North Bridge, South Bridge and MOSFET modules for extended system longevity and largely-reduced operation noise.
Integrated Biometric Fingerprint ReaderOffering both security and convenience, an integrated biometric fingerprint reader enables automatic password management for fast, simple log-on and encrypts files and folders with a finger swipe for truly unique and reliable security.
USB Speed-link TechnologyWith the innovative USB Speed-link technology, connect the Shuttle Prima XPC SX48P2-Deluxe to another computer through a USB cable for direct file sharing without the need for driver installation or a third party device.
Built-in 80 PLUS Certified 450W PSUThe Shuttle Prima XPC SX48P2-Deluxe is equipped with an 80 PLUS certified 450W power supply unit that delivers strong power to all system components and provides a high level of system reliability.
Learn more about the Shuttle Computer SX48P2-Deluxe
General
Brand
Shuttle
Series
Prima XPC
Model
SX48P2-Deluxe
Color
Black
CPU Supported
CPU Type
Intel Core 2 Quad / Core 2 Extreme / Core 2 Duo
CPU Socket
Intel Socket T(LGA775)
FSB
1600/1333/1066/ MHz
Chipset
North Bridge
Intel X48
South Bridge
ICH9R
Memory Supported
Memory slot
4 x 240Pin DIMM
Memory Type Supported
DDR3 1600/1333
Max Memory Supported
8GB
Dual Channel Memory Supported
Yes
Expansion Slots
PCI Express 2.0 x16
2
Storage
IDE ATA
1 x ATA 100
Serial ATA
4 x SATA 3.0Gb/s
SATA RAID
RAID 0/1/5/10
Graphics
Onboard Video
none
Audio
Onboard Audio
Realtek ALC888DD
Channel
8-CH
Communications
First LAN
Marvell 88E8056(10/100/1000Mbps)
Max LAN Speed
10/100/1000Mbps

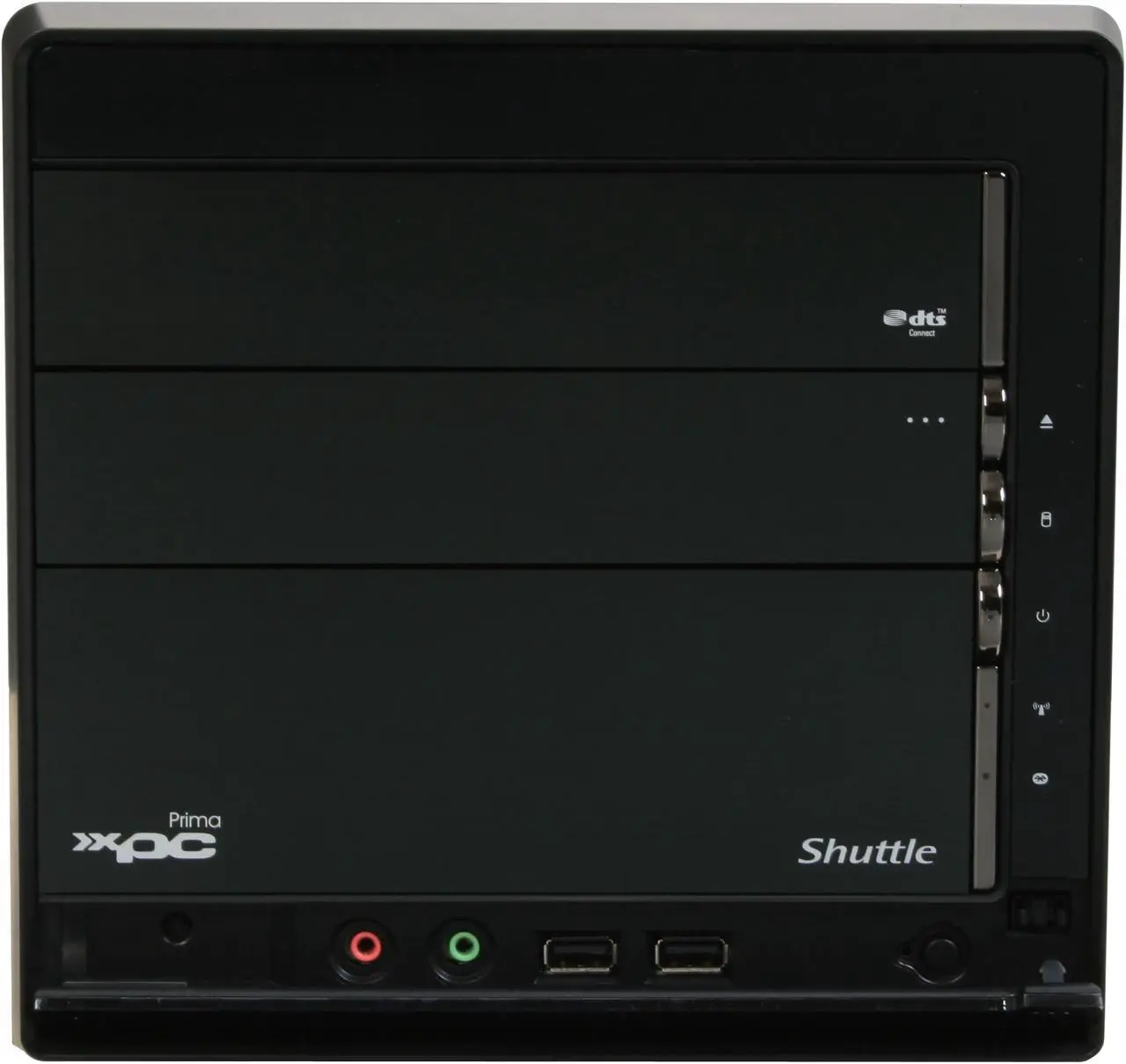

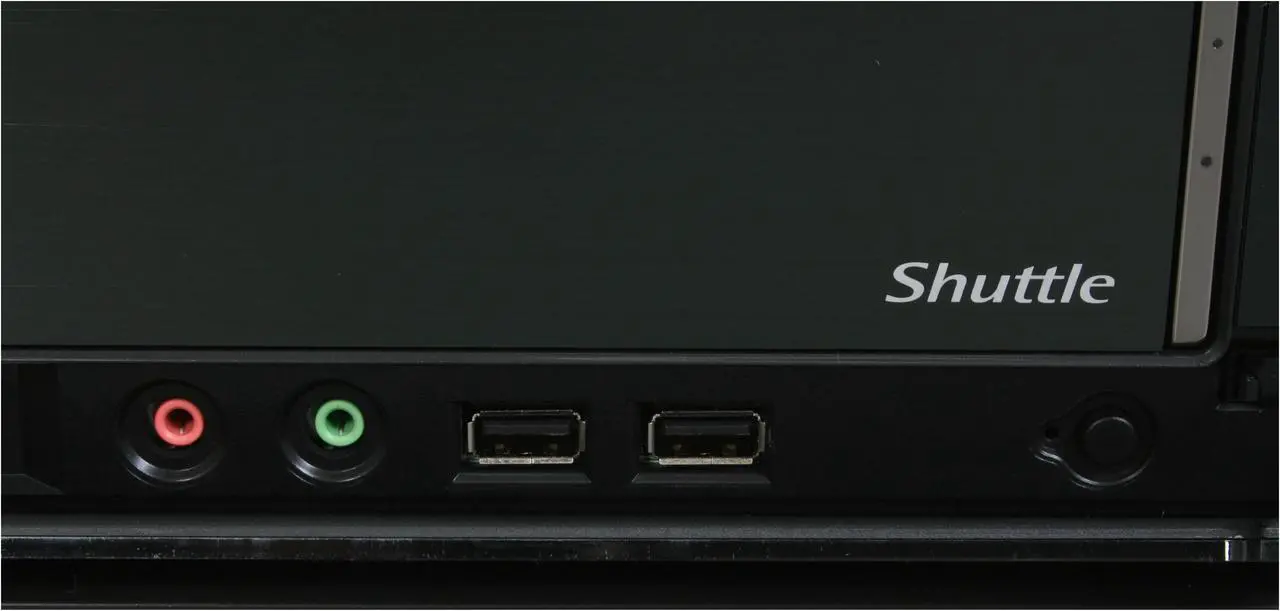

Front Panel Ports
Front USB
2
Front IEEE 1394
1
Front Audio Ports
1 x Microphone-In

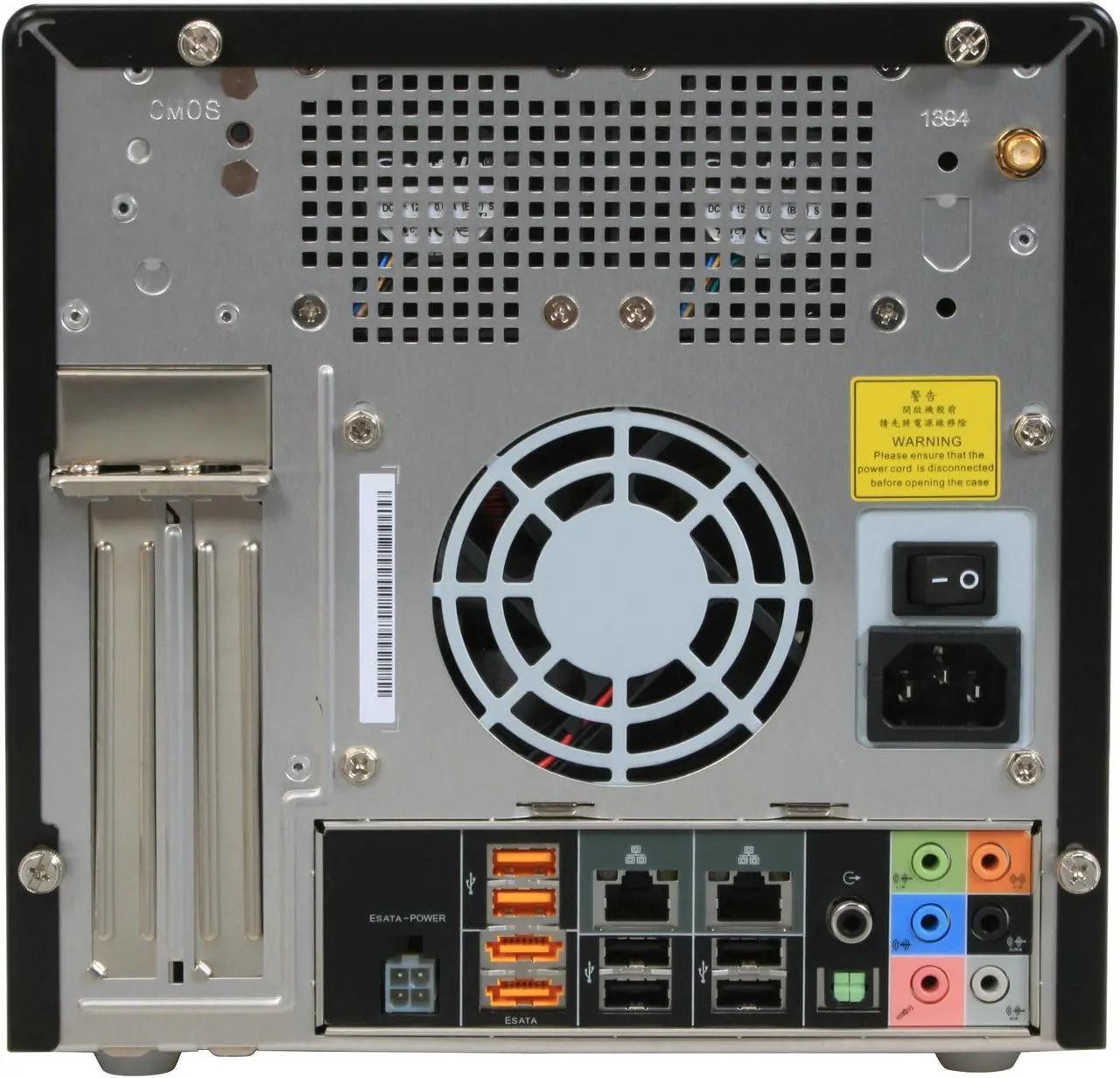

Back Panel Ports
Rear USB
6
Rear e-SATA Ports
2
RJ45
1
Rear S/PDIF Out
1 x Coaxial port 1 x Optical port
Rear Audio Ports
6 jacks
Power Supply
Power Supply
450W Input:100 - 240V AC Support 80 PLUS Dimensions: 3.4" (W) x 3.4" (H) x 5.9" (D) mm
Physical SPEC
Dimensions
12.8" x 8.7" x 8.3"
Packaging

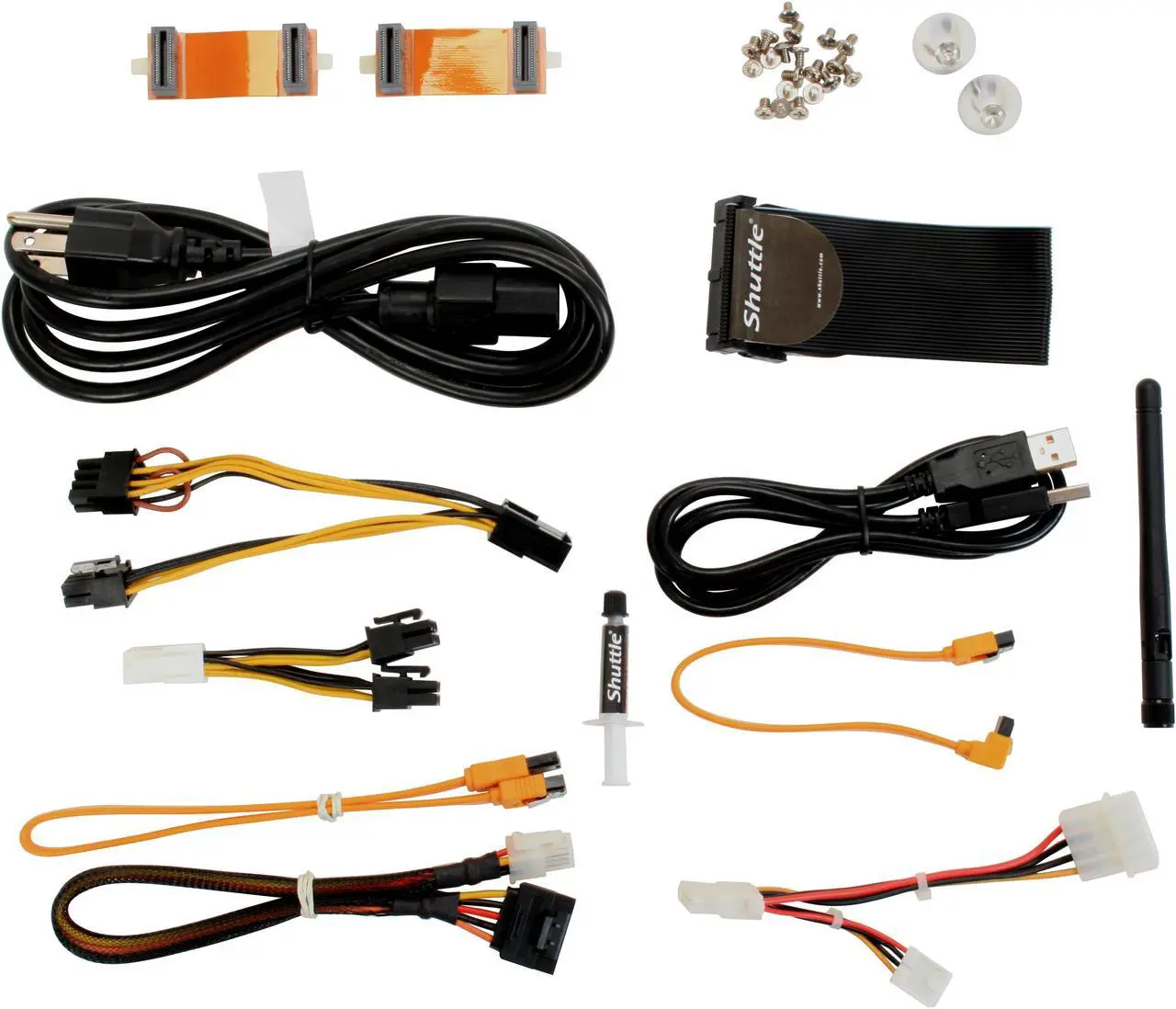

Package Contents
XPC Multi-Language User Guide XPC DVD Driver (include Norton Internet Security ? 2007 and Adobe Reader 8.1) I.C.E Technology CPU heat-pipe 3 x SATA cable (pre-install) 1 x SATA cable 1 x eSATA cable 1 x IDE CD-ROM cable 1 x Floppy cable 1 x External SATA power cable 1 x 1 set to 2 set 6pin VGA power cable 2 x Cross Fire bridge 1 x USB to USB cable for Speed-Link 1 x 1 set 4pin to SATA power cable 1 x Power cord Screws Heatsink Compound
Additional Information
Date First Available
July 02, 2008
