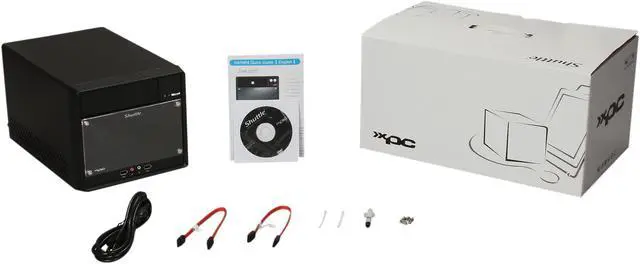

Images from RETAIL item, box contents may vary.

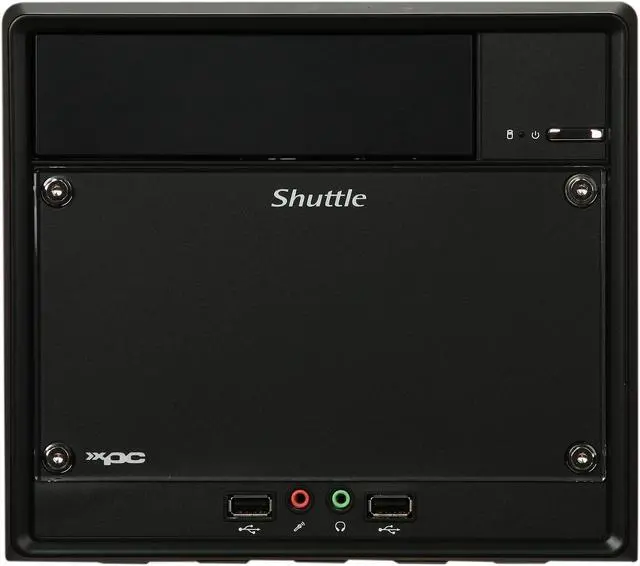

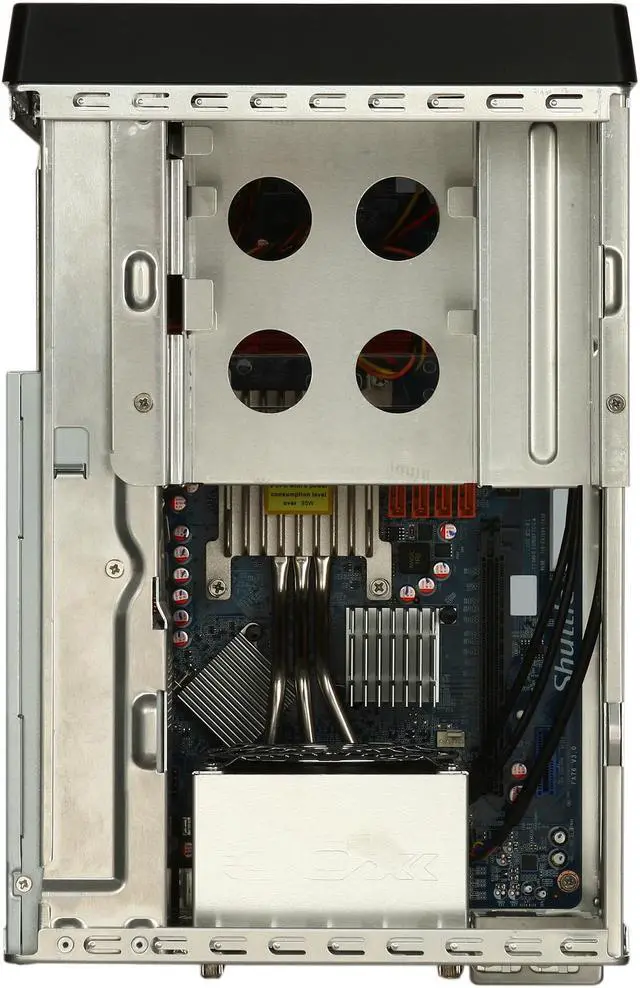

Shuttle SA76R4 AMD Socket AM3 AMD 760G Barebone
OPEN BOX Product Type
- AMD Phenom II and Athlon II processors (45nm process) (CPU power consumption (TDP) = max. 95W) Please refer the support list for detailed processor support information. AMD Socket AM3
- AMD 760G AMD SB710
- 4 x 240Pin DIMM DDR3 1333/1066
- ATI Radeon 3000
Specs
Any questions? Our AI beta will help you find out quickly.
Try me now
Learn more about the Shuttle Computer SA76R4
| Brand | Shuttle |
|---|---|
| Model | SA76R4 |
| Color | Black |
| CPU Type | AMD Phenom II and Athlon II processors (45nm process) (CPU power consumption (TDP) = max. 95W) Please refer the support list for detailed processor support information. |
|---|---|
| CPU Socket | AMD Socket AM3 |
| North Bridge | AMD 760G |
|---|---|
| South Bridge | AMD SB710 |
| Memory slot | 4 x 240Pin DIMM |
|---|---|
| Memory Type Supported | DDR3 1333/1066 |
| Max Memory Supported | 16GB |
| Memory Channel Supported | Dual Channel |
| PCI Express 2.0 x16 | 1 |
|---|---|
| PCI Express | 1 x PCI Express x1 |
| Other | 1 x Mini-PCI-Express x1 v1.1 slot (for the optional WLAN module) |
| Serial ATA | 4 x SATA 3.0Gb/s |
|---|
| Onboard Video | ATI Radeon 3000 |
|---|
| Onboard Audio | IDT 92HD89C |
|---|---|
| Channel | 5.1-CH |
| First LAN | Realtek 8111E(10/100/1000Mbps) |
|---|---|
| Max LAN Speed | 10/100/1000Mbps |

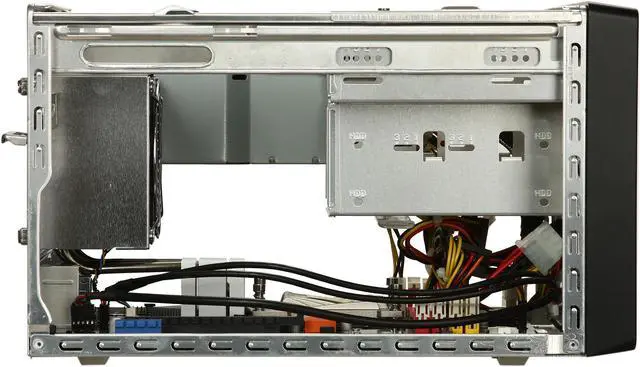

| 3.5" Internal bays | 2 |
|---|---|
| 5.25" External bays | 1 |

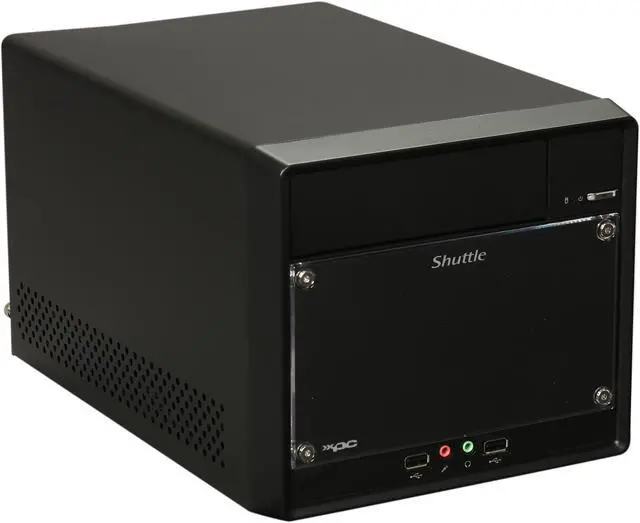

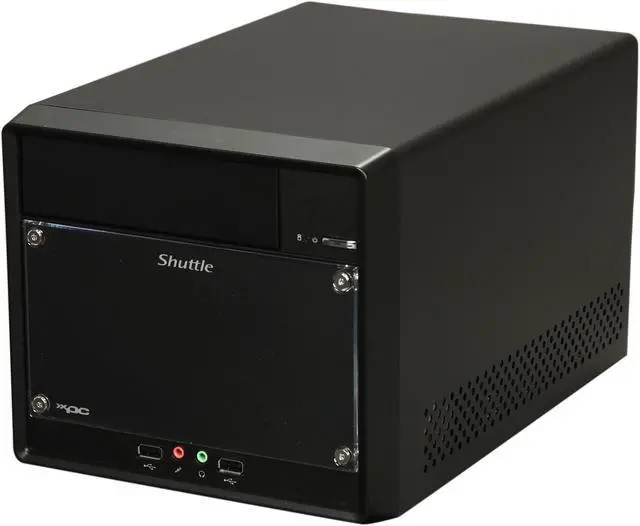

| Front USB | 2 x USB 2.0 Port |
|---|---|
| Front Audio Ports | 2 jacks |

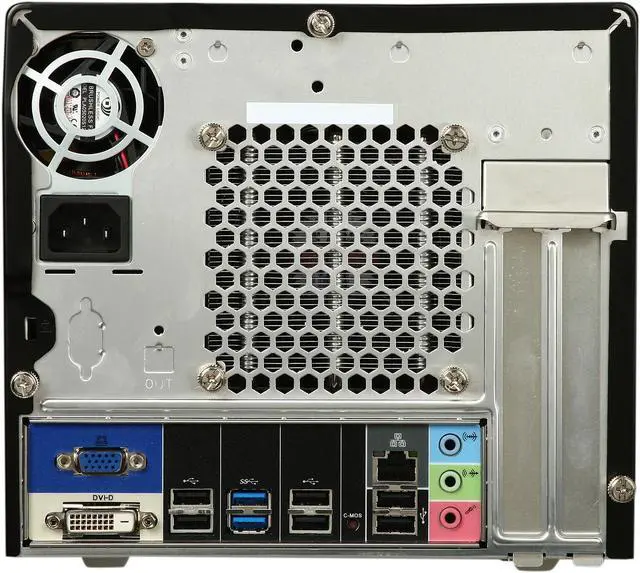

| VGA | 1 x D-Sub + 1 x DVI |
|---|---|
| Rear USB | 6 x USB 2.0 Ports 2 x USB 3.0 Ports |
| RJ45 | 1 |
| Rear Audio Ports | 3 jacks |

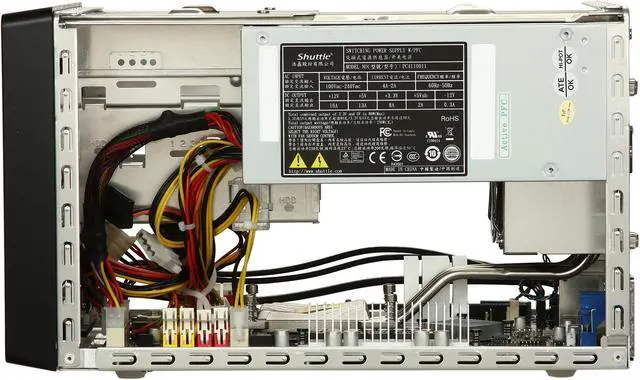

| Power Supply | 250 Watt mini power supply unit |
|---|
| Dimensions | 12.8" x 8.46" x 7.48" |
|---|---|
| Weight | 7.05 lbs. |
| Features | Outstanding multi-core performance with AMD processors State-of-the-art AMD technology 6-channel audio Intelligent cooling Communication in the fast lane PCI Express technology Almost limitless memory The latest generation of super-fast RAM Generous supply of USB ports Pre-assembled cabling saves time Shuttle opts for lightweight aluminium Digital monitor output Supports dual monitoring Full support for Windows 7 |
|---|
| First Listed on Newegg | June 20, 2012 |
|---|
