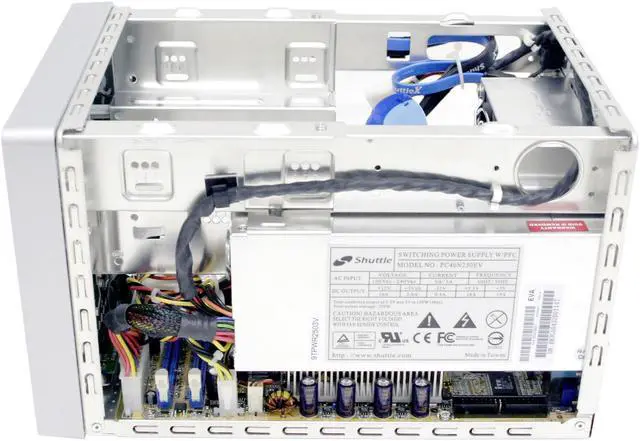

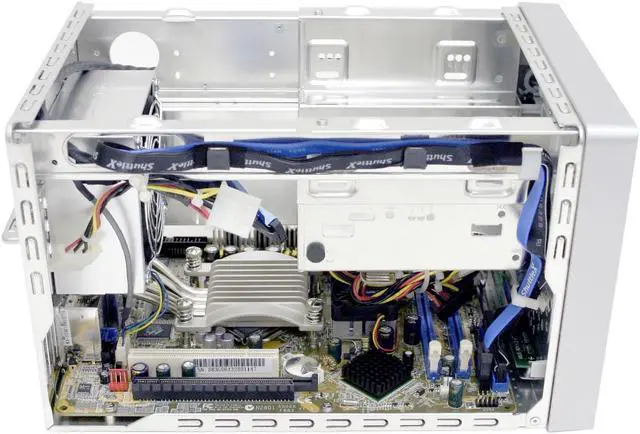

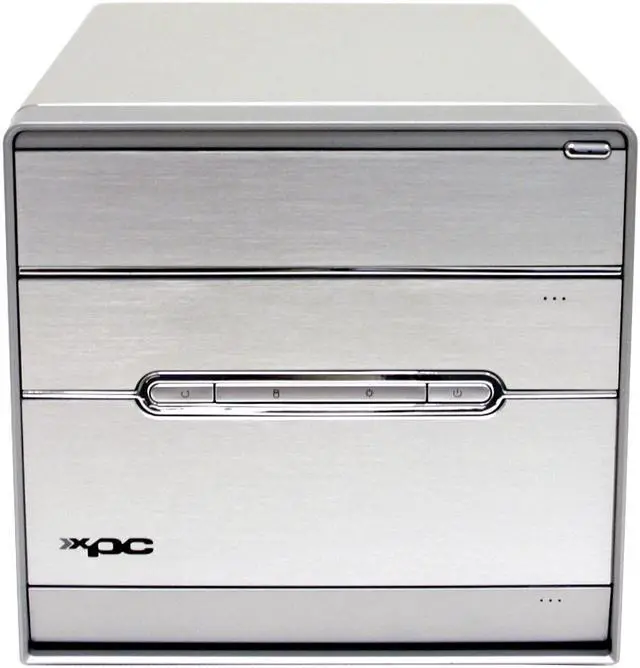

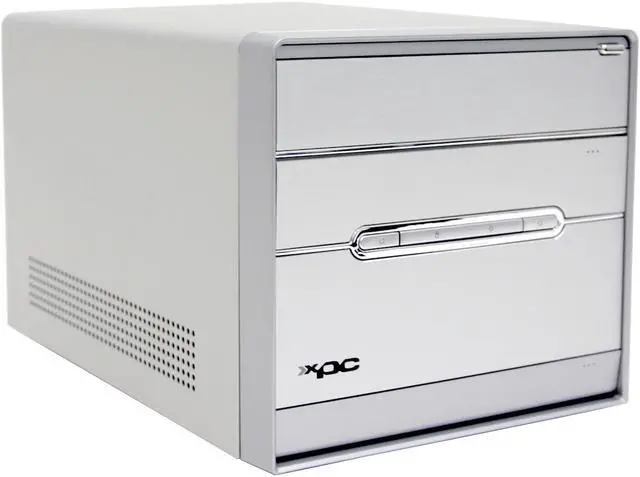

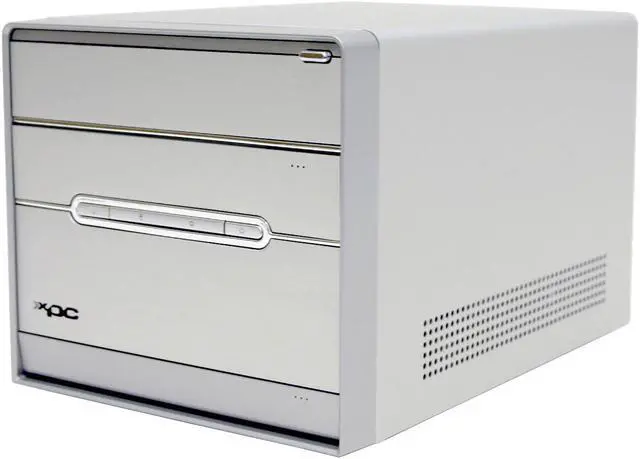

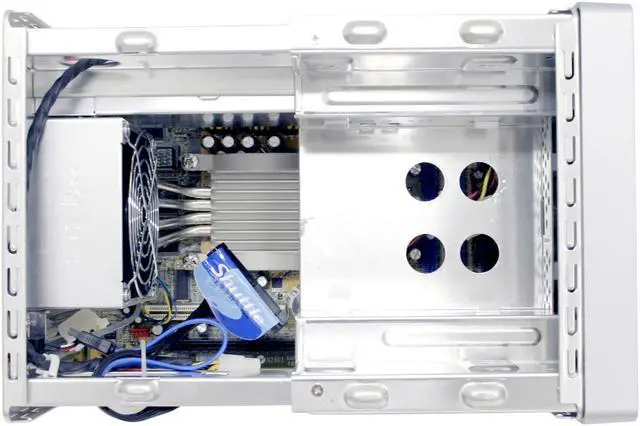

Main image of Shuttle SB83G5 Intel Socket T(LGA775) Intel 915G Barebone

Alt view image 2 of 10 - Shuttle SB83G5 Intel Socket T(LGA775) Intel 915G Barebone

Alt view image 3 of 10 - Shuttle SB83G5 Intel Socket T(LGA775) Intel 915G Barebone

Alt view image 4 of 10 - Shuttle SB83G5 Intel Socket T(LGA775) Intel 915G Barebone

Alt view image 5 of 10 - Shuttle SB83G5 Intel Socket T(LGA775) Intel 915G Barebone

Alt view image 6 of 10 - Shuttle SB83G5 Intel Socket T(LGA775) Intel 915G Barebone

Alt view image 7 of 10 - Shuttle SB83G5 Intel Socket T(LGA775) Intel 915G Barebone

Alt view image 8 of 10 - Shuttle SB83G5 Intel Socket T(LGA775) Intel 915G Barebone

Alt view image 9 of 10 - Shuttle SB83G5 Intel Socket T(LGA775) Intel 915G Barebone

Alt view image 10 of 10 - Shuttle SB83G5 Intel Socket T(LGA775) Intel 915G Barebone

Shop All Shuttle Computer Products

Shuttle SB83G5 Intel Socket T(LGA775) Intel 915G Barebone

Name: Shuttle SB83G5 Intel Socket T(LGA775) Intel 915G Barebone
Brand: Shuttle Computer
SKU: N82E16856101456
Rating: 4 (24 reviews)

(24) Write a Review

Intel Pentium 4 / Celeron Intel Socket T(LGA775)
Intel 915G ICH6R
2 x 184Pin DIMM DDR 400/333
Intel GMA 900

Specs

Reviews (24)

Any questions? Our AI beta will help you find out quickly.

Try me now

Learn more about the Shuttle Computer SB83G5

General
Brand	Shuttle
Model	SB83G5

CPU Supported
CPU Type	Intel Pentium 4 / Celeron
CPU Socket	Intel Socket T(LGA775)
FSB	800/533 MHz

Chipset
North Bridge	Intel 915G
South Bridge	ICH6R

Memory Supported
Memory slot	2 x 184Pin DIMM
Memory Type Supported	DDR 400/333
Max Memory Supported	2GB
Dual Channel Memory Supported	Yes

Expansion Slots
PCI Express	1 x PCI Express x16
PCI	1

Storage
IDE ATA	1 x ATA 100
Serial ATA	2 x SATA 1.5Gb/s
SATA RAID	RAID 0/1

Graphics
Onboard Video	Intel GMA 900
Video Memory	Shared

Audio
Onboard Audio	Realtek ALC658
Channel	5-CH

Communications
First LAN	Marvell 88E8001(10/100/1000Mbps)
Max LAN Speed	10/100/1000Mbps

Extension Bays
3.5" Internal bays	2
3.5" External bays	0
5.25" External bays	1

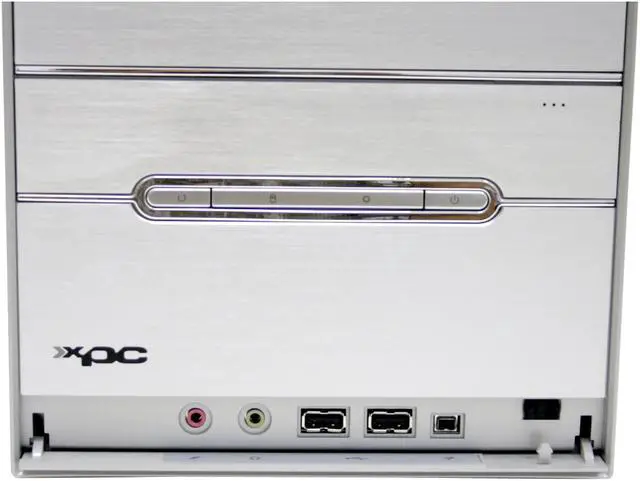

Front Panel Ports
Front USB	2
Front IEEE 1394	1
Front Audio Ports	Audio Ports

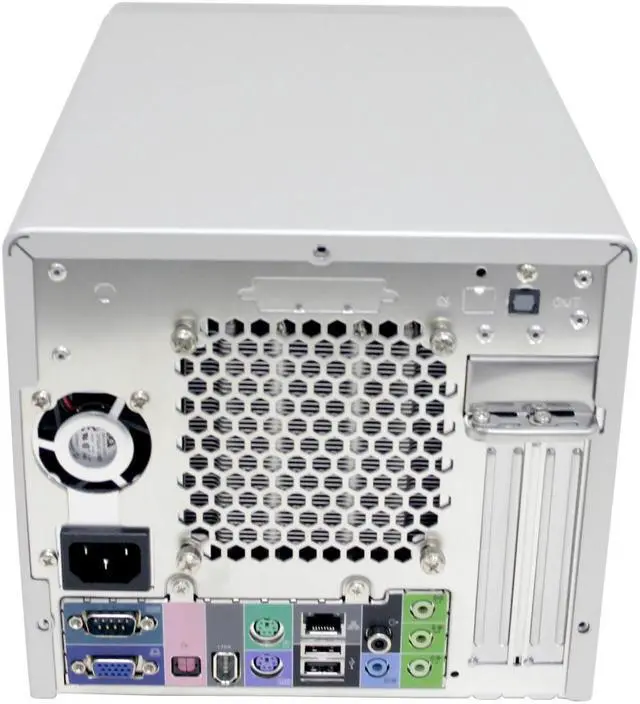

Back Panel Ports
PS/2	2
COM	1
VGA	1
Rear USB	2
Rear IEEE 1394	1
RJ45	1
Rear S/PDIF In	Yes
Rear S/PDIF Out	Yes
Rear Audio Ports	Audio Ports

Power Supply
Power Supply	SilentX 250W

Physical SPEC
Dimensions	7.87" x 7.28" x 12.2"

Packaging

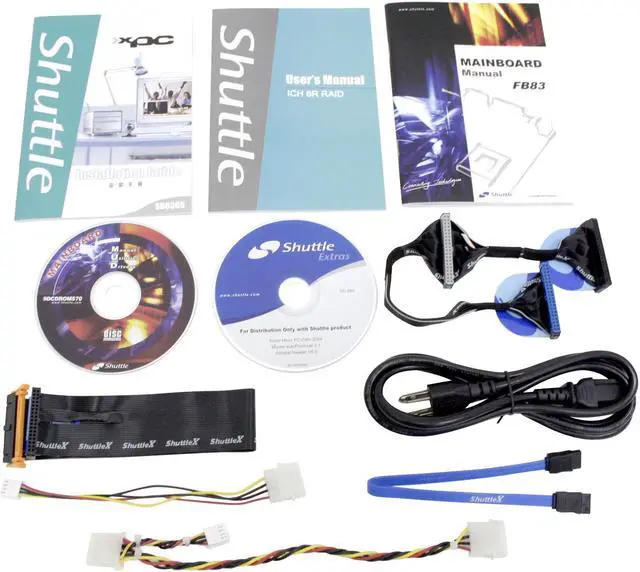

Package Contents	SB83G5 User Manual Driver Disk IDE/PATA Cable FDD Cable SATA Cable 2 x Power Cables Power Cord

Additional Information
First Listed on Newegg	August 23, 2004
