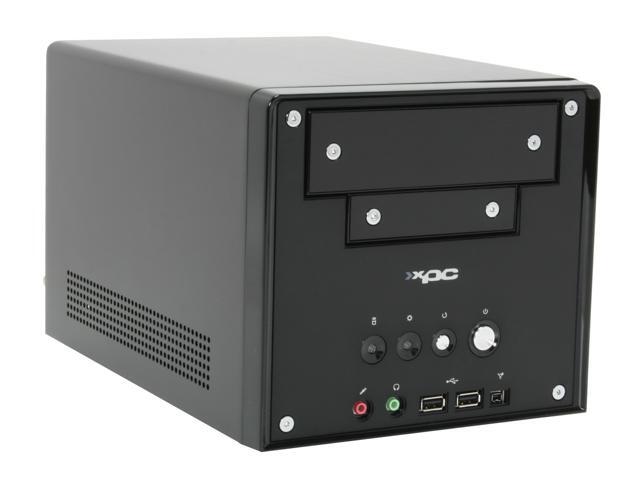

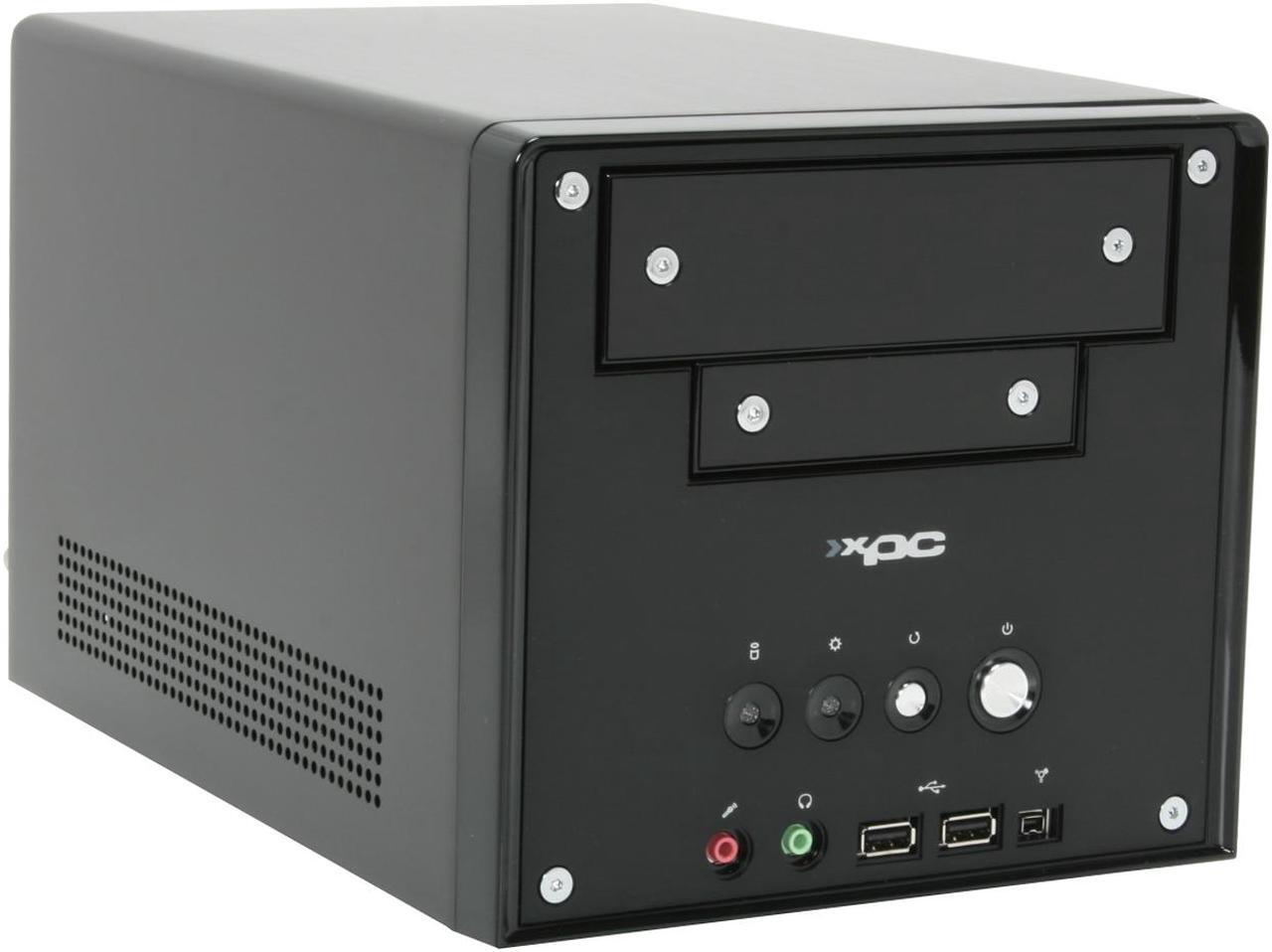

Shuttle SD30G2B Intel Socket T(LGA775) Intel 945GC 65nm Small Form Factor Black XPC Barebone
- Intel 945GC ICH7
- 800/1066/1333MHz FSB
- 2 x 240Pin
Specs
Reviews (24)
Learn more about the Shuttle Computer SD30G2B
| Brand | Shuttle |
|---|---|
| Model | SD30G2B |
| CPU Type | Intel Core 2 Duo / Pentium D / Pentium 4 |
|---|---|
| CPU Socket | Intel Socket T(LGA775) |
| FSB | 1066/800 MHz |
| North Bridge | Intel 945GC |
|---|---|
| South Bridge | ICH7 |
| Memory slot | 2 x 240Pin DIMM |
|---|---|
| Memory Type Supported | DDR2 667 |
| Max Memory Supported | 2GB |
| Dual Channel Memory Supported | Yes |
| PCI Express | 1 x PCI Express x16 |
|---|---|
| PCI | 1 |
| IDE ATA | 1 x ATA 100 |
|---|---|
| Serial ATA | 2 x SATA 3.0Gb/s |
| Onboard Video | Intel GMA 950 |
|---|
| Onboard Audio | Realtek ALC888 |
|---|---|
| Channel | 8-CH |
| First LAN | Marvell 88E8001(10/100/1000Mbps) |
|---|---|
| Max LAN Speed | 10/100/1000Mbps |

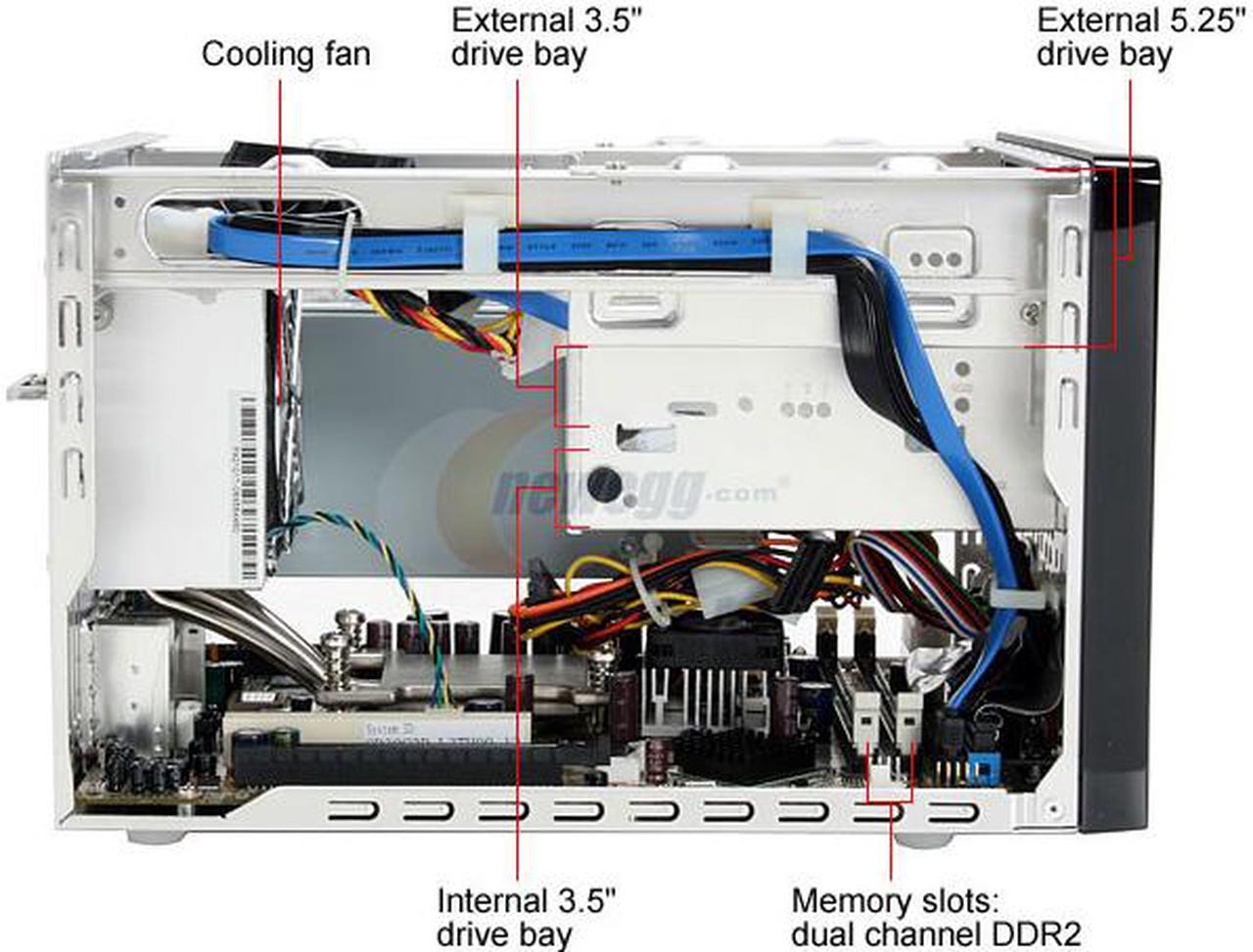

| 3.5" Internal bays | 1 |
|---|---|

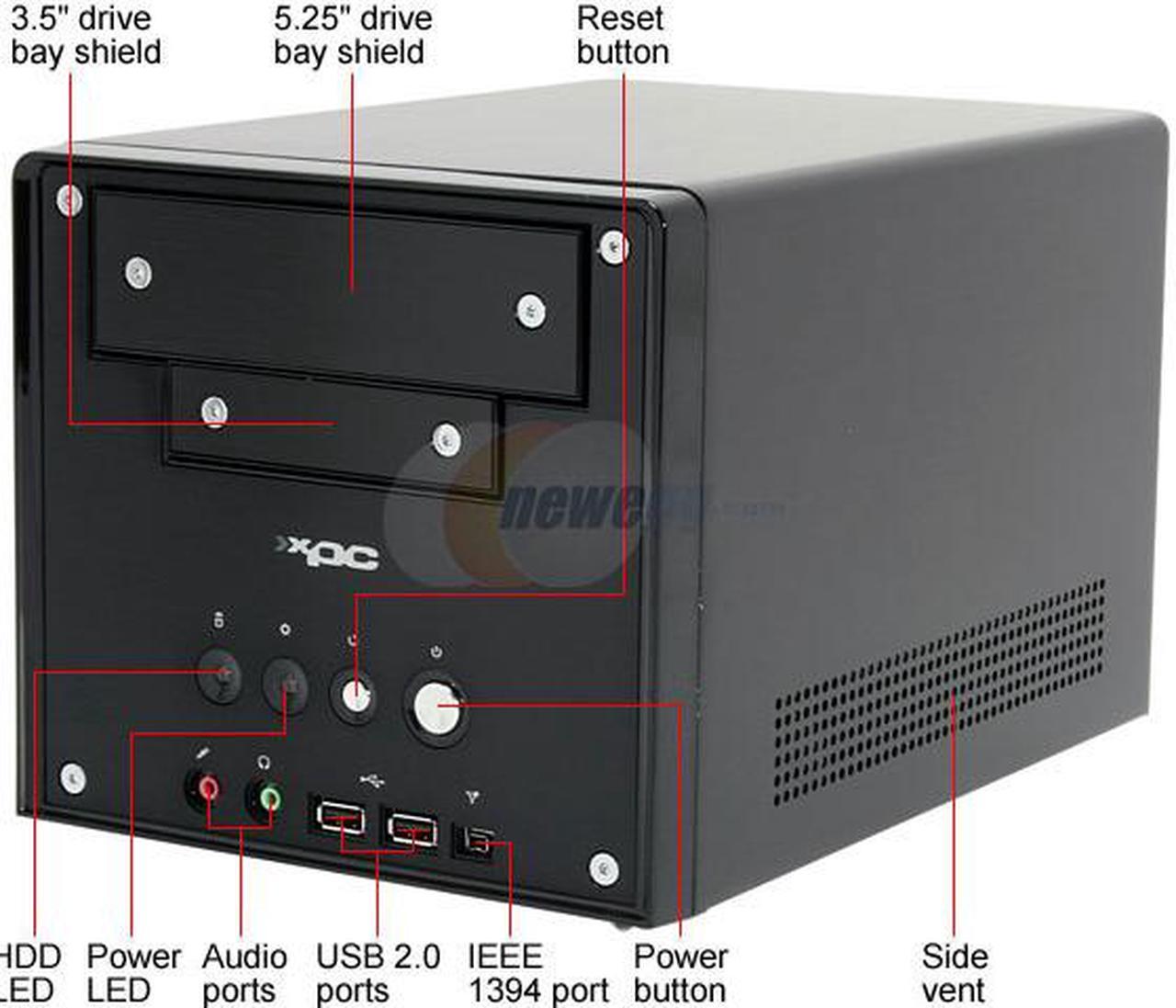

| 3.5" External bays | 1 |
| 5.25" External bays | 1 |

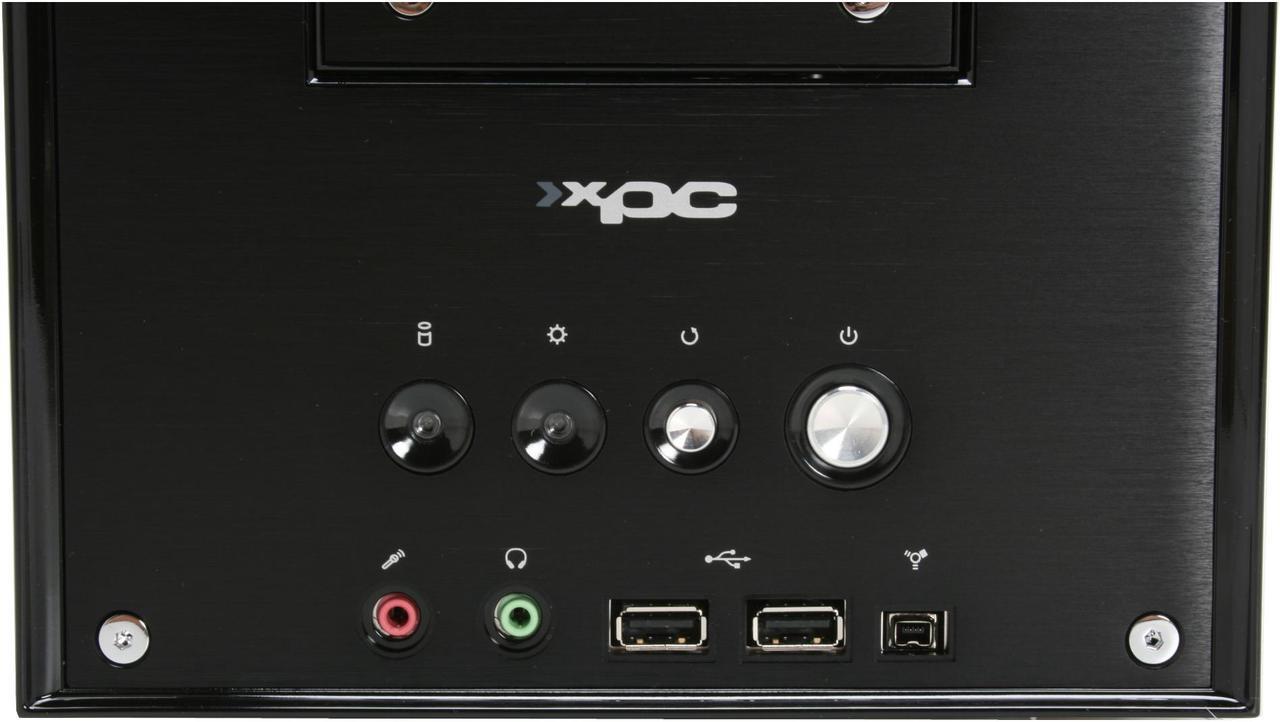

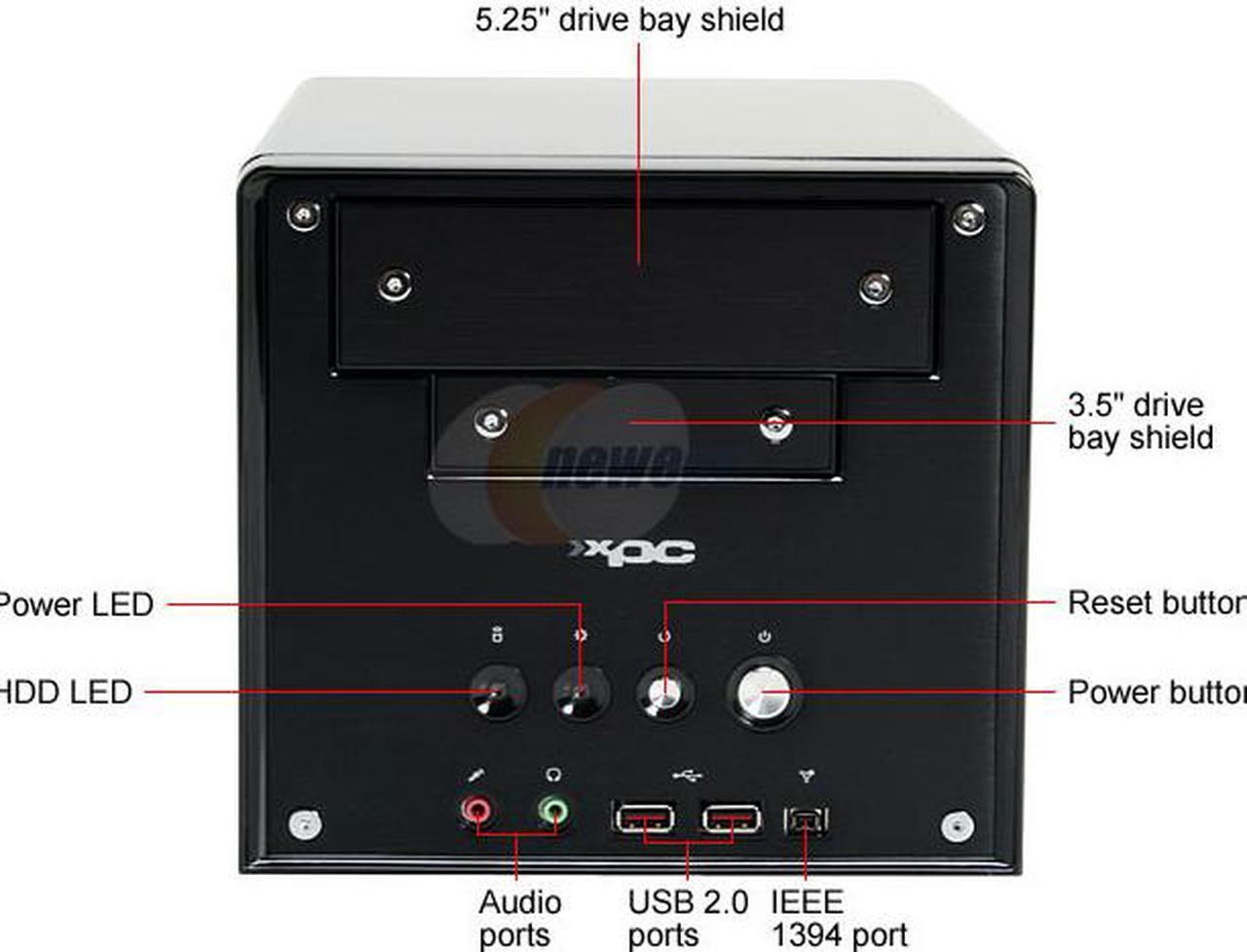

| Front USB | 2 |
|---|---|
| Front IEEE 1394 | 1 |
| Front Audio Ports | 2 jacks |

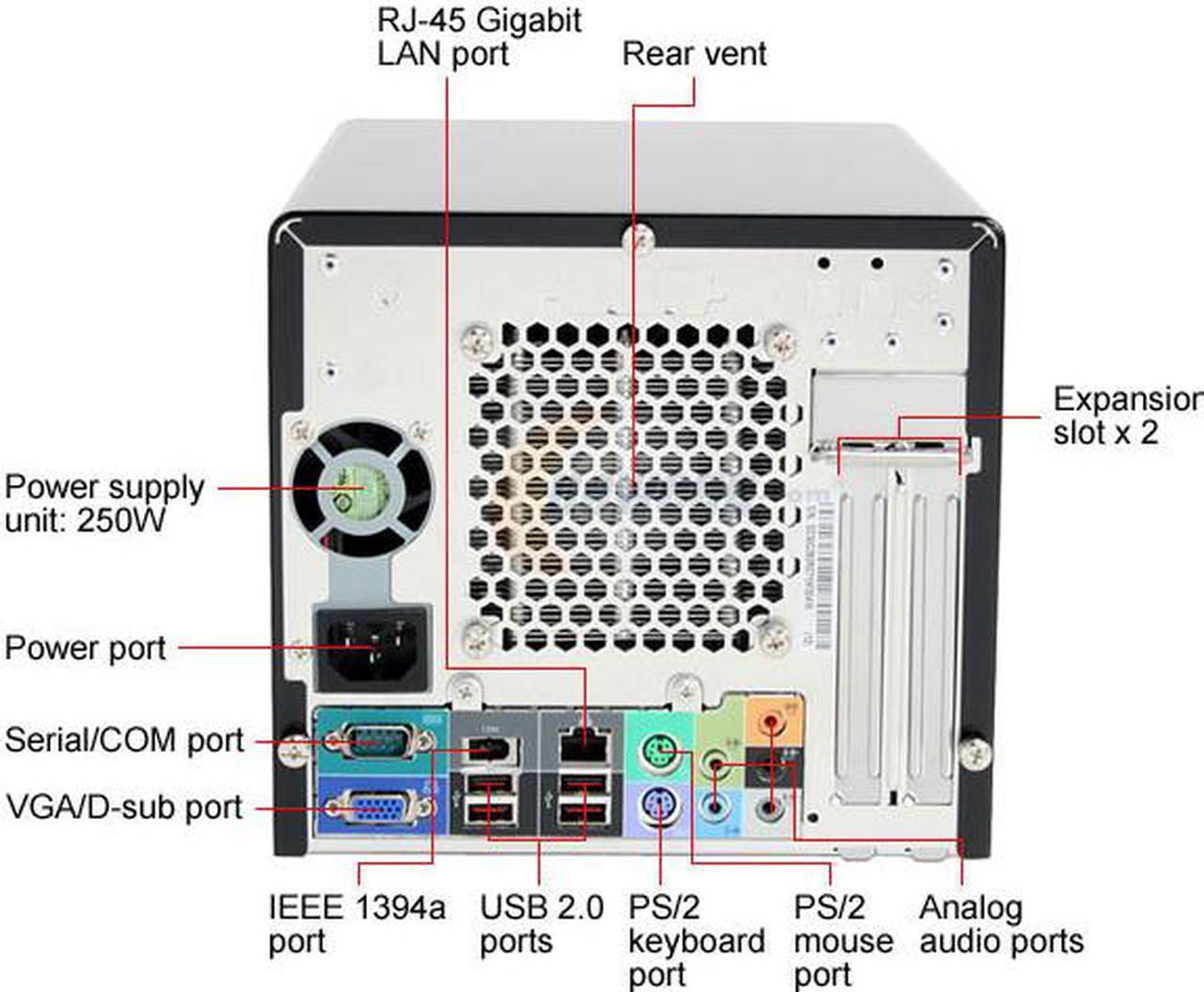

| PS/2 | 2 |
|---|---|
| COM | 1 |
| VGA | 1 x D-Sub |
| Rear USB | 4 |
| Rear IEEE 1394 | 1 |
| RJ45 | 1 |
| Rear Audio Ports | 5 jacks |
| Input | 100- 240V AC |
|---|---|

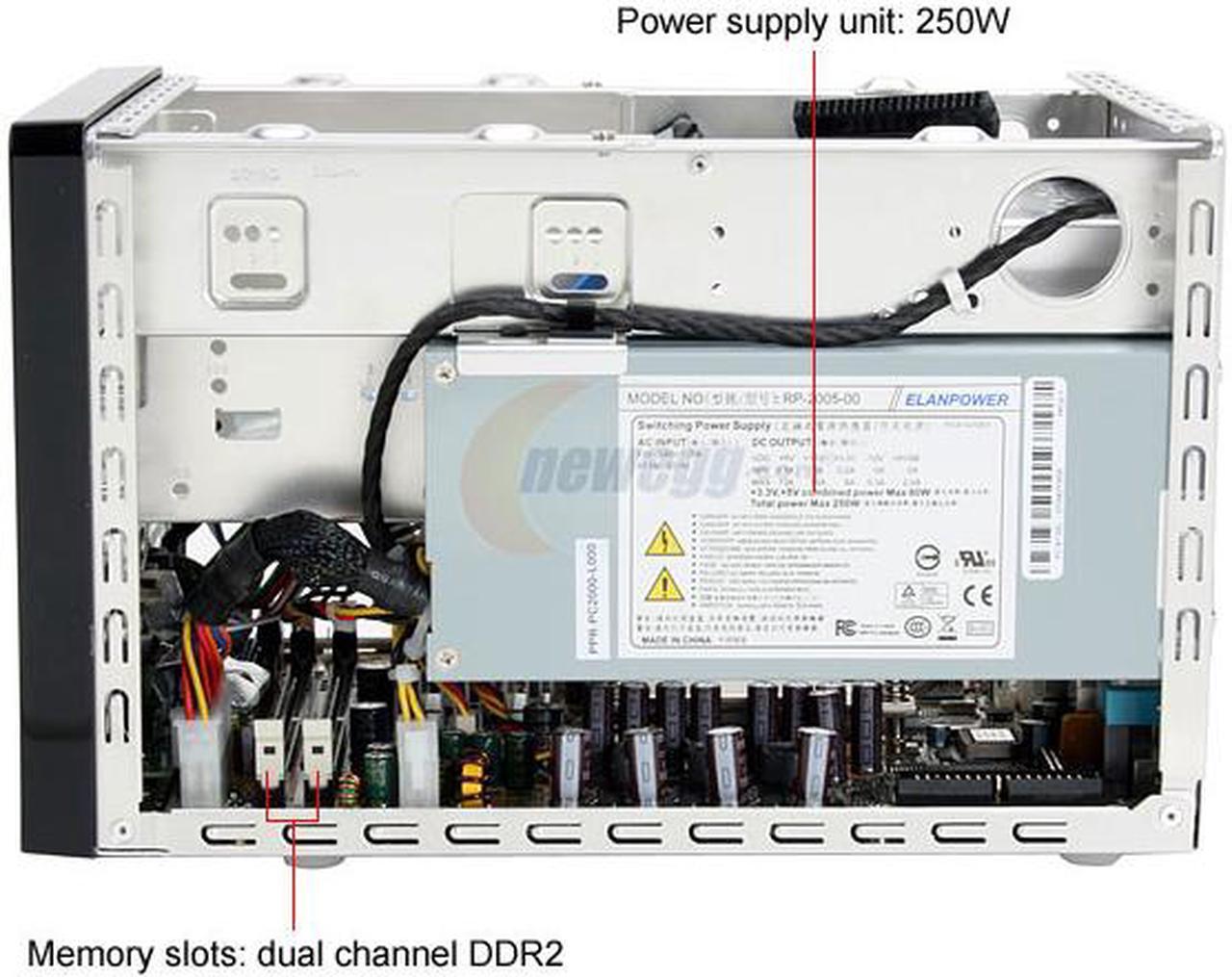

| Power Supply | 250W |
| Dimensions | 11.8" x 7.9" x 7.3" |
|---|

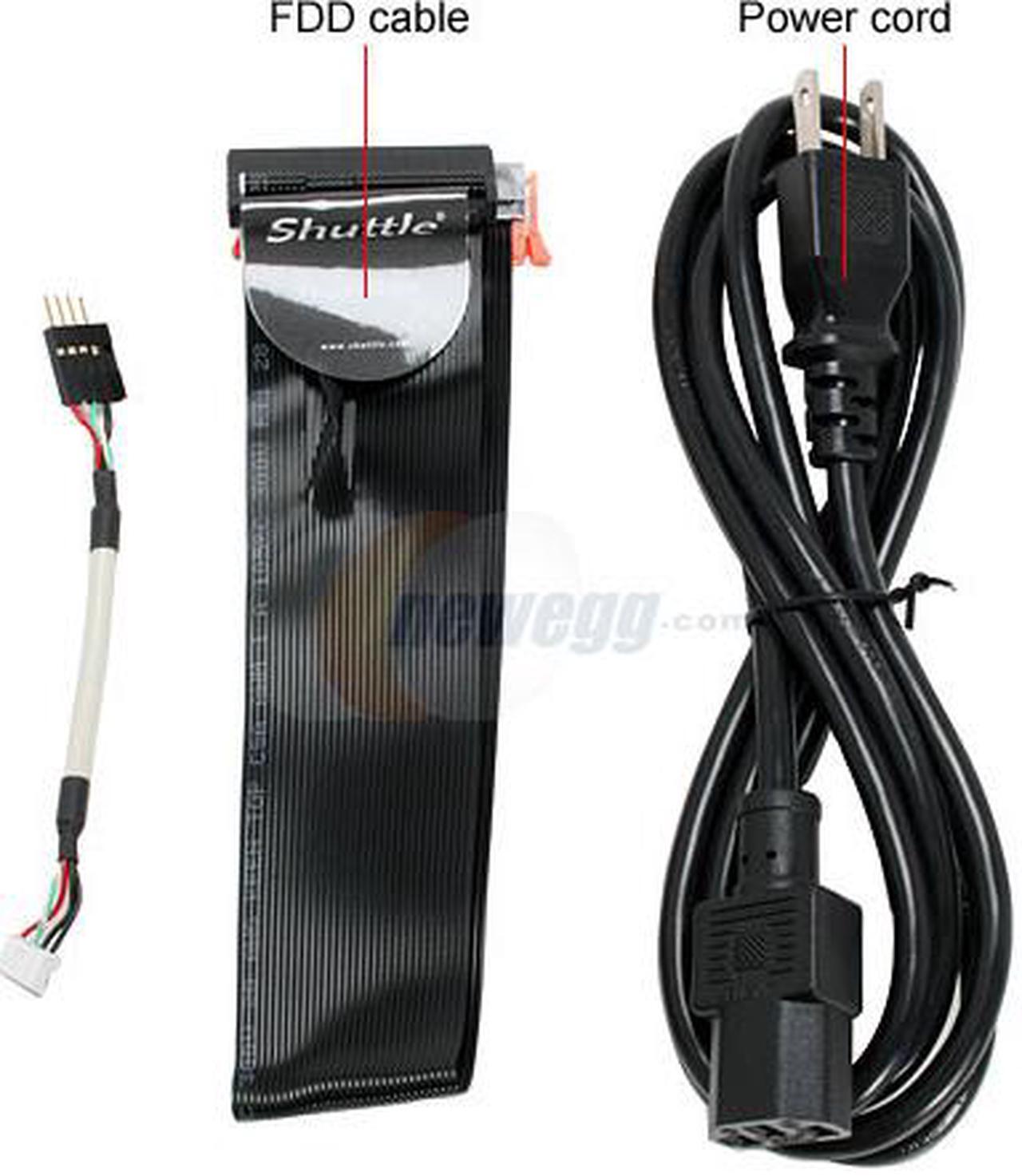

| Package Contents | SD30G2B Driver Disk Software Disk Power Cord Cable IDE/PATA Cable |
|---|
| Date First Available | June 07, 2007 |
|---|
