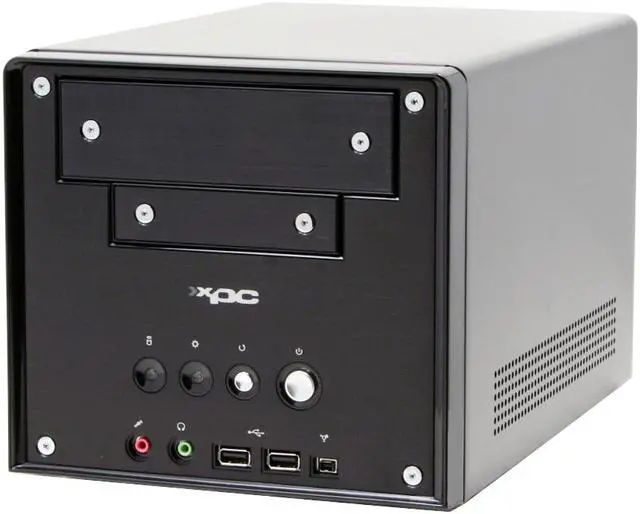

Shuttle SD32G2B SD32-G2-BK-V1 Intel Socket T(LGA775) Intel 945G Barebone
- Intel Core 2 Extreme / Core 2 Duo / Pentium EE Intel Socket T(LGA775)
- Intel 945G ICH7
- 2 x 240Pin DIMM DDR2 667/533
- Intel GMA 950
Specs
Reviews (14)
Any questions? Our AI beta will help you find out quickly.
Try me now
Learn more about the Shuttle Computer SD32-G2-BK-V1
| Brand | Shuttle |
|---|---|
| Series | SD32G2B |
| Model | SD32-G2-BK-V1 |
| CPU Type | Intel Core 2 Extreme / Core 2 Duo / Pentium EE |
|---|---|
| CPU Socket | Intel Socket T(LGA775) |
| FSB | 1066/800 MHz |
| North Bridge | Intel 945G |
|---|---|
| South Bridge | ICH7 |
| Memory slot | 2 x 240Pin DIMM |
|---|---|
| Memory Type Supported | DDR2 667/533 |
| Max Memory Supported | 2GB |
| Dual Channel Memory Supported | Yes |
| PCI Express | 1 x PCI Express x16 |
|---|---|
| PCI | 1 |
| IDE ATA | 1 x ATA 100 |
|---|---|
| Serial ATA | 2 x SATA 3.0Gb/s |
| Onboard Video | Intel GMA 950 |
|---|
| Onboard Audio | Realtek ALC882 |
|---|---|
| Channel | 8-CH |
| First LAN | Marvell 88E8001(10/100/1000Mbps) |
|---|---|
| Max LAN Speed | 10/100/1000Mbps |
| 3.5" Internal bays | 1 |
|---|---|
| 3.5" External bays | 1 |
| 5.25" External bays | 1 |

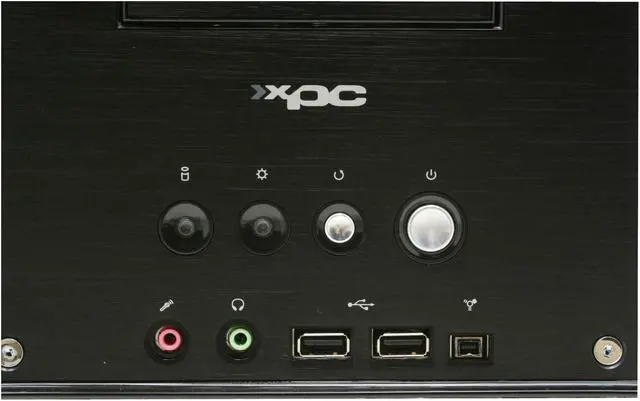

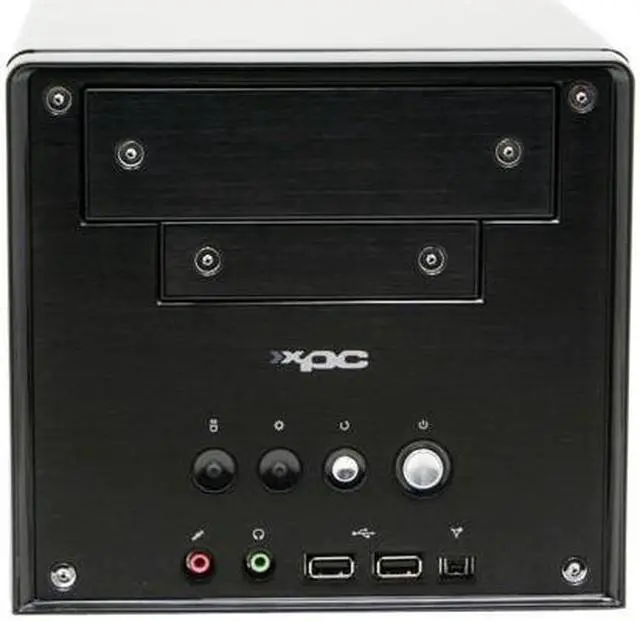

| Front USB | 2 |
|---|---|
| Front IEEE 1394 | 1 |
| Front Audio Ports | 2 jacks |

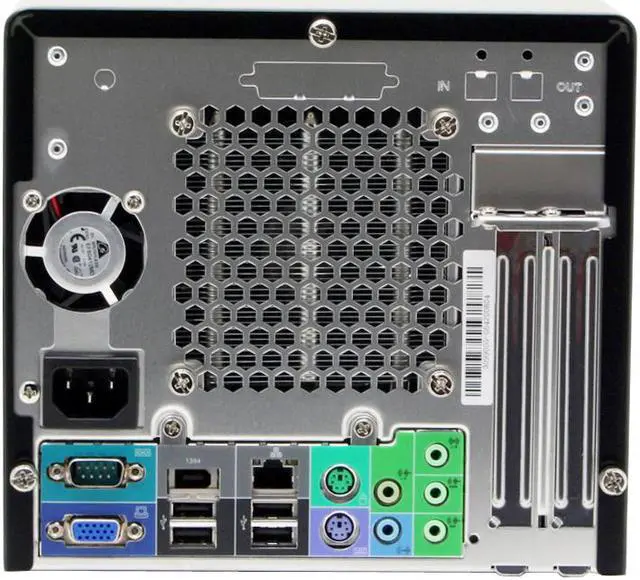

| PS/2 | 2 |
|---|---|
| COM | 1 |
| VGA | 1 |
| Rear USB | 4 |
| Rear IEEE 1394 | 1 |
| RJ45 | 1 |
| Rear Audio Ports | 4 jacks |

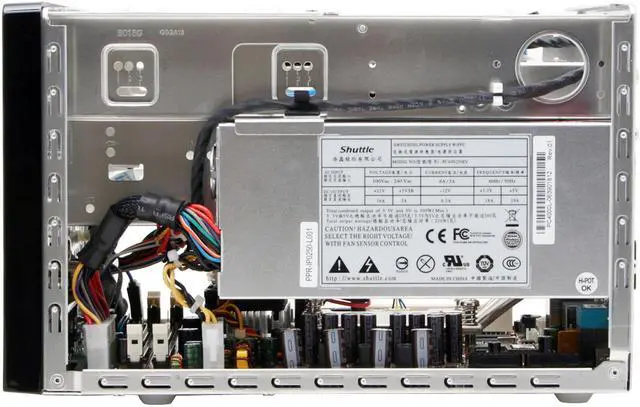

| Power Supply | 250W active PFC Input: 110 / 240V AC EMI Certified: FCC, CE, BSMI, C-tick Power plug: region specific |
|---|
| Dimensions | 11.9" x 7.9" x 7.3" |
|---|

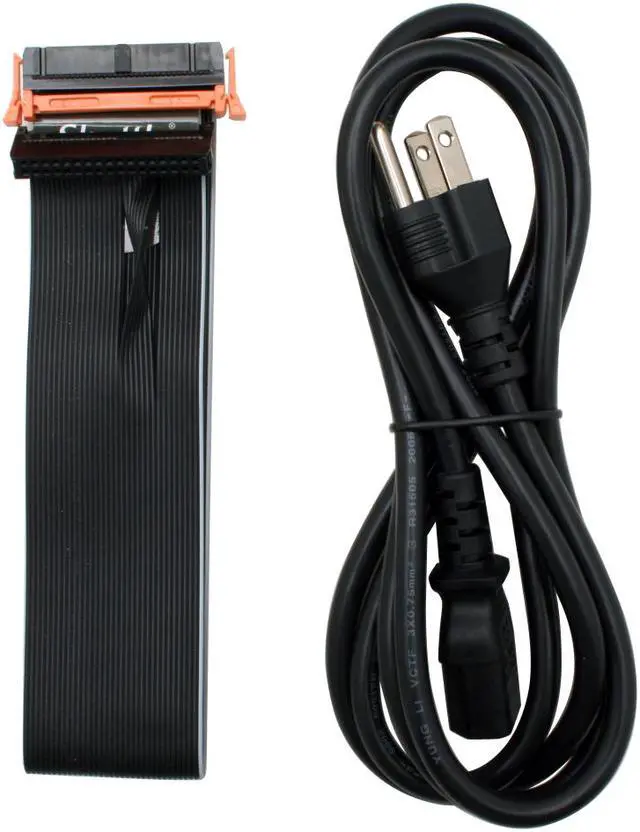

| Package Contents | SD32-G2-BK-V1 |
|---|
| First Listed on Newegg | December 06, 2006 |
|---|
