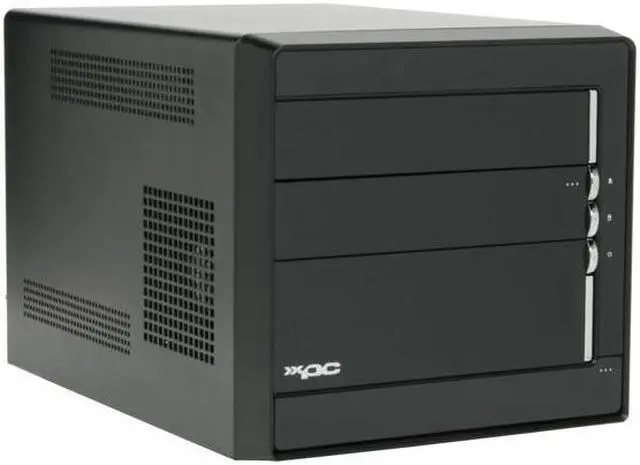

Main image of Shuttle SD39P2 Intel Socket T(LGA775) Intel 975X Barebone

Alt view image 2 of 13 - Shuttle SD39P2 Intel Socket T(LGA775) Intel 975X Barebone

Alt view image 3 of 13 - Shuttle SD39P2 Intel Socket T(LGA775) Intel 975X Barebone

Alt view image 4 of 13 - Shuttle SD39P2 Intel Socket T(LGA775) Intel 975X Barebone

Alt view image 5 of 13 - Shuttle SD39P2 Intel Socket T(LGA775) Intel 975X Barebone

Alt view image 6 of 13 - Shuttle SD39P2 Intel Socket T(LGA775) Intel 975X Barebone

Alt view image 7 of 13 - Shuttle SD39P2 Intel Socket T(LGA775) Intel 975X Barebone

Alt view image 8 of 13 - Shuttle SD39P2 Intel Socket T(LGA775) Intel 975X Barebone

Alt view image 9 of 13 - Shuttle SD39P2 Intel Socket T(LGA775) Intel 975X Barebone

Alt view image 10 of 13 - Shuttle SD39P2 Intel Socket T(LGA775) Intel 975X Barebone

Alt view image 11 of 13 - Shuttle SD39P2 Intel Socket T(LGA775) Intel 975X Barebone

Alt view image 12 of 13 - Shuttle SD39P2 Intel Socket T(LGA775) Intel 975X Barebone

Alt view image 13 of 13 - Shuttle SD39P2 Intel Socket T(LGA775) Intel 975X Barebone

Shop All Shuttle Computer Products

Shuttle SD39P2 Intel Socket T(LGA775) Intel 975X Barebone

Name: Shuttle SD39P2 Intel Socket T(LGA775) Intel 975X Barebone
Brand: Shuttle Computer
SKU: N82E16856101025
Rating: 5 (21 reviews)

(21) Write a Review

Core 2 Extreme processor, Core 2 Duo processor, Core 2 Quad processor, Pentium 4 processor and Pentium D processor based platforms Intel Socket T(LGA775)
Intel 975X ICH7R
4 x 240Pin DIMM DDR2 800/667

Specs

Reviews (21)

Any questions? Our AI beta will help you find out quickly.

Try me now

Learn more about the Shuttle Computer SD39P2

General
Brand	Shuttle
Model	SD39P2

CPU Supported
CPU Type	Core 2 Extreme processor, Core 2 Duo processor, Core 2 Quad processor, Pentium 4 processor and Pentium D processor based platforms
CPU Socket	Intel Socket T(LGA775)

Chipset
North Bridge	Intel 975X
South Bridge	ICH7R

Memory Supported
Memory slot	4 x 240Pin DIMM
Memory Type Supported	DDR2 800/667
Max Memory Supported	8GB
Dual Channel Memory Supported	Yes

Expansion Slots
PCI Express	1 x PCI Express x16
PCI	1

Storage
IDE ATA	1 x ATA 100
Serial ATA	4 (3) 3.0Gb/s bandwidth SATA II (1) 3.0Gb/s bandwidth eSATA

Audio
Onboard Audio	Realtek ALC888
Channel	8-CH

Communications
First LAN	Broadcom 5789(10/100/1000Mbps)
Wireless LAN	IEEE 802.3u 100Base-T specifications compliant
Max LAN Speed	10/100/1000Mbps

Extension Bays
3.5" Internal bays	2
3.5" External bays	1
5.25" External bays	1

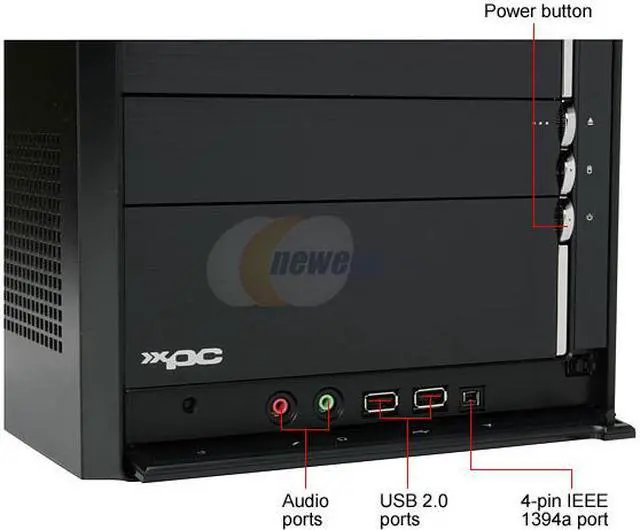

Front Panel Ports
Front USB	2
Front IEEE 1394	1
Front Audio Ports	2 jacks

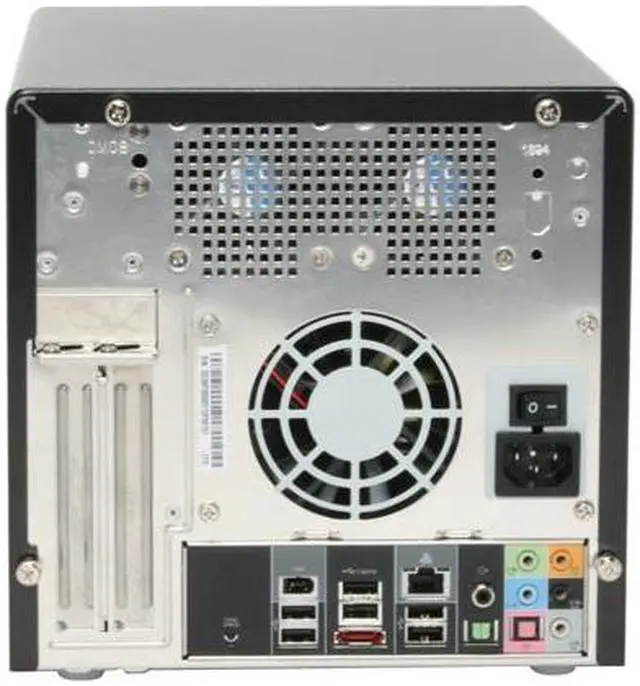

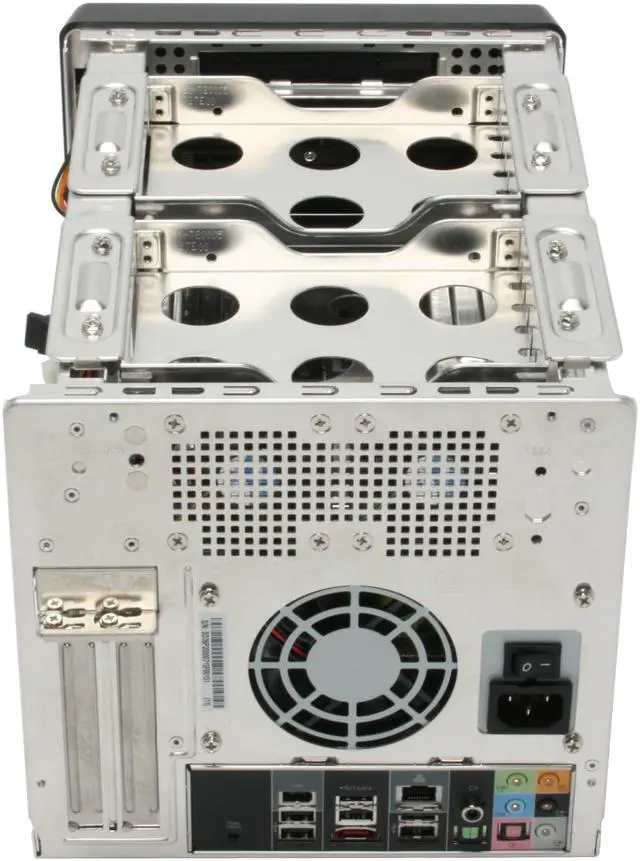

Back Panel Ports
Rear USB	6
Rear IEEE 1394	1
RJ45	1
Rear S/PDIF In	Yes
Rear S/PDIF Out	Yes
Rear Audio Ports	5 jacks
Other Rear Ports	1 x eSATA port

Power Supply
Power Supply	400W Input:100-240V AC

Physical SPEC
Dimensions	12.80" x 8.66" x 8.26"
Weight	15 lbs.

Packaging

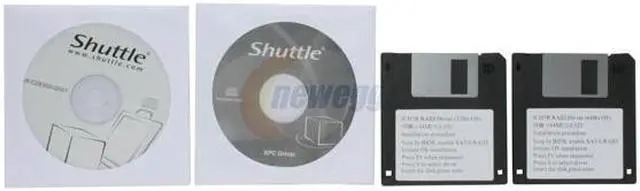

Package Contents	SD39P2 Driver Disk User Manual Floppy Drive Diskettes SATA Cable Power Cable Power Cord Screws Cables

Additional Information
First Listed on Newegg	April 05, 2007
