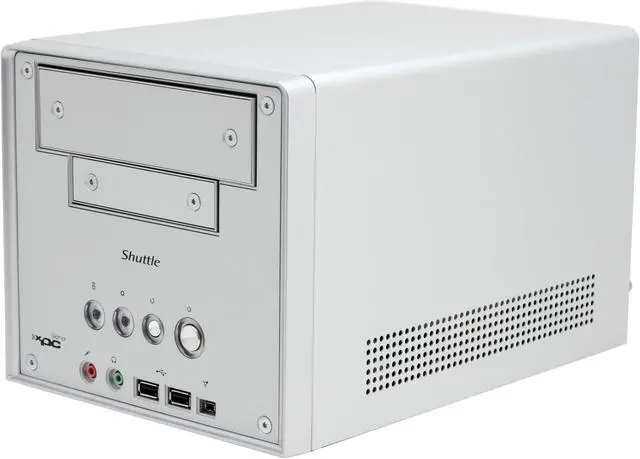

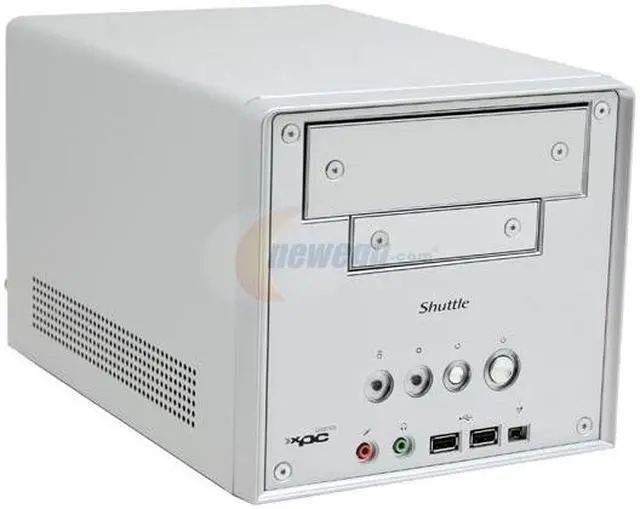

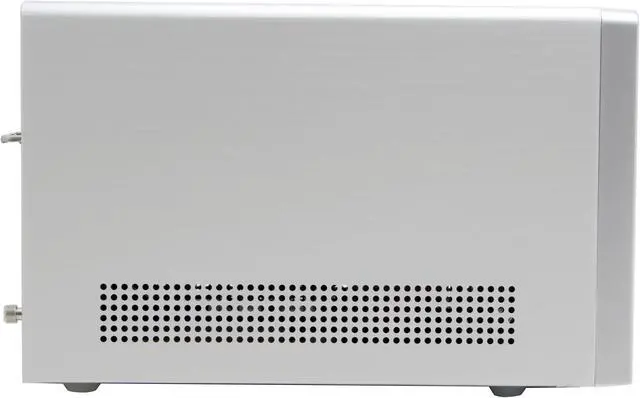

Shuttle SG31G2S Intel Socket T(LGA775) Intel G31 glamor small form factor XPC Barebone

OPEN BOX Product Type
OUT OF STOCK.
  • Intel G31 ICH7
  • 800/1066/1333MHz
  • (1333MHz Native support) FSB
  • 2 x 240Pin
Specs

Learn more about the Shuttle Computer SG31G2S

General
Brand Shuttle
Model SG31G2S
Color Silver
CPU Supported
CPU Type Intel Core 2 Quad / Core 2 Duo / Dual-Core / Celeron 400 serial support
CPU Socket Intel Socket T(LGA775)
FSB 800/1066/1333MHz1333/1066/800/MHz
(1333MHz Native support)
Chipset
North Bridge Intel G31
South Bridge ICH7
Memory Supported
Memory slot 2 x 240Pin DIMM
Memory Type Supported DDR2 800/667
Max Memory Supported 4GB
Expansion Slots
PCI Express 1 x PCI Express x16
PCI 1
Storage
IDE ATA 1 x ATA 100
Serial ATA 3 x SATA 3.0Gb/s
Graphics
Onboard Video Intel GMA 3100
256bit 3D engine with a powerful 400MHz core and DirectX 9.0
Video Memory Dynamic Video Memory Technology 3.0 supports up to 384MB of video memory
Audio
Onboard Audio Realtek ALC888
Channel 8-CH
Communications
First LAN Marvell 88E8056(10/100/1000Mbps)
Max LAN Speed 10/100/1000Mbps
Extension Bays
3.5" Internal bays 1
3.5" External bays 1
5.25" External bays 1

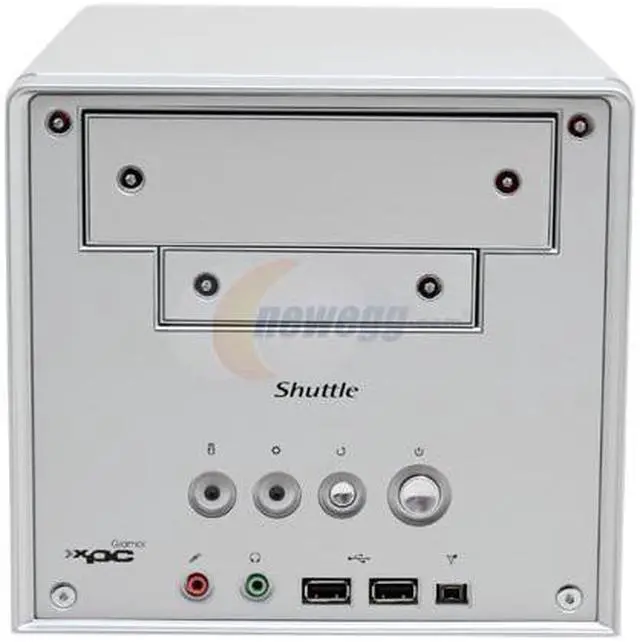

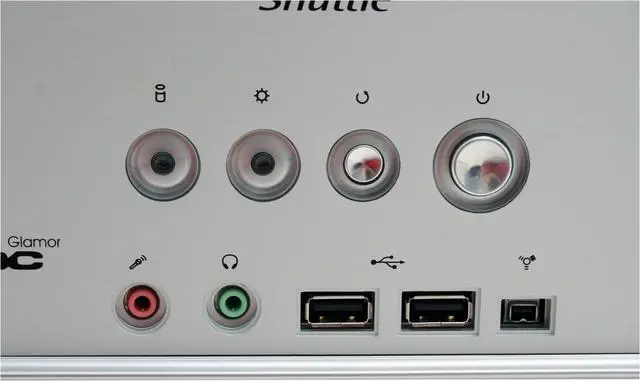

Front Panel Ports
Front USB 2
Front IEEE 1394 1
Front Audio Ports 2 jacks

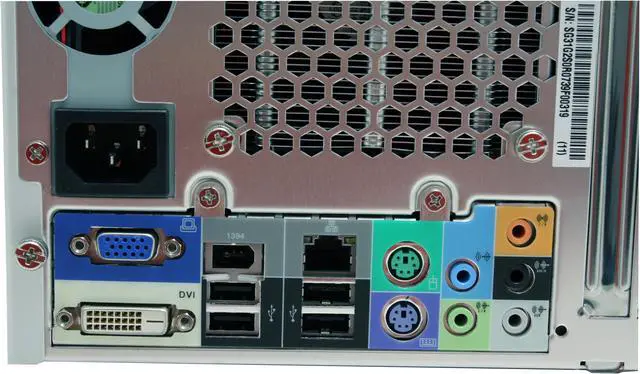

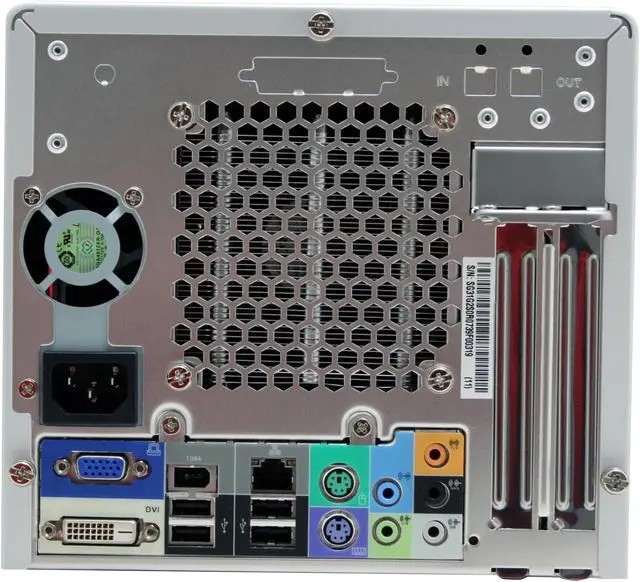

Back Panel Ports
PS/2 2
VGA 1 x D-Sub + 1 x DVI
Rear USB 4
Rear IEEE 1394 1
RJ45 1
Rear Audio Ports 5 jacks
Power Supply
Power Supply 250W
Physical SPEC
Dimensions 11.8" x 7.9" x 7.3"
Features
Features Memory LED - Display Dual Channel / Single Channel Status
Dynamic OverClocking Technique
Support Windows Vista Premium
45nm processor
Additional Information
Date First Available August 19, 2008
