Shuttle SK83G AMD Socket 754 VIA K8M800 Barebone

(14) Write a Review
  • AMD Athlon 64 FX / Athlon 64 / Sempron AMD Socket 754
  • VIA K8M800 VT8237
  • 2 x 184Pin DIMM DDR 400/333
  • VIA UniChrome Pro 3D Graphic
Specs
Reviews (14)

Learn more about the Shuttle Computer SK83G

General
Brand Shuttle
Model SK83G
CPU Supported
CPU Type AMD Athlon 64 FX / Athlon 64 / Sempron
CPU Socket AMD Socket 754
FSB 1000 MHz
Chipset
North Bridge VIA K8M800
South Bridge VT8237
Memory Supported
Memory slot 2 x 184Pin DIMM
Memory Type Supported DDR 400/333
Max Memory Supported 2GB
Expansion Slots
AGP AGP 8X
PCI 1
Storage
IDE ATA 2 x ATA 133
Serial ATA 2 x SATA 1.5Gb/s
SATA RAID RAID 0/1
Graphics
Onboard Video VIA UniChrome Pro 3D Graphic
Video Memory Shared
Audio
Onboard Audio Realtek ALC650
Channel 6-CH
Communications
First LAN 10/100 LAN
Max LAN Speed 10/100Mbps
Extension Bays
3.5" Internal bays 1
3.5" External bays 1
5.25" External bays 1

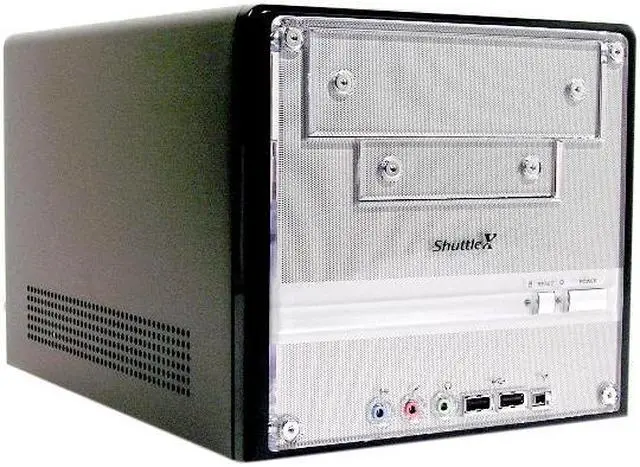

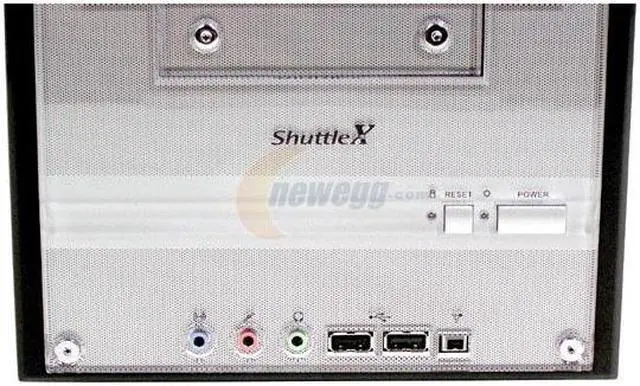

Front Panel Ports
Front USB 2
Front IEEE 1394 1
Front Audio Ports 3 jacks

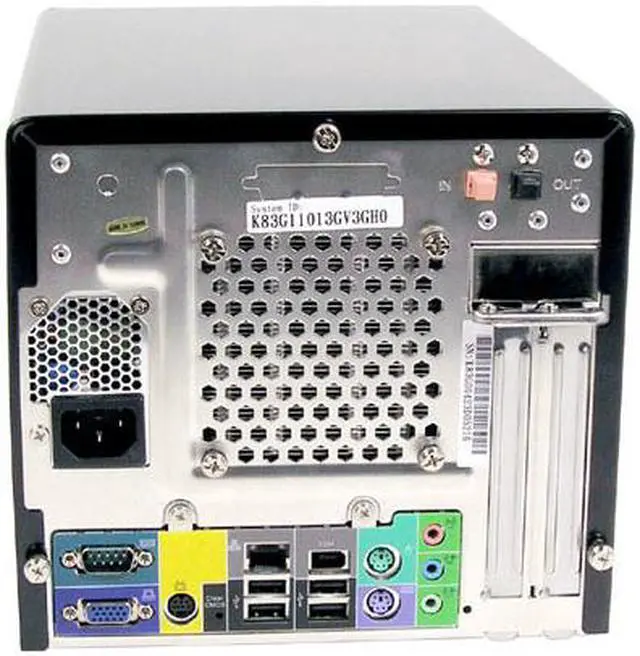

Back Panel Ports
PS/2 2
COM 1
VGA 1
TV-Out S-Video
Rear USB 4
Rear IEEE 1394 1
RJ45 1
Rear S/PDIF In Yes
Rear S/PDIF Out Yes
Rear Audio Ports 3 jacks

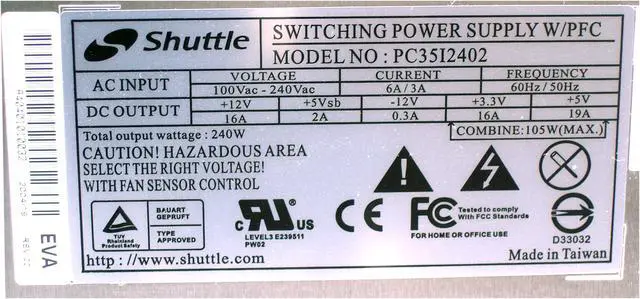

Power Supply
Input 100~240V AC
Power Supply 240W(PFC)
Physical SPEC
Dimensions 11.8" x 7.9" x 7.3"
Weight 10.8 lbs(G.W.), 6.8lbs(N.W.)
Material Aluminum
Packaging

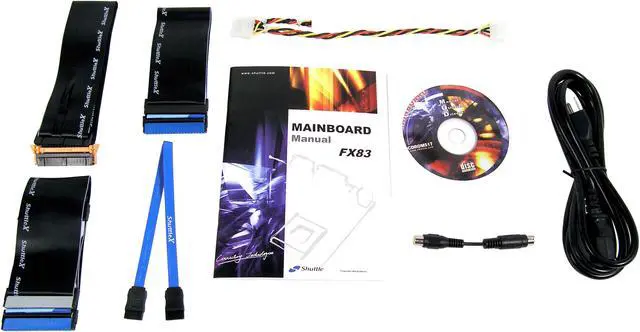

Package Contents 2x Manuals, Driver CD, I.C.E. technology CPU heat-pipe, 5x Cables, Screws, Twin Adhesive
Additional Information
First Listed on Newegg June 16, 2004
