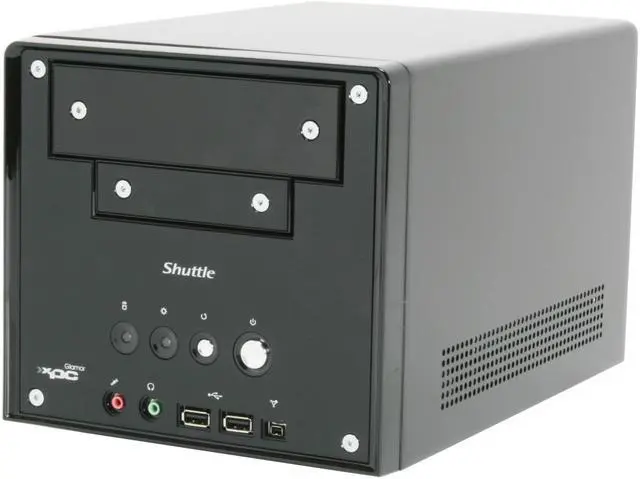

If you need more than a basic PC for work or play, but you don't need all the extra bells and whistles, consider Shuttle's SN68G2. Part of their compact, affordable Glamor Series, it is designed to support the latest AM2 multi-core processors including AMD Athlon 64 and Athlon 64 x2 CPUs as well as AMD Sempron chipsets. Communication between the CPU and other components is accelerated with 1Ghz HyperTransport technology. Options within the BIOS enable excellent control over CPU frequency and voltage settings with a user-friendly menu. Up to 4GB of DDR2 SDRAM memory can be installed with up to 1 Ghz supported in overclocking mode.
The integrated nVIDIA GeForce 7025 graphics engine supports DirectX 9, and CineFX 3.0 architecture to deliver the full 3D effects of Windows Vista's Aero 3D interface. Get high quality surround sound with 7.1 channels of high definition audio. A 250 Watt mini power supply powers the system and it features Active Power Factor Correction for efficient operation and energy savings. Active Airflow design and Silent X cooling and noise reduction technology combine with the Shuttle Integrated Cooling Engine and its heatpipes to keep the system operating efficiently at low noise and temperature levels.
If you need more than a basic PC for work or play, but you don't need all the extra bells and whistles, consider Shuttle's SN68G2. Part of their compact, affordable Glamor Series, it is designed to support the latest AM2 multi-core processors including AMD Athlon 64 and Athlon 64 x2 CPUs as well as AMD Sempron chipsets. Communication between the CPU and other components is accelerated with 1Ghz HyperTransport technology. Options within the BIOS enable excellent control over CPU frequency and voltage settings with a user-friendly menu. Up to 4GB of DDR2 SDRAM memory can be installed with up to 1 Ghz supported in overclocking mode.
The integrated nVIDIA GeForce 7025 graphics engine supports DirectX 9, and CineFX 3.0 architecture to deliver the full 3D effects of Windows Vista's Aero 3D interface. Get high quality surround sound with 7.1 channels of high definition audio. A 250 Watt mini power supply powers the system and it features Active Power Factor Correction for efficient operation and energy savings. Active Airflow design and Silent X cooling and noise reduction technology combine with the Shuttle Integrated Cooling Engine and its heatpipes to keep the system operating efficiently at low noise and temperature levels.
AMD AM2 Processor SupportThe Shuttle SN68SG2's motherboard supports AMD's Socket AM2 processors including the Athlon 64 X2, Athlon 64 and Sempron series.
NVIDIA GeForce 7025 GPUMicrosoft DirectX 9.0 Shader Model 3.0 and NVIDIA's advanced PureVideo technology allow the integrated NVIDIA GeForce 7025 GPU to deliver best-in-class visual experiences for gaming and other digital multimedia applications.

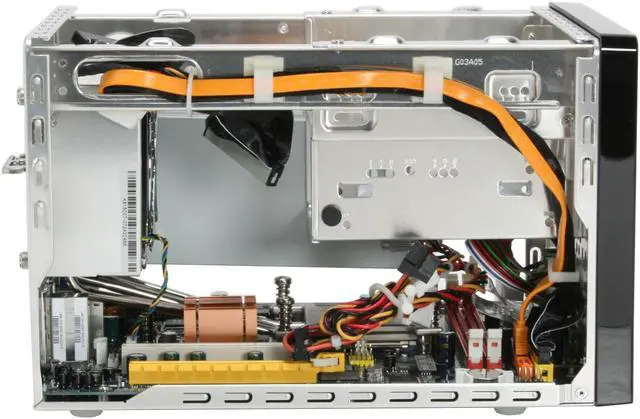

Integrated Cooling Engine 2 (ICE 2)Combining XPC's heat pipe technology with a whisper-quiet fan, the Integrated Cooling Engine 2 (ICE 2) effectively dissipates heat from the CPU and other critical system components for reduced operation noise and enhanced system stability.
PCI Express x16 Graphics InterfaceThe PCI Express x16 graphics interface delivers over 3.5 times the bandwidth of AGP 8X to support the latest high-performance graphics cards.
Gigabit Ethernet ConnectivityThe Shuttle SN68SG2 features a fast Gigabit network interface for high-speed LAN connections at up to 1000Mb/s data transfer rates. Gigabit LAN is ideal for supercharged seamless streaming of Internet audio and video content.

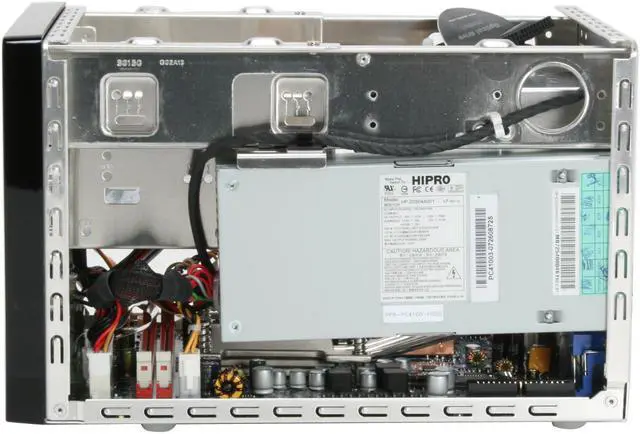

250W Power SupplyThe attached 250W power supply provides steady power for all system components and ensures system reliability with minimized power consumption.
Learn more about the Shuttle Computer SN68SG2
General
Brand
Shuttle
Model
SN68SG2
Color
Black
CPU Supported
CPU Type
AMD Athlon 64 / Athlon 64 X2 / Sempron
CPU Socket
AMD Socket AM2
Chipset
North Bridge
NVIDIA GeForce 7025
South Bridge
NVIDIA nForce 630a
Memory Supported
Memory slot
2 x 240Pin DIMM
Memory Type Supported
DDR2 800/667
Max Memory Supported
4GB
Dual Channel Memory Supported
Yes
Expansion Slots
PCI Express
1 x PCI Express x16
PCI
1
Storage
Serial ATA
2 x SATA 1.5Gb/s
Graphics
Onboard Video
GeForce 7 Series
Audio
Onboard Audio
Realtek ALC888
Channel
8-CH
Communications
First LAN
Marvell 88E1116(10/100/1000Mbps)
Max LAN Speed
10/100/1000Mbps
Extension Bays
3.5" Internal bays
1
3.5" External bays
1
5.25" External bays
1

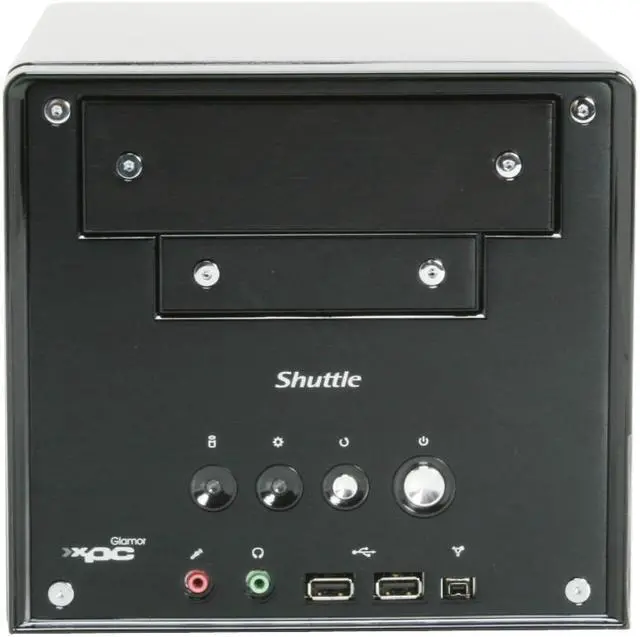

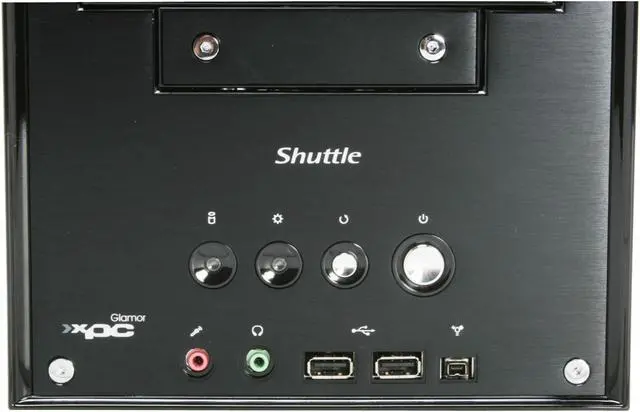

Front Panel Ports
Front USB
2
Front IEEE 1394
1
Front Audio Ports
2 jacks

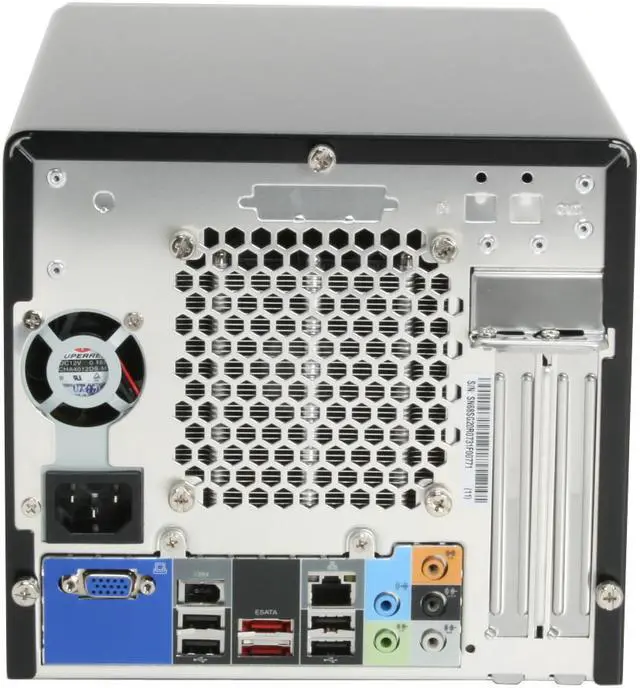

Back Panel Ports
VGA
1 x D-Sub
Rear USB
4
Rear IEEE 1394
1
Rear e-SATA Ports
2
RJ45
1
Rear Audio Ports
5 jacks
Power Supply
Power Supply
250W
Physical SPEC
Dimensions
11.8" x 7.9" x 7.3"
Features
Features
Supports the Latest AM2 Multi-core Processors 7.1 Channel HD Surround Sound Audio Supports Windows Vista Premium Smart Color Slot Design Integrated Cooling Engine 2 (ICE 2)
