| Brand | Shuttle |
|---|---|
| Model | SP35P2-Pro |
| Color | Black |
| CPU Type | Intel Core 2 Quad / Core 2 Duo |
|---|---|
| CPU Socket | Intel Socket T(LGA775) |
| FSB | 1333/1066/800/ MHz |
| North Bridge | Intel P35 |
|---|---|
| South Bridge | ICH9R |
| Memory slot | 4 x 240Pin DIMM |
|---|---|
| Memory Type Supported | DDR2 800/667 |
| Max Memory Supported | 8GB |
| Dual Channel Memory Supported | Yes |
| PCI Express | 1 x PCI Express x16 |
|---|---|
| PCI | 1 |
| IDE ATA | 1 x ATA 100 |
|---|---|
| Serial ATA | 4 x SATA 3.0Gb/s |
| Onboard Video | none |
|---|
| Onboard Audio | Realtek ALC888 |
|---|---|
| Channel | 8-CH |
| First LAN | Marvell 88E8056(10/100/1000Mbps) |
|---|---|
| Max LAN Speed | 10/100/1000Mbps |

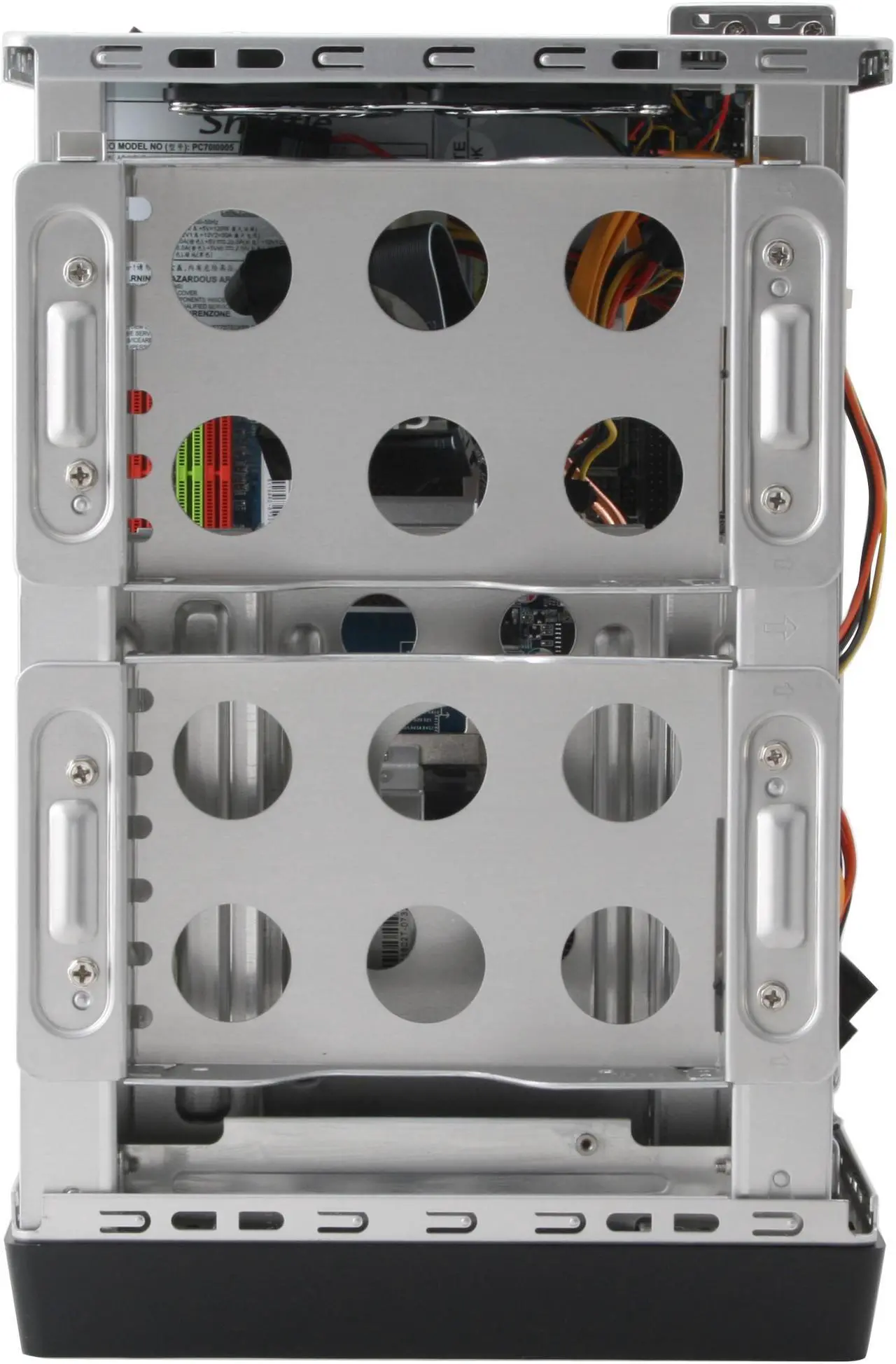

| 3.5" Internal bays | 2 |
|---|---|
| 3.5" External bays | 1 |

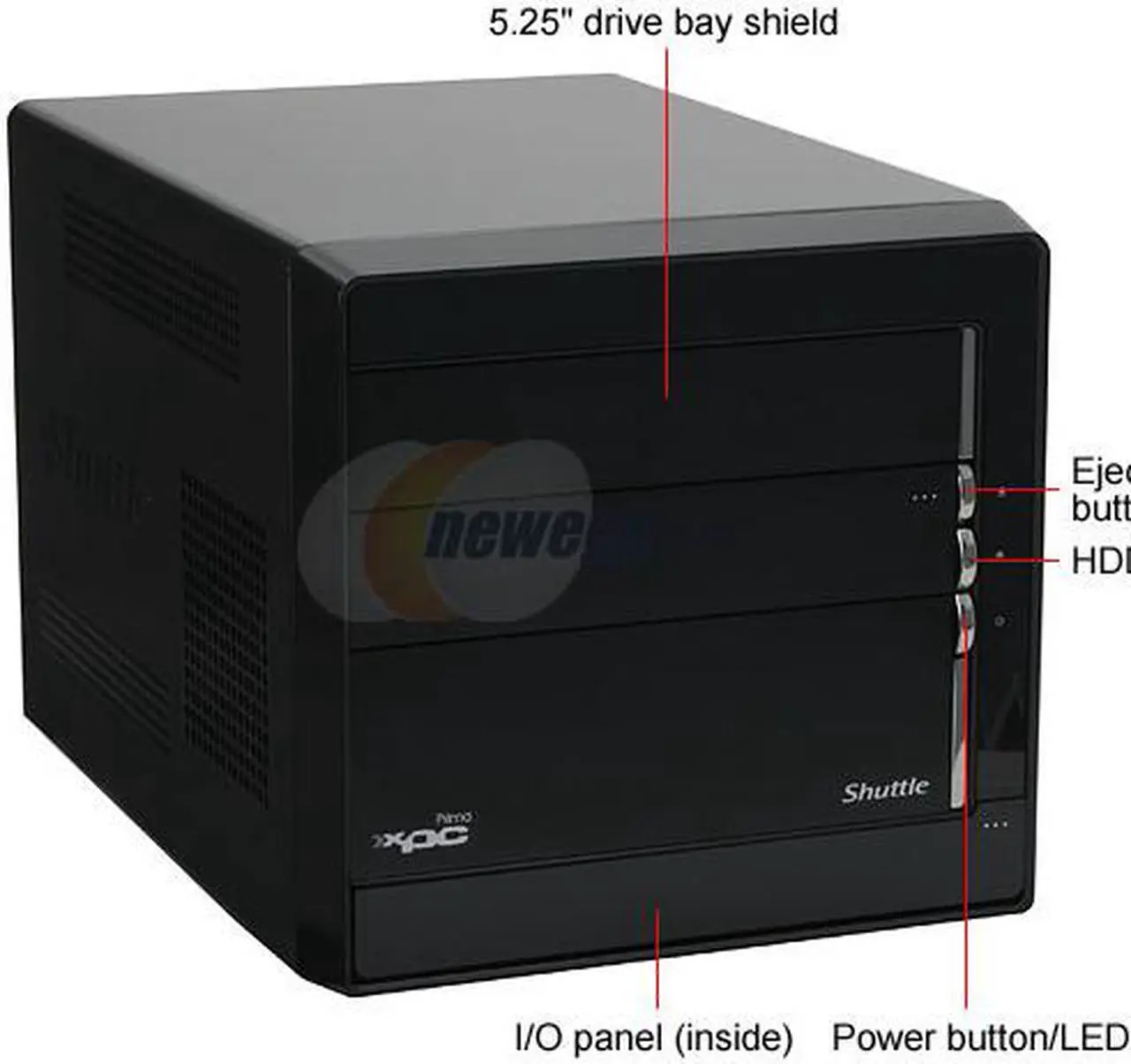

| 5.25" External bays | 1 |

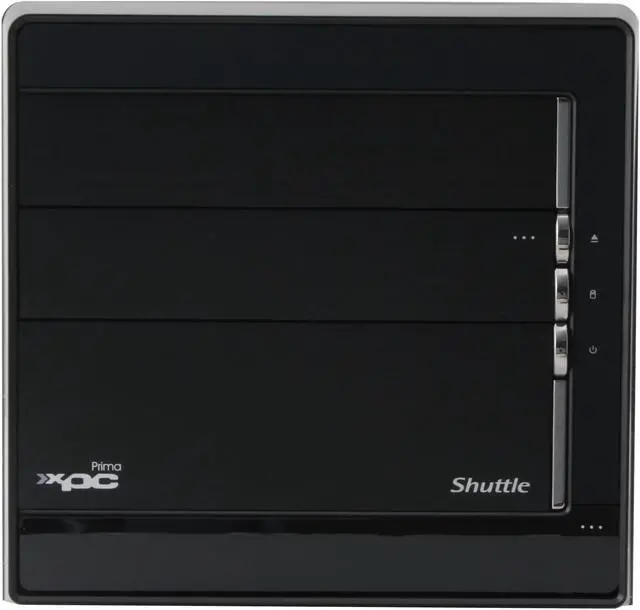

| Front USB | 2 |
|---|---|
| Front IEEE 1394 | 1 |
| Front Audio Ports | 2 jacks |
| Other Front Ports | 1 x Fingerprint sensor |

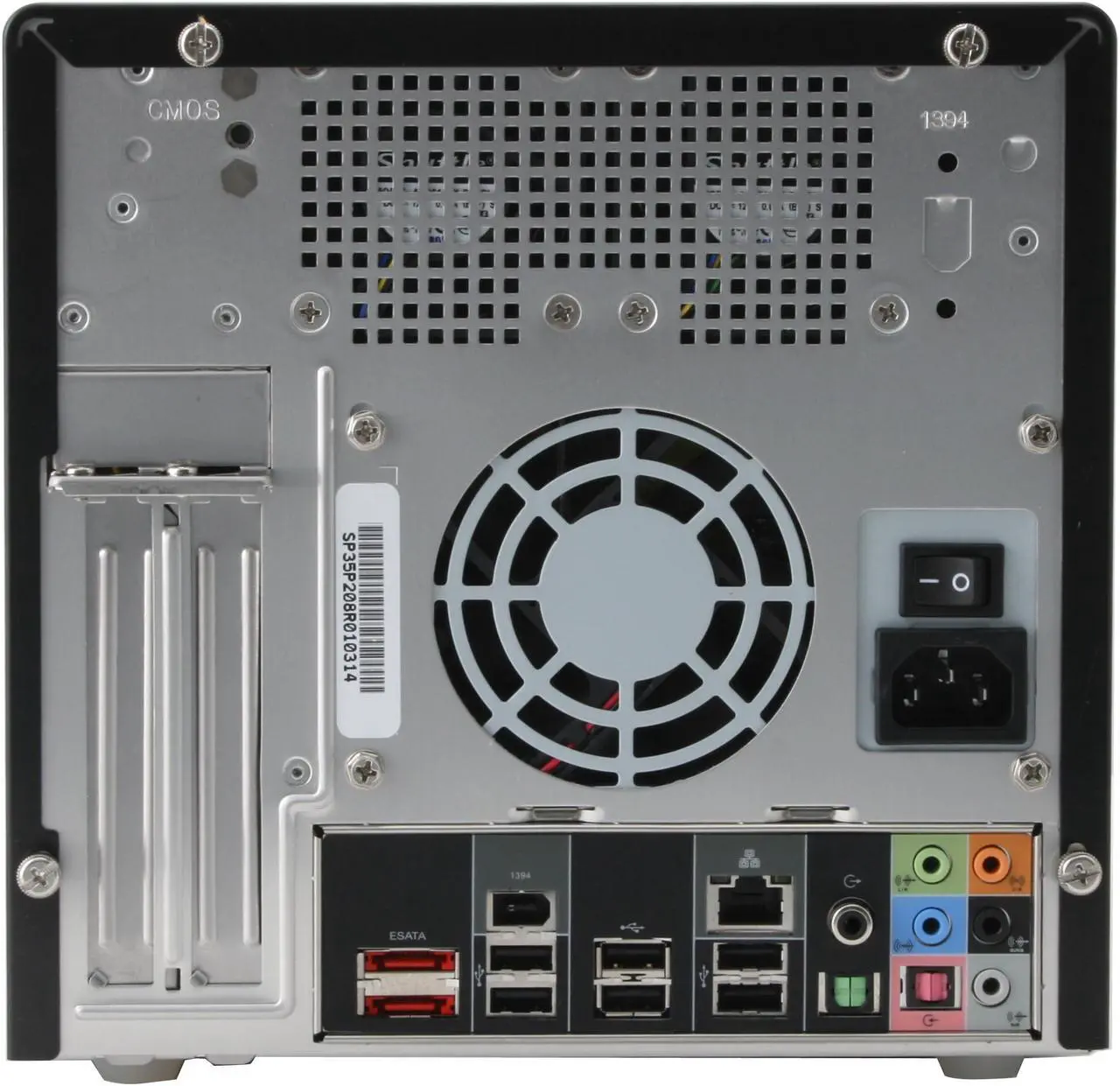

| Rear USB | 6 |
|---|---|
| Rear IEEE 1394 | 1 |
| Rear e-SATA Ports | 2 |
| RJ45 | 1 |
| Rear S/PDIF In | 1 x Optical S/PDIF in |
| Rear S/PDIF Out | 1 x Coaxial & 1 x Optical S/PDIF out |
| Rear Audio Ports | 5 jacks |
| Input | 100 - 240V AC |
|---|---|
| Power Supply | 400W |
| Dimensions | 12.8" x 8.7" x 8.3" |
|---|

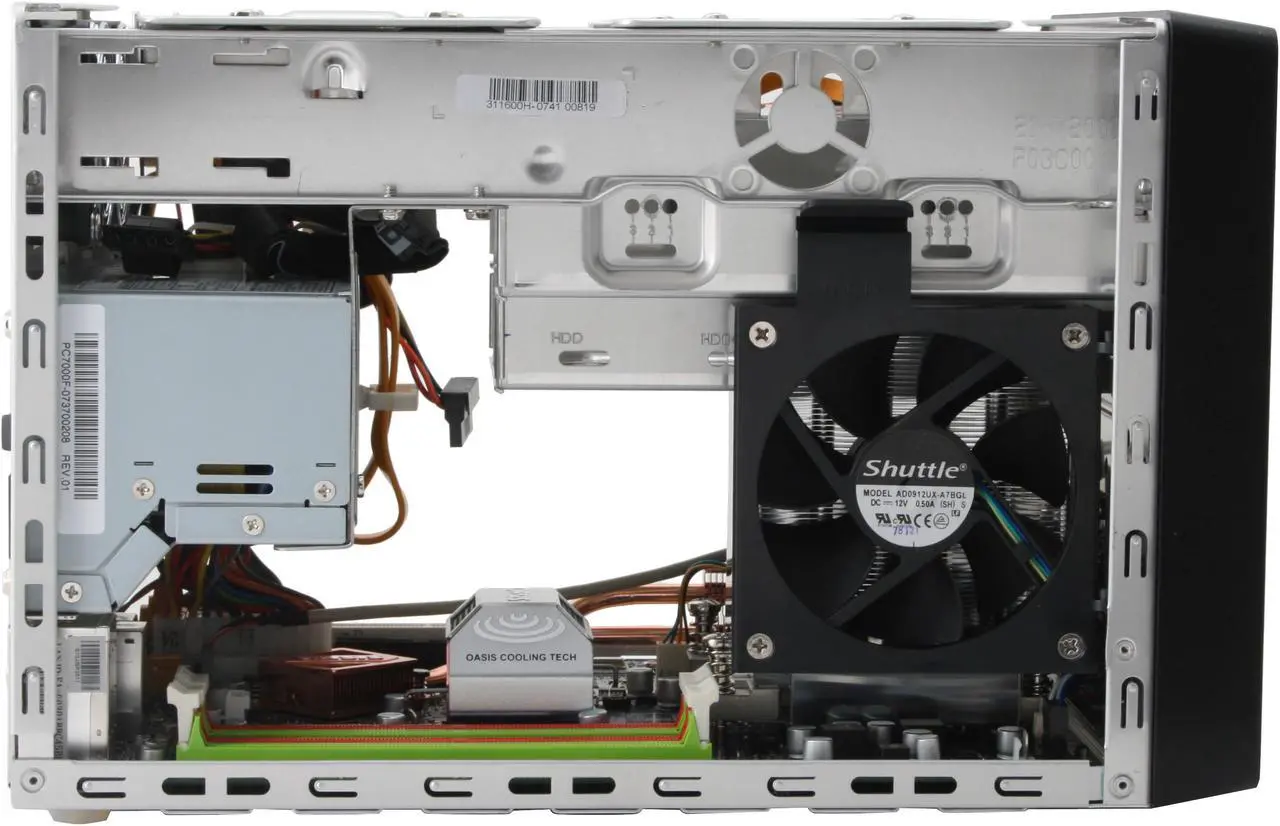

| Features | Intel LGA775 Processor Support Intel P35 Express Chipset OASIS Cooling Technology Advanced Security for Your Digital Information Innovative USB Speed-Link Technology Dynamic Over-clocking Technology All Solid Capacitors Motherboard Design Supports Windows Vista Premium |
|---|
| First Listed on Newegg | March 14, 2008 |
|---|
