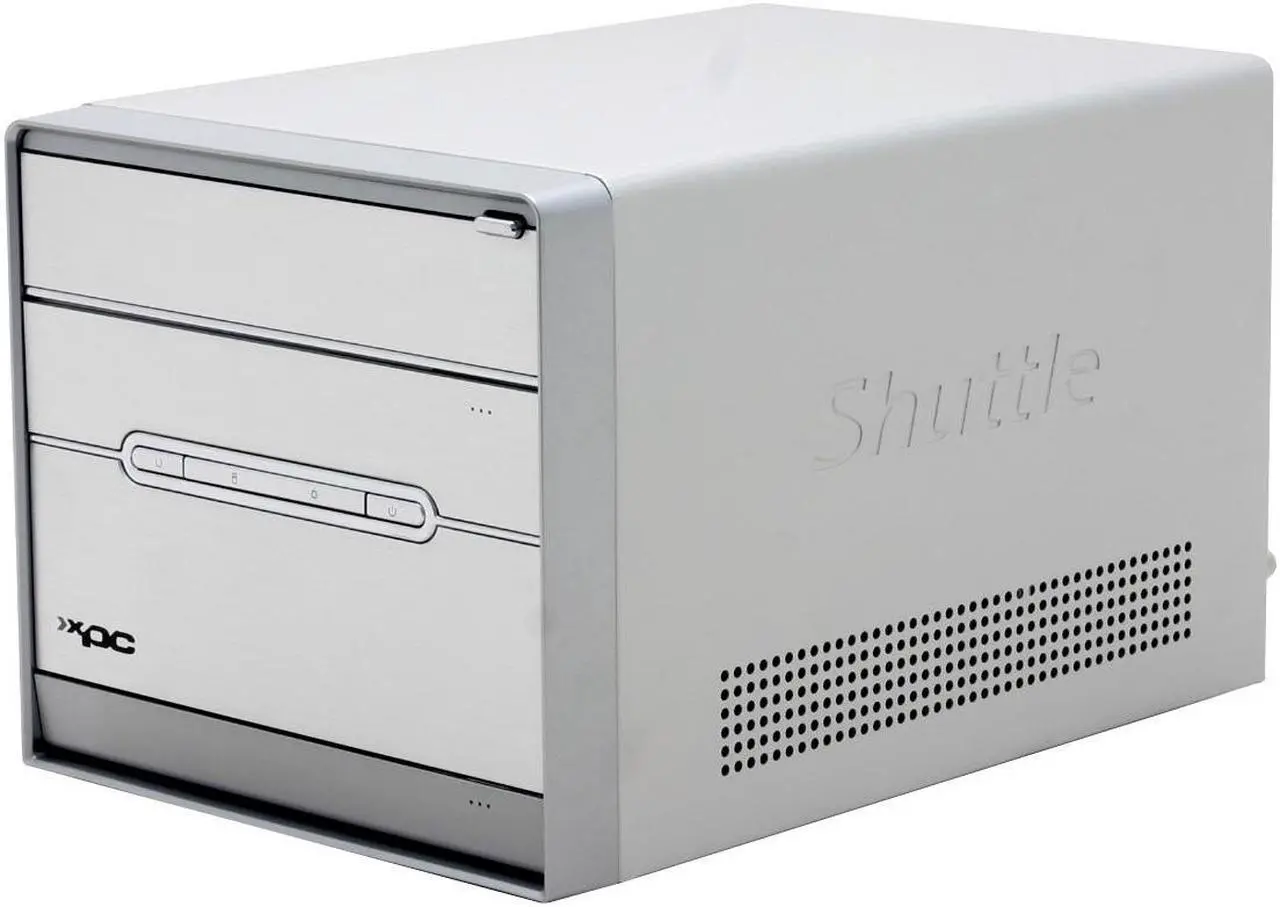

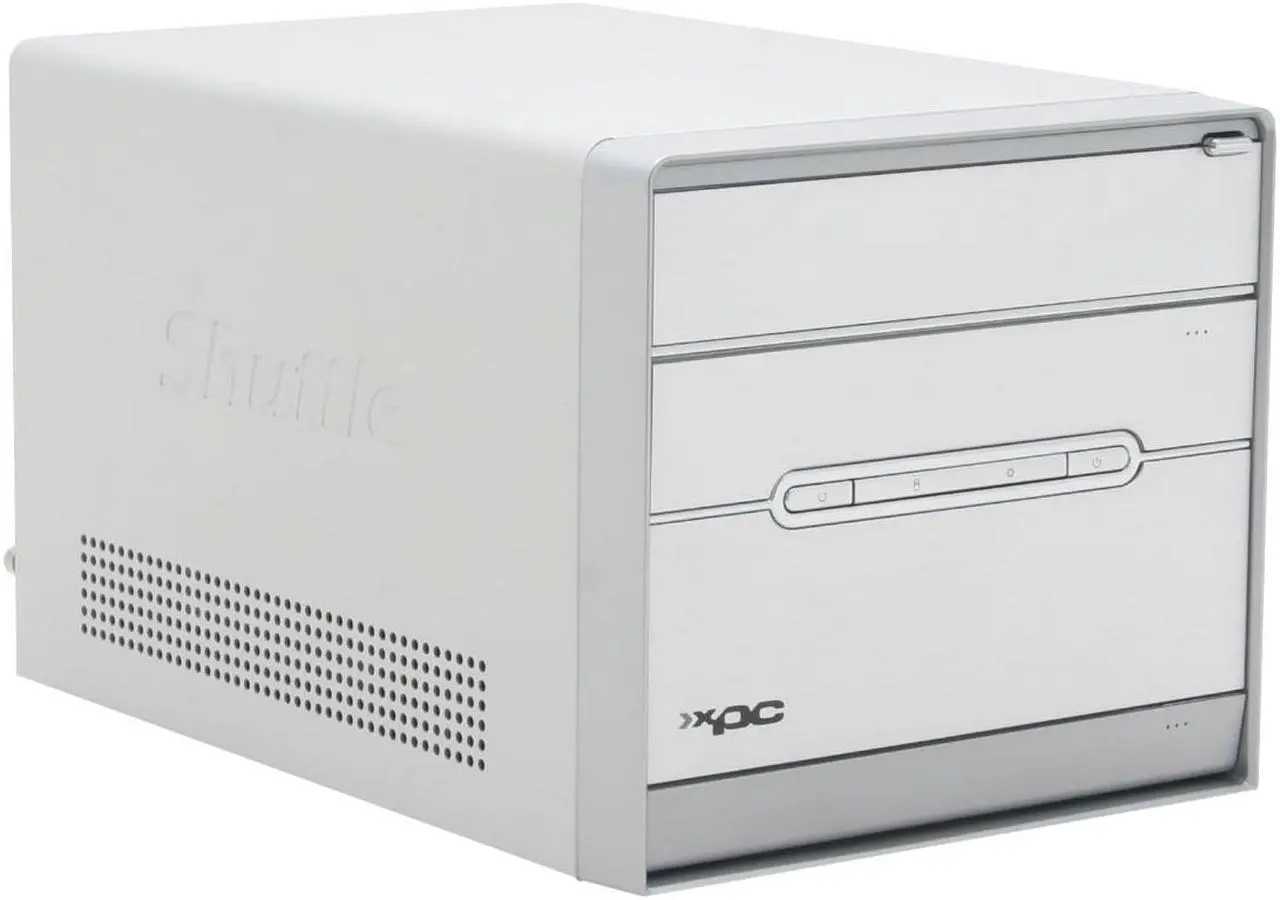

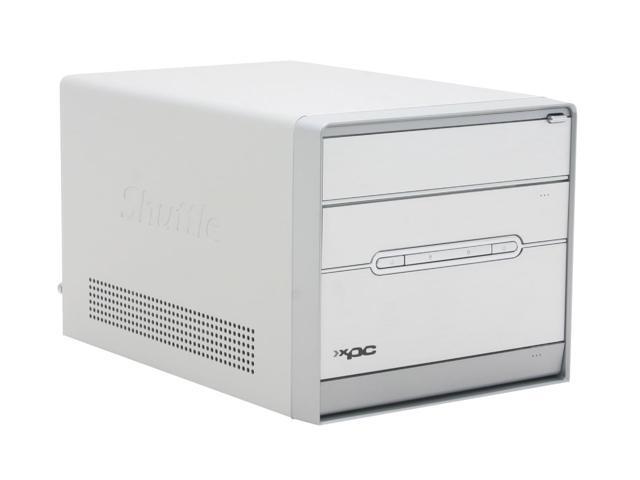

Shuttle ST20G5 AMD Socket 939 ATI XPRESS 200 Barebone

(33) Write a Review
  • AMD Athlon 64 FX / Athlon 64 / Sempron AMD Socket 939
  • ATI XPRESS 200 ULi 1573
  • 2 x 184Pin DIMM DDR 400/333
  • ATI Radeon Xpress 200
Specs
Reviews (33)

Learn more about the Shuttle Computer ST20G5

General
Brand Shuttle
Model ST20G5
CPU Supported
CPU Type AMD Athlon 64 FX / Athlon 64 / Sempron
CPU Socket AMD Socket 939
FSB 1000 MHz
Chipset
North Bridge ATI XPRESS 200
South Bridge ULi 1573
Memory Supported
Memory slot 2 x 184Pin DIMM
Memory Type Supported DDR 400/333
Max Memory Supported 2GB
Expansion Slots
PCI Express 1 x PCI Express x16
PCI 1
Storage
IDE ATA 1 x ATA 133
Serial ATA 2 x SATA 1.5Gb/s
Graphics
Onboard Video ATI Radeon Xpress 200
Audio
Onboard Audio Realtek ALC655
Channel 6-CH
Communications
First LAN 10/100/1000 LAN
Max LAN Speed 10/100/1000Mbps
Extension Bays
3.5" Internal bays 0
3.5" External bays 2
5.25" External bays 1

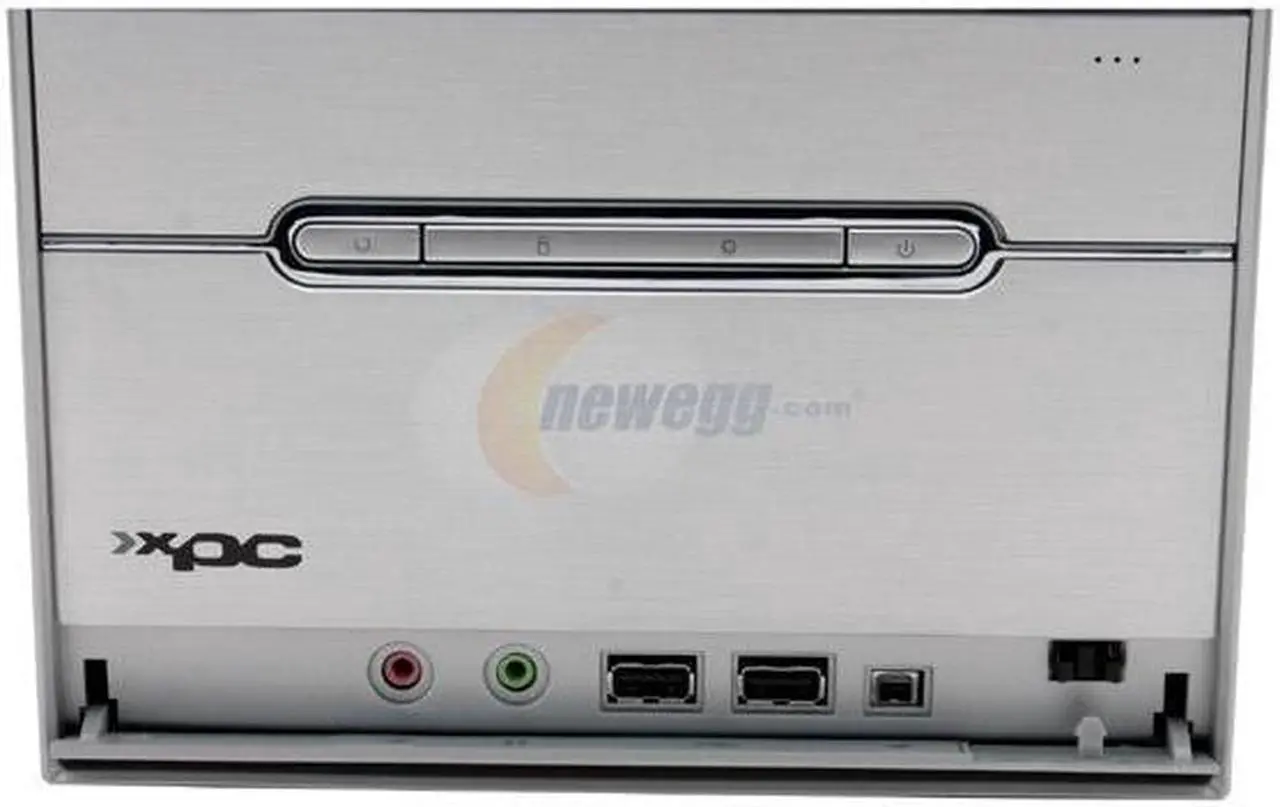

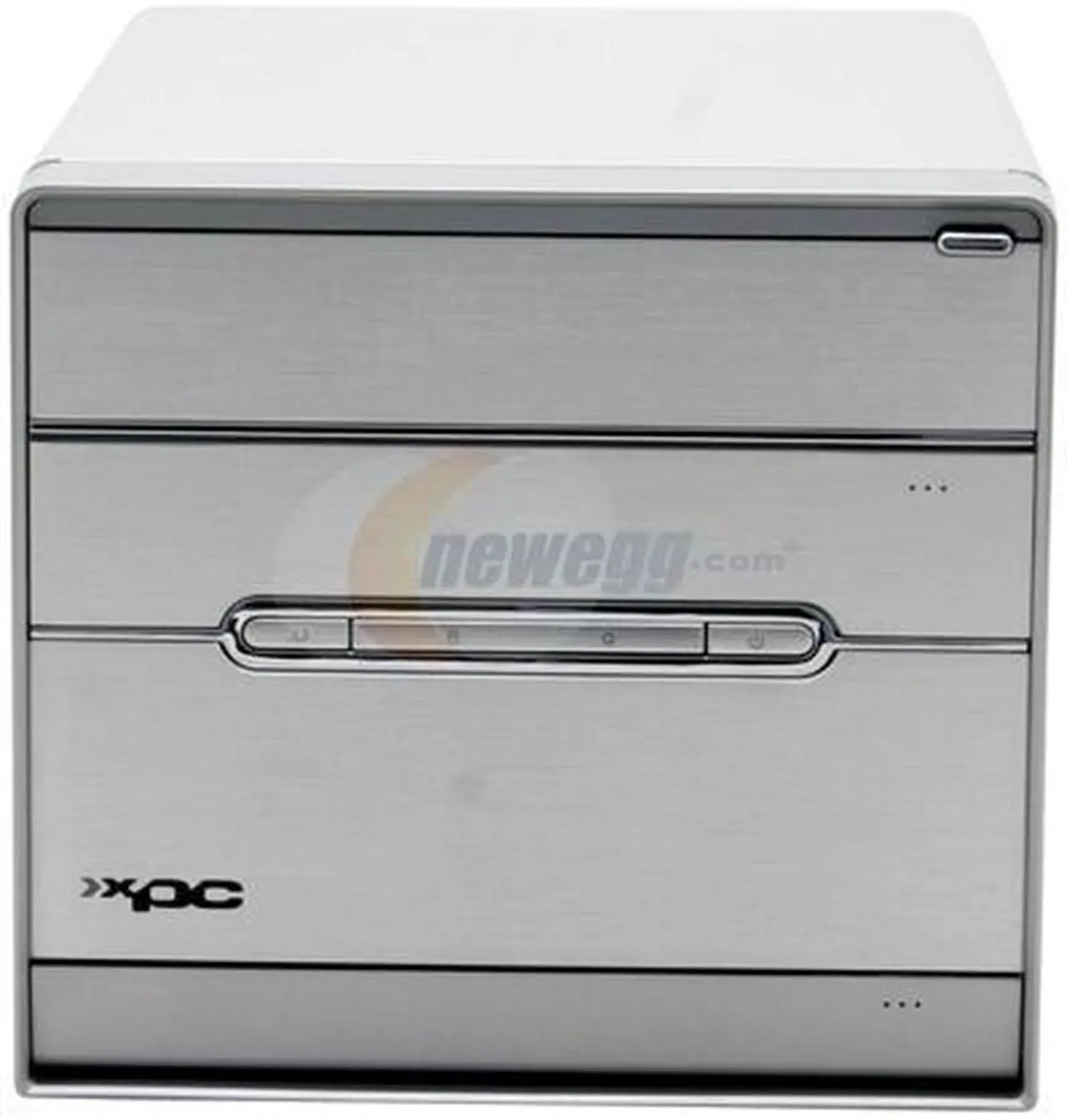

Front Panel Ports
Front USB 2
Front Audio Ports 2 jacks
Card Reader 1 x 8in1
Other Front Ports 1 x mini1394

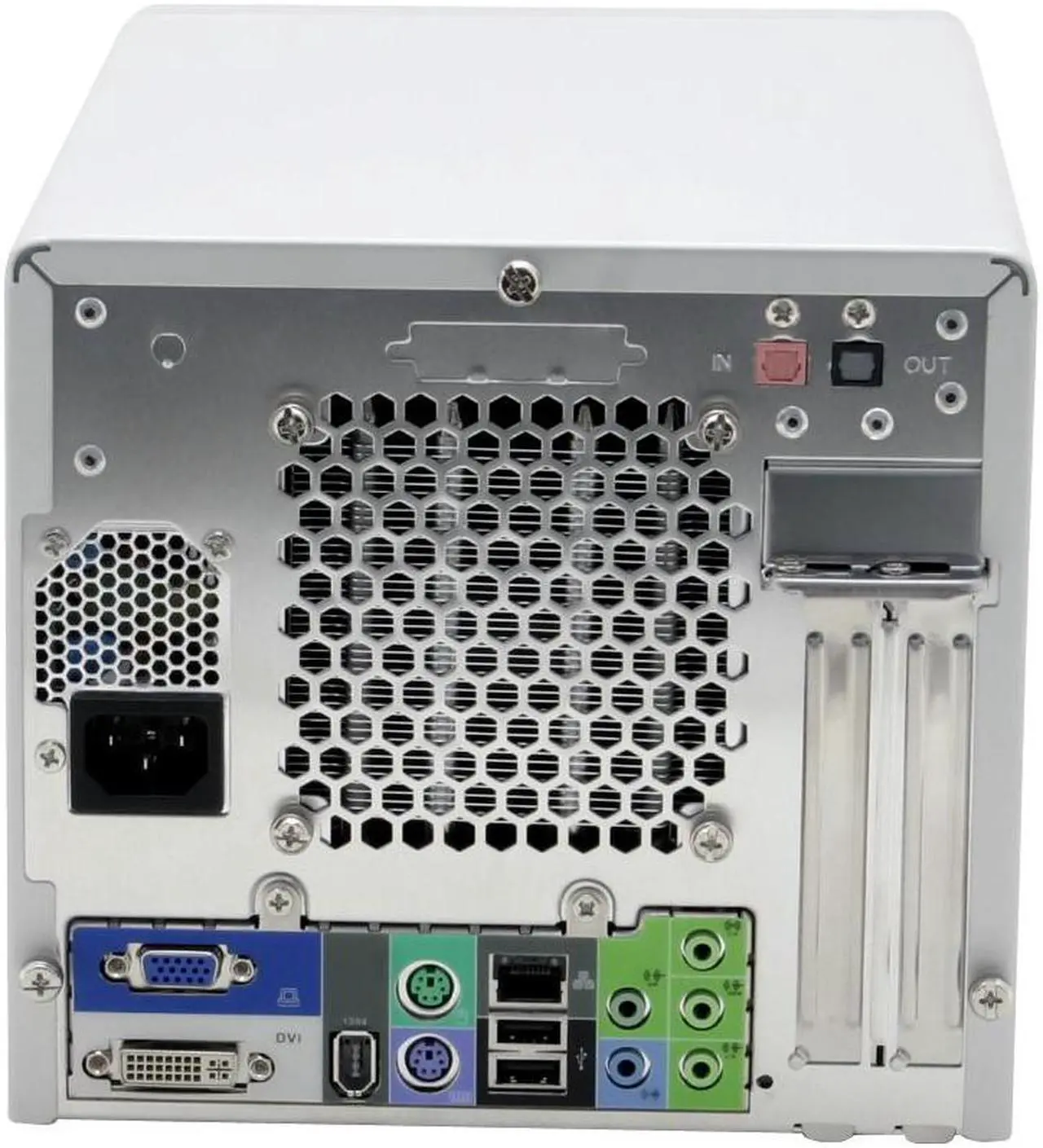

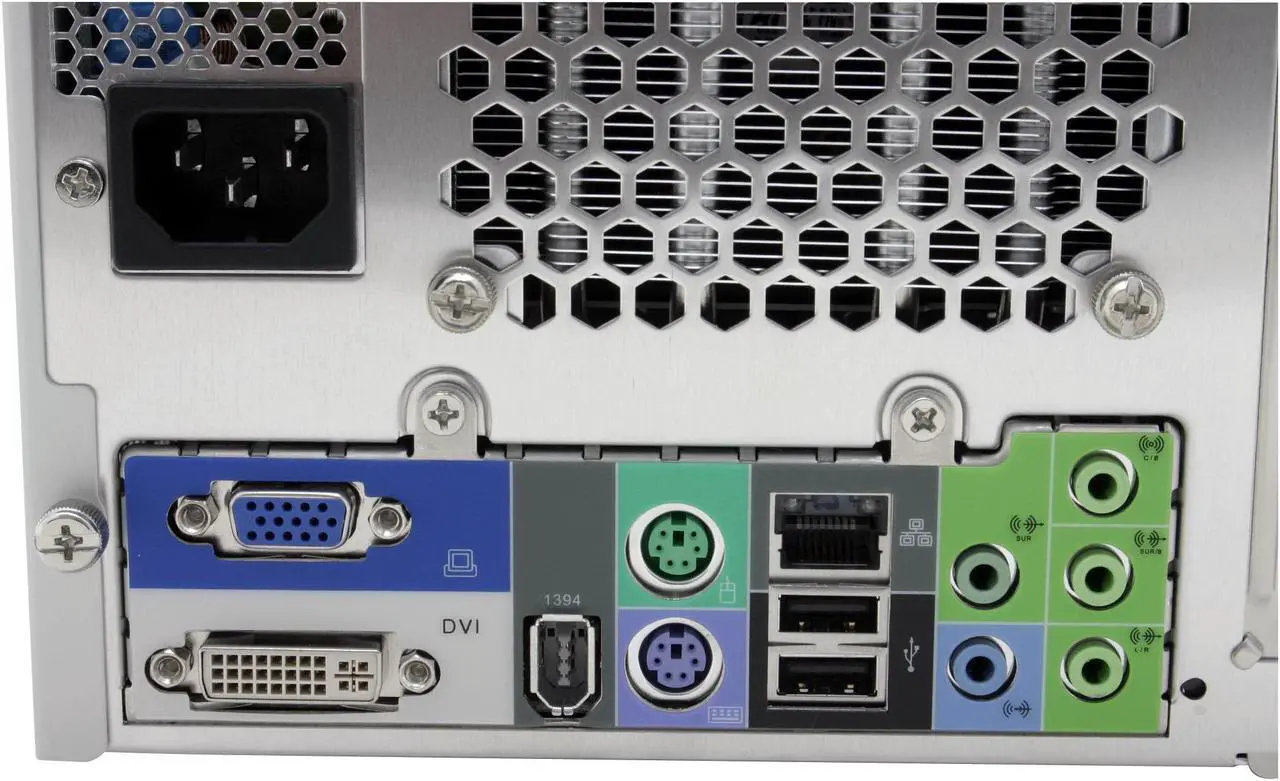

Back Panel Ports
PS/2 2
VGA 1
Rear USB 2
Rear IEEE 1394 1
RJ45 1
Rear S/PDIF In Yes
Rear S/PDIF Out Yes
Rear Audio Ports 5 jacks
Other Rear Ports 1 x DVI

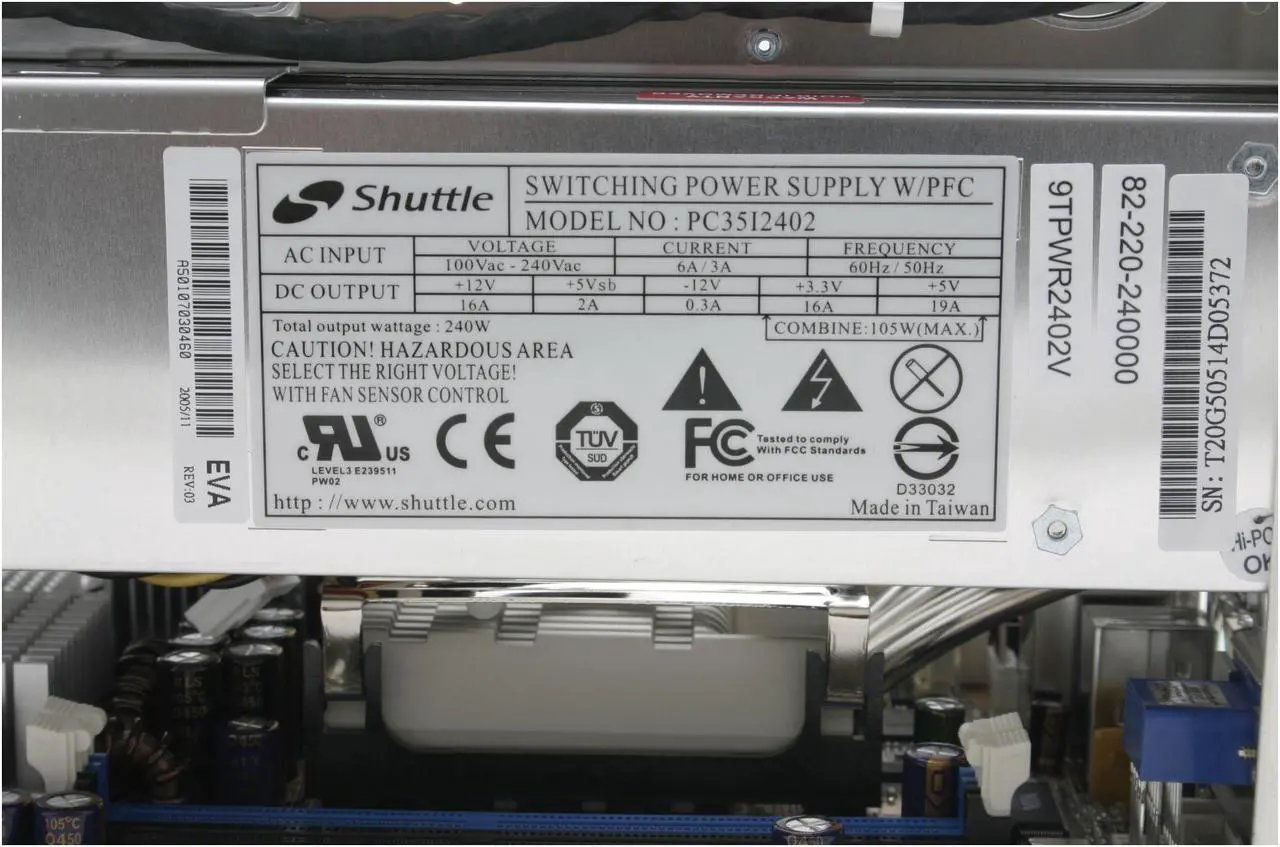

Power Supply

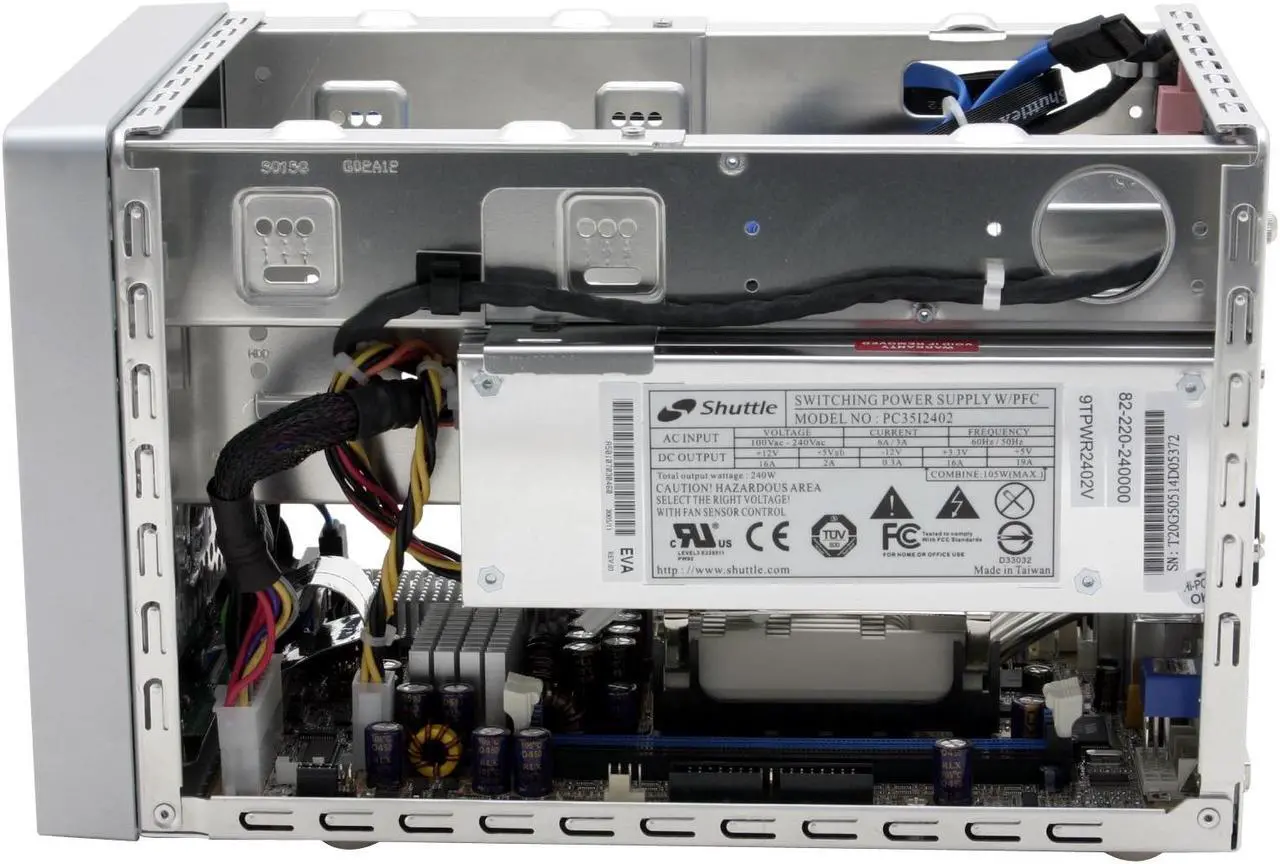

Power Supply 240W
Physical SPEC
Dimensions 12.2" x 7.8" x 7.2"
Packaging

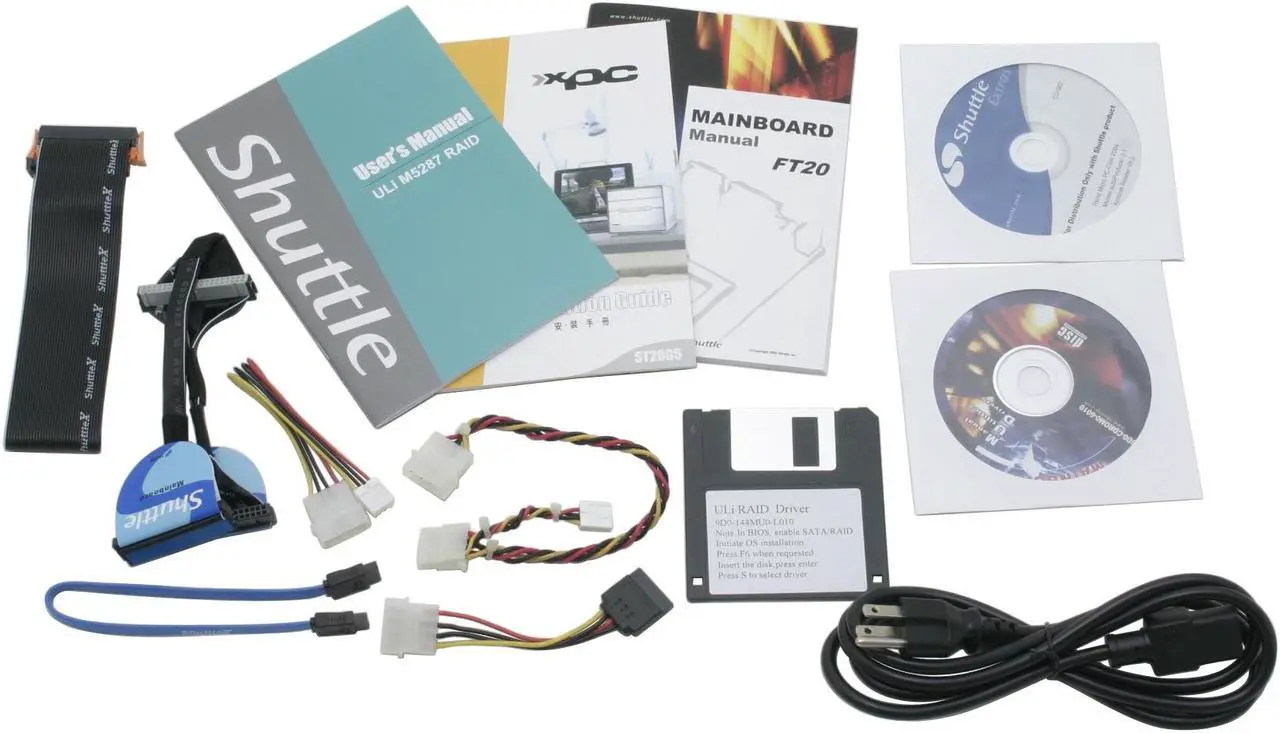

Package Contents ST20G5
User Manuals
Driver Disks
Floppy Drive Diskette
IDE/PATA Cable
FDD Cable
SATA Cable
Power Cables
Power Cord
Additional Information
Date First Available April 20, 2005
