Support Kabylake/Skylake 95W Core i3/i5/i7 LGA 1151 CPU processor
* Not Compatible with Intel 8th Gen CPUs Intel Socket LGA1151
Intel Z270
4 x 288Pin DIMM DDR4 2400/ 2133
Integrated in CPU
+
+
Overview
Specs
Reviews (2)
Any questions? Our AI beta will help you find out quickly.
Try me now
MAIN OVERVIEW FEATURES: Processor Socket: Socket H4 LGA-1151Processor Supported: Core i7,Core i3,Core i564-bit Processing: YesChipset Manufacturer: IntelChipset Model: Z270 ExpressMaximum Memory: 64 GBMemory Technology: DDR4 SDRAMMemory Standard: DDR4-2400/PC4-19200Number of Total Memory Slots: 4Controller Type: Serial ATA/600Graphics Controller Manufacturer: IntelEthernet Technology: Gigabit EthernetNumber of Total Expansion Bays: 4Number of 3.5" Bays: 4Number of Total Expansion Slots: 2Number of PCI Express x4 Slots: 1Number of PCI Express x16 Slots: 1Total Number of USB Ports: 10Number of USB 3.0 Ports: 6Number of SATA Interfaces: 4Operating System Supported: Windows 7 x64,Windows 10 x64,Linux,Windows 10,Windows 7Input Voltage: 120 V AC,230 V ACMaximum Power Supply Wattage: 500 WForm Factor: Small Form FactorHeight: 7.8"Width: 8.5"Depth: 13.1"Package Contents: XPC cube SZ270R9 Barebone System XPC Multi-Language quick guide XPC DVD Driver 4 x SATA Cable (For HDD) CPU Thermail Grease Power Cord Screw Package Limited Warranty: 3 Year
Support Kabylake/Skylake 95W Core i3/i5/i7 LGA 1151 CPU processor * Not Compatible with Intel 8th Gen CPUs
CPU Socket
Intel Socket LGA1151
Chipset
North Bridge
Intel Z270
Memory Supported
Memory installed
No Memory
Memory slot
4 x 288Pin DIMM
Memory Type Supported
DDR4 2400/ 2133
Max Memory Supported
64GB
Dual Channel Memory Supported
Yes
Expansion Slots
PCI Express
1 x PCI Express x16 + 1 x PCI Express x4
Other
1 x M.2 2230 type A,E key socket
Storage
Hard Drive Installed
No Hard Drive
Serial ATA
4 x SATA 6.0Gb/s
M.2
2 x M.2 MAX to 2280 Type M, key socket
Graphics
Onboard Video
Integrated in CPU
Audio
Onboard Audio
Realtek ALC662
Channel
5.1-CH
Communications
First LAN
2 x Intel Chip i211
Max LAN Speed
Dual 10/100/1000Mbps
Extension Bays
3.5" Internal bays

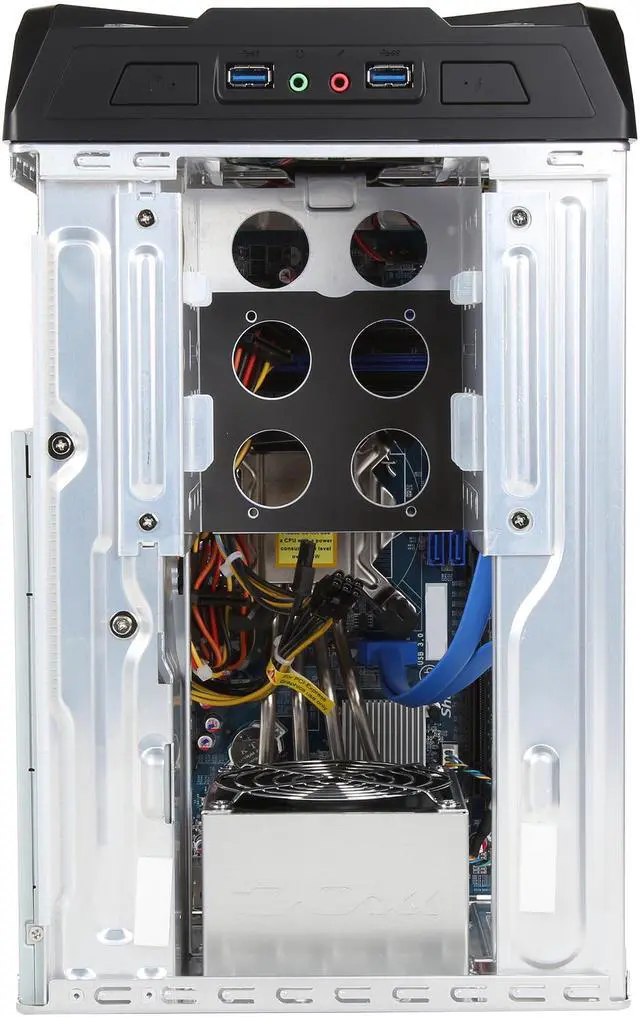

4 x 3.5" HDD bay * Supports up to 8 x 2.5" HDD using 4 x PHD3 HDD rack when the system has an extra SATA or RAID card

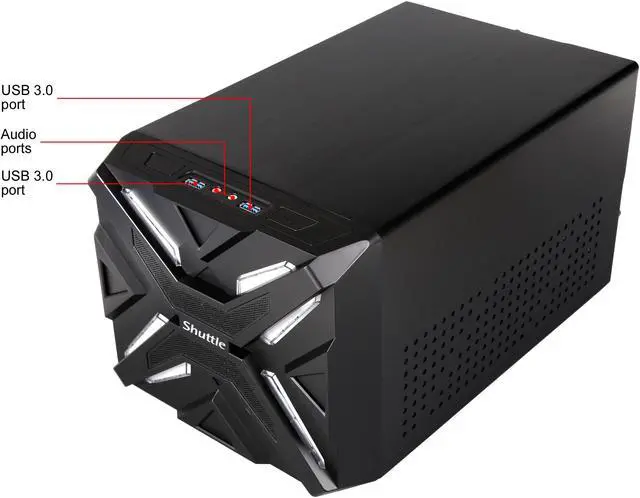

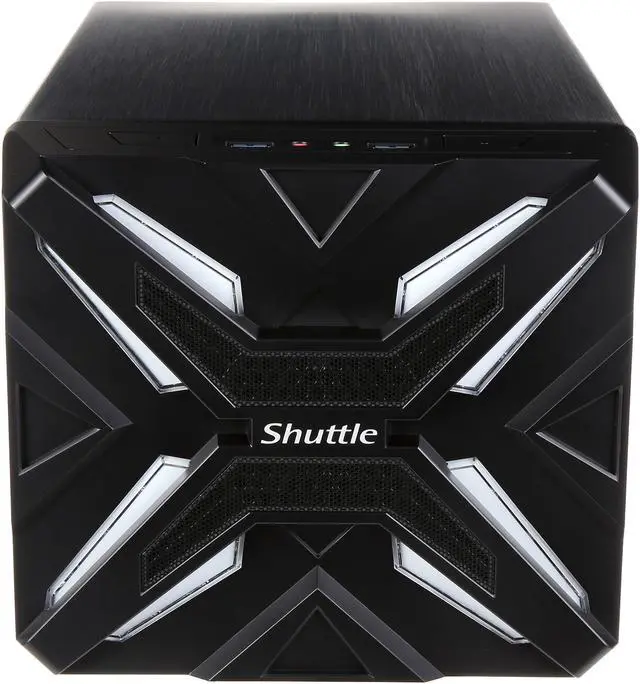

Front Panel Ports
Front USB
2 x USB 3.0 Port
Front Audio Ports
1 x External microphone jack 1/8" 1 x External headphone jack 1/8"
Other Front Ports
ONBOARD CONNECTORS: 2 x 4-pin fan connector 1 x ATX main power (2x10) 1 x ATX 12V power (2x2) 1 x RS232 header 1 x Front USB 3.0 header 1 x Front audio header 1 x 2x5-pin USB header

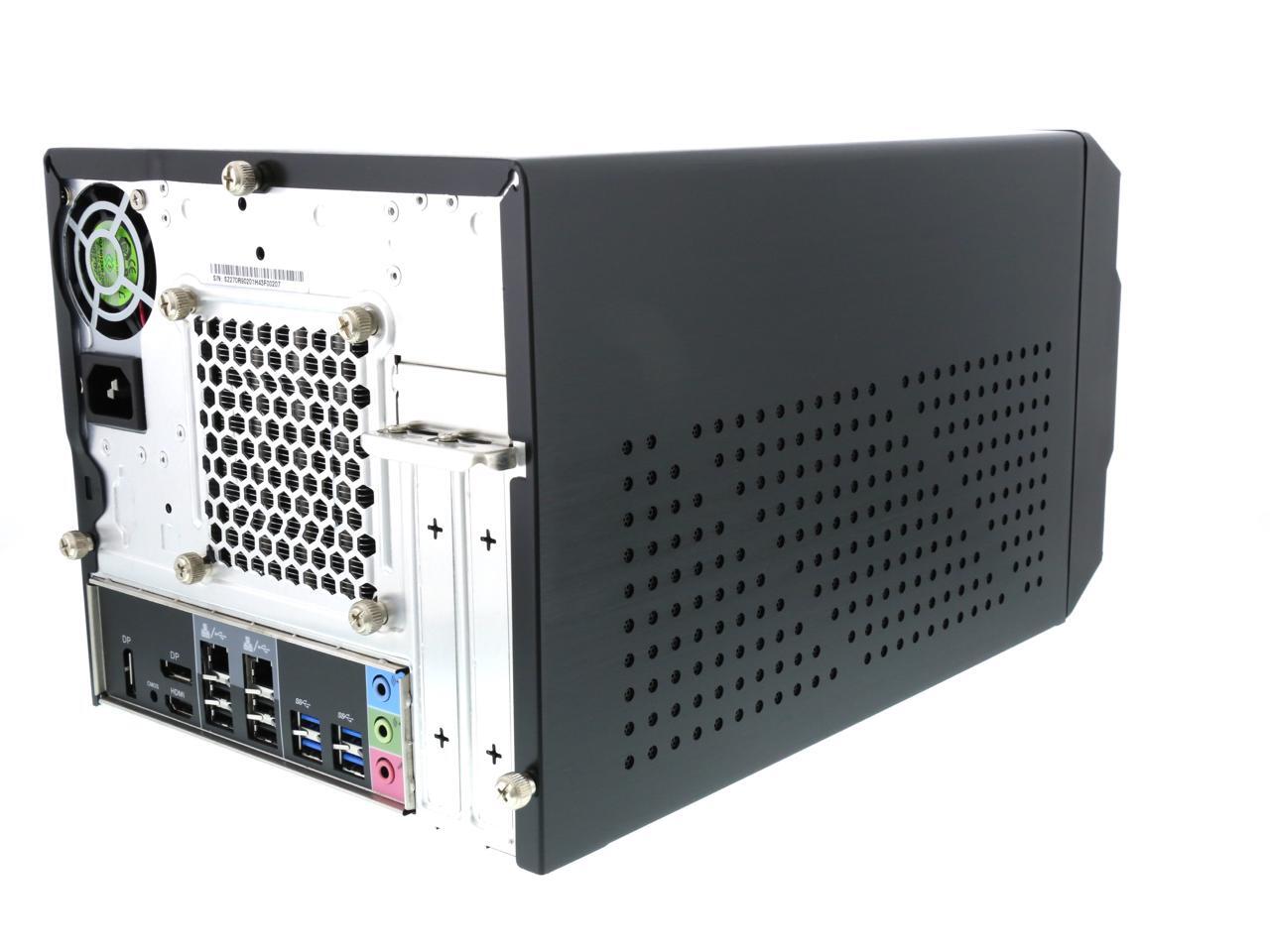

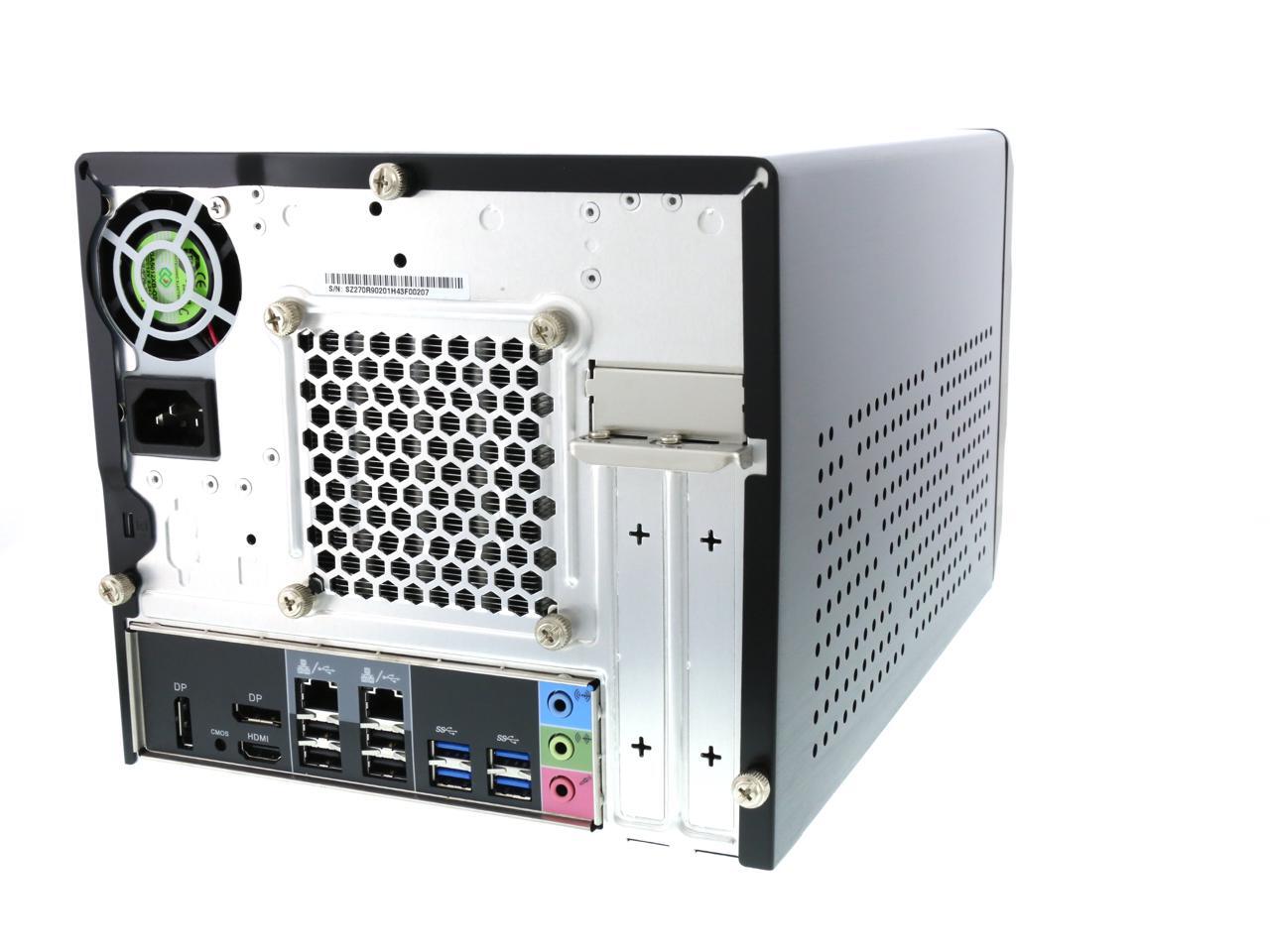

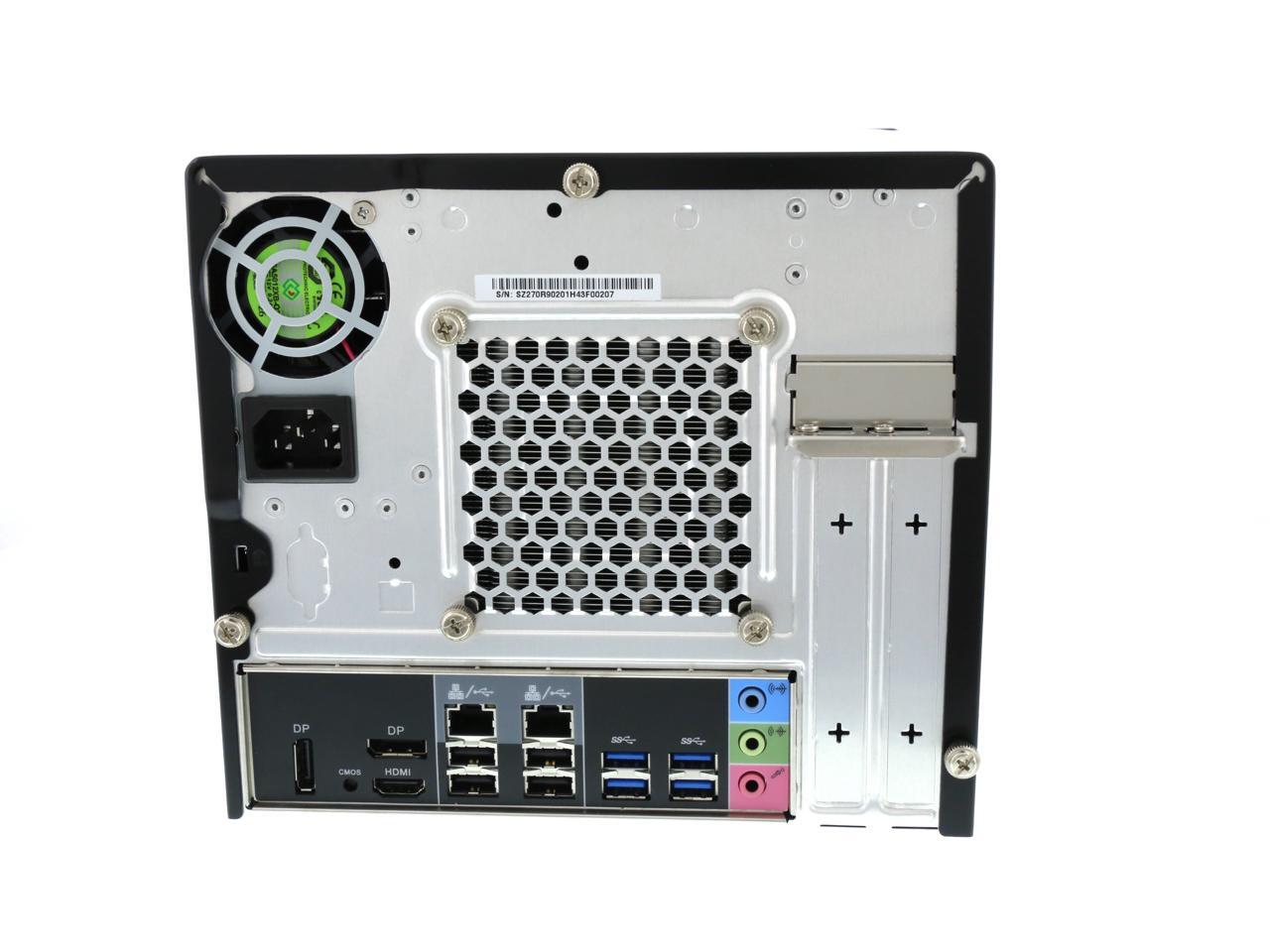

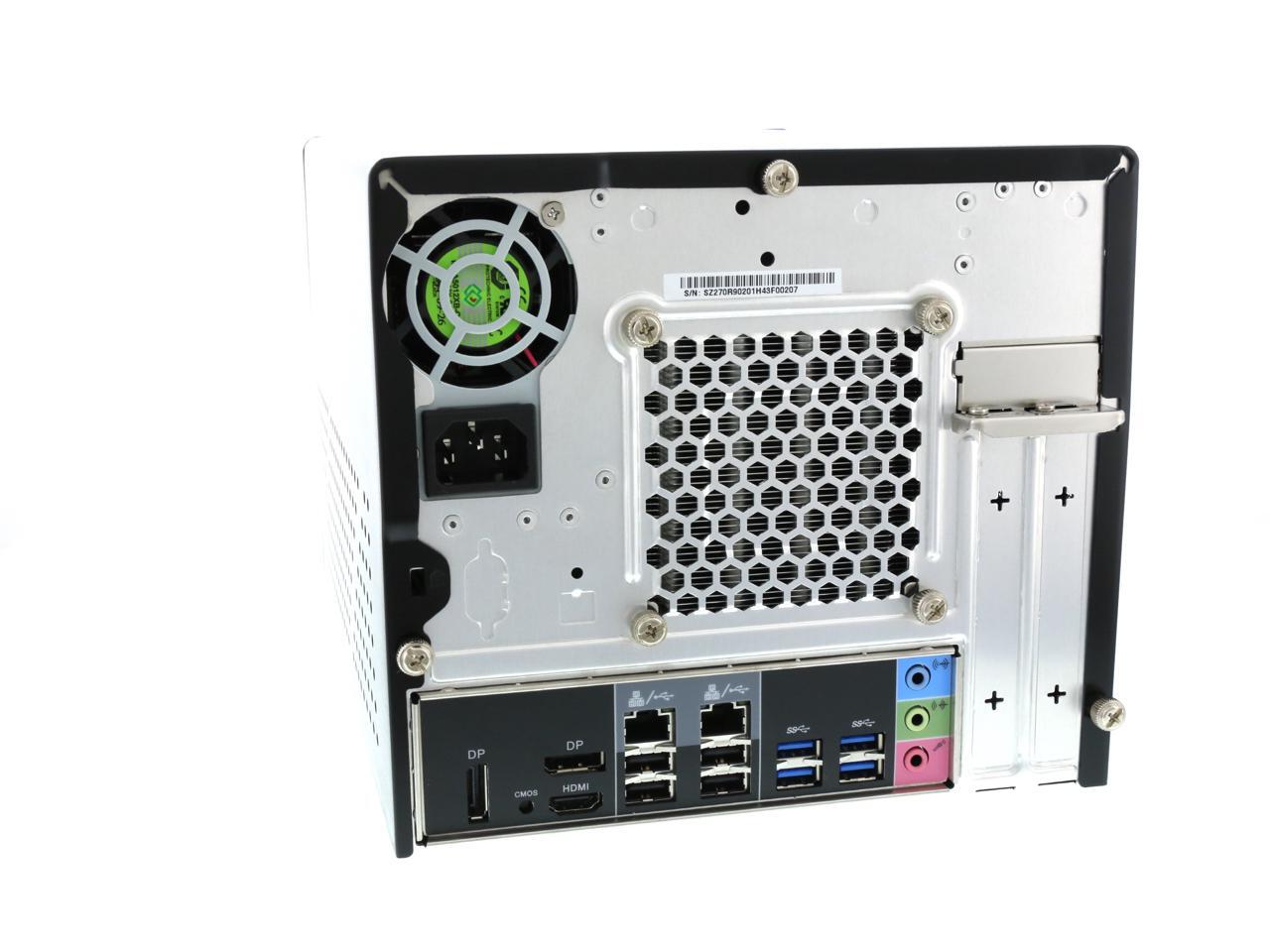

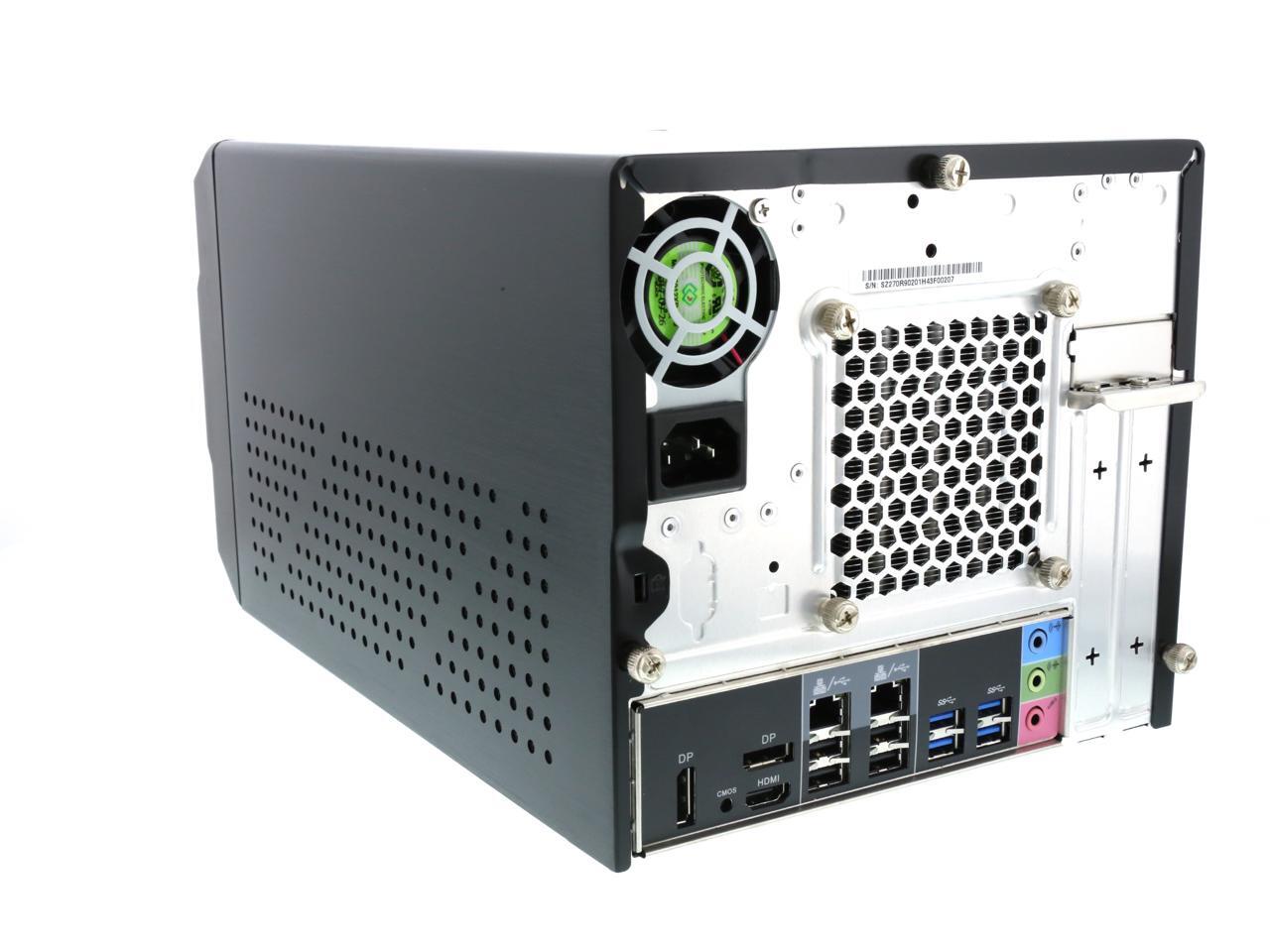

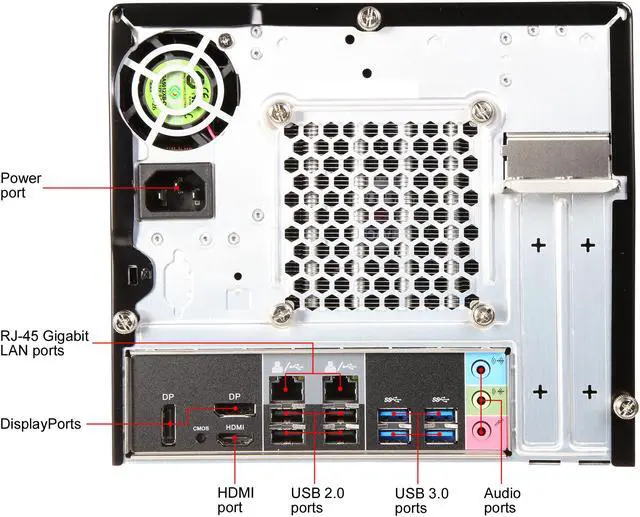

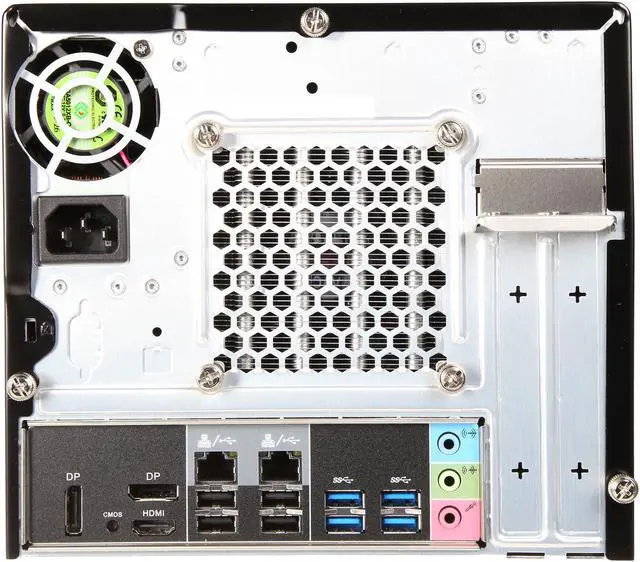

Back Panel Ports
HDMI
1 x HDMI
DisplayPort
2 x DisplayPort
Rear USB
4 x USB 2.0 Ports 4 x USB 3.0 Ports
RJ45
2
Rear Audio Ports
1 x Line in jack 1 x Line out jack 1 x Audio MIC in

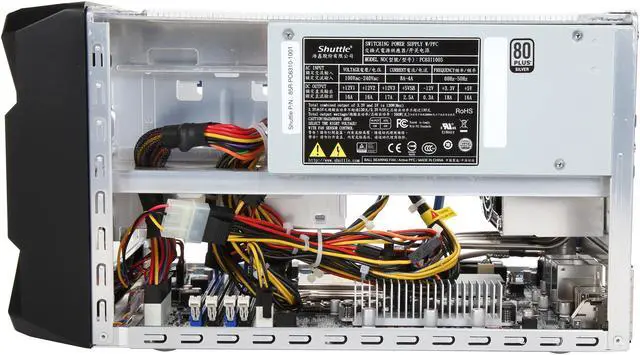

Power Supply
Input
100 - 240V AC
Power Supply
Supports 80 PLUS Silver 80 PLUS 500W power supply
Physical SPEC

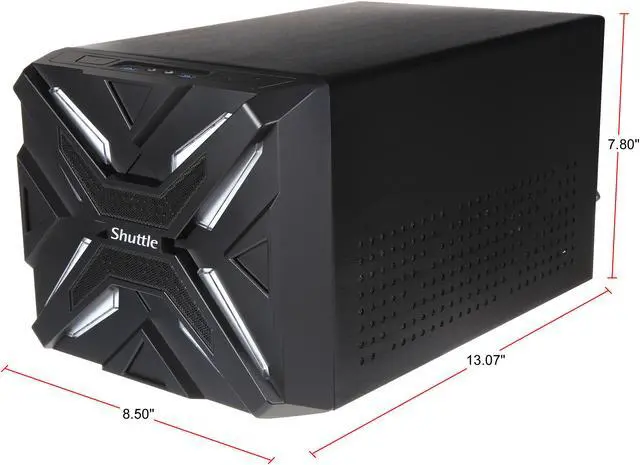

Dimensions
7.80" x 8.50" x 13.07"
Weight
11.65
Features
Features
PERFORMANCE OF YOUR CHOICE With support for Intel Core processors, you can take your game anywhere you want to go. The SZ270R9 features smooth 4K UHD video playback, power efficiency, and support for DDR4 2133/2400 memory up to 64GB max.
XPC OVERCLOCK TOOL Master your system with our XPC Overclock Tool* to monitor CPU temperature, usage, clock speed, and voltage in real time to ensure the best system stability (overclock function only available with unlocked Intel Core K processors). * available in eight languages and supports Windows 10 64-bit only
YOUR STYLE, YOUR WAY Personalize your gaming rig with the XPC RGB Light Control function. With six built-in default colors, three different light effects, and an RGB pallet bar, you can easily adjust colors for different modes to give the SZ270R9 a personal touch.
INSTANT OVERCLOCKING IN ONE TOUCH With a turbo button on the top, complex overclocking parameters don't need to be set through the BIOS. Simply press the turbo button to automatically load the most optimized overclocking configuration.
PROPER COOLING WHILE GAMING The SZ270R9 supports large dual-slot graphic cards* to boost performance for gaming. Configured with copper tube pipes, heat-pipe technology uses convection cooling to dissipate heat away from and around the CPU with low noise. * graphic cards supported up to a max size of 11" (L) x 1.5" (W) x 4.7" (H) in
IMMERSIVE VR EXPERIENCE With multi-channel HD audio and PCI-Express v3.0 for high performance graphic cards, the SZ270R9 provides users with an impressive VR experience.
ACCELERATE PERFORMANCE Support for the latest storage standards allows users to connect any device with ultra-fast storage to accelerate performance, especially while gaming.
Packaging

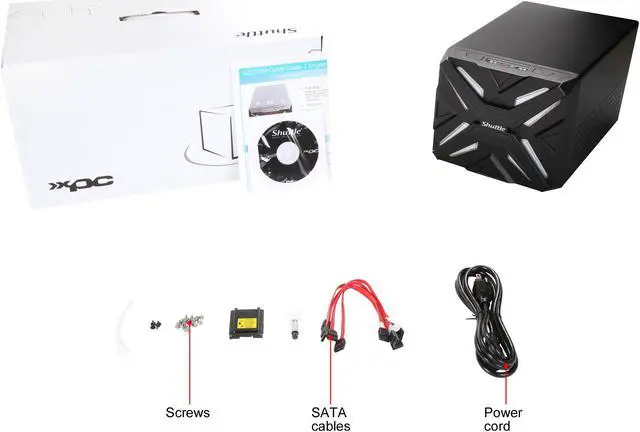

Package Contents
ACCESSORIES: Quick guide XPC DVD Driver 4 x SATA cable (For HDD) CPU Thermail Grease Power cord Screw package
