Shuttle XPC SB95P V2 Intel Socket T(LGA775) Intel 925XE Barebone
- Intel Pentium 4 / Celeron Intel Socket T(LGA775)
- Intel 925XE ICH6R
- 2 x 240Pin DIMM DDR2 533/400
- none
Specs
Reviews (21)
Any questions? Our AI mode will help you find out quickly.
Try me now
Learn more about the Shuttle Computer SB95P V2
| Brand | Shuttle |
|---|---|
| Series | XPC |
| Model | SB95P V2 |
| CPU Type | Intel Pentium 4 / Celeron |
|---|---|
| CPU Socket | Intel Socket T(LGA775) |
| FSB | 1066/800 MHz |
| North Bridge | Intel 925XE |
|---|---|
| South Bridge | ICH6R |
| Memory slot | 2 x 240Pin DIMM |
|---|---|
| Memory Type Supported | DDR2 533/400 |
| Max Memory Supported | 2GB |
| Memory Channel Supported | Dual Channel |
| PCI Express | 1 x PCI Express x16 + 1 x PCI Express x1 |
|---|
| IDE ATA | 1 x ATA 100 |
|---|---|
| Serial ATA | 4 x SATA 1.5Gb/s |
| SATA RAID | RAID 0/1 |
| Onboard Video | none |
|---|
| Onboard Audio | Integrated AC97 |
|---|---|
| Channel | 8-CH |
| First LAN | 10/100/1000 LAN |
|---|---|
| Max LAN Speed | 10/100/1000Mbps |
| 3.5" Internal bays | 2 |
|---|---|
| 3.5" External bays | 1 |
| 5.25" External bays | 1 |
| Front USB | 2 |
|---|---|
| Front IEEE 1394 | 1 |
| Front Audio Ports | 2 jacks |
| Card Reader | 8 in 1 |
| PS/2 | 2 |
|---|---|
| COM | 1 |
| Rear USB | 2 |
| Rear IEEE 1394 | 1 |
| RJ45 | 1 |
| Rear S/PDIF In | Yes |
| Rear S/PDIF Out | Yes |
| Rear Audio Ports | 5 jacks |
| Power Supply | 350W |
|---|
| Dimensions | 8.7" x 8.3" x 12.8" |
|---|---|
| Weight | 13.31 lbs. |

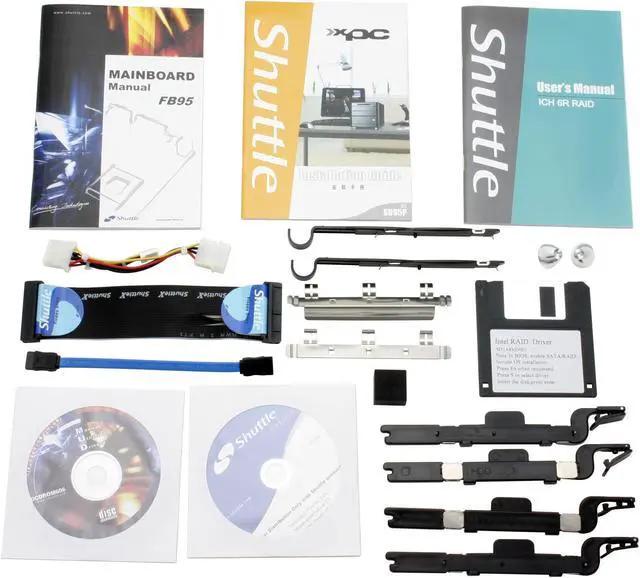

| Package Contents | SB95P V2 Driver Disks User Manuals Power Adapter Cable SATA Cable FDD Cable Floppy Drive Diskette Screws Drive Mounting Brackets |
|---|
| First Listed on Newegg | February 17, 2005 |
|---|
