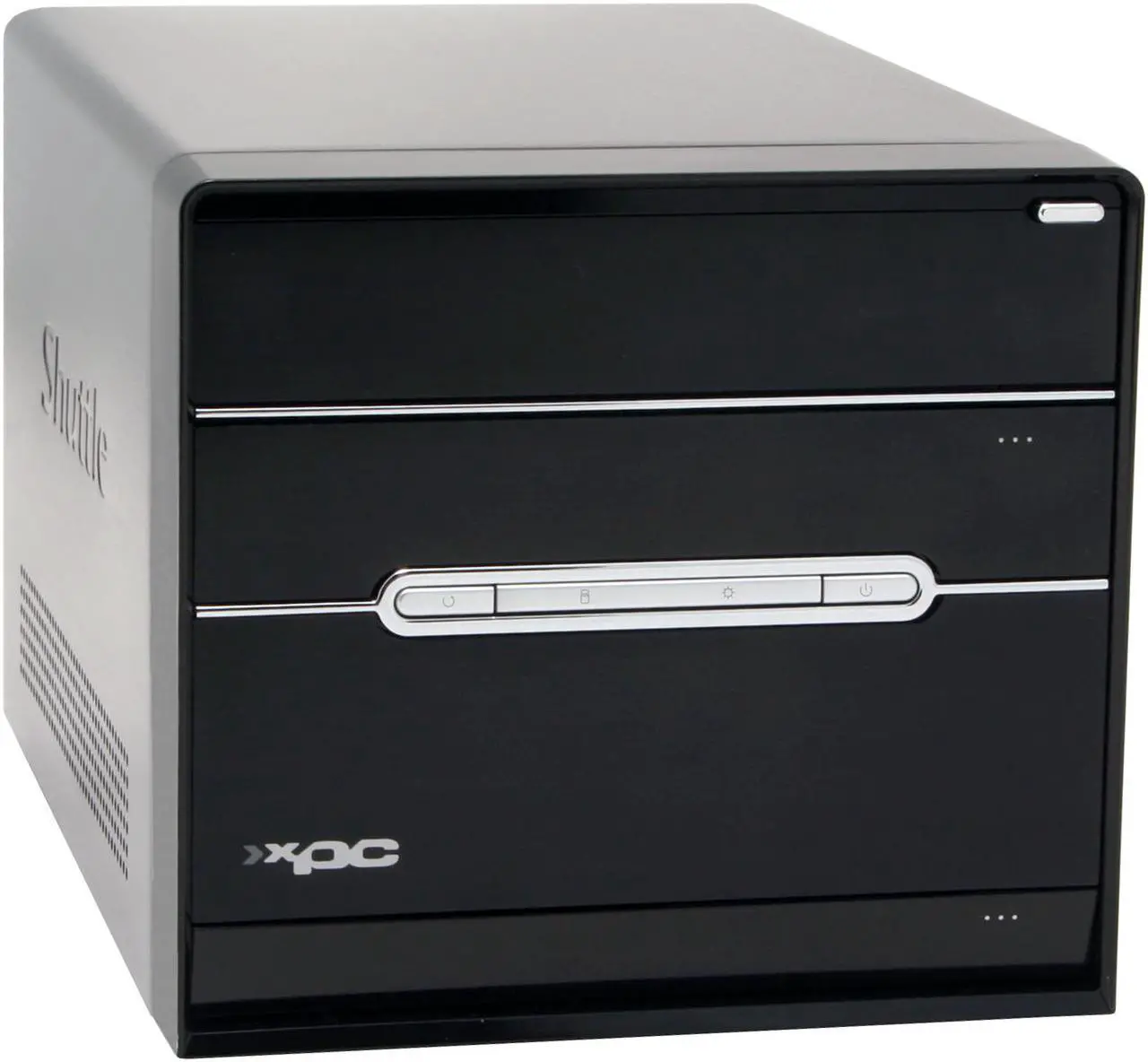

Brand | Shuttle |
---|---|
Series | XPC |
Model | SN21G5 |
CPU Type | AMD Athlon X2 / Athlon 64 FX / Athlon 64 |
---|---|
CPU Socket | AMD Socket 939 |
FSB | 1000 MHz |
North Bridge | NVIDIA GeForce 6100 |
---|---|
South Bridge | NVIDIA nForce 410 |
Memory slot | 2 x 184Pin DIMM |
---|---|
Memory Type Supported | DDR 400/333 |
Max Memory Supported | 2GB |
Dual Channel Memory Supported | Yes |
PCI Express | 1 x PCI Express x16 |
---|---|
PCI | 1 |
IDE ATA | 1 x ATA 100 |
---|---|
Serial ATA | 2 x SATA 3.0Gb/s |
SATA RAID | RAID 0/1 |
Onboard Video | GeForce 6100 |
---|---|
Video Memory | Shared |
Onboard Audio | Realtek ALC655 |
---|---|
Channel | 6-CH |
First LAN | Realtek 8201(10/100Mbps) |
---|---|
Max LAN Speed | 10/100Mbps |

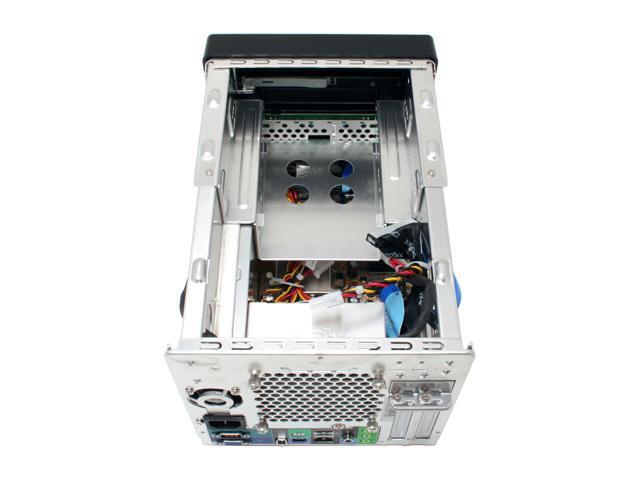

3.5" Internal bays | 1 |
---|---|
3.5" External bays | 1 |
5.25" External bays | 1 |

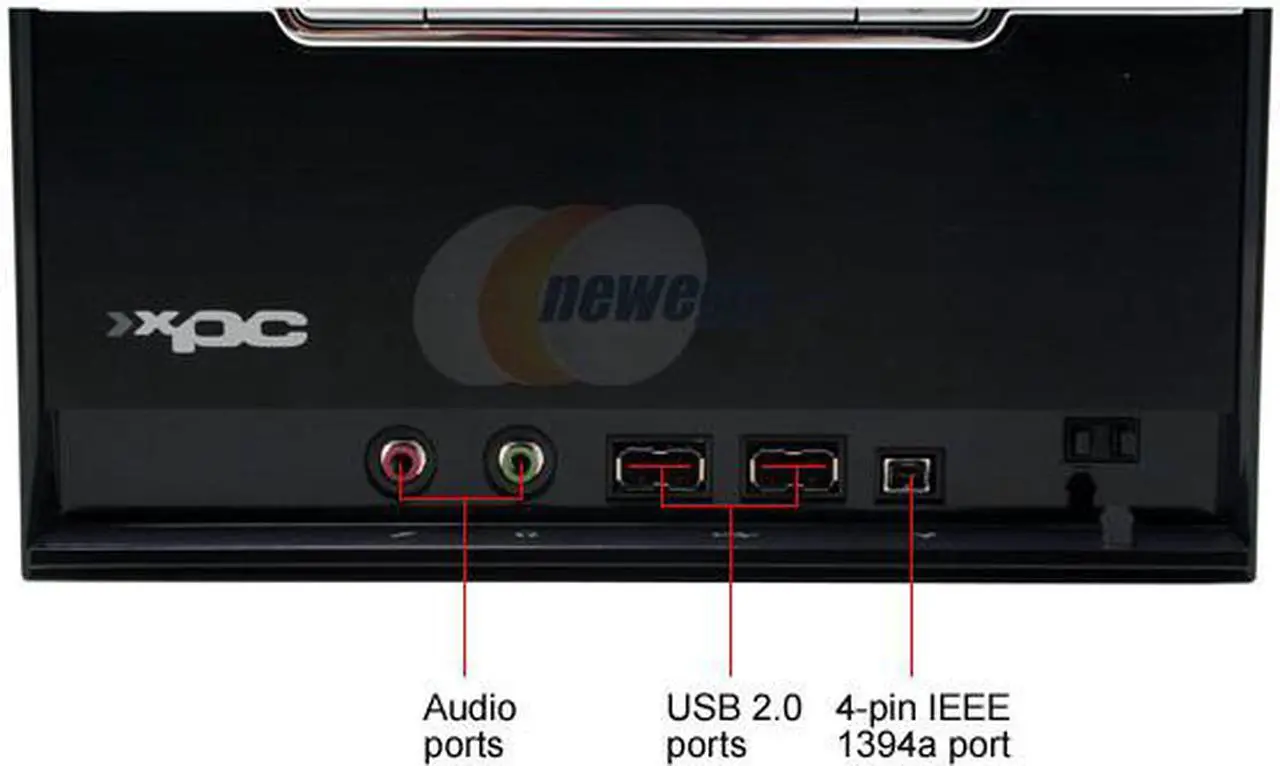

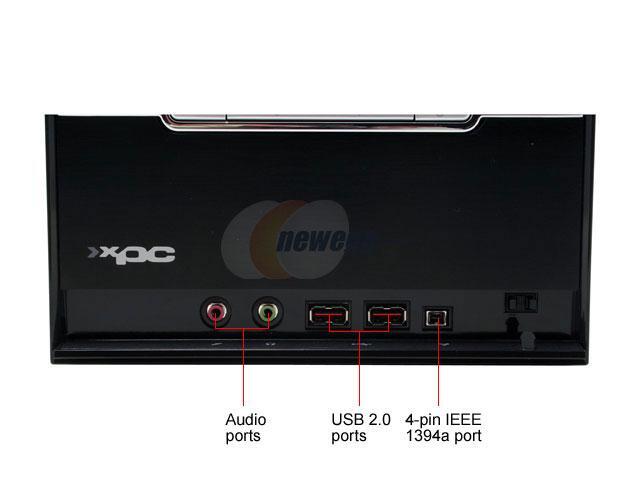

Front USB | 2 |
---|---|
Front IEEE 1394 | 1 |
Front Audio Ports | 2 jacks |

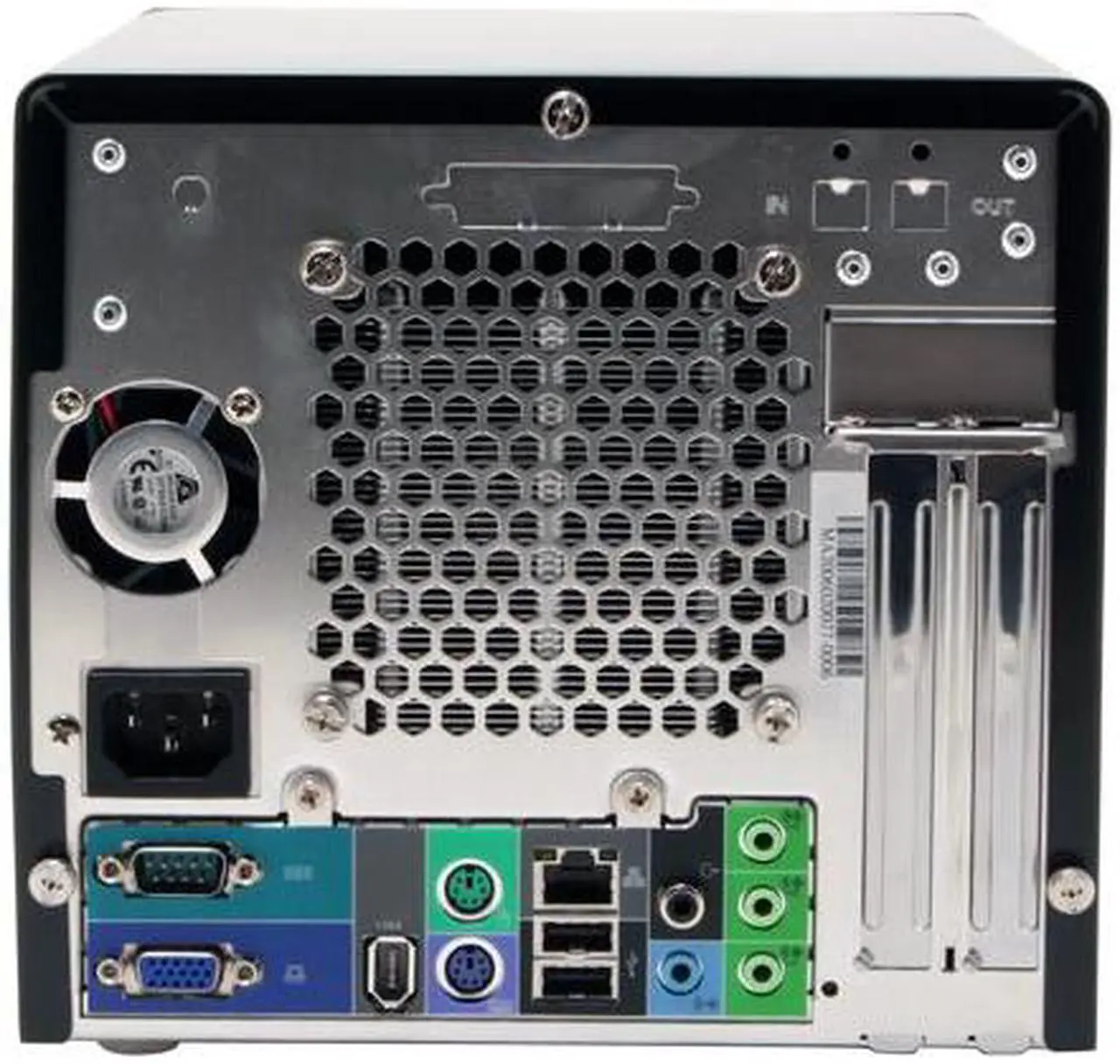

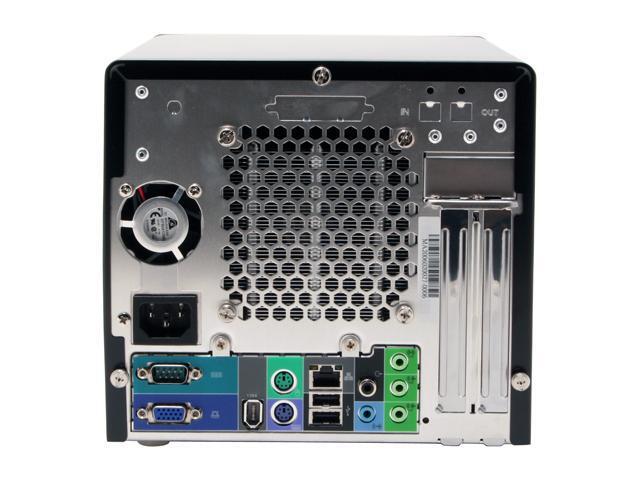

PS/2 | 2 |
---|---|
COM | 1 |
VGA | 1 x D-Sub |
Rear USB | 2 |
Rear IEEE 1394 | 1 |
RJ45 | 1 |
Rear S/PDIF Out | Yes |
Rear Audio Ports | 4 jacks |

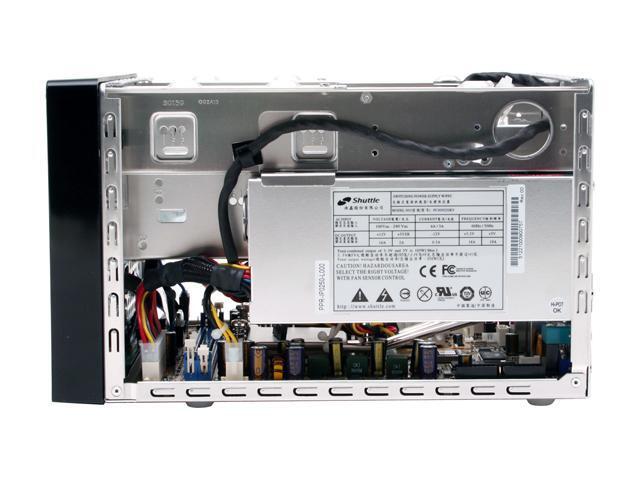

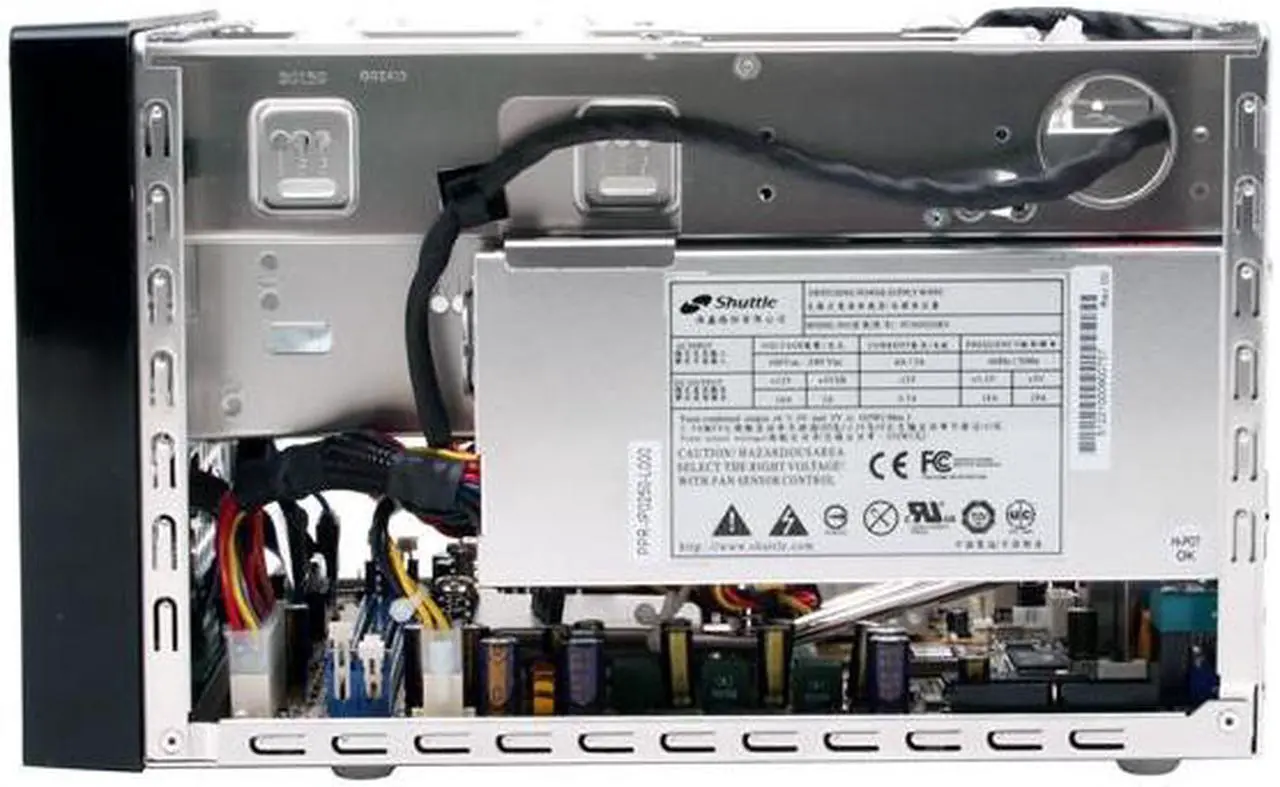

Power Supply | SilentX 250W PFC |
---|
Dimensions | 12.2" x 7.3" x 7.9" |
---|

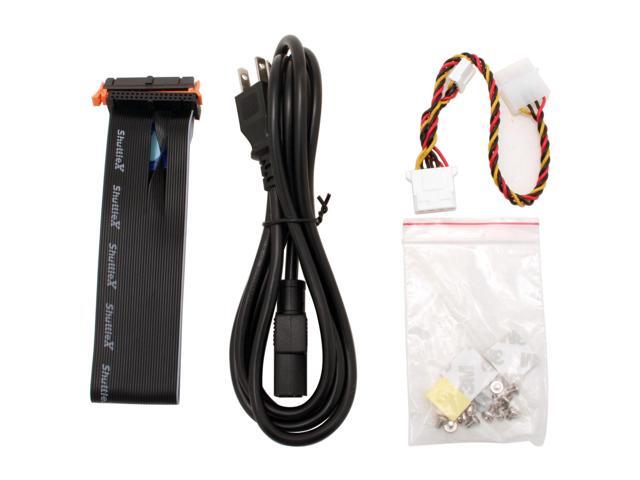

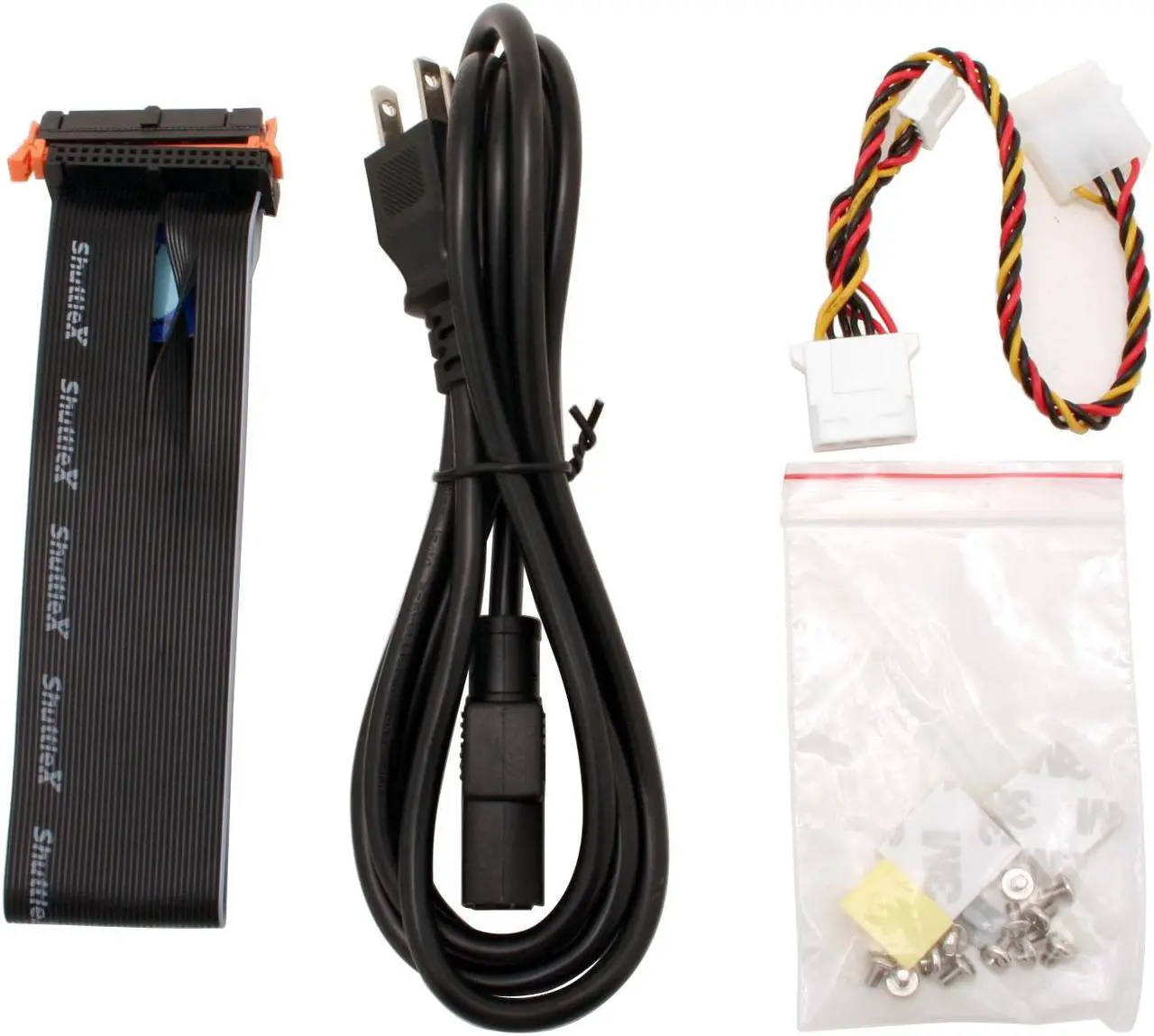

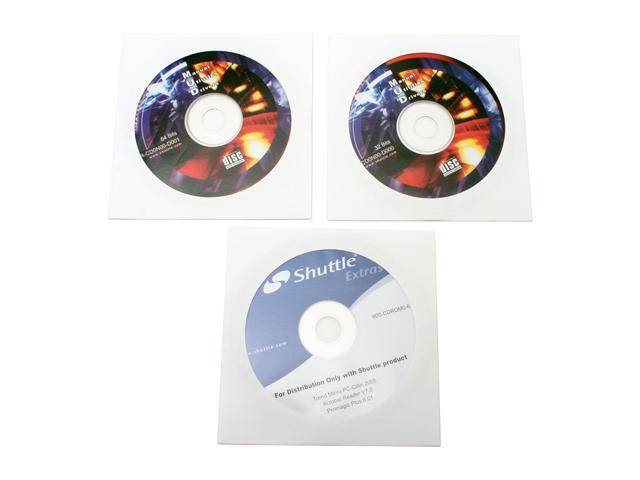

Package Contents | SN21G5 User Manual Driver Disk 2 x Floppy Drive Diskette Software Disk FDD Cable Power Adapter Cable Power Cord Screws |
---|
Date First Available | April 04, 2006 |
---|
