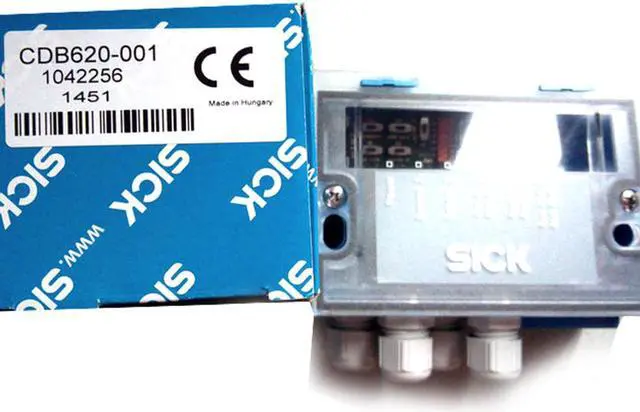

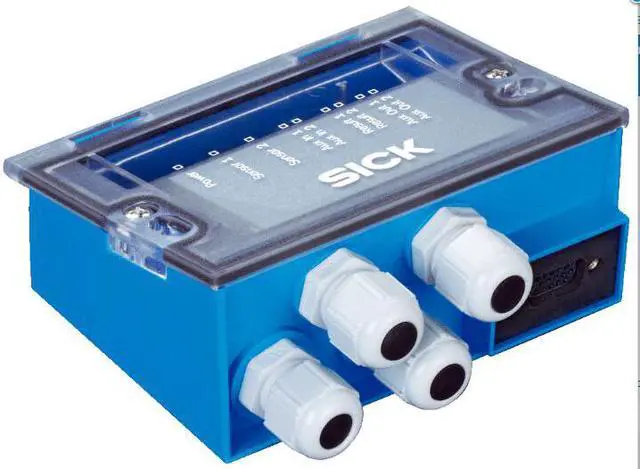

SICK CDB620-001 Small Connection Module New
- SICK CDB620-001 Small Connection Module New
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
FEATURES
Brief description Small connection module for one sensor, 4 cable glands, base for CMC600
Supported products CLV61x - CLV65x, Lector62x, RFH6xx, RFU62x
Cloning module support (CMC) Yes
Supports display module (CMD) No
Supports power supply module (CMP) No
Supports fieldbus gateway (CMF) No
MECHANICS/ELECTRONICS
Operating voltage 10 V DC ... 30 V DC 1)
Power consumption 1 W
Housing Polycarbonate
Housing color Blue (RAL 5012)
Enclosure rating IP65
Protection class III
Weight 260 g

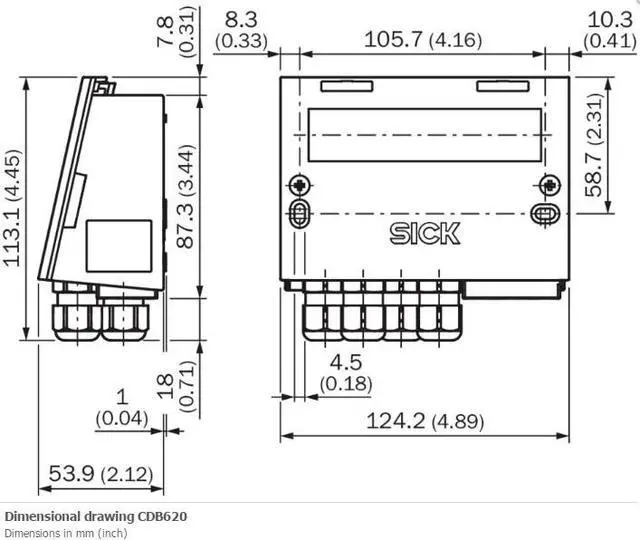

Dimensions (L x W x H) 124.2 mm x 113.1 mm x 53.9 mm
Scanner connection 15-pin D-Sub HD female connector
Service plug 9-pin D-Sub plug (internal)
Brief description Small connection module for one sensor, 4 cable glands, base for CMC600
Supported products CLV61x - CLV65x, Lector62x, RFH6xx, RFU62x
Cloning module support (CMC) Yes
Supports display module (CMD) No
Supports power supply module (CMP) No
Supports fieldbus gateway (CMF) No
MECHANICS/ELECTRONICS
Operating voltage 10 V DC ... 30 V DC 1)
Power consumption 1 W
Housing Polycarbonate
Housing color Blue (RAL 5012)
Enclosure rating IP65
Protection class III
Weight 260 g
Dimensions (L x W x H) 124.2 mm x 113.1 mm x 53.9 mm
Scanner connection 15-pin D-Sub HD female connector
Service plug 9-pin D-Sub plug (internal)
