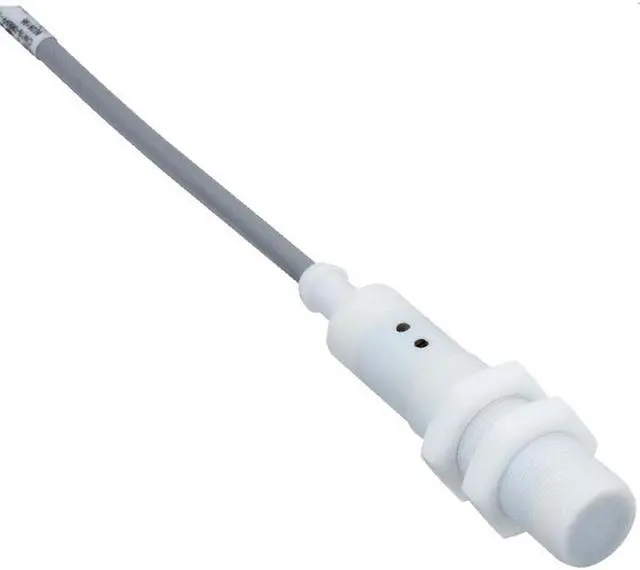

SICK CM18-08BNP-TW0 Capacitive Proximity Sensors ,NPN New

FEATURES
Housing Cylindrical thread design
Thread size M18 x 1
Diameter Ø 18 mm
Sensing range Sn 3 mm ... 8 mm
Safe sensing range Sa 5.76 mm
Installation type Flush
Switching frequency ± 30 Hz
Connection type Cable, 4-wire, 2 m 1)
Switching output NPN
Output function Complementary
Electrical wiring DC 4-wire
Adjustment Potentiometer, 270° (Sensitivity)
Enclosure rating IP67 2)

MECHANICS/ELECTRONICS
Supply voltage 10 V DC ... 36 V DC
Ripple = 10 % 1)
Voltage drop = 2.5 V DC 2)
Current consumption 10 mA 3)
Time delay before availability = 100 ms
Hysteresis 4 % ... 20 %
Reproducibility = 5 % 4) 5)
Temperature drift (of Sr) ± 10 %
EMC According to EN 60947-5-2 6)
Continuous current Ia = 200 mA
Cable material PVC
Conductor size 0.34 mm²
Short-circuit protection ?
Reverse polarity protection ?
Power-up pulse protection ?
Shock and vibration resistance 30 g, 11 ms / 10 ... 55 Hz, 1 mm
Ambient operating temperature –25 °C ... +60 °C
Housing material PTFE coating, PTFE

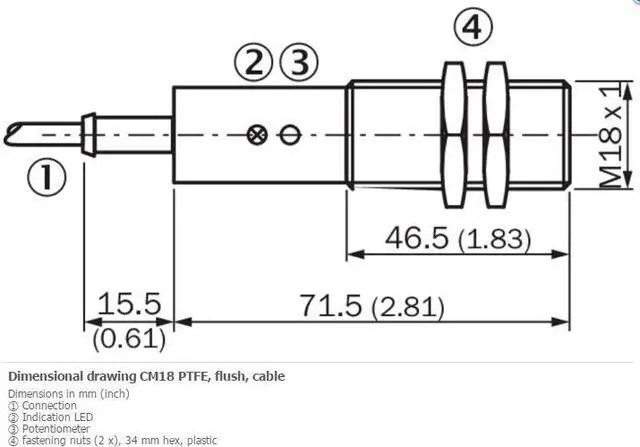

Housing length 71.5 mm
Thread length 46.5 mm
Tightening torque, max. = 2.6 Nm
