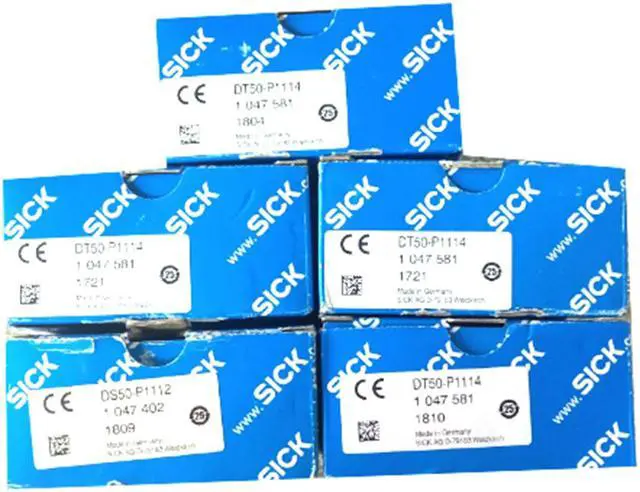

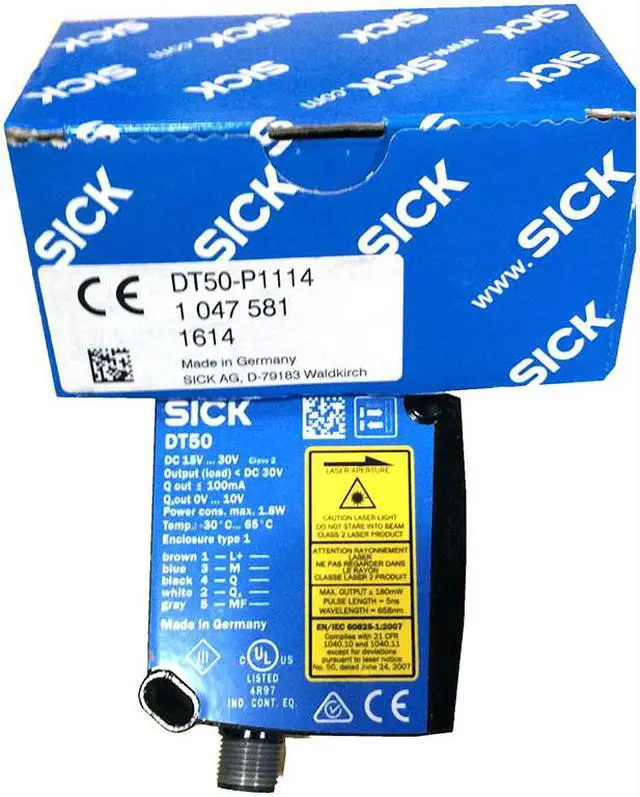

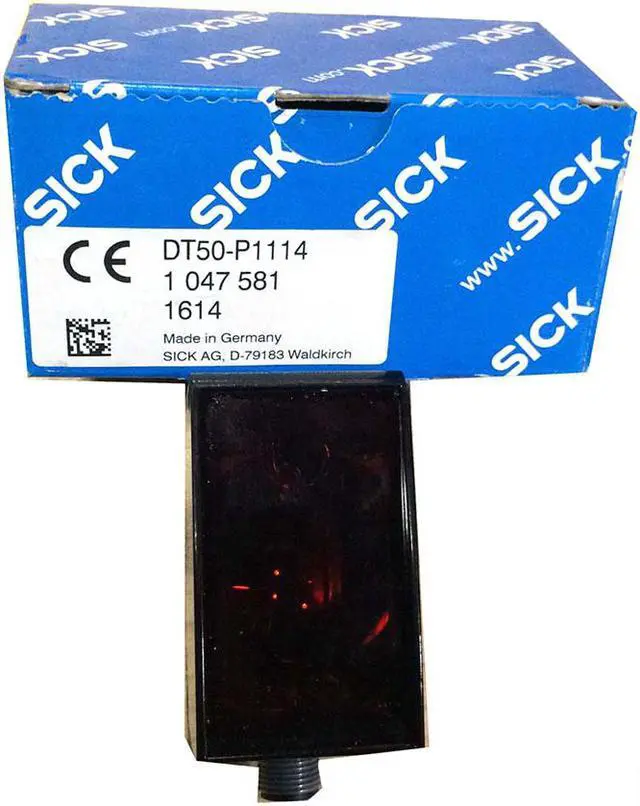

SICK DT50-P1114 Mid Range Distance Sensors New

PERFORMANCE Measuring range 200 mm... 10, 000 mm, 90 % remission 200 mm... 6, 500 mm, 18 % remission 200 mm... 4, 000 mm, 6 % remission Target Natural objects Resolution 1 mm Repeatability = 2.5 mm 1) 2) 3) Accuracy ± 10 mm 4) Response time 20 ms... 30 ms, 20 ms / 30 ms 3) 5) Output time = 4 ms 6) Light source Laser, red Laser class 2 (IEC 60825- 1:2014, EN 60825- 1:2014 ) 7) Typ.

light spot size (distance) 15 mm x 15 mm (10 m) Additional function
Set moving average: fast/slow, switching
mode: distance to object (DtO), teach-in, scaling and inversion of switching output, set hysteresis, teach-in, scaling and inversion of analog output, Multifunctional
input: laser off / external teach / deactivated, switch-off display, reset to factory default, lock user interface Average laser service life (at 25 °C) 100, 000 h MECHANICS/ELECTRONICS Supply voltage Vs DC 15 V... 30 V 1) 2) Ripple = 5 Vpp 3) Power consumption = 2.1 W 4) Initialization time = 250 ms Warm-up time = 15 min Housing material Housing zinc die cast (ZNAL4CU1) Acrylic glass (PMMA) Connection type Male connector, M12, 5-pin Indication LC display, 2 x LED Weight 200 g Enclosure rating IP65 Protection class III
