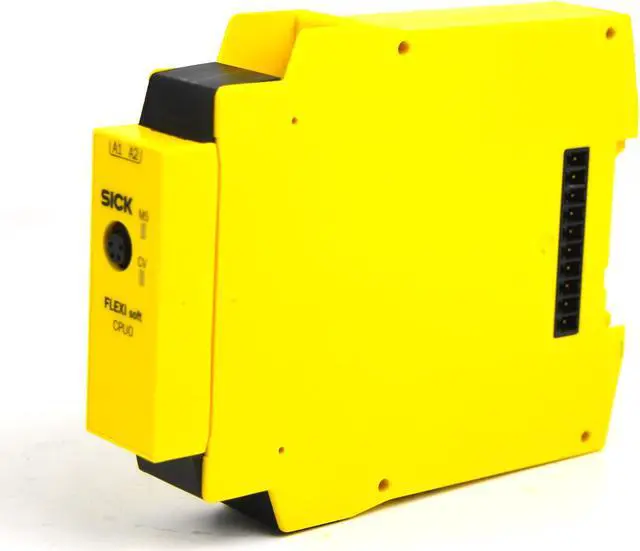

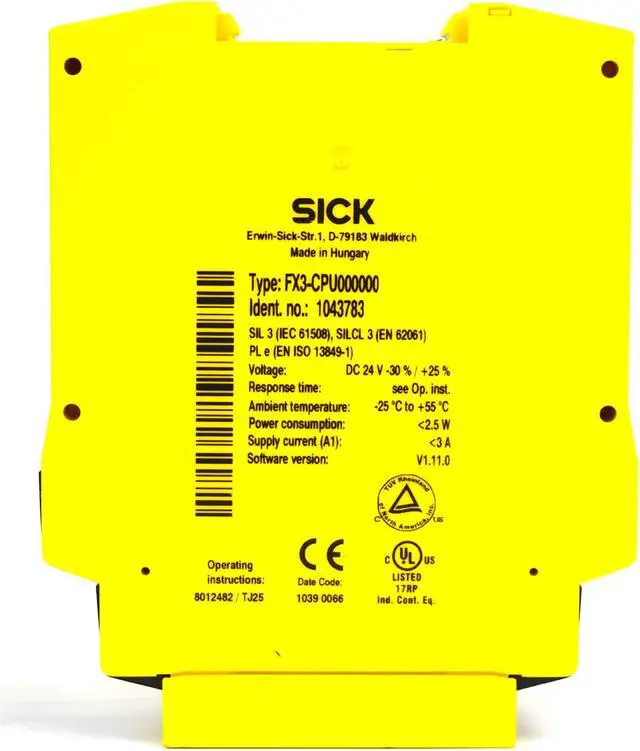

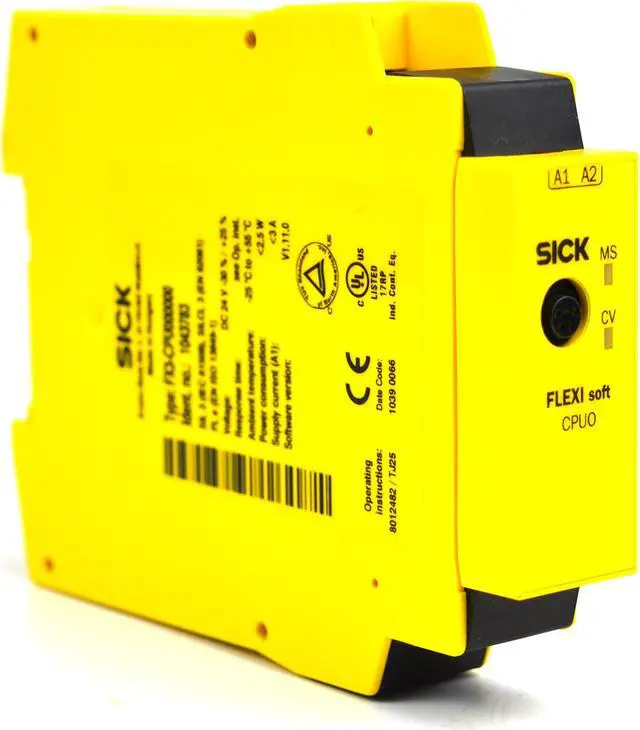

SICK FX3-CPU000000 Main Module New
- SICK FX3-CPU000000 Main Module New
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
FEATURES
Module Main module
Configuration method Via software (Flexi Soft Designer, Safe EFI-pro System: Safety Designer)
Note The system plug has to be ordered separately. For details, see “Accessories”.
Safety integrity level
SIL3 (IEC 61508)
SILCL3 (EN 62061)
Category Category 4 (EN ISO 13849)
Performance level PL e (EN ISO 13849)
PFHD (mean probability of a dangerous failure per hour) 1.07 x 10-9 (EN ISO 13849)
TM (mission time) 20 years (EN ISO 13849)
System connection System plug 1)
Number of EFI interfaces 0
Connection type Spring terminals
Configuration and diagnostics interface RS-232 (M8 female connector, 4-pin)
ELECTRICAL DATA
Protection class III (EN 61140)
Type of voltage supply PELV or SELV 1)
Supply voltage VS 24 V DC (16.8 V DC ... 30 V DC)
Internal power consumption = 2.5 W
Overvoltage category II (EN 61131-2)
Switch-on time = 18 s
MECHANICAL DATA
Dimensions (W x H x D) 22.5 mm x 96.5 mm x 120.6 mm
Weight 111 g (± 5 %)
Module Main module
Configuration method Via software (Flexi Soft Designer, Safe EFI-pro System: Safety Designer)
Note The system plug has to be ordered separately. For details, see “Accessories”.
Safety integrity level
SIL3 (IEC 61508)
SILCL3 (EN 62061)
Category Category 4 (EN ISO 13849)
Performance level PL e (EN ISO 13849)
PFHD (mean probability of a dangerous failure per hour) 1.07 x 10-9 (EN ISO 13849)
TM (mission time) 20 years (EN ISO 13849)
System connection System plug 1)
Number of EFI interfaces 0
Connection type Spring terminals
Configuration and diagnostics interface RS-232 (M8 female connector, 4-pin)
ELECTRICAL DATA
Protection class III (EN 61140)
Type of voltage supply PELV or SELV 1)
Supply voltage VS 24 V DC (16.8 V DC ... 30 V DC)
Internal power consumption = 2.5 W
Overvoltage category II (EN 61131-2)
Switch-on time = 18 s
MECHANICAL DATA
Dimensions (W x H x D) 22.5 mm x 96.5 mm x 120.6 mm
Weight 111 g (± 5 %)
