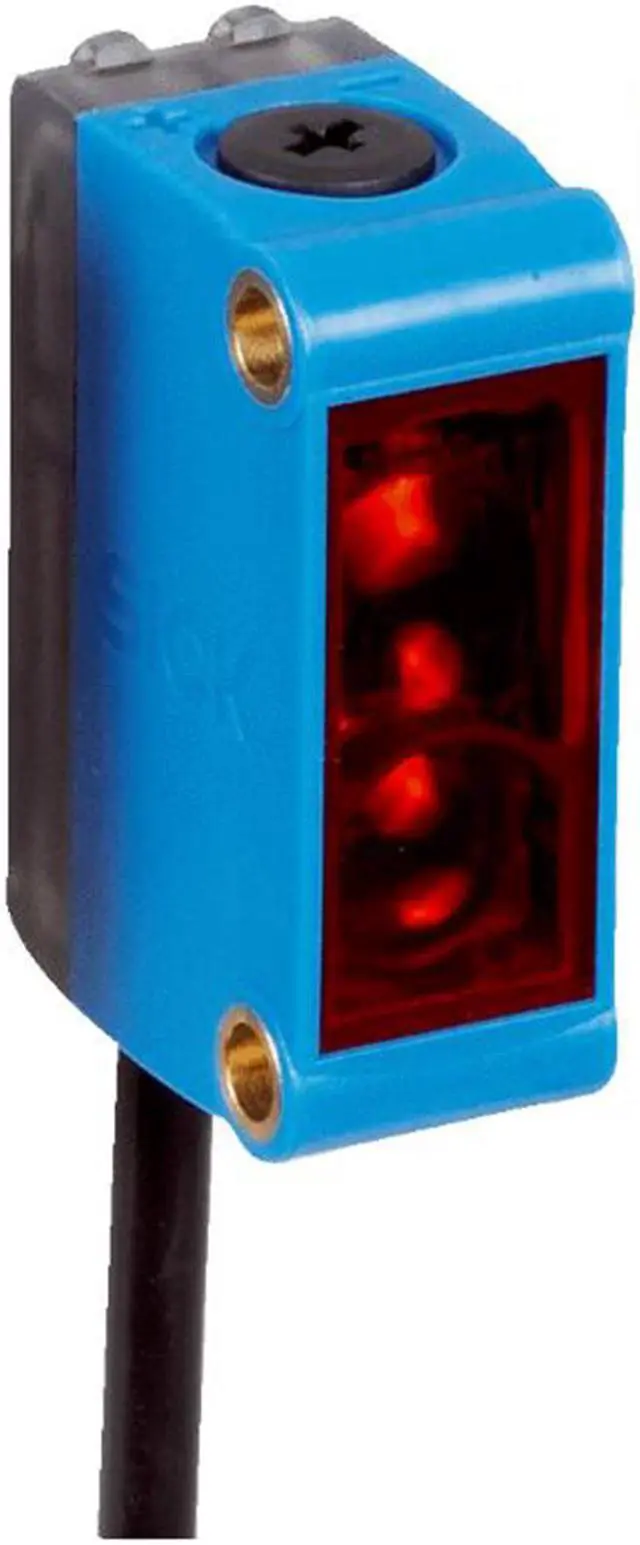

    SICK GL6-N1212 Miniature photoelectric sensors ,NPN New

    • SICK GL6-N1212 Miniature photoelectric sensors ,NPN New
    +
    +
    Overview
    Specs
    Reviews
    avatar

    Any questions? Our AI beta will help you find out quickly.

    FEATURES
    Sensor/ detection principle Photoelectric retro-reflective sensor, Dual lens

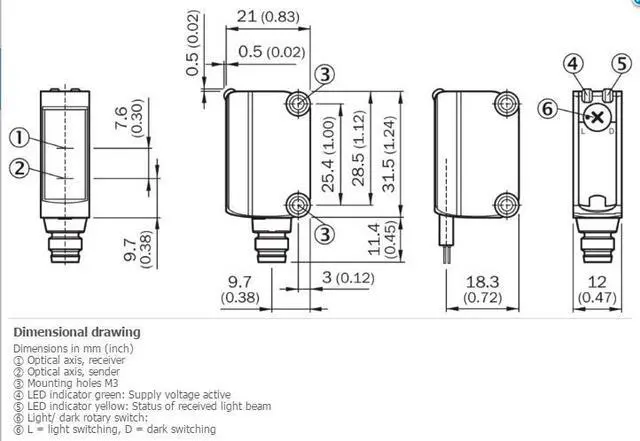

    Dimensions (W x H x D) 12 mm x 31.5 mm x 21 mm
    Housing design (light emission) Rectangular
    Sensing range max. = 6 m 1)
    Sensing range = 5 m 1)
    Type of light Visible red light
    Light source PinPoint LED 2)
    Light spot size (distance) Ø 8 mm (350 mm)
    Wave length 650 nm
    Adjustment Potentiometer, 270°

    MECHANICS/ELECTRONICS
    Supply voltage 10 V DC ... 30 V DC 1)
    Ripple ± 10 % 2)
    Power consumption 30 mA 3)
    Switching output NPN
    Switching mode Light/dark switching
    Switching mode selector Selectable via light/dark selector
    Signal voltage NPN HIGH/LOW Approx. VS / = 3 V
    Output current Imax. = 100 mA 4)
    Response time < 625 µs 5)
    Switching frequency 1,000 Hz 6)
    Connection type Cable, 3-wire, 2 m 7)
    Cable material PVC
    Circuit protection
    A 8)
    B 9)
    D 10)
    Protection class III
    Weight 60 g
    Polarisation filter ?
    Housing material Plastic, ABS/PC
    Optics material Plastic, PMMA
    Enclosure rating IP67
    Items supplied Stainless steel mounting bracket (1.4301/304) BEF-W100-A, Reflector P250
    Ambient operating temperature –25 °C ... +55 °C 11)
    Ambient storage temperature –40 °C ... +70 °C
    UL File No. NRKH.E348498 & NRKH7.E348498
