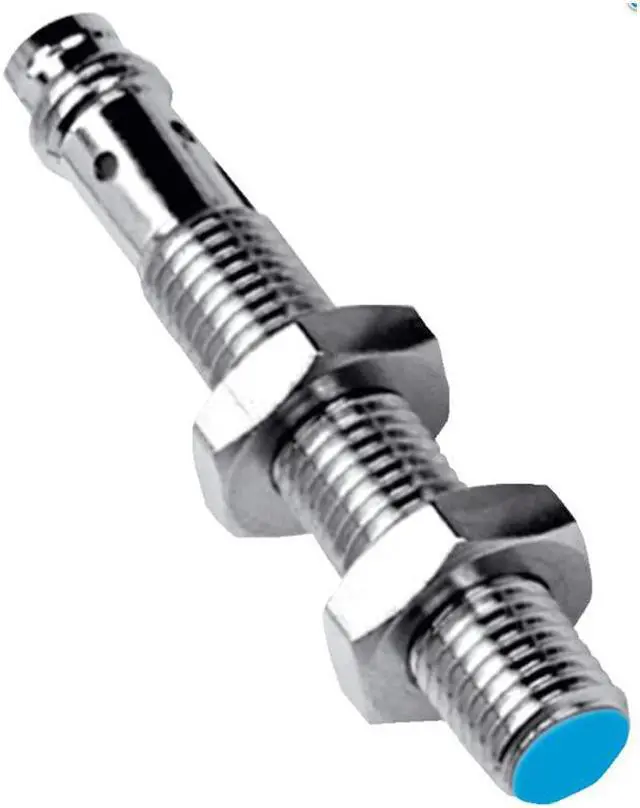

SICK IM08-02BNO-ZTK Cylindrical thread design ,NPN New
- SICK IM08-02BNO-ZTK Cylindrical thread design ,NPN New
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
Features
Housing Cylindrical thread design
Housing Short-body
Thread size M8 x 1
Diameter Ø 8 mm
Sensing range Sn 2 mm
Installation type Flush
Switching frequency 3,000 Hz
Connection type Connector M8, 3-pin
Switching output NPN
Output function NC
Electrical wiring DC 3-wire
Enclosure rating IP67 1)
MECHANICS/ELECTRONICS
Mechanics/electronics
Supply voltage 10 V DC ... 30 V DC
Ripple = 10 % 1)
Voltage drop = 1.2 V 2)
Current consumption 10 mA 3)
Time delay before availability = 5 ms
Hysteresis 1 % ... 20 %
Reproducibility = 5 % 4) 5)
Temperature drift (of Sr) ± 10 %
EMC According to EN 60947-5-2
Continuous current Ia = 200 mA
Short-circuit protection ?
Reverse polarity protection ?
Power-up pulse protection ?
Shock and vibration resistance 30 g, 11 ms / 10 ... 55 Hz, 1 mm
Ambient operating temperature –25 °C ... +70 °C
Housing material Metal, Nickel-plated brass
Sensing face material Plastic, Plastic

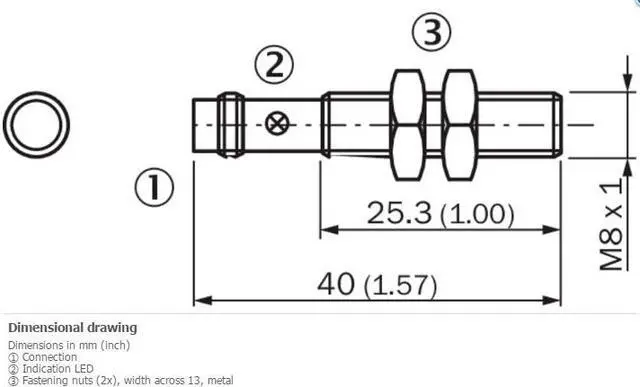

Housing length 40 mm
Thread length 25.3 mm
Tightening torque, max. 4 Nm
Housing Cylindrical thread design
Housing Short-body
Thread size M8 x 1
Diameter Ø 8 mm
Sensing range Sn 2 mm
Installation type Flush
Switching frequency 3,000 Hz
Connection type Connector M8, 3-pin
Switching output NPN
Output function NC
Electrical wiring DC 3-wire
Enclosure rating IP67 1)
MECHANICS/ELECTRONICS
Mechanics/electronics
Supply voltage 10 V DC ... 30 V DC
Ripple = 10 % 1)
Voltage drop = 1.2 V 2)
Current consumption 10 mA 3)
Time delay before availability = 5 ms
Hysteresis 1 % ... 20 %
Reproducibility = 5 % 4) 5)
Temperature drift (of Sr) ± 10 %
EMC According to EN 60947-5-2
Continuous current Ia = 200 mA
Short-circuit protection ?
Reverse polarity protection ?
Power-up pulse protection ?
Shock and vibration resistance 30 g, 11 ms / 10 ... 55 Hz, 1 mm
Ambient operating temperature –25 °C ... +70 °C
Housing material Metal, Nickel-plated brass
Sensing face material Plastic, Plastic
Housing length 40 mm
Thread length 25.3 mm
Tightening torque, max. 4 Nm
