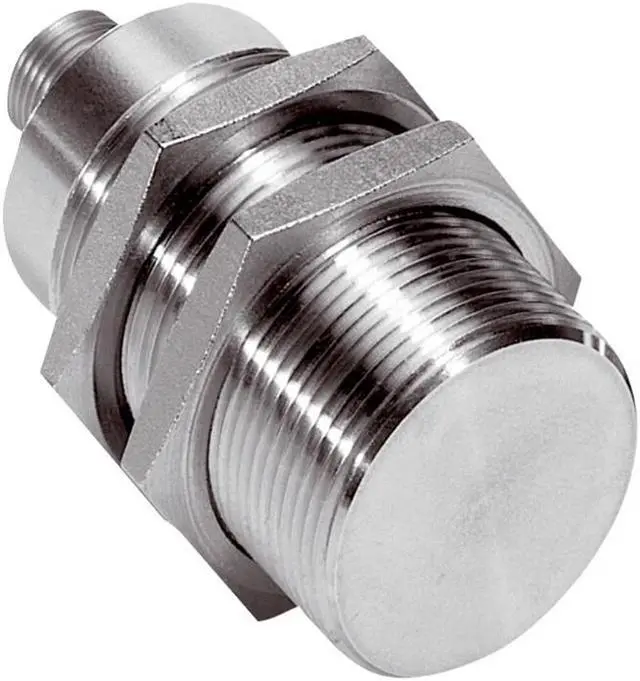

SICK IM30-20BPS-NC1 Inductive proximity sensors ,PNP,New
- SICK IM30-20BPS-NC1 Inductive proximity sensors ,PNP,New
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Features
Housing Cylindrical thread design
Thread size M30 x 1.5
Diameter Ø 30 mm
Sensing range Sn 20 mm
Safe sensing range Sa 16.2 mm
Installation type Flush
Switching frequency 100 Hz
Connection type Male connector M12, 4-pin
Switching output PNP
Output function NO
Electrical wiring DC 3-wire
Enclosure rating IP68, IP69K 1)
Special features Metal Face, triple sensing range
MECHANICS/ELECTRONICS
Mechanics/electronics
Supply voltage 10 V DC ... 30 V DC
Ripple = 20 % 1)
Voltage drop = 2 V 2)
Current consumption 10 mA 3)
Time delay before availability = 40 ms
Hysteresis 1 % ... 15 %
Reproducibility = 5 % 4) 5)
Temperature drift (of Sr) = 10 %
EMC According to EN 60947-5-2
Continuous current Ia = 200 mA
Short-circuit protection ?
Reverse polarity protection ?
Power-up pulse protection ?
Shock and vibration resistance 30 g, 11 ms / 10 ... 55 Hz, 1 mm
Ambient operating temperature –25 °C ... +85 °C
Housing material Stainless steel, V4A (1.4435, 316L)
Sensing face material Stainless steel, V4A (1.4435, 316L)

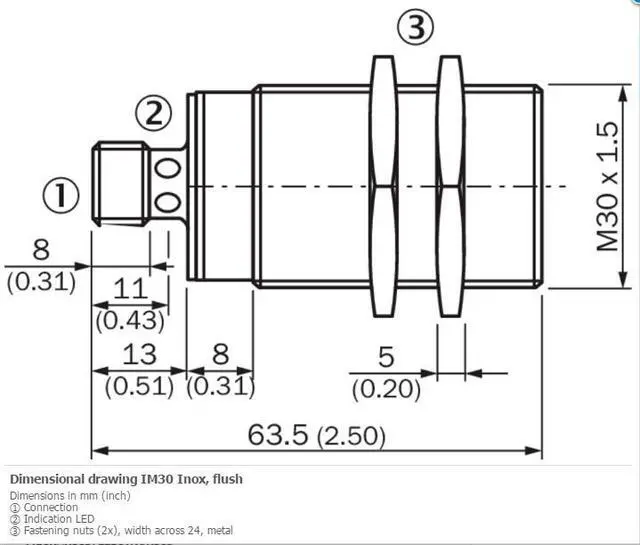

Housing length 63.5 mm
Thread length 42 mm
Tightening torque, max. 150 Nm
UL File No. E191603
Housing Cylindrical thread design
Thread size M30 x 1.5
Diameter Ø 30 mm
Sensing range Sn 20 mm
Safe sensing range Sa 16.2 mm
Installation type Flush
Switching frequency 100 Hz
Connection type Male connector M12, 4-pin
Switching output PNP
Output function NO
Electrical wiring DC 3-wire
Enclosure rating IP68, IP69K 1)
Special features Metal Face, triple sensing range
MECHANICS/ELECTRONICS
Mechanics/electronics
Supply voltage 10 V DC ... 30 V DC
Ripple = 20 % 1)
Voltage drop = 2 V 2)
Current consumption 10 mA 3)
Time delay before availability = 40 ms
Hysteresis 1 % ... 15 %
Reproducibility = 5 % 4) 5)
Temperature drift (of Sr) = 10 %
EMC According to EN 60947-5-2
Continuous current Ia = 200 mA
Short-circuit protection ?
Reverse polarity protection ?
Power-up pulse protection ?
Shock and vibration resistance 30 g, 11 ms / 10 ... 55 Hz, 1 mm
Ambient operating temperature –25 °C ... +85 °C
Housing material Stainless steel, V4A (1.4435, 316L)
Sensing face material Stainless steel, V4A (1.4435, 316L)
Housing length 63.5 mm
Thread length 42 mm
Tightening torque, max. 150 Nm
UL File No. E191603
