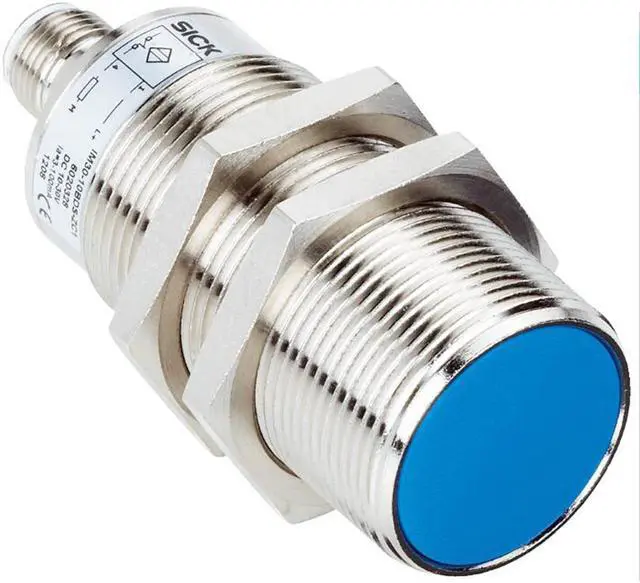

SICK IM30-20NPO-ZC1 Cylindrical thread design ,PNP,New
- SICK IM30-20NPO-ZC1 Cylindrical thread design ,PNP,New
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Features
Housing Cylindrical thread design
Housing Standard
Thread size M30 x 1.5
Diameter Ø 30 mm
Sensing range Sn 20 mm
Installation type Non-flush
Switching frequency 150 Hz
Connection type Male connector M12, 4-pin
Switching output PNP
Output function NC
Electrical wiring DC 3-wire
Enclosure rating IP67 1)
MECHANICS/ELECTRONICS
Mechanics/electronics
Supply voltage 10 V DC ... 30 V DC
Ripple = 10 % 1)
Voltage drop = 1 V 2)
Current consumption 10 mA 3)
Time delay before availability = 100 ms
Hysteresis 2 % ... 15 %
Reproducibility = 5 % 4) 5)
Temperature drift (of Sr) ± 10 %
EMC According to EN 60947-5-2
Continuous current Ia = 400 mA
Short-circuit protection ?
Reverse polarity protection ?
Power-up pulse protection ?
Shock and vibration resistance 30 g, 11 ms / 10 ... 55 Hz, 1 mm
Ambient operating temperature –25 °C ... +70 °C
Housing material Metal, Nickel-plated brass
Sensing face material Plastic, Plastic

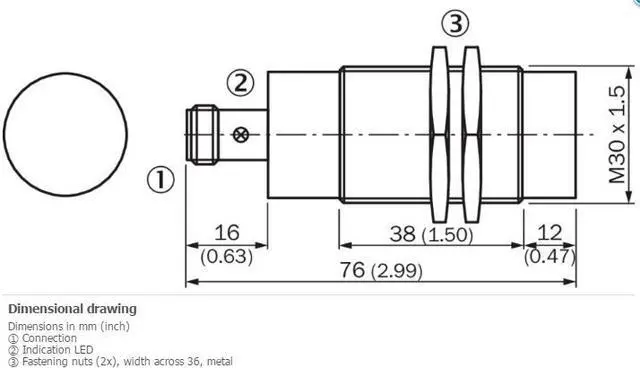

Housing length 76 mm
Thread length 38 mm
Tightening torque, max. 60 Nm
Housing Cylindrical thread design
Housing Standard
Thread size M30 x 1.5
Diameter Ø 30 mm
Sensing range Sn 20 mm
Installation type Non-flush
Switching frequency 150 Hz
Connection type Male connector M12, 4-pin
Switching output PNP
Output function NC
Electrical wiring DC 3-wire
Enclosure rating IP67 1)
MECHANICS/ELECTRONICS
Mechanics/electronics
Supply voltage 10 V DC ... 30 V DC
Ripple = 10 % 1)
Voltage drop = 1 V 2)
Current consumption 10 mA 3)
Time delay before availability = 100 ms
Hysteresis 2 % ... 15 %
Reproducibility = 5 % 4) 5)
Temperature drift (of Sr) ± 10 %
EMC According to EN 60947-5-2
Continuous current Ia = 400 mA
Short-circuit protection ?
Reverse polarity protection ?
Power-up pulse protection ?
Shock and vibration resistance 30 g, 11 ms / 10 ... 55 Hz, 1 mm
Ambient operating temperature –25 °C ... +70 °C
Housing material Metal, Nickel-plated brass
Sensing face material Plastic, Plastic
Housing length 76 mm
Thread length 38 mm
Tightening torque, max. 60 Nm
