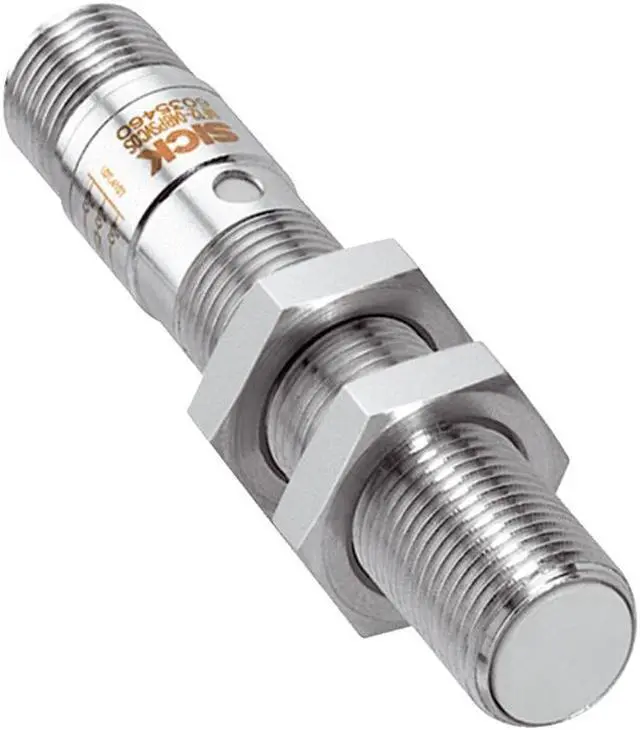

SICK IMF12-04BNOVC0S Cylindrical thread design ,NPN ,New
- SICK IMF12-04BNOVC0S Cylindrical thread design ,NPN ,New
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Features
Housing Cylindrical thread design
Thread size M12 x 1
Diameter Ø 12 mm
Sensing range Sn 4 mm
Safe sensing range Sa 3.24 mm
Installation type Flush
Switching frequency 2,000 Hz
Connection type Male connector M12, 4-pin
Switching output NPN
Output function NC
Electrical wiring DC 3-wire
Enclosure rating
IP68 1)
IP69K 2)
MECHANICS/ELECTRONICS
Mechanics/electronics
Supply voltage 10 V DC ... 30 V DC
Ripple = 10 %
Voltage drop = 2 V 1)
Current consumption 15 mA 2)
Time delay before availability Approx. 50 ms
Hysteresis 1 % ... 20 %
Reproducibility 5 % 3) 4)
Temperature drift (of Sr) ± 10 %
EMC According to EN 60947-5-2
Continuous current Ia = 200 mA
Short-circuit protection ?
Reverse polarity protection ?
Power-up pulse protection ?
Shock and vibration resistance 30 g, 11 ms/10 Hz ... 55 Hz, 1 mm
Ambient operating temperature –40 °C ... +80 °C 5)
Housing material Stainless steel, Stainless steel V4A (1.4404, 316L)
Sensing face material Plastic, PPS
Housing length 65 mm
Thread length 39 mm
Tightening torque, max. 20 Nm
Housing Cylindrical thread design
Thread size M12 x 1
Diameter Ø 12 mm
Sensing range Sn 4 mm
Safe sensing range Sa 3.24 mm
Installation type Flush
Switching frequency 2,000 Hz
Connection type Male connector M12, 4-pin
Switching output NPN
Output function NC
Electrical wiring DC 3-wire
Enclosure rating
IP68 1)
IP69K 2)
MECHANICS/ELECTRONICS
Mechanics/electronics
Supply voltage 10 V DC ... 30 V DC
Ripple = 10 %
Voltage drop = 2 V 1)
Current consumption 15 mA 2)
Time delay before availability Approx. 50 ms
Hysteresis 1 % ... 20 %
Reproducibility 5 % 3) 4)
Temperature drift (of Sr) ± 10 %
EMC According to EN 60947-5-2
Continuous current Ia = 200 mA
Short-circuit protection ?
Reverse polarity protection ?
Power-up pulse protection ?
Shock and vibration resistance 30 g, 11 ms/10 Hz ... 55 Hz, 1 mm
Ambient operating temperature –40 °C ... +80 °C 5)
Housing material Stainless steel, Stainless steel V4A (1.4404, 316L)
Sensing face material Plastic, PPS
Housing length 65 mm
Thread length 39 mm
Tightening torque, max. 20 Nm
